Imaginary Picture of GJ 27.1 b

Display orbital revolution of GJ 27.1 b around the hoststar GJ 27.1
/
Exoplanet Name : GJ 27.1 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.2088 (Rjup) 2.3405 (Rearth)
Mass (Mjup / Me): 0.0409 (Mjup) 13.0044 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.1010 (AU) 0.1010 (AU Est.)
Eccentricity : 0.0800
Orbital Period(Yrs) 0.0433
Orbital Period(Observed/Estimated) 15.82 (Days Obs.) 16.10 (Days Est.)
Surface Gravity (G Earth) 2.3739
Star Radiation at Atmospheric Boundary: 4519.7 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 365.9 (K)
Blackbody T 0.3(K) 343.7 (K)
Blackbody T 0.7(K) 278.1 (K)
Tidally Locked Blackbody T 0.1(K) 435.2 (K)
Tidally Locked Blackbody T 0.3(K) 408.7 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Radial Velocity
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : GJ 27.1
Alternate Name :
Star Distance(LY) : 77.0
Stellar Radius(Rsun) : 0.5 (Rsun Estimated)
Stellar Mass(Msun) : 0.5 (Msun Measured) 0.5 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 3542 (K)
Spectral type : M0.5V
UV portion[%]: 0.2
Visible portion[%]: 10.5
IR portion[%]: 89.2
Metalicity : 0.0
Absolute Magnitude: 9.5
Apparent Magnitude: 11.4
Right Ascension(RA) 9.9951
Declination (DEC) -43.7468
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Allard,rance; Hauschildt,eter.; Baraffe,sabelle; Chabrier,illes"
Discovery Paper - Title Synthetic Spectra and Mass Determination of the Brown Dwarf GI 229B
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=GJ+27.1+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/GJ%2027.1%20b/
GJ 27.1 b
GJ 27.1 b

  • GJ 27.1 b is an exoplanet orbiting the star GJ 27.1, located about 77.0 light-years (23.6 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star GJ 27.1 has apparent magnitude of 11.4, with absolute magnitude of 9.5.
  • It is 0.5 times more massive and 0.5 times bigger compared with our Sun. The surface temperature is 3542 with its spectral types of M0.5V
  • In this planetary system, the extrasolar planet GJ 27.1 b orbits around the star GJ 27.1 every 15.8 days with its orbital distance of 0.10 AU ( 15109384.9 km)
  • (Projected orbit of GJ 27.1 b around its host star GJ 27.1)


  • The Star GJ 27.1 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.133 AU ( 19871632.3 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.184 AU ( 27467788.9 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.280 AU ( 41854831.6 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.412 AU ( 61591218.3 km)
  • Radiation at Planetary Boundary of GJ 27.1 b : 4519.73 W/m2

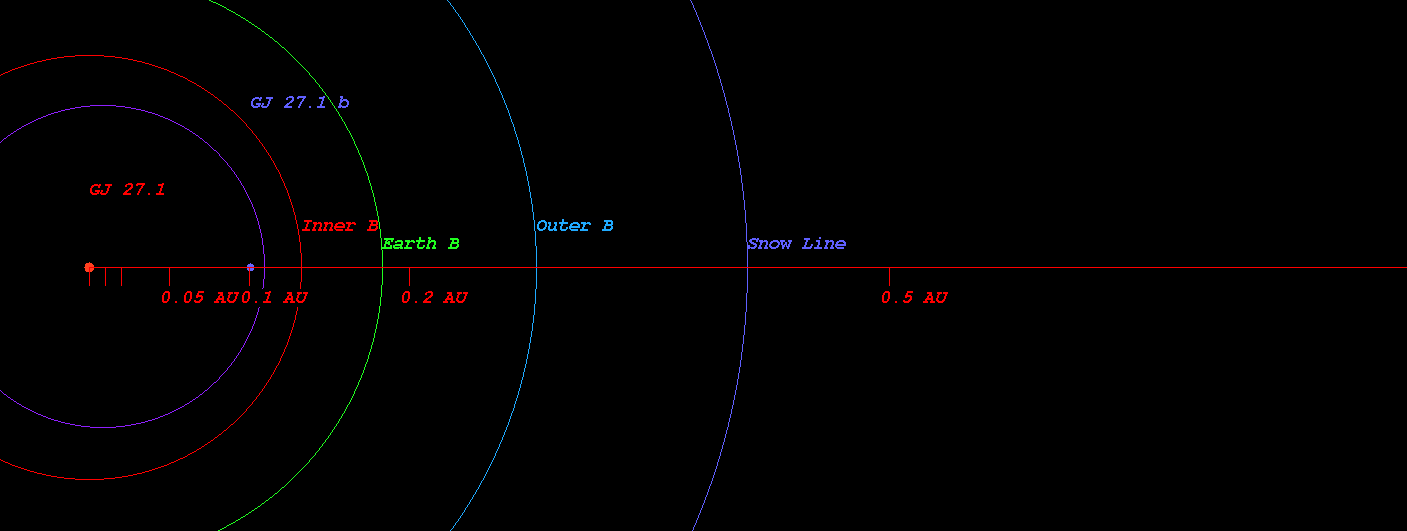

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star GJ 27.1)



  • Kopparapu Recent Venus for Star GJ 27.1 distance : 0.150 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star GJ 27.1 distance : 0.190 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star GJ 27.1 distance : 0.183 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star GJ 27.1 distance : 0.202 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star GJ 27.1 distance : 0.369 AU
  • Kopparapu Outer Boundary for Early Mars for Star GJ 27.1 distance : 0.389 AU

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star GJ 27.1)



  • Original Kopparapu Recent Venus for Star GJ 27.1 distance : 0.149 AU
  • Original Kopparapu Runaway Greenhouse for Star GJ 27.1 distance : 0.197 AU
  • Original Kopparapu Moist Greenhouse for Star GJ 27.1 distance : 0.197 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star GJ 27.1 distance : 0.374 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star GJ 27.1 distance : 0.389 AU

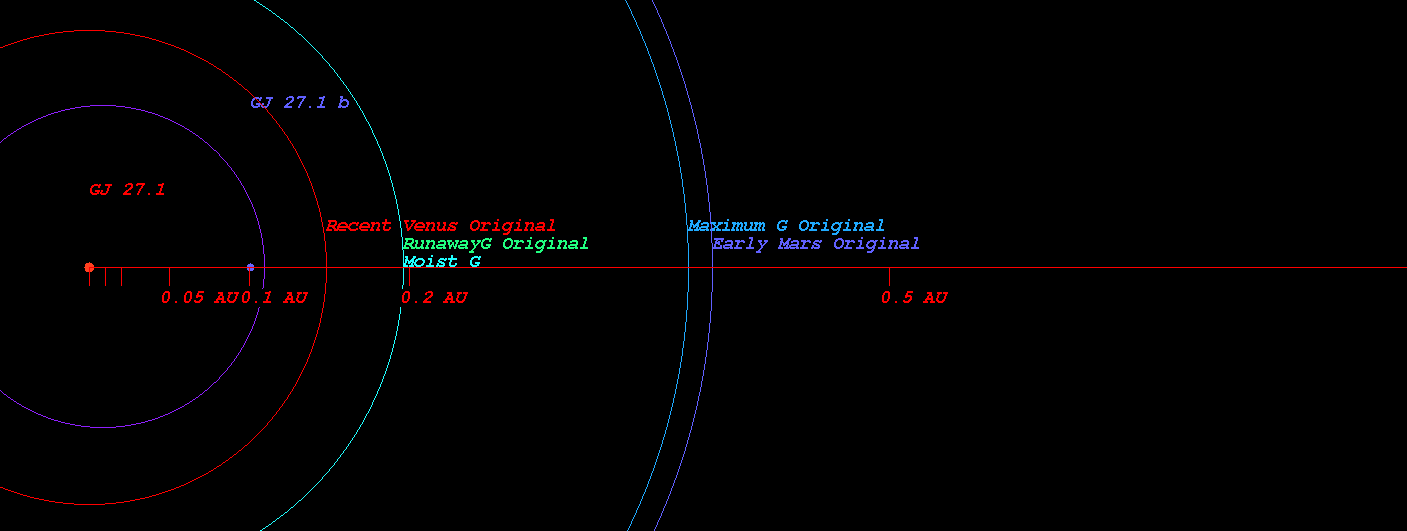

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star GJ 27.1)

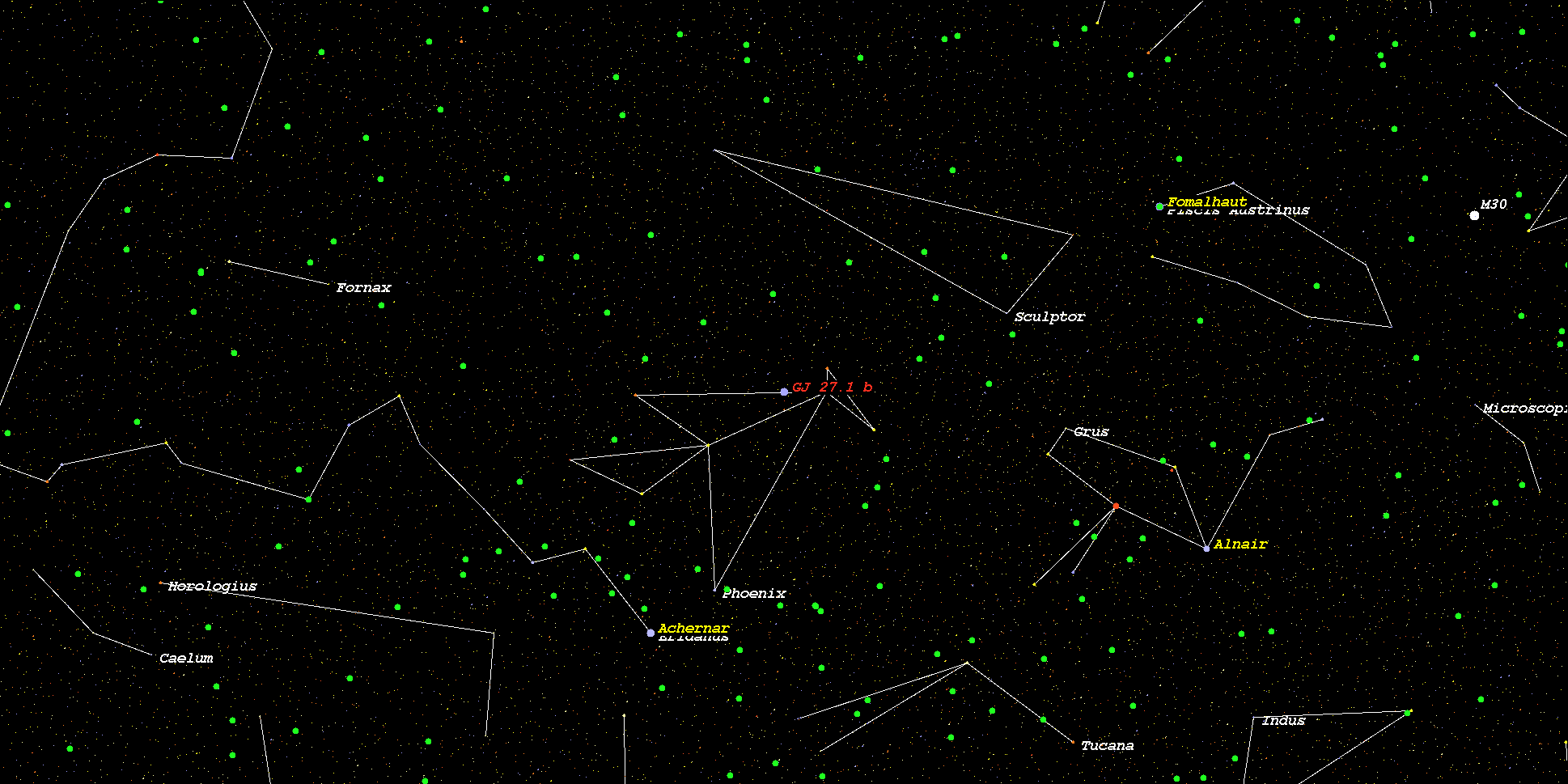

    (Position in Stellar Map of star GJ 27.1 and its Exoplanet GJ 27.1 b)



    (Zoomed position in Stellar Map of star GJ 27.1 and its Exoplanet GJ 27.1 b (zoom level 3))

    (Synthetic Spectrum of star GJ 27.1*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
