Imaginary Picture of GJ 849 b

Display orbital revolution of GJ 849 b around the hoststar GJ 849
/
Exoplanet Name : GJ 849 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.9078 (Rjup) 10.1759 (Rearth)
Mass (Mjup / Me): 0.9000 (Mjup) 286.1442 (Mearth)
Semi Major Axis / Orbital Distance Calculated 2.3500 (AU) 2.3500 (AU Est.)
Eccentricity : 0.0120
Orbital Period(Yrs) 5.2401
Orbital Period(Observed/Estimated) 1914.00 (Days Obs.) 1879.72 (Days Est.)
Surface Gravity (G Earth) 2.7634
Star Radiation at Atmospheric Boundary: 9.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 77.3 (K)
Blackbody T 0.3(K) 72.6 (K)
Blackbody T 0.7(K) 58.8 (K)
Tidally Locked Blackbody T 0.1(K) 92.0 (K)
Tidally Locked Blackbody T 0.3(K) 86.4 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Radial Velocity
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : GJ 849
Alternate Name :
Star Distance(LY) : 28.8
Stellar Radius(Rsun) : 0.5 (Rsun Measured)
Stellar Mass(Msun) : 0.5 (Msun Measured) 0.5 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 3500 (K)
Spectral type : M3.5V
UV portion[%]: 0.2
Visible portion[%]: 10.6
IR portion[%]: 89.1
Metalicity : 0.2
Absolute Magnitude: 10.6
Apparent Magnitude: 10.4
Right Ascension(RA) 332.4181
Declination (DEC) -4.6408
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title 0
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=GJ+849+&submit=SIMBAD+search
Open Exoplanet Database Link 0
GJ 849 b
GJ 849 b

  • GJ 849 b is an exoplanet orbiting the star GJ 849, located about 28.8 light-years ( 8.8 pc) away from Solar System. Its discovery was publicly announced on 2006.
  • The host star GJ 849 has apparent magnitude of 10.4, with absolute magnitude of 10.6.
  • It is 0.5 times more massive and 0.5 times bigger compared with our Sun. The surface temperature is 3500 with its spectral types of M3.5V
  • In this planetary system, the extrasolar planet GJ 849 b orbits around the star GJ 849 every 1914.0 days with its orbital distance of 2.35 AU ( 351554996.1 km)

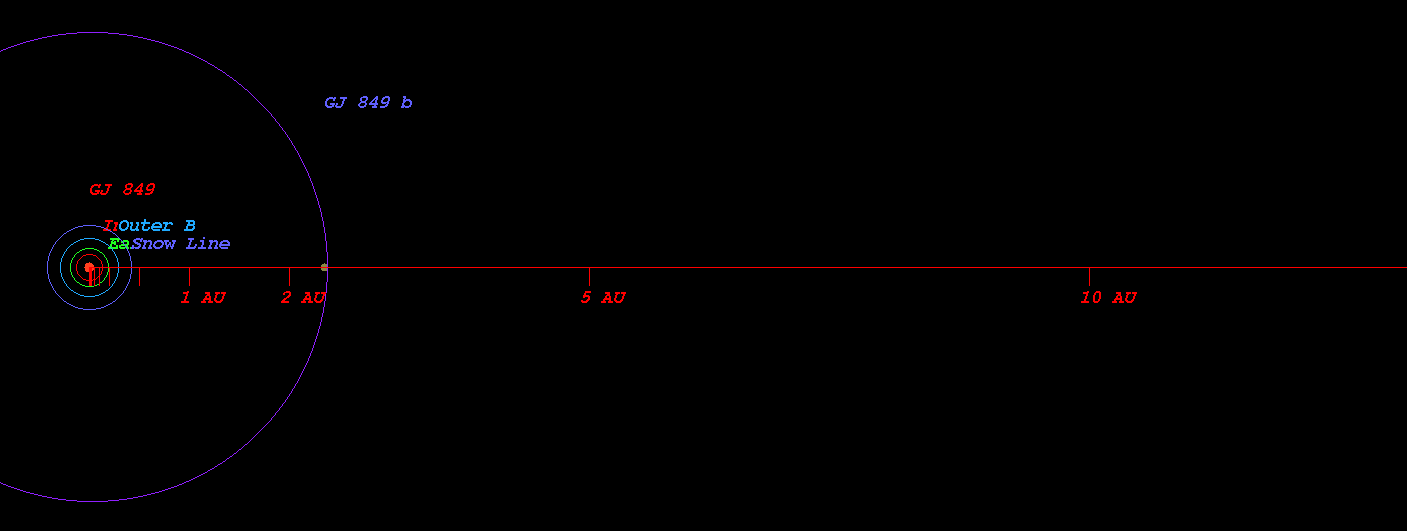

  • (Projected orbit of GJ 849 b around its host star GJ 849)

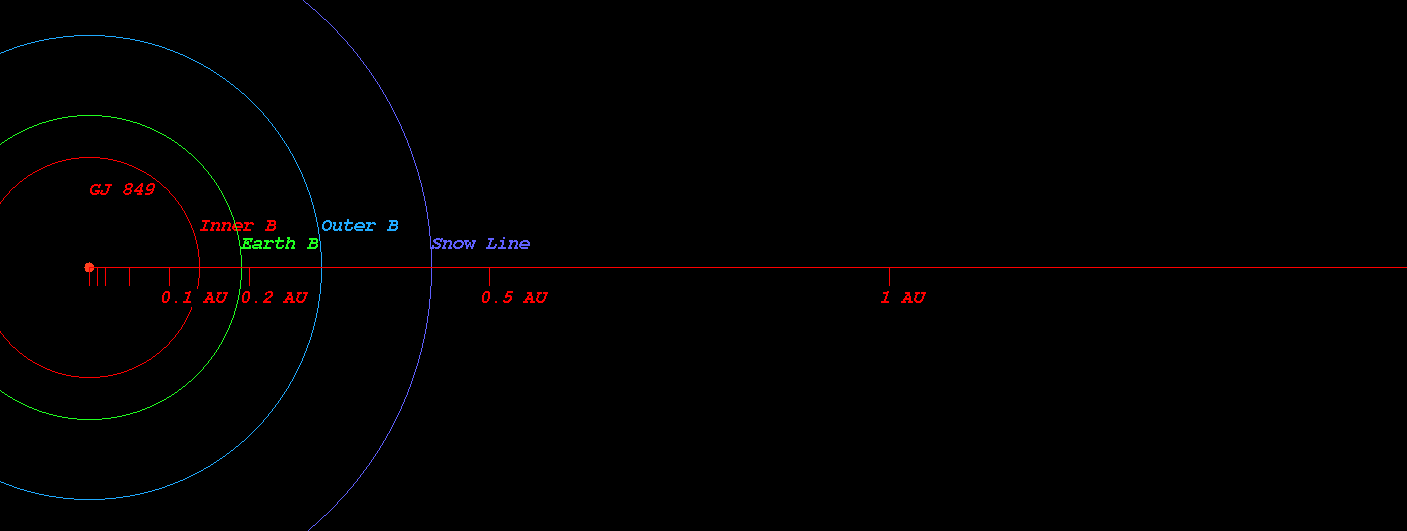

  • The Star GJ 849 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.138 AU ( 20644175.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.191 AU ( 28535645.7 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.291 AU ( 43482009.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.428 AU ( 63985681.2 km)
  • Radiation at Planetary Boundary of GJ 849 b : 9.01 W/m2

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star GJ 849)



  • Kopparapu Recent Venus for Star GJ 849 distance : 0.156 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star GJ 849 distance : 0.197 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star GJ 849 distance : 0.191 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star GJ 849 distance : 0.210 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star GJ 849 distance : 0.384 AU
  • Kopparapu Outer Boundary for Early Mars for Star GJ 849 distance : 0.405 AU

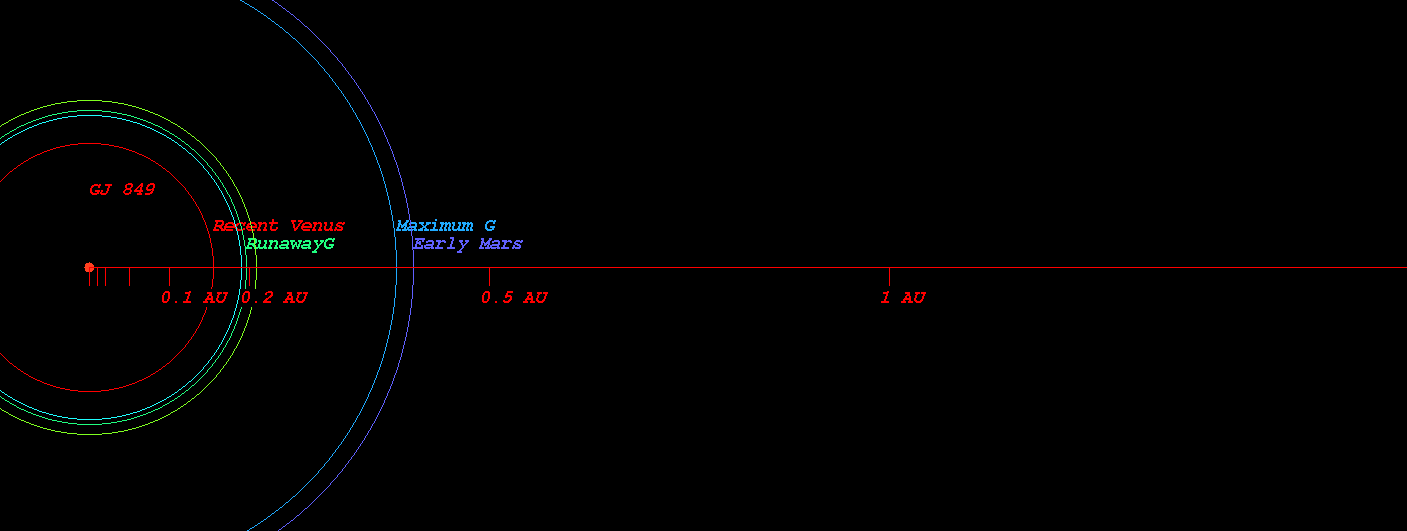

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star GJ 849)

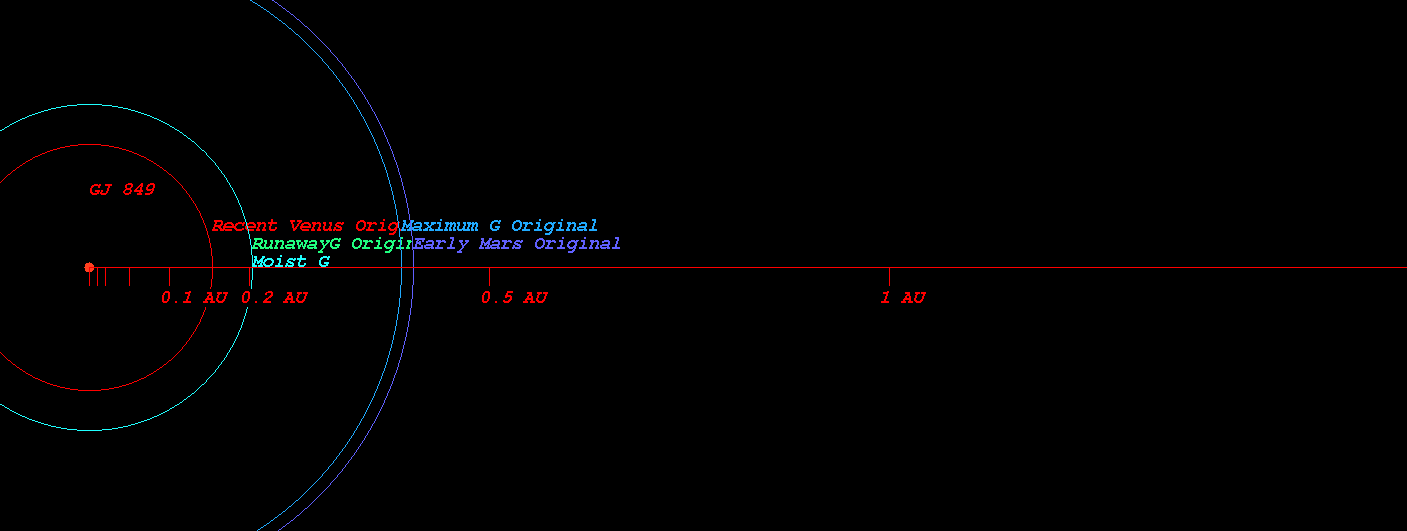

  • Original Kopparapu Recent Venus for Star GJ 849 distance : 0.155 AU
  • Original Kopparapu Runaway Greenhouse for Star GJ 849 distance : 0.204 AU
  • Original Kopparapu Moist Greenhouse for Star GJ 849 distance : 0.205 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star GJ 849 distance : 0.390 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star GJ 849 distance : 0.406 AU

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star GJ 849)

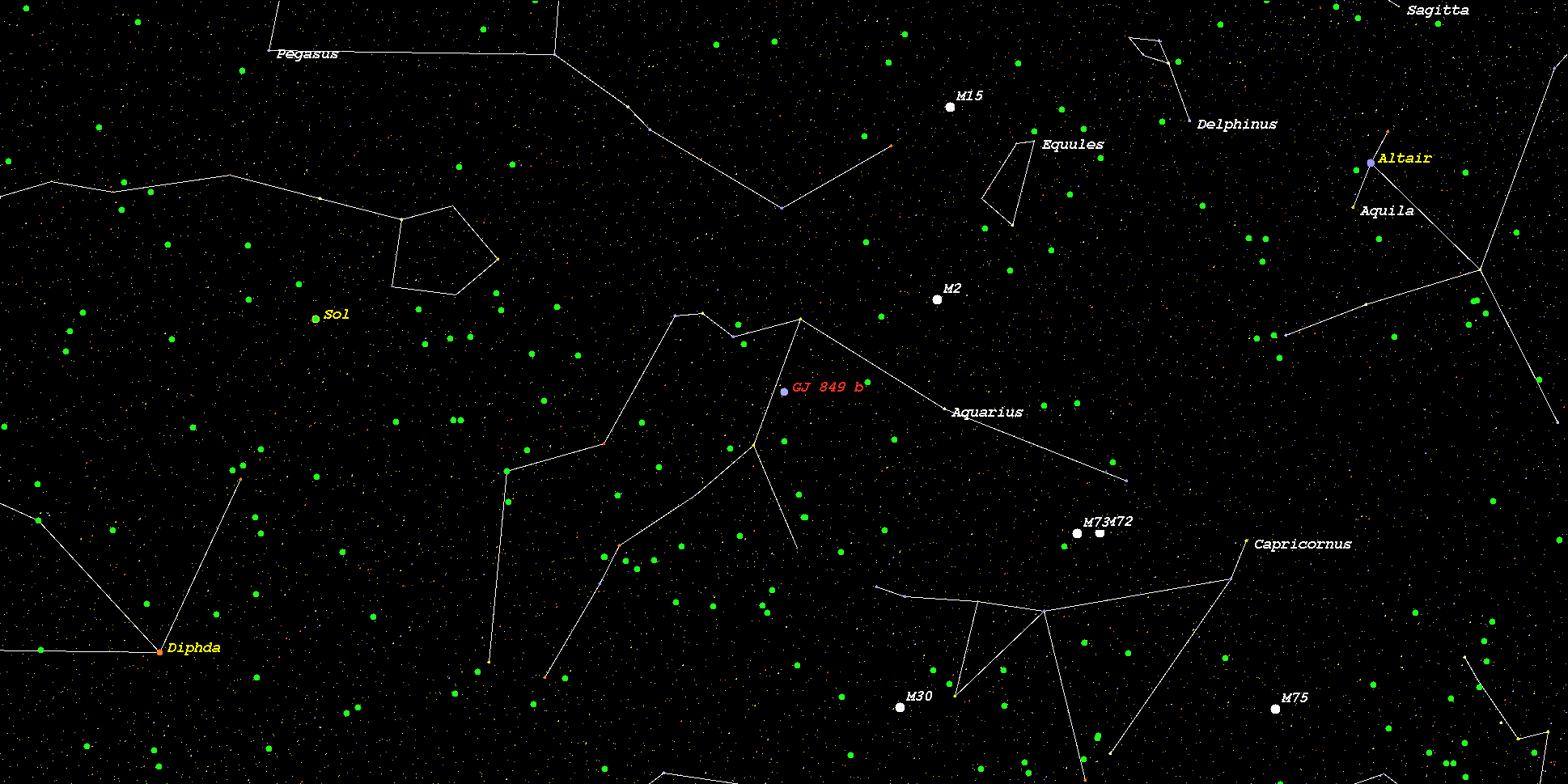

    (Position in Stellar Map of star GJ 849 and its Exoplanet GJ 849 b)



    (Zoomed position in Stellar Map of star GJ 849 and its Exoplanet GJ 849 b (zoom level 3))

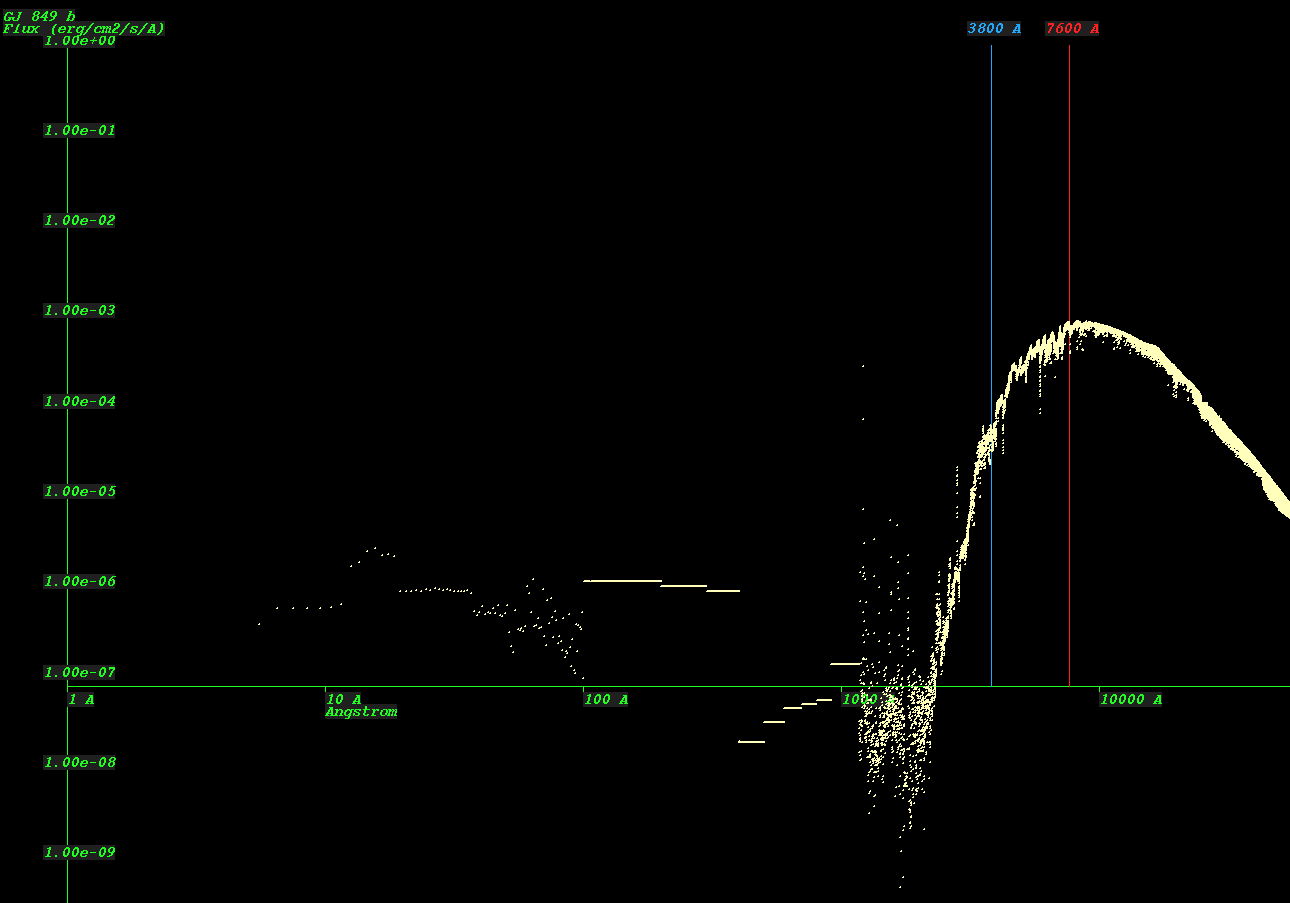

    (Synthetic Spectrum of star GJ 849*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
