Imaginary Picture of HATS-35 b

Display orbital revolution of HATS-35 b around the hoststar HATS-35
/
Exoplanet Name : HATS-35 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 1.4640 (Rjup) 16.4100 (Rearth)
Mass (Mjup / Me): 1.2220 (Mjup) 388.5202 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0320 (AU) 0.0320 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0050
Orbital Period(Observed/Estimated) 1.82 (Days Obs.) 1.82 (Days Est.)
Surface Gravity (G Earth) 1.4428
Star Radiation at Atmospheric Boundary: 3876420.7 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1980.4 (K)
Blackbody T 0.3(K) 1859.8 (K)
Blackbody T 0.7(K) 1504.8 (K)
Tidally Locked Blackbody T 0.1(K) 2355.1 (K)
Tidally Locked Blackbody T 0.3(K) 2211.7 (K)
Size Class: Super-Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection : Radial Velocity
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : HATS-35
Alternate Name :
Star Distance(LY) : 1816.7
Stellar Radius(Rsun) : 1.4 (Rsun Measured)
Stellar Mass(Msun) : 1.3 (Msun Measured) 1.3 (Msun Estimated)
Star Age : 2.1 (GY)
Temperature : 6300 (K)
Spectral type : F8
UV portion[%]: 0.3
Visible portion[%]: 1.5
IR portion[%]: 98.2
Metalicity : 0.2
Absolute Magnitude: 3.8
Apparent Magnitude: 12.6
Right Ascension(RA) 296.6882
Declination (DEC) -63.5656
Hubble Space Telescope Guide Star Catalog (GSC) ID 09089-00775
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=HATS-35&submit=SIMBAD+search
Open Exoplanet Database Link
HATS-35 b
HATS-35 b

  • HATS-35 b is an exoplanet orbiting the star HATS-35, located about 1816.7 light-years (557.0 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star HATS-35 has apparent magnitude of 12.6, with absolute magnitude of 3.8.
  • It is 1.3 times more massive and 1.4 times bigger compared with our Sun. The surface temperature is 6300 with its spectral types of F8
  • In this planetary system, the extrasolar planet HATS-35 b orbits around the star HATS-35 every 1.8 days with its orbital distance of 0.03 AU ( 4785635.9 km)

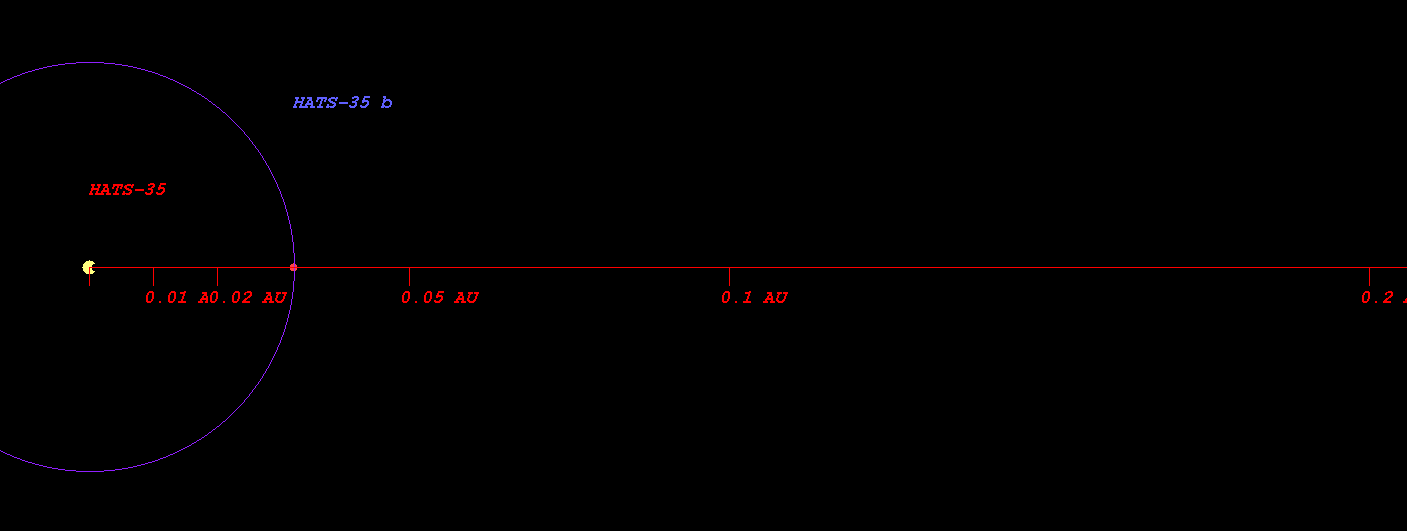

  • (Projected orbit of HATS-35 b around its host star HATS-35)


  • The Star HATS-35 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.232 AU ( 184325492.0 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.703 AU ( 254785999.9 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.595 AU ( 388237479.9 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.819 AU ( 571308459.2 km)
  • Radiation at Planetary Boundary of HATS-35 b : 3876420.74 W/m2

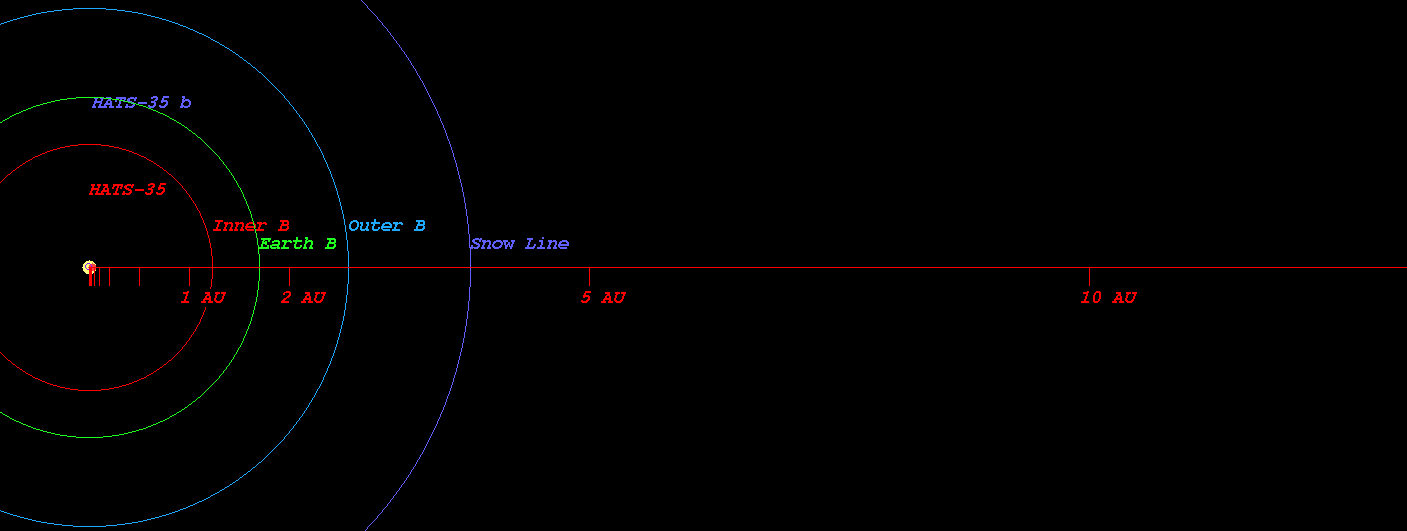

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star HATS-35)



  • Kopparapu Recent Venus for Star HATS-35 distance : 1.237 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star HATS-35 distance : 1.567 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star HATS-35 distance : 1.513 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star HATS-35 distance : 1.658 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star HATS-35 distance : 2.735 AU
  • Kopparapu Outer Boundary for Early Mars for Star HATS-35 distance : 2.884 AU

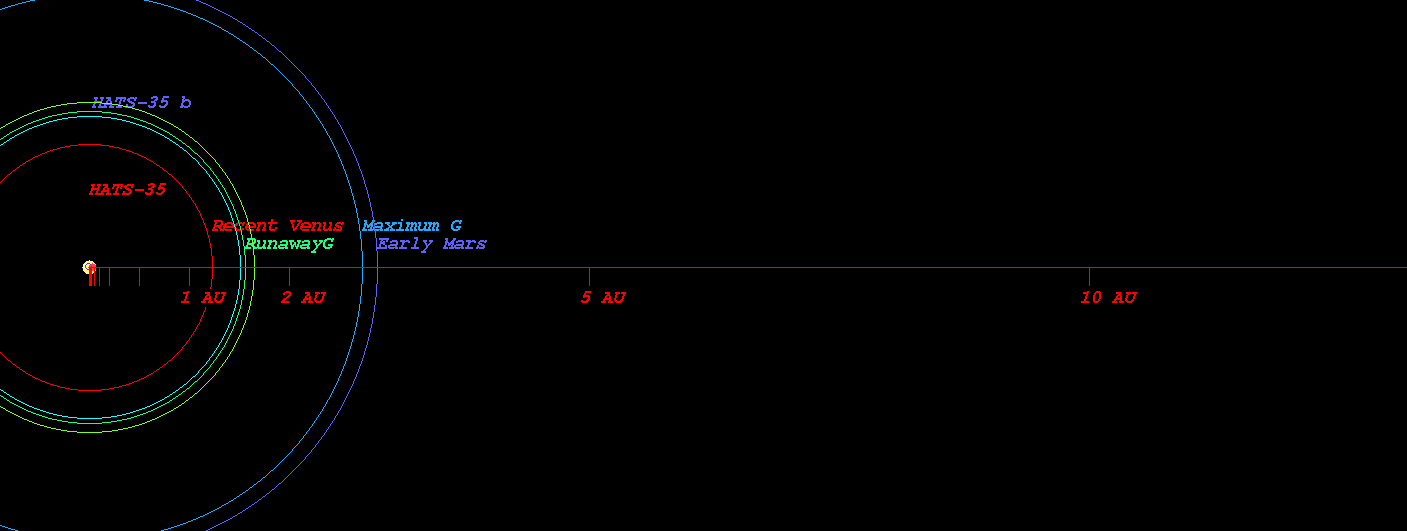

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star HATS-35)



  • Original Kopparapu Recent Venus for Star HATS-35 distance : 1.253 AU
  • Original Kopparapu Runaway Greenhouse for Star HATS-35 distance : 1.607 AU
  • Original Kopparapu Moist Greenhouse for Star HATS-35 distance : 1.658 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star HATS-35 distance : 2.784 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star HATS-35 distance : 2.895 AU

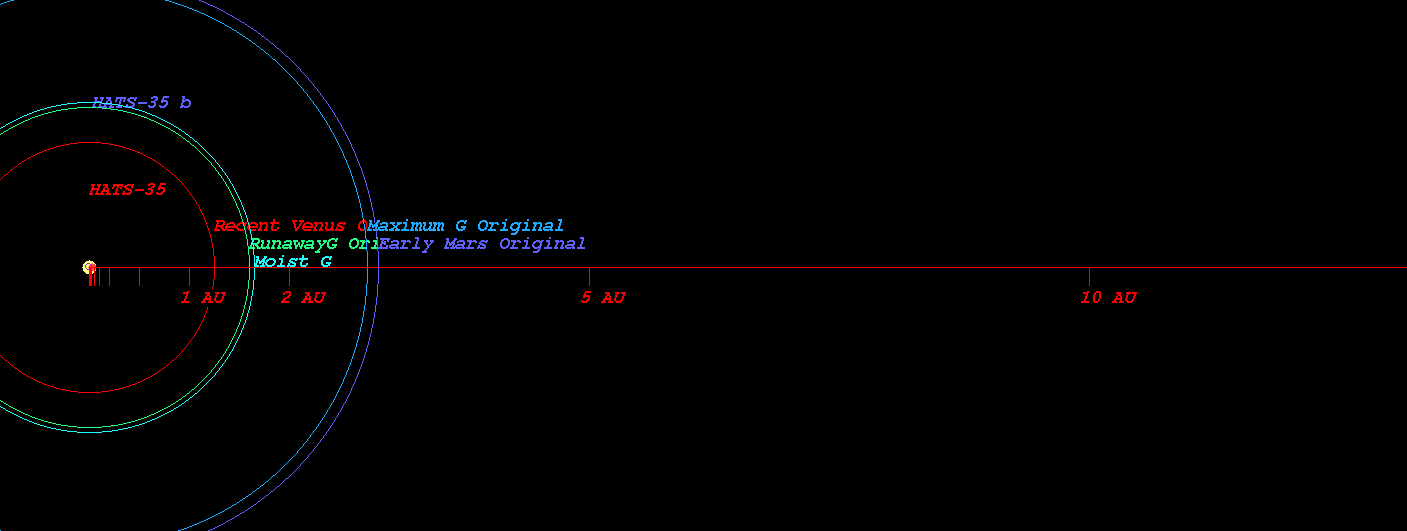

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star HATS-35)



    (Position in Stellar Map of star HATS-35 and its Exoplanet HATS-35 b)

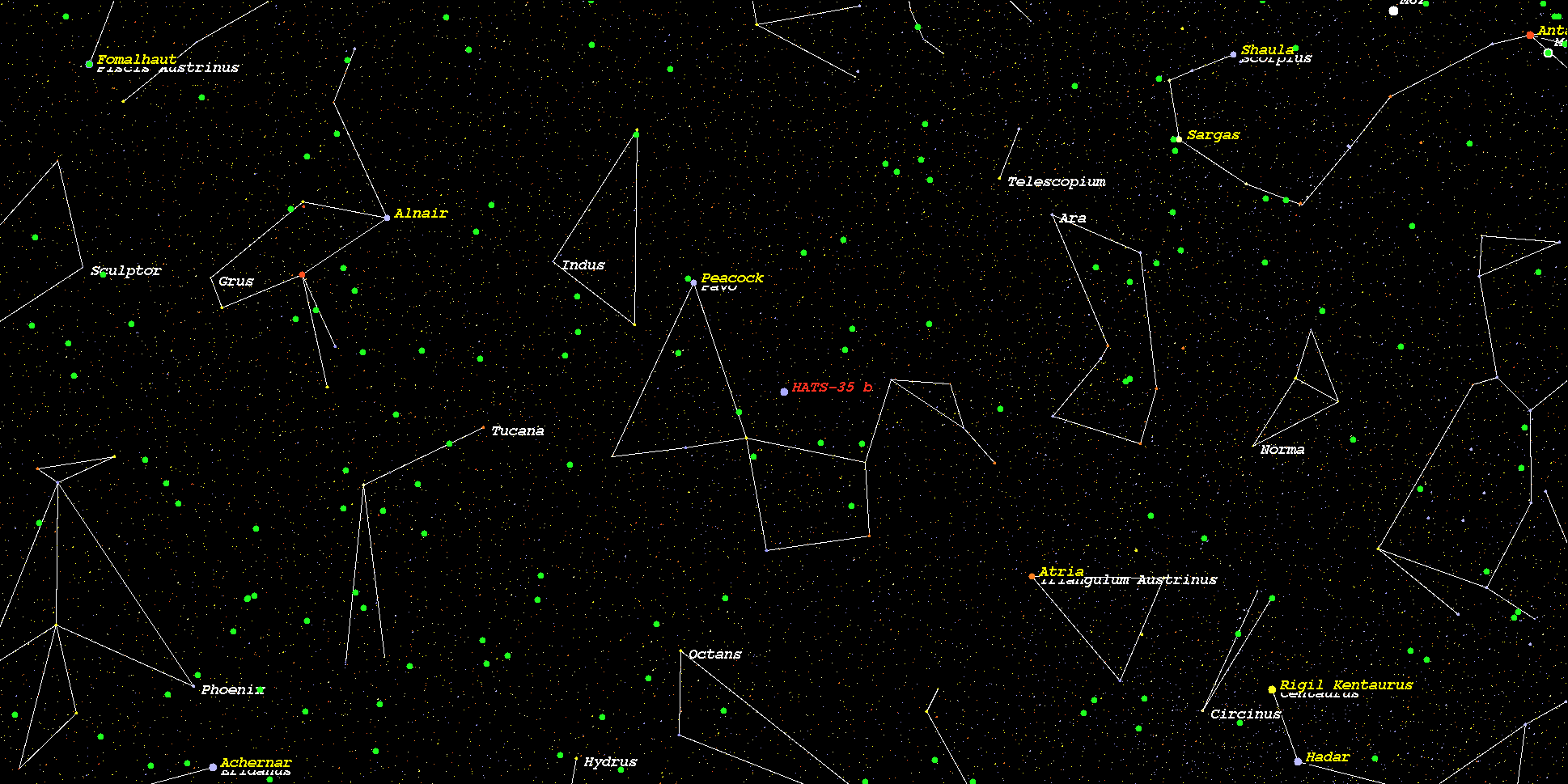

    (Zoomed position in Stellar Map of star HATS-35 and its Exoplanet HATS-35 b (zoom level 3))

    (Synthetic Spectrum of star HATS-35*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
