Imaginary Picture of HD 116029 A c

Display orbital revolution of HD 116029 A c around the hoststar HD 116029 A
/
Exoplanet Name : HD 116029 A c
Alternate Name : HD 116029 c
Status : Confirmed
Radius (Rjup / Re): 0.9078 (Rjup) 10.1759 (Rearth)
Mass (Mjup / Me): 1.2700 (Mjup) 403.7813 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 2.1358 (AU Est.)
Eccentricity : 0.0380
Orbital Period(Yrs) 2.4832
Orbital Period(Observed/Estimated) 907.00 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 3.8995
Star Radiation at Atmospheric Boundary: 3417.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 341.3 (K)
Blackbody T 0.3(K) 320.5 (K)
Blackbody T 0.7(K) 259.3 (K)
Tidally Locked Blackbody T 0.1(K) 405.8 (K)
Tidally Locked Blackbody T 0.3(K) 381.1 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Radial Velocity
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : HD 116029 A
Alternate Name : HD 116029
Star Distance(LY) : 399.2
Stellar Radius(Rsun) : 4.6 (Rsun Measured)
Stellar Mass(Msun) : 1.6 (Msun Measured) 1.6 (Msun Estimated)
Star Age : 2.7 (GY)
Temperature : 4951 (K)
Spectral type : K1III
UV portion[%]: 3.0
Visible portion[%]: 36.6
IR portion[%]: 60.4
Metalicity : 0.2
Absolute Magnitude: 2.6
Apparent Magnitude: 8.0
Right Ascension(RA) 200.1648
Declination (DEC) 24.6486
Hubble Space Telescope Guide Star Catalog (GSC) ID 01994-02335
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=HD+116029+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/HD%20116029%20b/
HD 116029 A c
HD 116029 A c

  • HD 116029 A c is an exoplanet orbiting the star HD 116029 A, located about 399.2 light-years (122.4 pc) away from Solar System. Its discovery was publicly announced on 2010.
  • The host star HD 116029 A has apparent magnitude of 8.0, with absolute magnitude of 2.6.
  • It is 1.6 times more massive and 4.6 times bigger compared with our Sun. The surface temperature is 4951 with its spectral types of K1III
  • In this planetary system, the extrasolar planet HD 116029 A c orbits around the star HD 116029 A every 907.0 days with its orbital distance of 2.14 AU ( 319513453.5 km)

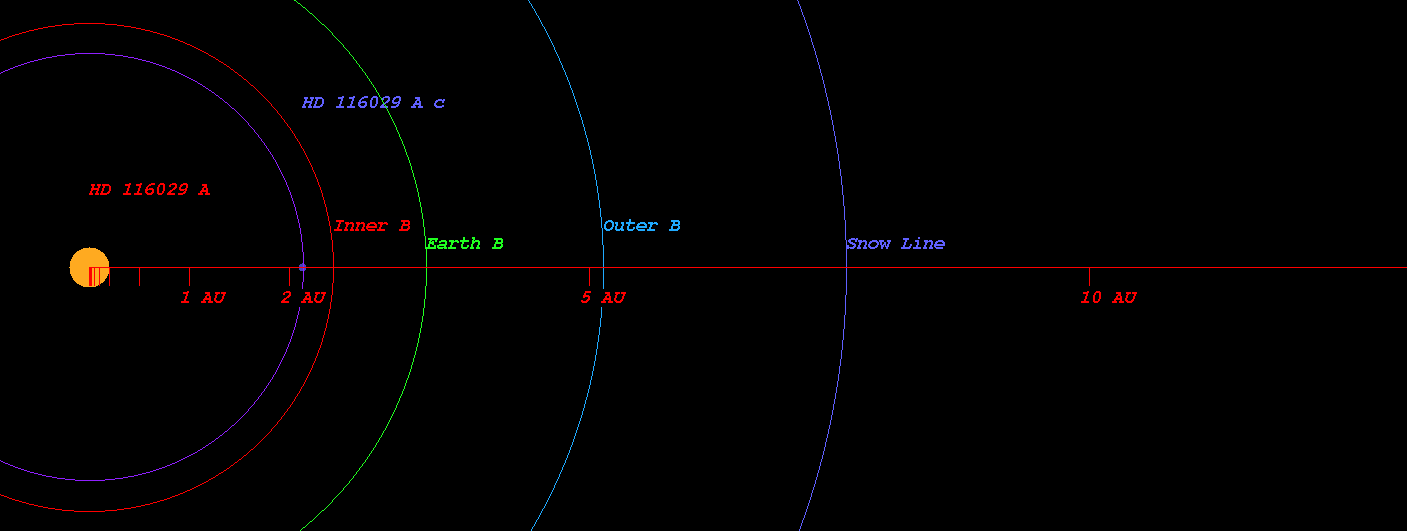

  • (Projected orbit of HD 116029 A c around its host star HD 116029 A)


  • The Star HD 116029 A 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 2.443 AU ( 365427979.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 3.376 AU ( 505116965.6 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 5.145 AU ( 769686473.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 7.571 AU ( 1132627363.5 km)
  • Radiation at Planetary Boundary of HD 116029 A c : 3417.94 W/m2

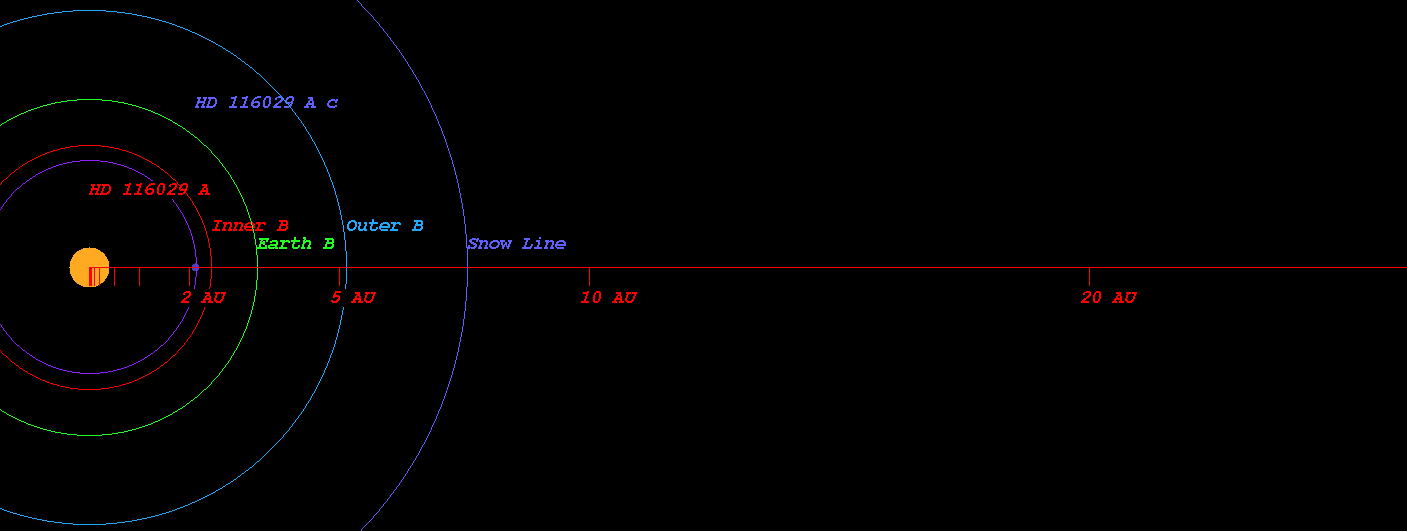

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star HD 116029 A)



  • Kopparapu Recent Venus for Star HD 116029 A distance : 2.649 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star HD 116029 A distance : 3.353 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star HD 116029 A distance : 3.239 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star HD 116029 A distance : 3.555 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 116029 A distance : 6.090 AU
  • Kopparapu Outer Boundary for Early Mars for Star HD 116029 A distance : 6.424 AU

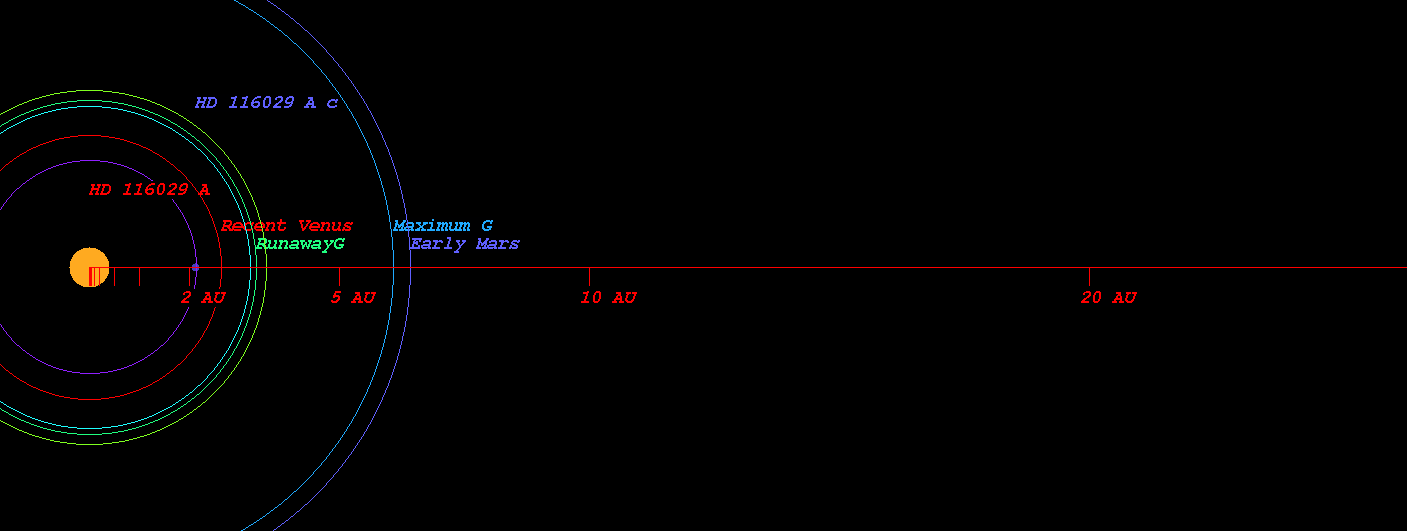

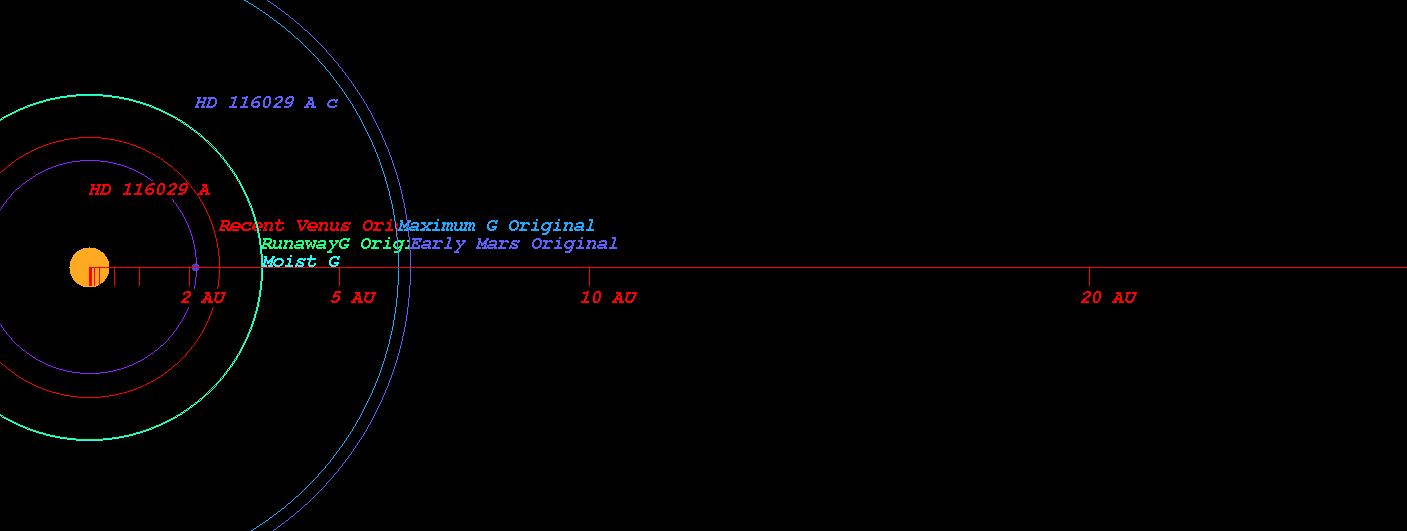

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star HD 116029 A)



  • Original Kopparapu Recent Venus for Star HD 116029 A distance : 2.619 AU
  • Original Kopparapu Runaway Greenhouse for Star HD 116029 A distance : 3.456 AU
  • Original Kopparapu Moist Greenhouse for Star HD 116029 A distance : 3.466 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 116029 A distance : 6.192 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star HD 116029 A distance : 6.439 AU

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star HD 116029 A)



    (Position in Stellar Map of star HD 116029 A and its Exoplanet HD 116029 A c)

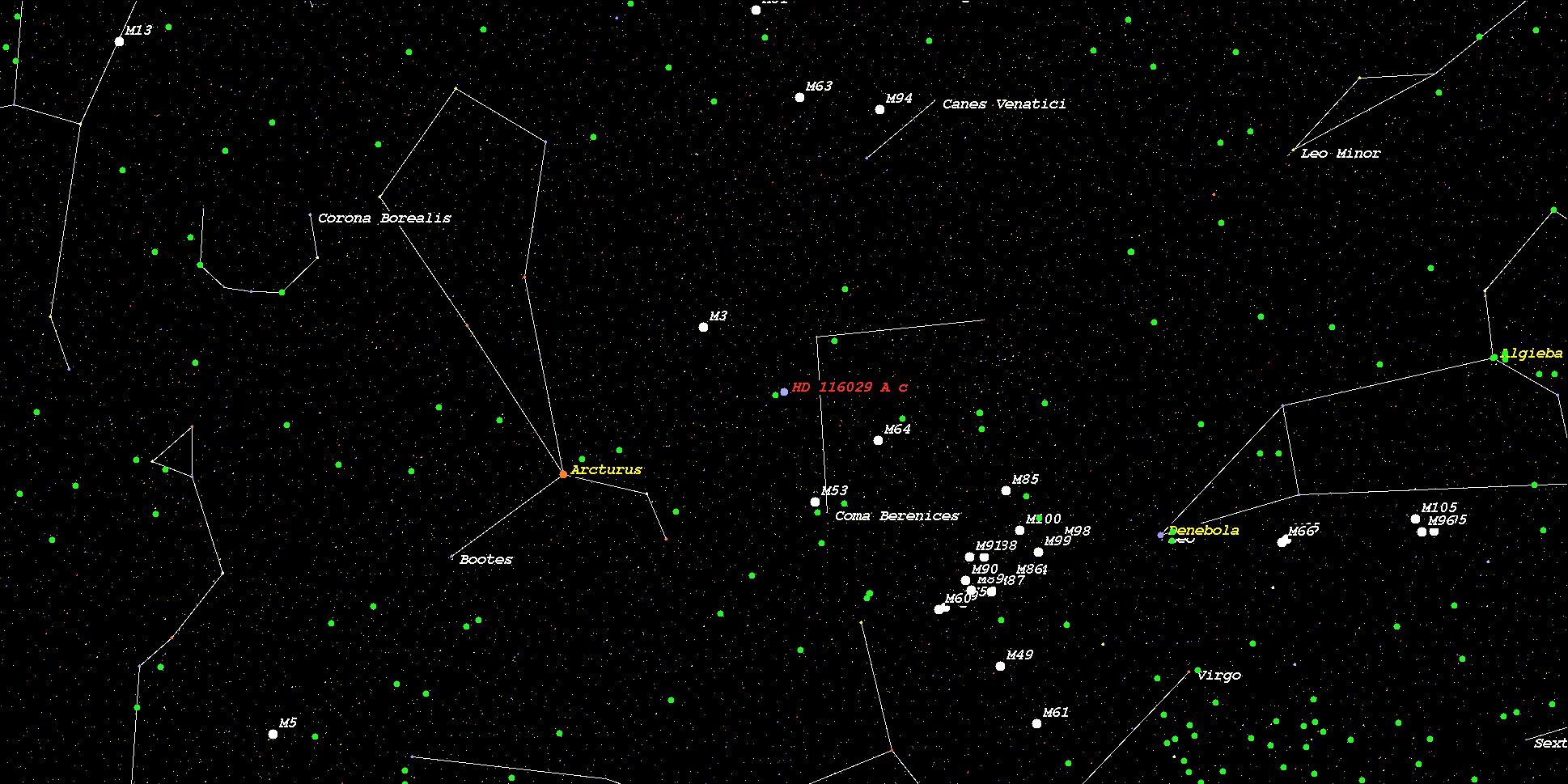

    (Zoomed position in Stellar Map of star HD 116029 A and its Exoplanet HD 116029 A c (zoom level 3))

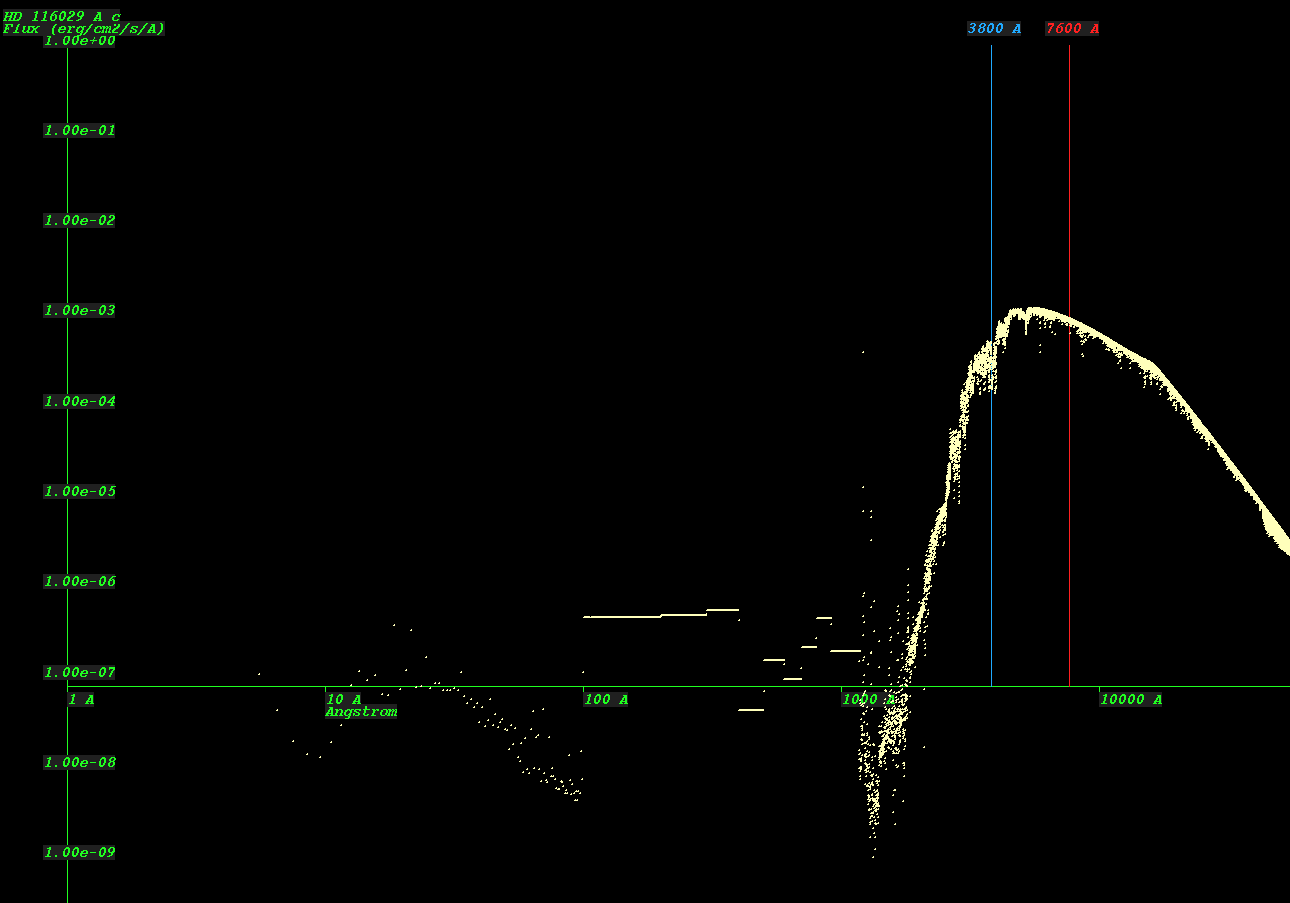

    (Synthetic Spectrum of star HD 116029 A*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
