Imaginary Picture of HD 1160 b

Display orbital revolution of HD 1160 b around the hoststar HD 1160
/
Exoplanet Name : HD 1160 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.9078 (Rjup) 10.1759 (Rearth)
Mass (Mjup / Me): 20.0000 (Mjup) 6358.7600 (Mearth)
Semi Major Axis / Orbital Distance Calculated 80.0000 (AU) 80.0000 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0000
Orbital Period(Observed/Estimated) 0.00 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 61.4087
Star Radiation at Atmospheric Boundary: 5.1 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 67.2 (K)
Blackbody T 0.3(K) 63.1 (K)
Blackbody T 0.7(K) 51.0 (K)
Tidally Locked Blackbody T 0.1(K) 79.9 (K)
Tidally Locked Blackbody T 0.3(K) 75.0 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Imaging
Mass Detection : Spectrum
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : HD 1160
Alternate Name :
Star Distance(LY) : 337.6
Stellar Radius(Rsun) : 1.8 (Rsun Estimated)
Stellar Mass(Msun) : 0.0 (Msun Measured) 0.0 (Msun Estimated)
Star Age : 0.1 (GY)
Temperature : 9600 (K)
Spectral type : A0V
UV portion[%]: 0.3
Visible portion[%]: 1.5
IR portion[%]: 98.2
Metalicity : -0.3
Absolute Magnitude: 2.0
Apparent Magnitude: 7.1
Right Ascension(RA) 3.9888
Declination (DEC) 4.2511
Hubble Space Telescope Guide Star Catalog (GSC) ID 00005-00548
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=HD+1160+&submit=SIMBAD+search
Open Exoplanet Database Link
HD 1160 b
HD 1160 b

  • HD 1160 b is an exoplanet orbiting the star HD 1160, located about 337.6 light-years (103.5 pc) away from Solar System. Its discovery was publicly announced on 2012.
  • The host star HD 1160 has apparent magnitude of 7.1, with absolute magnitude of 2.0.

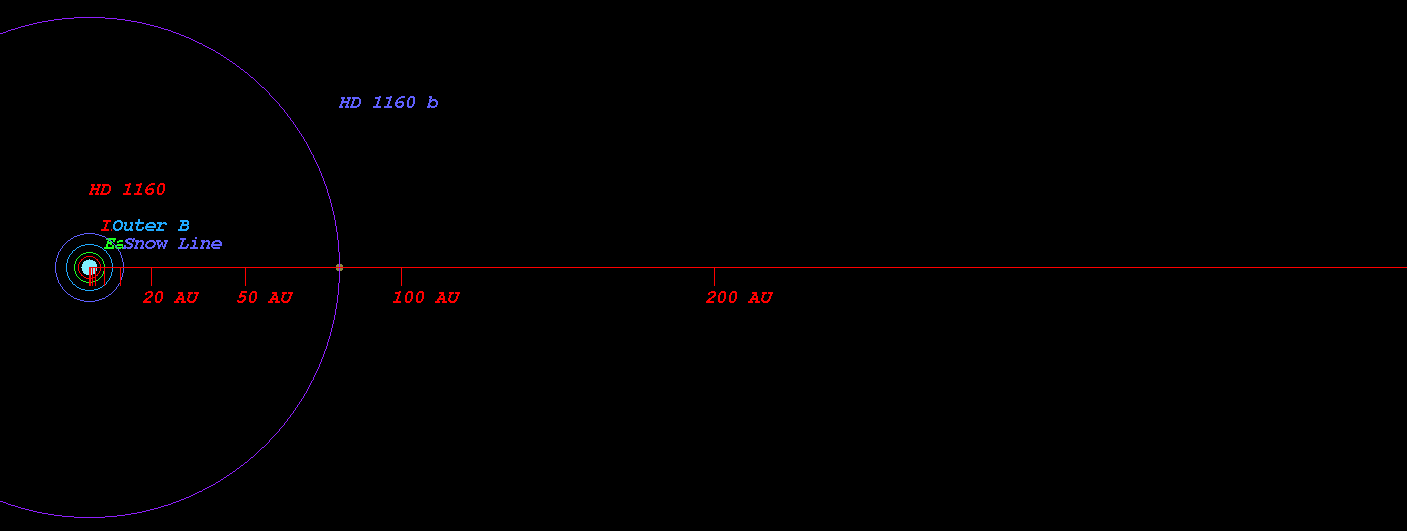

  • (Projected orbit of HD 1160 b around its host star HD 1160)


  • The Star HD 1160 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 3.543 AU ( 530052403.7 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 4.898 AU ( 732670941.2 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 7.463 AU ( 1116428374.7 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 10.982 AU ( 1642873260.9 km)
  • Radiation at Planetary Boundary of HD 1160 b : 5.13 W/m2

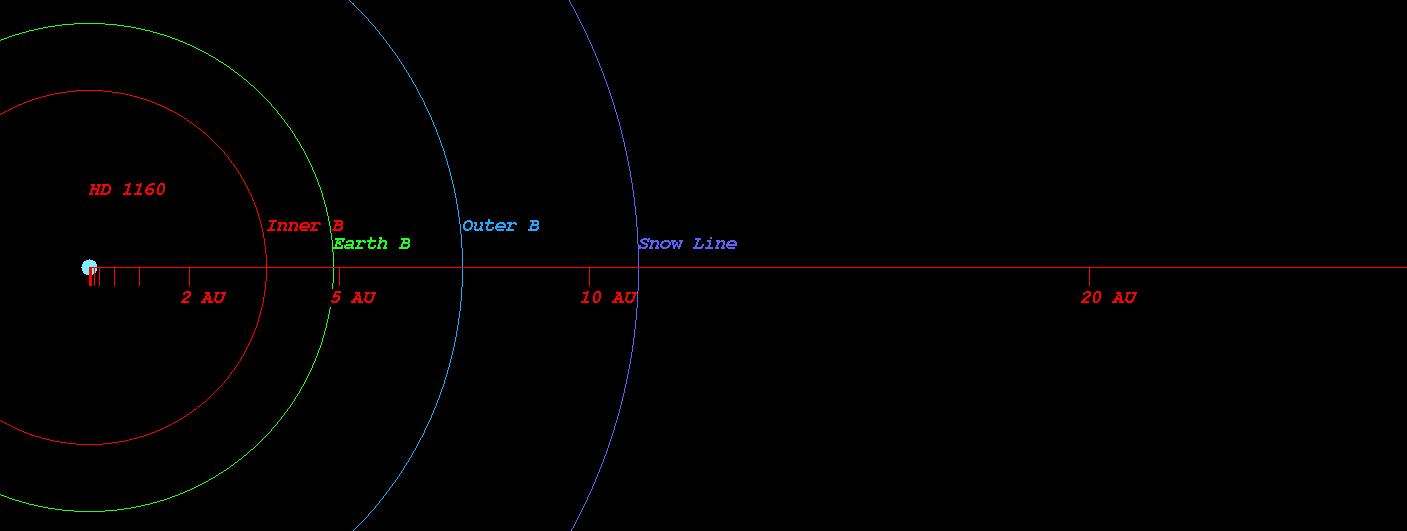

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star HD 1160)



  • Kopparapu Recent Venus for Star HD 1160 distance : 3.916 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star HD 1160 distance : 4.963 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star HD 1160 distance : 4.797 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star HD 1160 distance : 5.226 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 1160 distance : 8.670 AU
  • Kopparapu Outer Boundary for Early Mars for Star HD 1160 distance : 9.134 AU

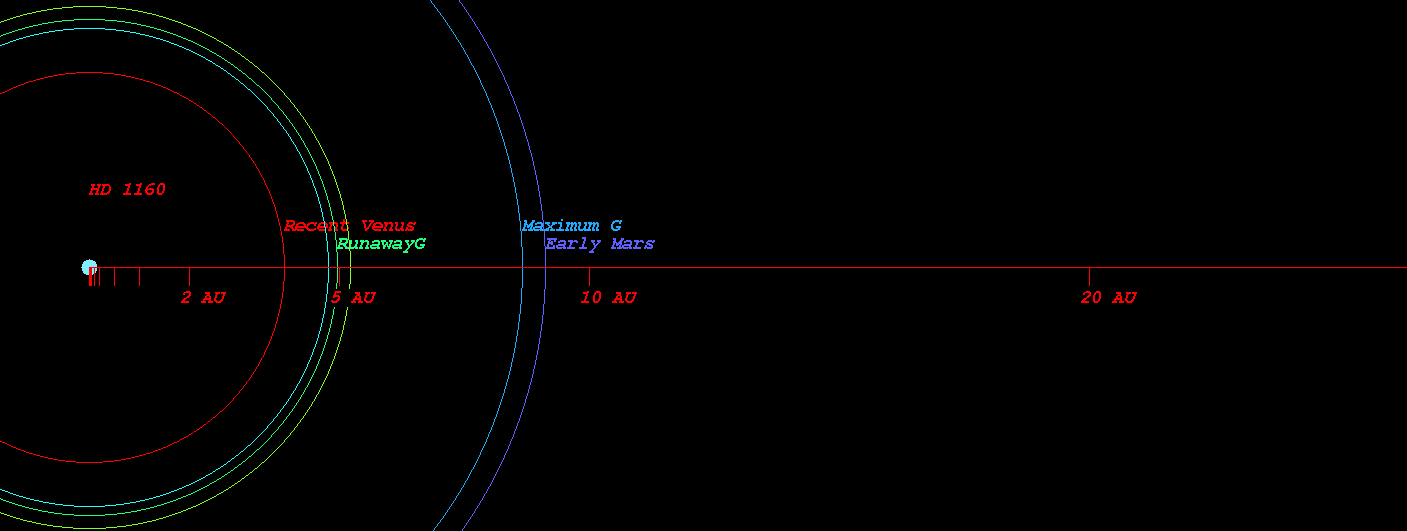

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star HD 1160)



  • Original Kopparapu Recent Venus for Star HD 1160 distance : 3.762 AU
  • Original Kopparapu Runaway Greenhouse for Star HD 1160 distance : 5.026 AU
  • Original Kopparapu Moist Greenhouse for Star HD 1160 distance : 4.977 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 1160 distance : 8.759 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star HD 1160 distance : 9.109 AU

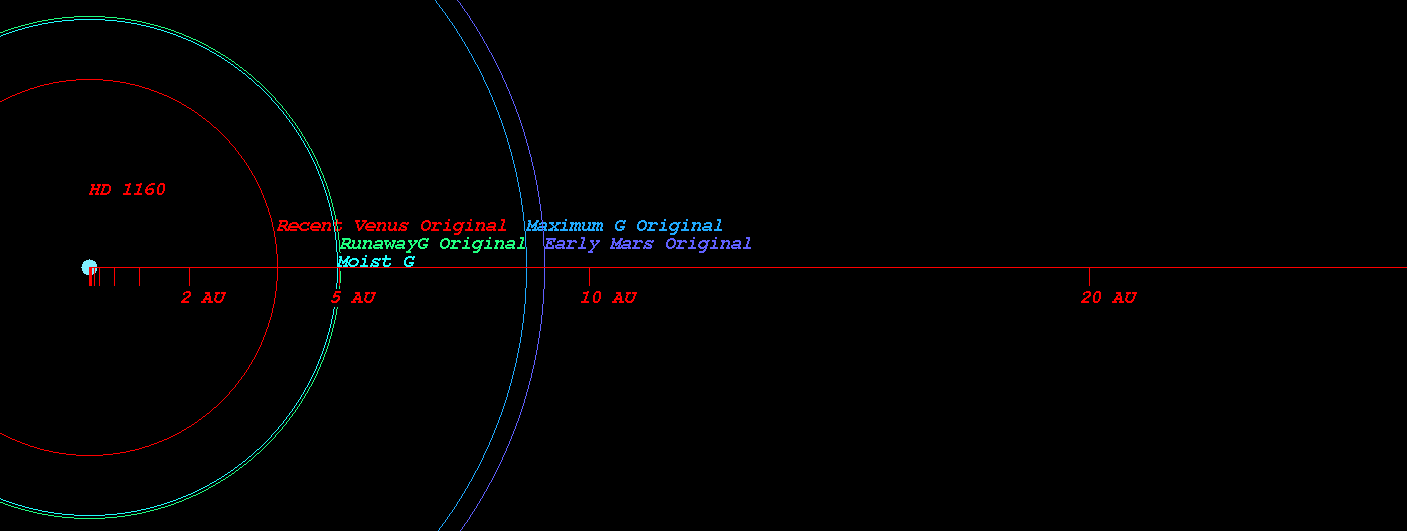

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star HD 1160)

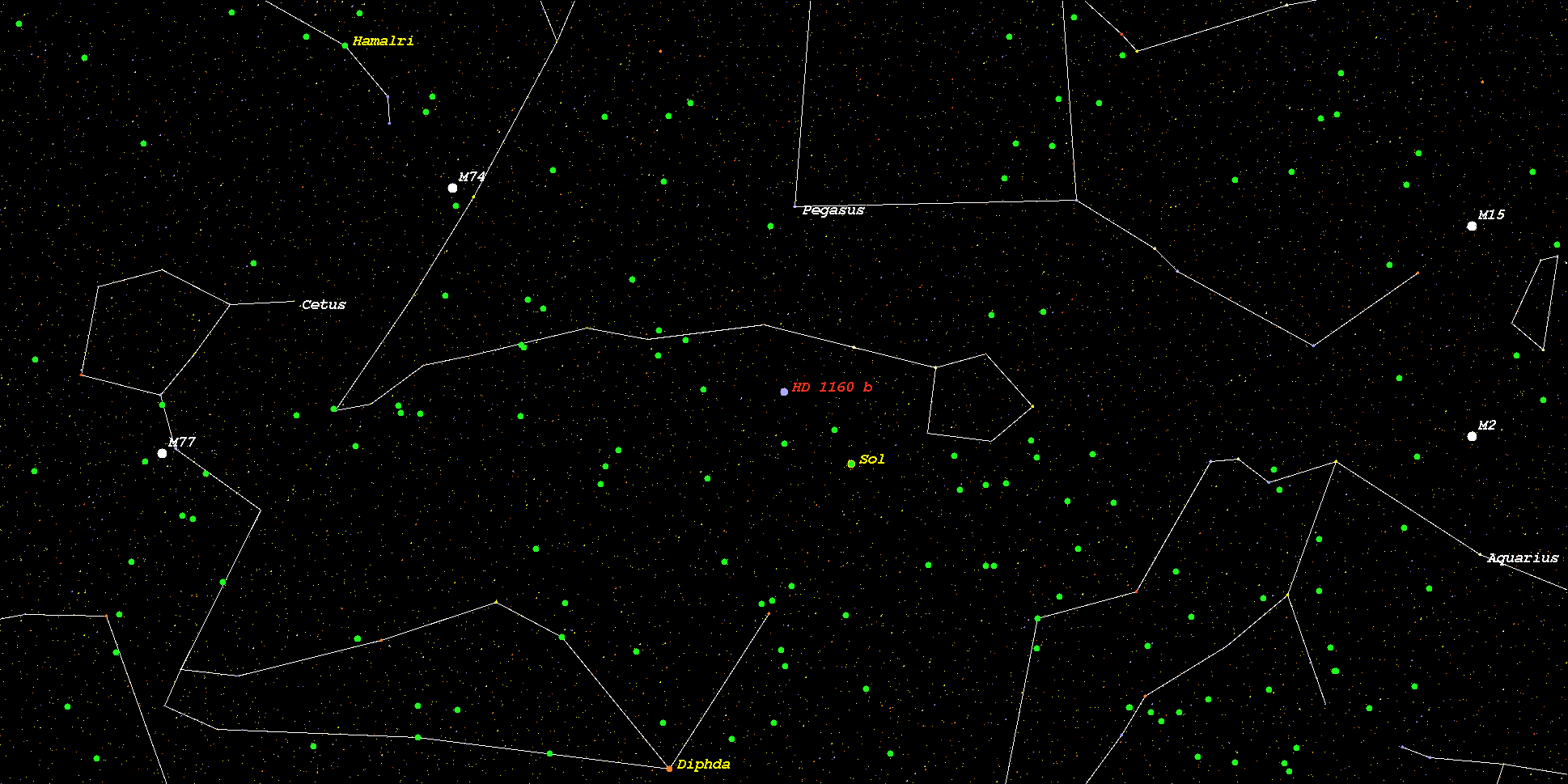

    (Position in Stellar Map of star HD 1160 and its Exoplanet HD 1160 b)



    (Zoomed position in Stellar Map of star HD 1160 and its Exoplanet HD 1160 b (zoom level 3))

    (Synthetic Spectrum of star HD 1160*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
