Exoplanet Name : |
HD 134606 b |
|
Alternate Name : |
|
|
Status : |
Confirmed |
|
Radius (Rjup / Re): |
0.1594 |
(Rjup) |
1.7871 |
(Rearth) |
|
Mass (Mjup / Me): |
0.0292 |
(Mjup) |
9.2838 |
(Mearth) |
|
Semi Major Axis / Orbital Distance Calculated |
0.1023 |
(AU) |
0.1023 |
(AU Est.) |
|
Eccentricity : |
0.1500 |
|
Orbital Period(Yrs) |
0.0331 |
|
Orbital Period(Observed/Estimated) |
12.08 |
(Days Obs.) |
18.66 |
(Days Est.) |
|
Surface Gravity (G Earth) |
2.9068 |
|
Star Radiation at Atmospheric Boundary: |
91424.3 |
(W/m2) |
|
Measured Temperature (K) |
0.0 |
(K) |
|
Blackbody T 0.1(K) |
776.1 |
(K) |
|
Blackbody T 0.3(K) |
728.8 |
(K) |
|
Blackbody T 0.7(K) |
589.7 |
(K) |
|
Tidally Locked Blackbody T 0.1(K) |
922.9 |
(K) |
|
Tidally Locked Blackbody T 0.3(K) |
866.7 |
(K) |
|
Size Class: |
super-Earth-size |
|
Mass Class: |
|
|
Detection Type : |
Radial Velocity |
|
Mass Detection : |
|
|
Radius Detection : |
|
|
Habitability by Solar Eq. Astronomical Unit: |
Not habitable |
|
Habitability by Kopparapu: |
Not habitable |
|
Star Name : |
HD 134606 |
|
Alternate Name : |
|
|
Star Distance(LY) : |
87.4 |
|
Stellar Radius(Rsun) : |
0.9 |
(Rsun Estimated) |
|
Stellar Mass(Msun) : |
0.4 |
(Msun Measured) |
1.0 |
(Msun Estimated) |
|
Star Age : |
0.0 |
(GY) |
|
Temperature : |
5580 |
(K) |
|
Spectral type : |
G6IV |
|
UV portion[%]: |
7.2 |
|
Visible portion[%]: |
43.7 |
|
IR portion[%]: |
49.0 |
|
Metalicity : |
0.0 |
|
Absolute Magnitude: |
4.7 |
|
Apparent Magnitude: |
6.8 |
|
Right Ascension(RA) |
228.8127 |
|
Declination (DEC) |
-70.5197 |
|
Hubble Space Telescope Guide Star Catalog (GSC) ID |
09263-03087 |
|
Discovered by |
|
|
Discovery Paper - Authors |
0 |
|
Discovery Paper - Title |
|
|
Discovery Paper - Journal |
0 |
|
Discovery Paper - URL |
0 |
|
SIMBAD LINK |
http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=HD+134606+&submit=SIMBAD+search |
|
Open Exoplanet Database Link |
http://www.openexoplanetcatalogue.com/planet/HD%20134606%20b/ |
 |
 |
 |
 |
/
HD 134606 b
HD 134606 b
HD 134606 b is an exoplanet orbiting the star HD 134606, located about 87.4 light-years (26.8 pc) away from Solar System. Its discovery was publicly announced on 2011.
The host star HD 134606 has apparent magnitude of 6.8, with absolute magnitude of 4.7. It is 0.4 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5580 with its spectral types of G6IV
In this planetary system, the extrasolar planet HD 134606 b orbits around the star HD 134606 every 12.1 days with its orbital distance of 0.10 AU ( 15303862.2 km)

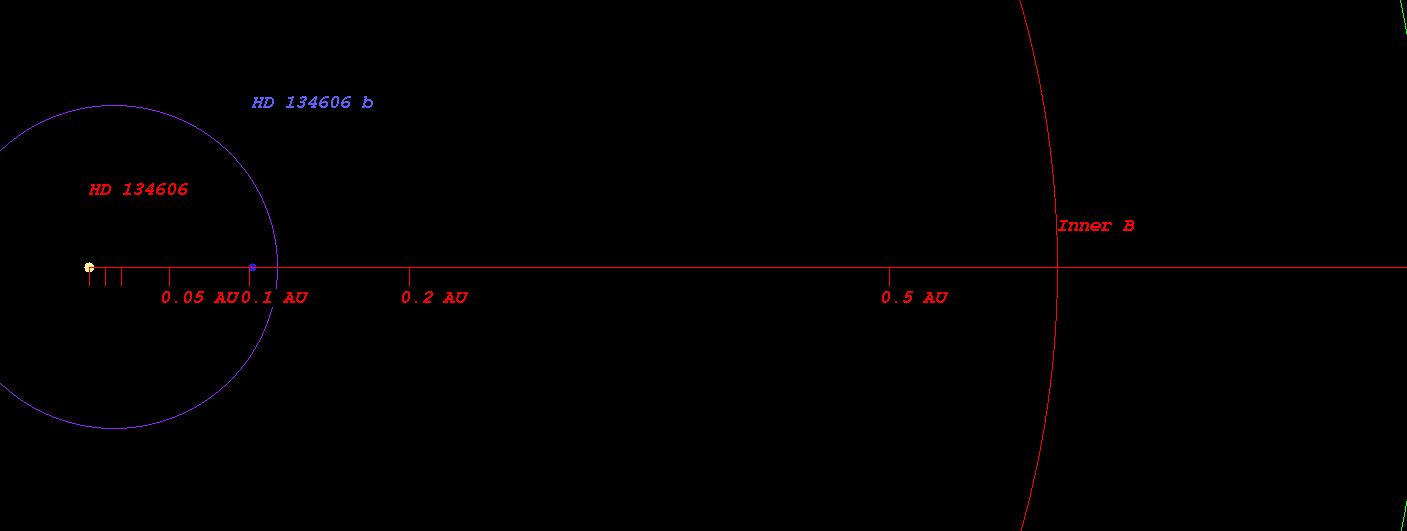

(Projected orbit of HD 134606 b around its host star HD 134606)
The Star HD 134606 's habitable zone is located at the following distance
Inner Boundary (the orbital distance at Venus's Equivalent Radiation )
: 0.605 AU ( 90523681.4 km)
Earth Boundary (the orbital distance at Earth's Equivalent Radiation)
: 0.836 AU ( 125127384.4 km)
Outer Boundary (the orbital distance at Mars's Equivalent Radiation)
: 1.275 AU ( 190666443.2 km)
Snow Line (the orbital distance at Snow Line Equivalent Radiation)
: 1.876 AU ( 280574023.7 km)
Radiation at Planetary Boundary of HD 134606 b : 91424.32 W/m2

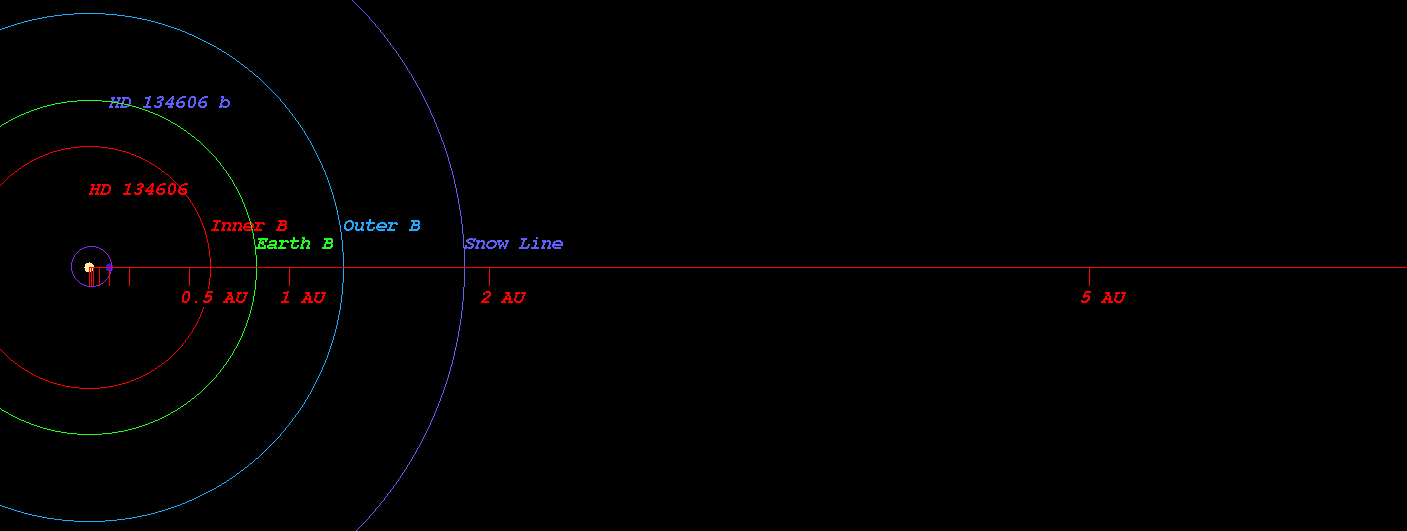

(Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star HD 134606)
Kopparapu Recent Venus for Star HD 134606 distance : 0.635 AU
Kopparapu Runaway Greenhouse for Earth-sized planet for Star HD 134606 distance : 0.804 AU
Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star HD 134606 distance : 0.776 AU
Kopparapu Runaway Greenhouse for Mars-sized planet for Star HD 134606 distance : 0.851 AU
Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 134606 distance : 1.427 AU
Kopparapu Outer Boundary for Early Mars for Star HD 134606 distance : 1.505 AU

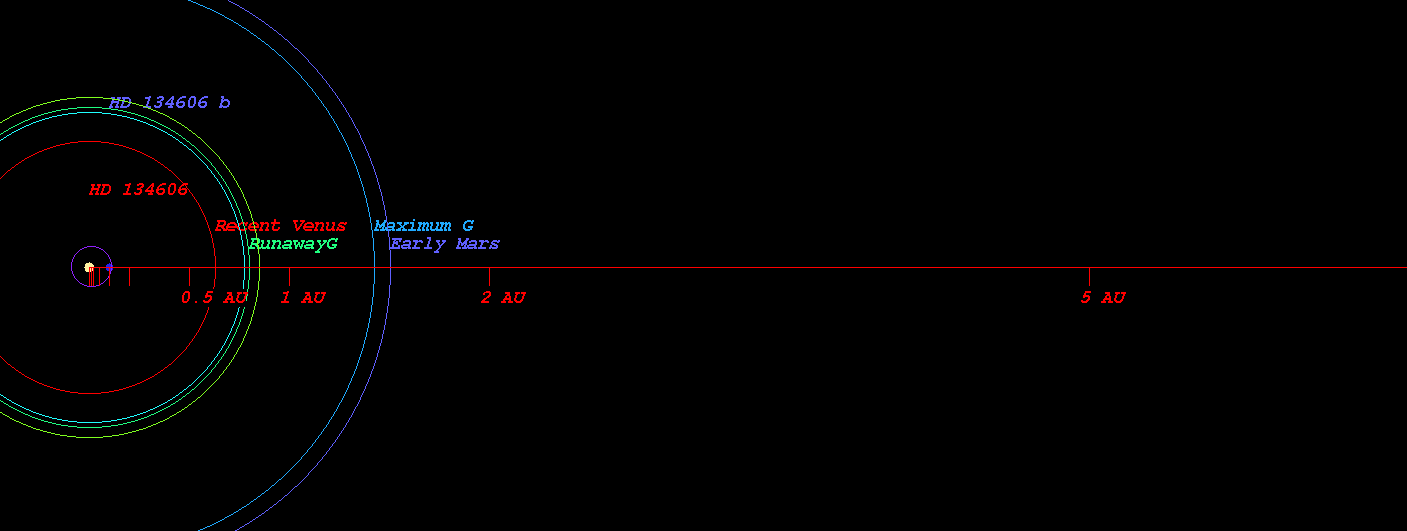

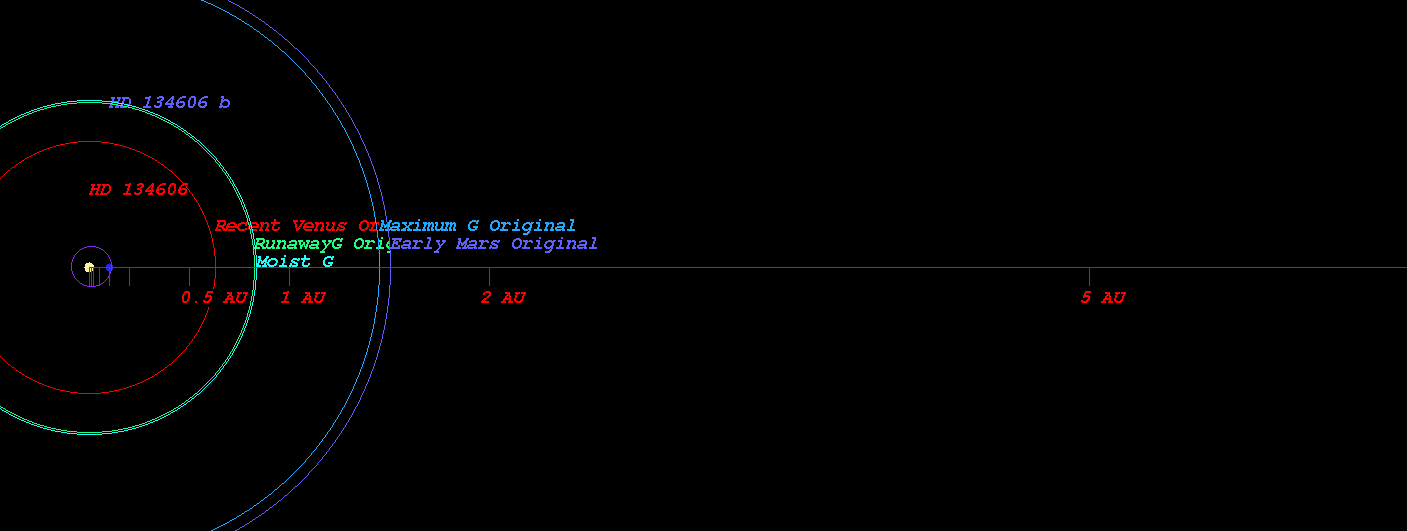

(Habitable zone calculated based on Kopparapu et al.(2013) around the star HD 134606)
Original Kopparapu Recent Venus for Star HD 134606 distance : 0.633 AU
Original Kopparapu Runaway Greenhouse for Star HD 134606 distance : 0.826 AU
Original Kopparapu Moist Greenhouse for Star HD 134606 distance : 0.838 AU
Original Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 134606 distance : 1.452 AU
Original Kopparapu Outer Boundary for Early Mars for Star HD 134606 distance : 1.510 AU
(Habitable zone calculated based on Kopparapu et al.(Original) around the star HD 134606)
(Position in Stellar Map of star HD 134606 and its Exoplanet HD 134606 b)

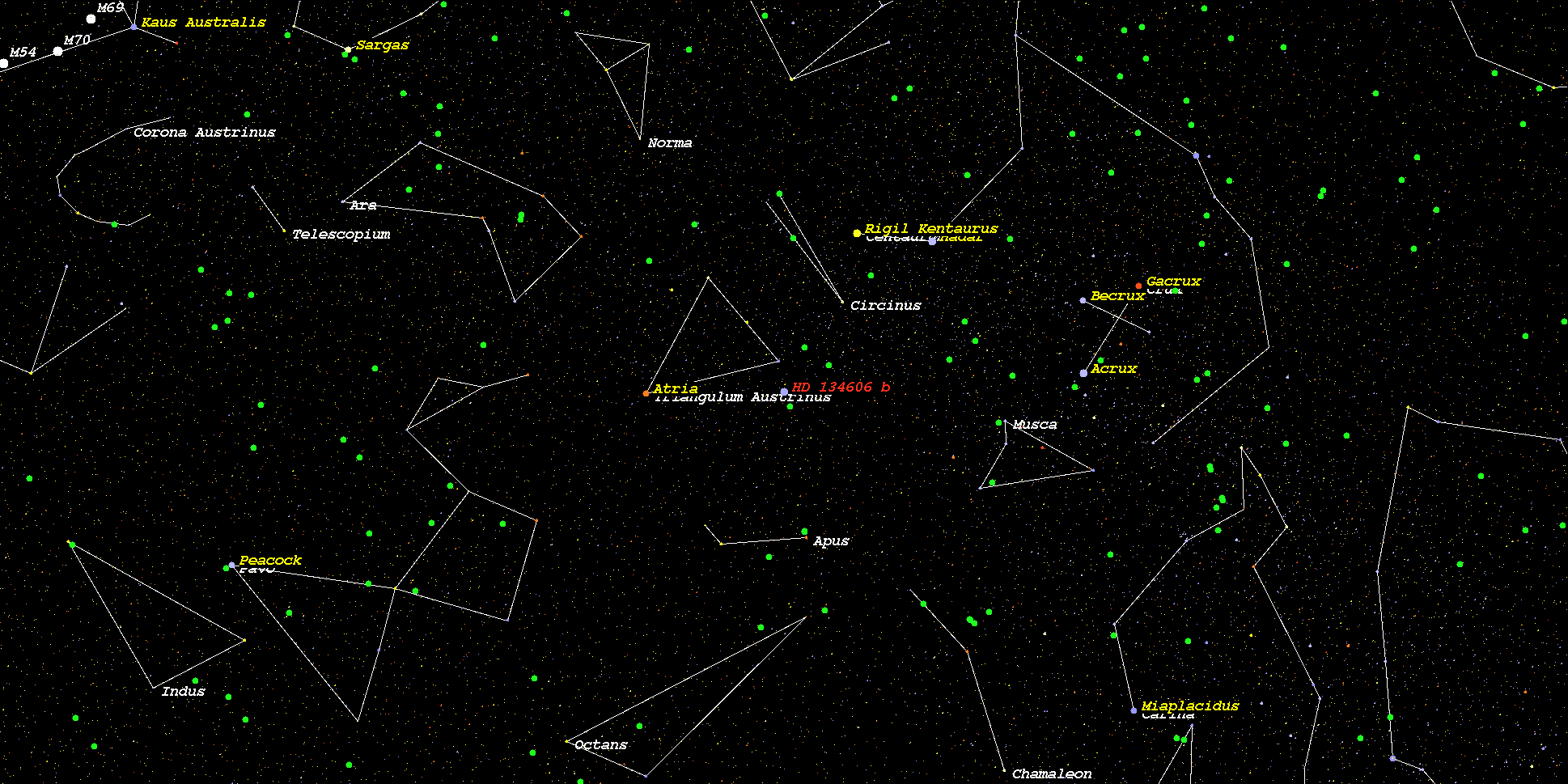

(Zoomed position in Stellar Map of star HD 134606 and its Exoplanet HD 134606 b (zoom level 3))

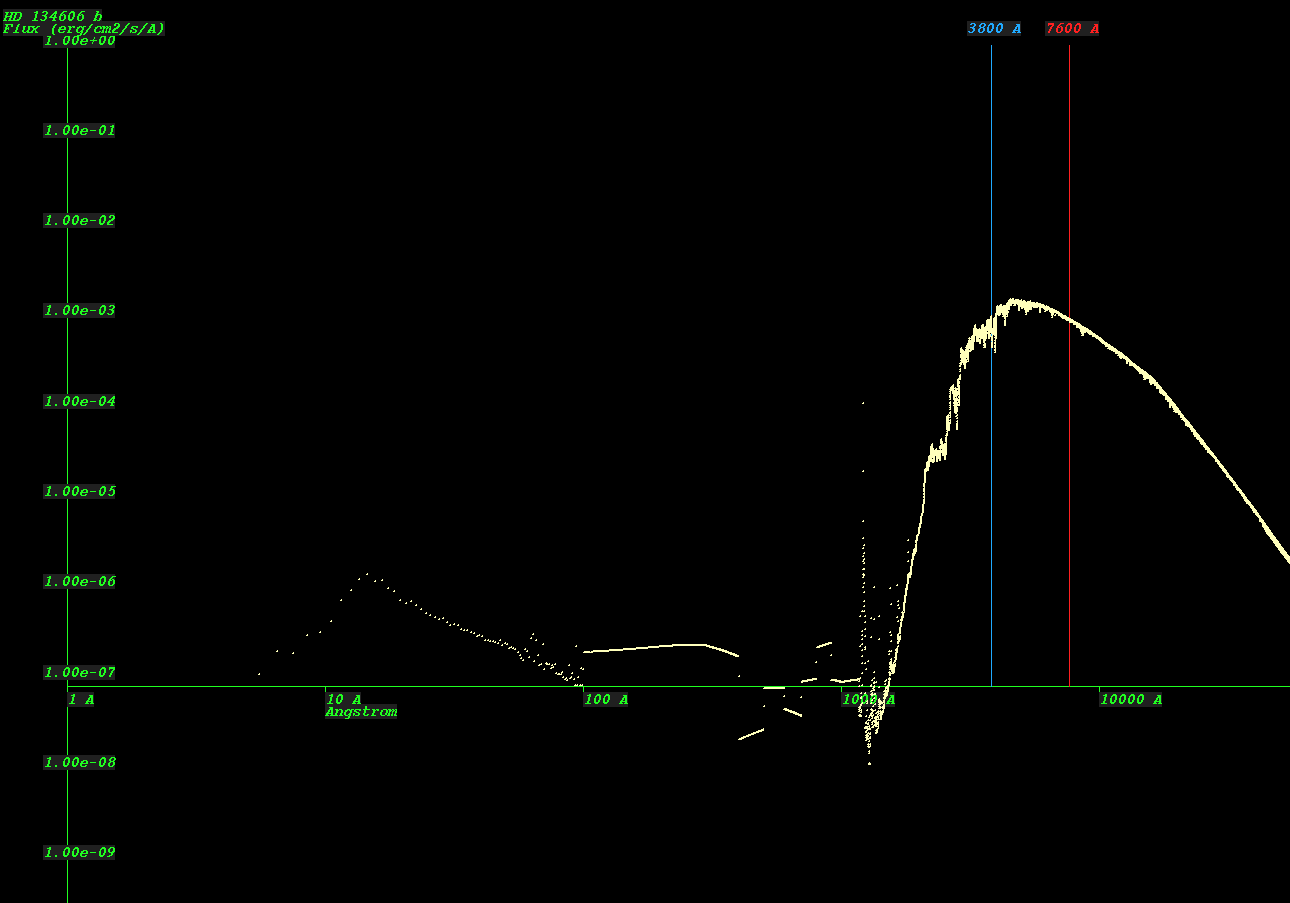

(Synthetic Spectrum of star HD 134606*)
*Yamashiki YA et al. 2019 ApJ 881 114
MUSCLES Paper I - France et al. 2016 ApJ 820 89
MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
