Imaginary Picture of HD 30177 b

Display orbital revolution of HD 30177 b around the hoststar HD 30177
/
Exoplanet Name : HD 30177 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.9078 (Rjup) 10.1759 (Rearth)
Mass (Mjup / Me): 8.4030 (Mjup) 2671.6330 (Mearth)
Semi Major Axis / Orbital Distance Calculated 3.6040 (AU) 3.6040 (AU Est.)
Eccentricity : 0.2070
Orbital Period(Yrs) 6.8841
Orbital Period(Observed/Estimated) 2514.50 (Days Obs.) 2438.78 (Days Est.)
Surface Gravity (G Earth) 25.8008
Star Radiation at Atmospheric Boundary: 114.8 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 146.1 (K)
Blackbody T 0.3(K) 137.2 (K)
Blackbody T 0.7(K) 111.0 (K)
Tidally Locked Blackbody T 0.1(K) 173.7 (K)
Tidally Locked Blackbody T 0.3(K) 163.2 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : "Radial Velocity, Astrometry"
Mass Detection : Astrometry
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : HD 30177
Alternate Name :
Star Distance(LY) : 178.4
Stellar Radius(Rsun) : 1.1 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 11.6 (GY)
Temperature : 5580 (K)
Spectral type : G8 V
UV portion[%]: 7.2
Visible portion[%]: 43.7
IR portion[%]: 49.0
Metalicity : 0.3
Absolute Magnitude: 4.7
Apparent Magnitude: 8.4
Right Ascension(RA) 70.4766
Declination (DEC) -58.0206
Hubble Space Telescope Guide Star Catalog (GSC) ID 08515-01843
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=HD+30177&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/HD%2030177%20b/
HD 30177 b
HD 30177 b

  • HD 30177 b is an exoplanet orbiting the star HD 30177, located about 178.4 light-years (54.7 pc) away from Solar System. Its discovery was publicly announced on 2002.
  • The host star HD 30177 has apparent magnitude of 8.4, with absolute magnitude of 4.7.
  • It is 1.1 times more massive and 1.1 times bigger compared with our Sun. The surface temperature is 5580 with its spectral types of G8 V
  • In this planetary system, the extrasolar planet HD 30177 b orbits around the star HD 30177 every 2514.5 days with its orbital distance of 3.60 AU ( 539150726.0 km)

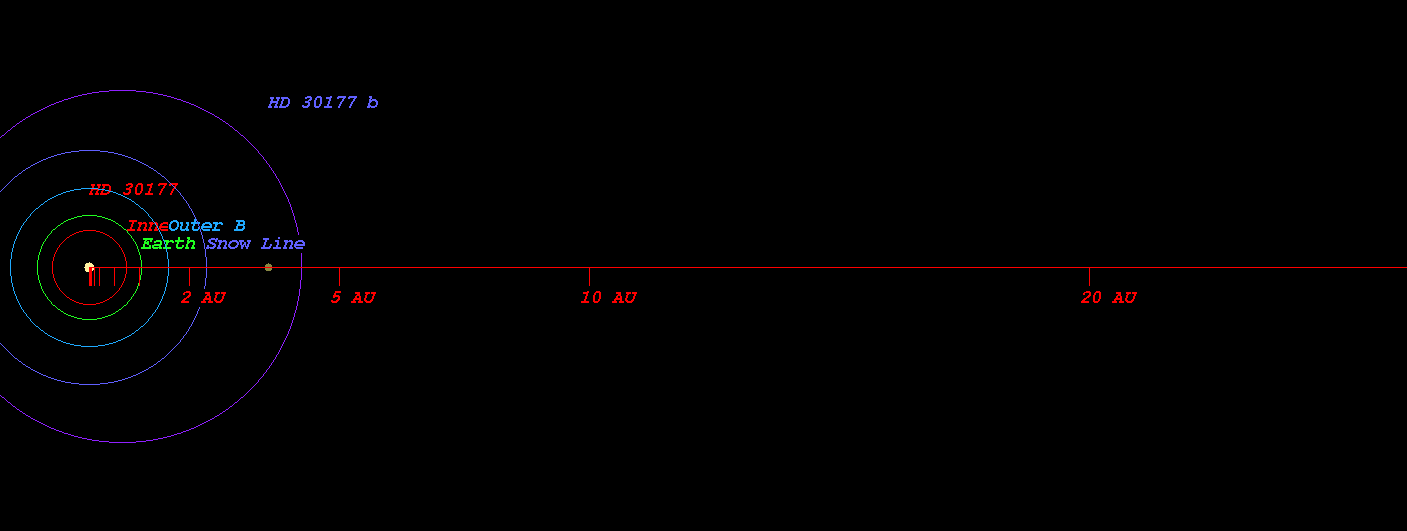

  • (Projected orbit of HD 30177 b around its host star HD 30177)


  • The Star HD 30177 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.755 AU ( 113017197.3 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.044 AU ( 156219301.6 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.591 AU ( 238043644.3 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.342 AU ( 350291650.7 km)
  • Radiation at Planetary Boundary of HD 30177 b : 114.82 W/m2

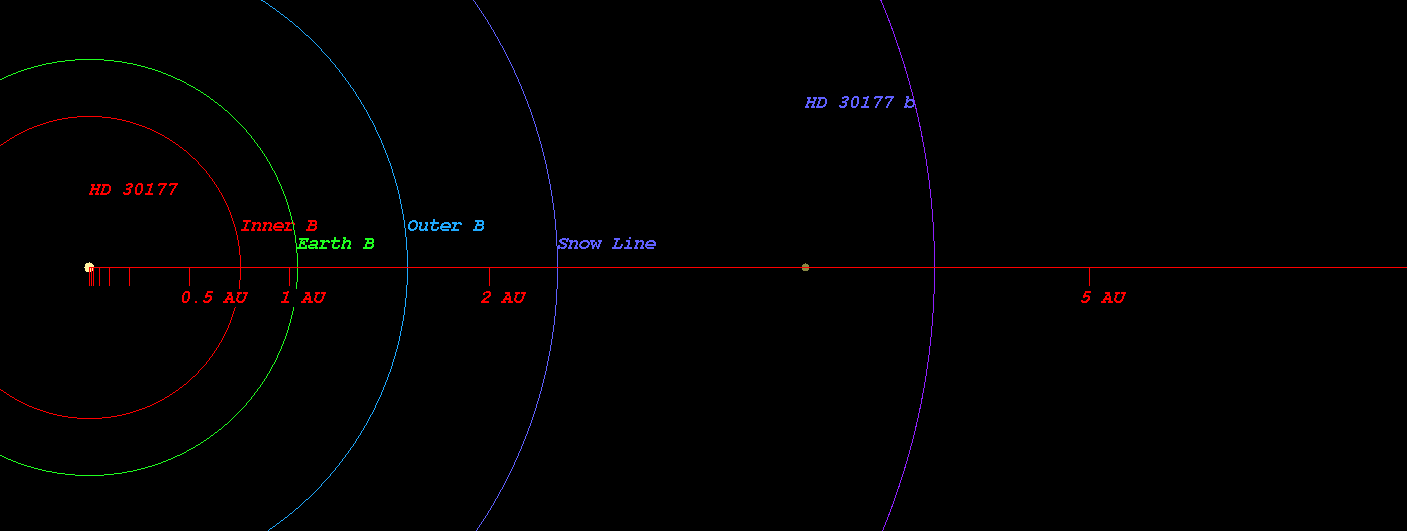

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star HD 30177)



  • Kopparapu Recent Venus for Star HD 30177 distance : 0.792 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star HD 30177 distance : 1.003 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star HD 30177 distance : 0.969 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star HD 30177 distance : 1.063 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 30177 distance : 1.782 AU
  • Kopparapu Outer Boundary for Early Mars for Star HD 30177 distance : 1.879 AU

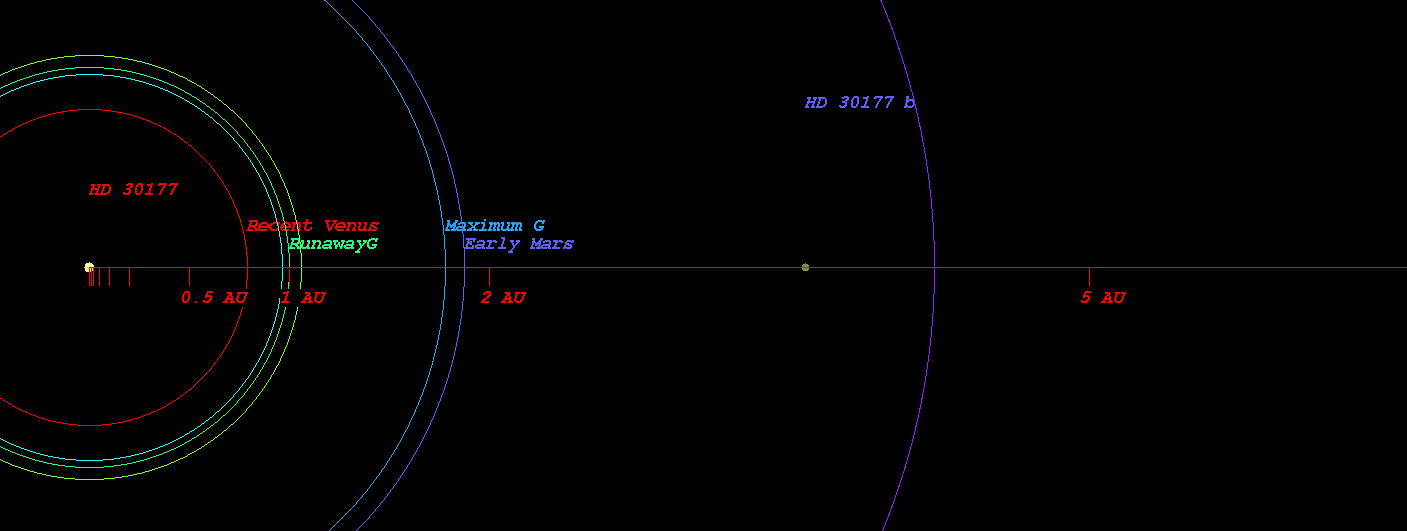

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star HD 30177)



  • Original Kopparapu Recent Venus for Star HD 30177 distance : 0.790 AU
  • Original Kopparapu Runaway Greenhouse for Star HD 30177 distance : 1.032 AU
  • Original Kopparapu Moist Greenhouse for Star HD 30177 distance : 1.046 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 30177 distance : 1.813 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star HD 30177 distance : 1.885 AU

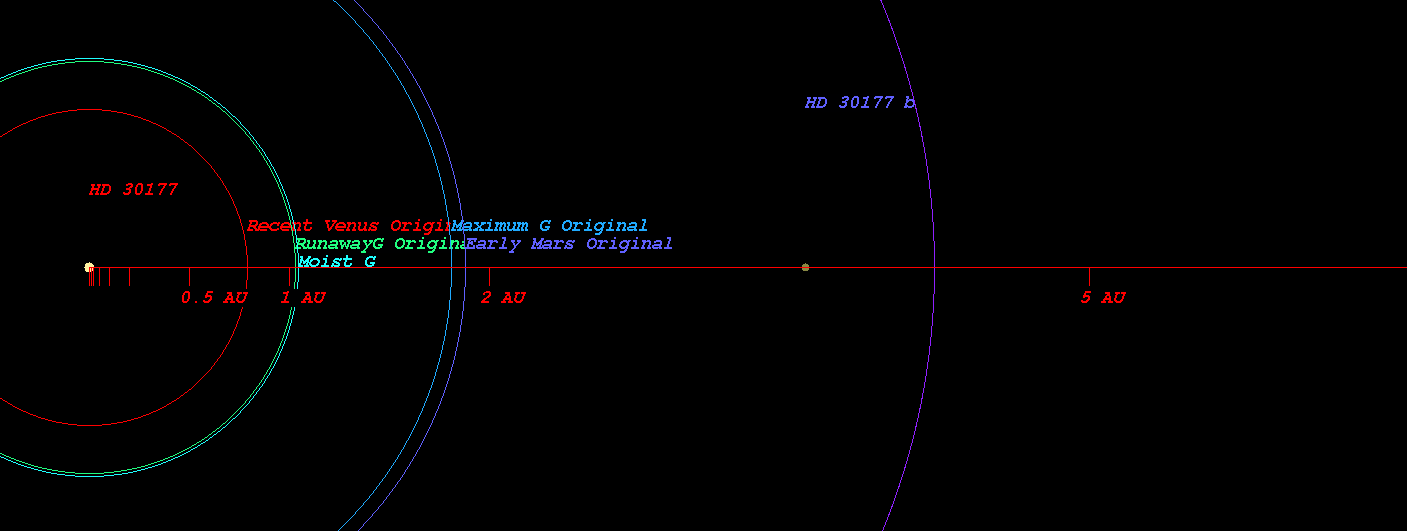

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star HD 30177)

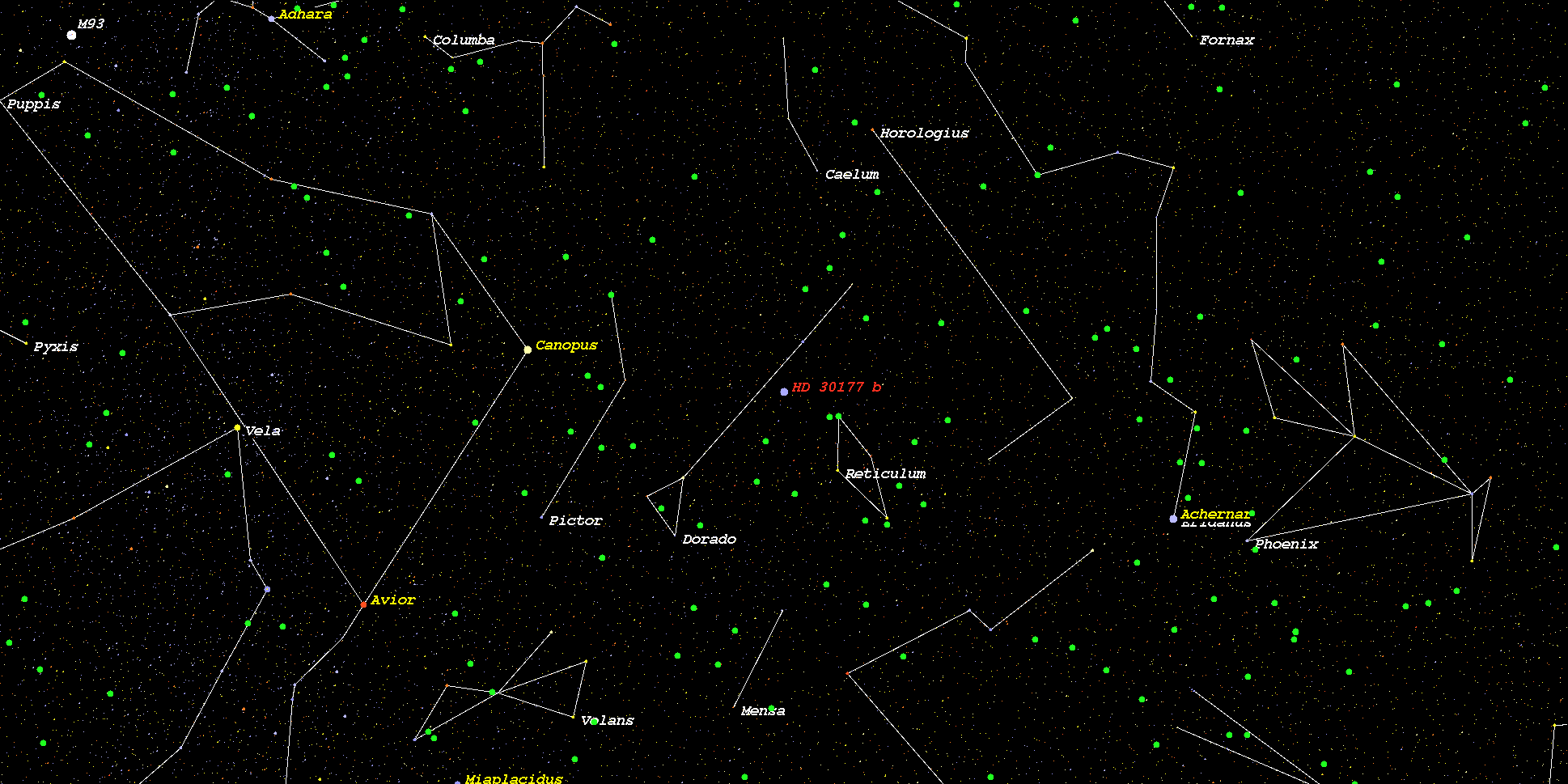

    (Position in Stellar Map of star HD 30177 and its Exoplanet HD 30177 b)



    (Zoomed position in Stellar Map of star HD 30177 and its Exoplanet HD 30177 b (zoom level 3))

    (Synthetic Spectrum of star HD 30177*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
