Imaginary Picture of HD 47366 b

Display orbital revolution of HD 47366 b around the hoststar HD 47366
/
Exoplanet Name : HD 47366 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.9078 (Rjup) 10.1759 (Rearth)
Mass (Mjup / Me): 1.7500 (Mjup) 556.3915 (Mearth)
Semi Major Axis / Orbital Distance Calculated 1.2140 (AU) 1.2140 (AU Est.)
Eccentricity : 0.0890
Orbital Period(Yrs) 0.9946
Orbital Period(Observed/Estimated) 363.30 (Days Obs.) 363.14 (Days Est.)
Surface Gravity (G Earth) 5.3733
Star Radiation at Atmospheric Boundary: 24860.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 560.4 (K)
Blackbody T 0.3(K) 526.3 (K)
Blackbody T 0.7(K) 425.8 (K)
Tidally Locked Blackbody T 0.1(K) 666.5 (K)
Tidally Locked Blackbody T 0.3(K) 625.9 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Radial Velocity
Mass Detection : Radial Velocity
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : HD 47366
Alternate Name :
Star Distance(LY) : 260.9
Stellar Radius(Rsun) : 7.3 (Rsun Measured)
Stellar Mass(Msun) : 1.8 (Msun Measured) 1.8 (Msun Estimated)
Star Age : 1.6 (GY)
Temperature : 4866 (K)
Spectral type : K1III
UV portion[%]: 2.7
Visible portion[%]: 35.9
IR portion[%]: 61.5
Metalicity : -0.0
Absolute Magnitude: 1.6
Apparent Magnitude: 6.1
Right Ascension(RA) 99.4200
Declination (DEC) -12.9850
Hubble Space Telescope Guide Star Catalog (GSC) ID 05373-02001
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title 0
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=HD+47366++&submit=SIMBAD+search
Open Exoplanet Database Link 0
HD 47366 b
HD 47366 b

  • HD 47366 b is an exoplanet orbiting the star HD 47366, located about 260.9 light-years (80.0 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star HD 47366 has apparent magnitude of 6.1, with absolute magnitude of 1.6.
  • It is 1.8 times more massive and 7.3 times bigger compared with our Sun. The surface temperature is 4866 with its spectral types of K1III
  • In this planetary system, the extrasolar planet HD 47366 b orbits around the star HD 47366 every 363.3 days with its orbital distance of 1.21 AU ( 181611815.0 km)

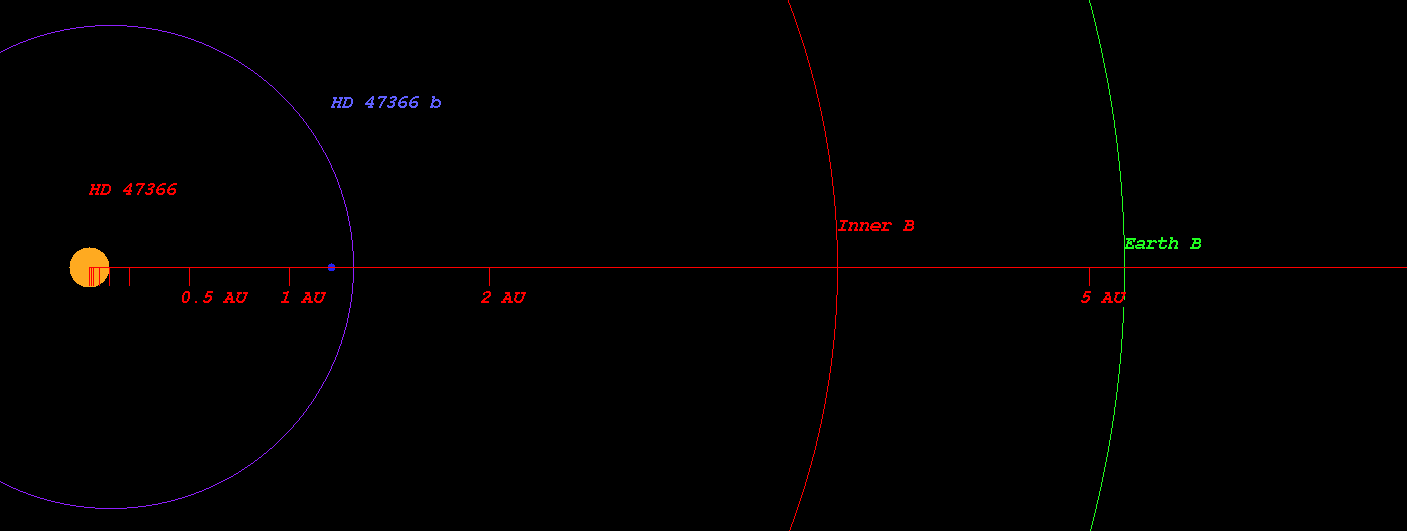

  • (Projected orbit of HD 47366 b around its host star HD 47366)


  • The Star HD 47366 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 3.745 AU ( 560176881.8 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 5.176 AU ( 774310842.4 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 7.887 AU ( 1179878369.2 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 11.606 AU ( 1736242707.4 km)
  • Radiation at Planetary Boundary of HD 47366 b : 24860.03 W/m2

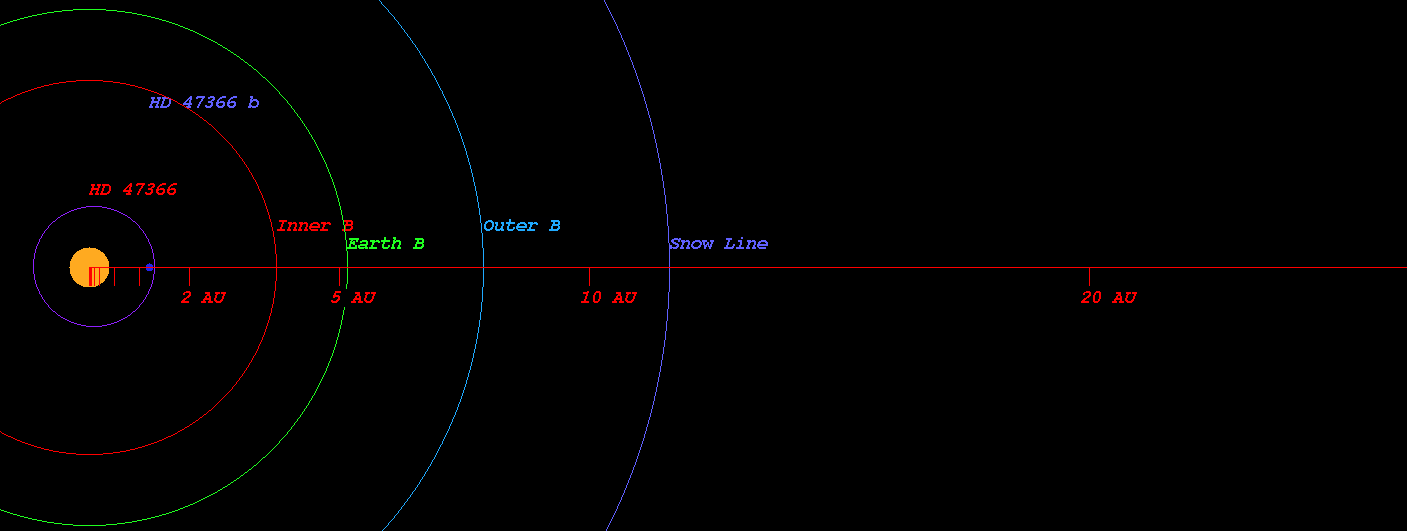

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star HD 47366)



  • Kopparapu Recent Venus for Star HD 47366 distance : 4.076 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star HD 47366 distance : 5.160 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star HD 47366 distance : 4.984 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star HD 47366 distance : 5.471 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 47366 distance : 9.404 AU
  • Kopparapu Outer Boundary for Early Mars for Star HD 47366 distance : 9.920 AU

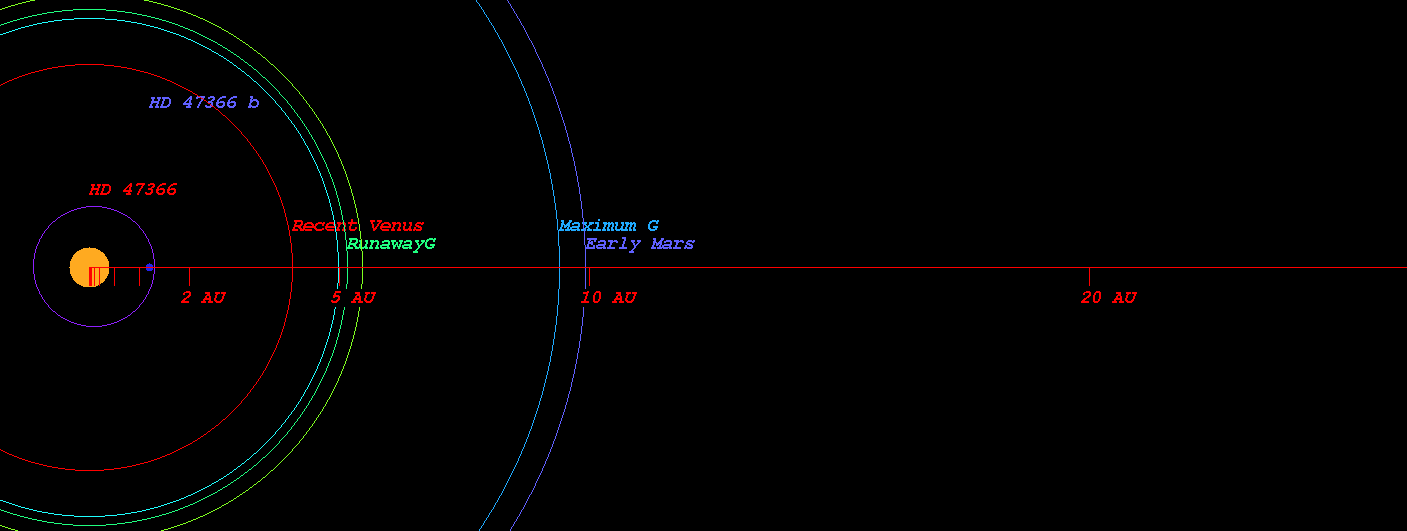

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star HD 47366)



  • Original Kopparapu Recent Venus for Star HD 47366 distance : 4.028 AU
  • Original Kopparapu Runaway Greenhouse for Star HD 47366 distance : 5.320 AU
  • Original Kopparapu Moist Greenhouse for Star HD 47366 distance : 5.330 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 47366 distance : 9.561 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star HD 47366 distance : 9.943 AU

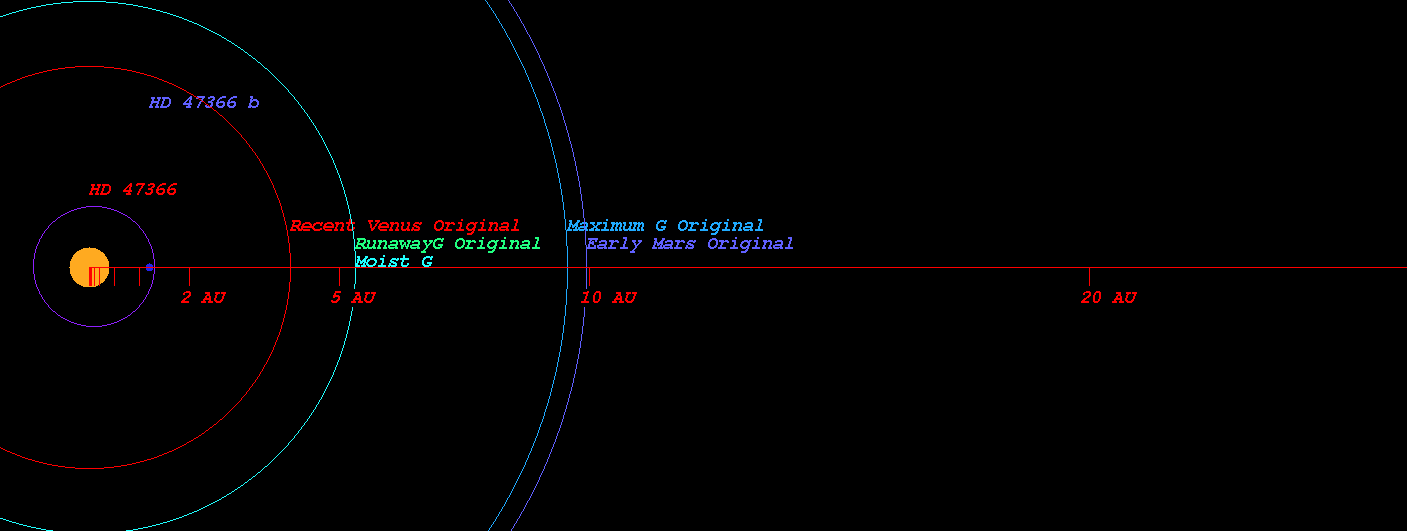

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star HD 47366)



    (Position in Stellar Map of star HD 47366 and its Exoplanet HD 47366 b)



    (Zoomed position in Stellar Map of star HD 47366 and its Exoplanet HD 47366 b (zoom level 3))

    (Synthetic Spectrum of star HD 47366*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
