Imaginary Picture of KIC 11152511 b

Display orbital revolution of KIC 11152511 b around the hoststar KIC 11152511
/
Exoplanet Name : KIC 11152511 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.3600 (Rjup) 4.0352 (Rearth)
Mass (Mjup / Me): 0.0304 (Mjup) 9.6554 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.8500 (AU) 0.8500 (AU Est.)
Eccentricity : 0.6700
Orbital Period(Yrs) 0.7867
Orbital Period(Observed/Estimated) 287.36 (Days Obs.) 284.81 (Days Est.)
Surface Gravity (G Earth) 0.5930
Star Radiation at Atmospheric Boundary: 5677.1 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 387.4 (K)
Blackbody T 0.3(K) 363.8 (K)
Blackbody T 0.7(K) 294.4 (K)
Tidally Locked Blackbody T 0.1(K) 460.7 (K)
Tidally Locked Blackbody T 0.3(K) 432.7 (K)
Size Class: Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : KIC 11152511
Alternate Name :
Star Distance(LY) : 1937.9
Stellar Radius(Rsun) : 2.1 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5273 (K)
Spectral type : K0
UV portion[%]: 5.6
Visible portion[%]: 41.1
IR portion[%]: 53.3
Metalicity : -0.1
Absolute Magnitude: 5.1
Apparent Magnitude: 14.0
Right Ascension(RA) 298.0623
Declination (DEC) 48.7250
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title 0
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=KIC+11152511+&submit=SIMBAD+search
Open Exoplanet Database Link 0
KIC 11152511 b
KIC 11152511 b

  • KIC 11152511 b is an exoplanet orbiting the star KIC 11152511, located about 1937.9 light-years (594.2 pc) away from Solar System. Its discovery was publicly announced on 2013.
  • The host star KIC 11152511 has apparent magnitude of 14.0, with absolute magnitude of 5.1.
  • It is 1.0 times more massive and 2.1 times bigger compared with our Sun. The surface temperature is 5273 with its spectral types of K0
  • In this planetary system, the extrasolar planet KIC 11152511 b orbits around the star KIC 11152511 every 287.4 days with its orbital distance of 0.85 AU ( 127158190.1 km)

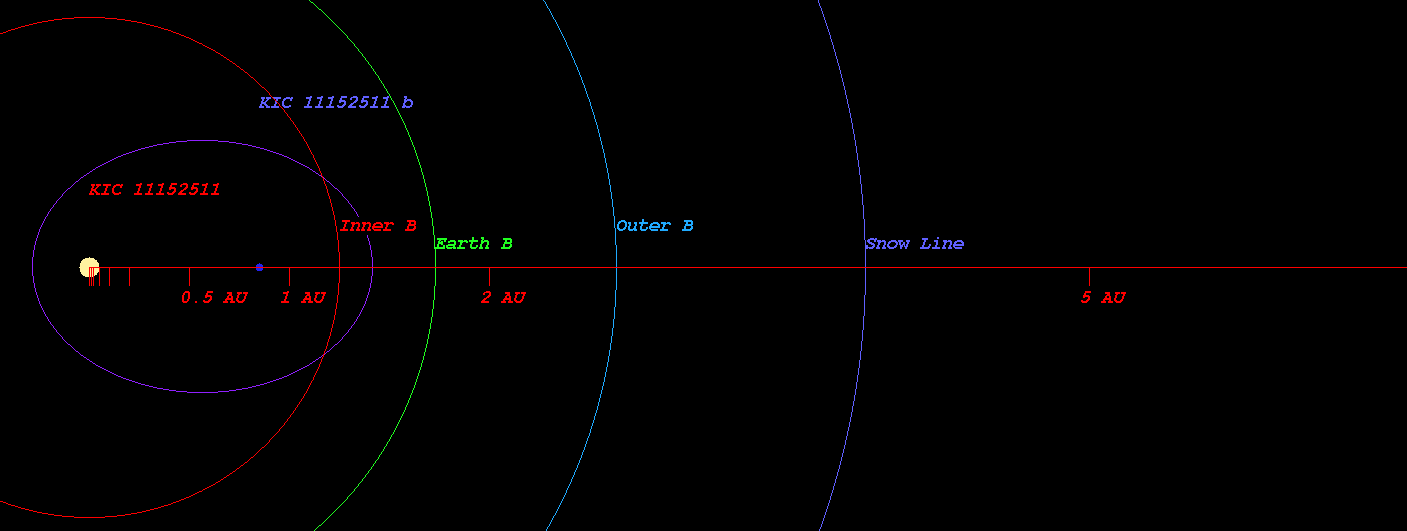

  • (Projected orbit of KIC 11152511 b around its host star KIC 11152511)


  • The Star KIC 11152511 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.253 AU ( 187429087.2 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.732 AU ( 259075979.6 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.639 AU ( 394774459.5 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.883 AU ( 580927911.1 km)
  • Radiation at Planetary Boundary of KIC 11152511 b : 5677.08 W/m2

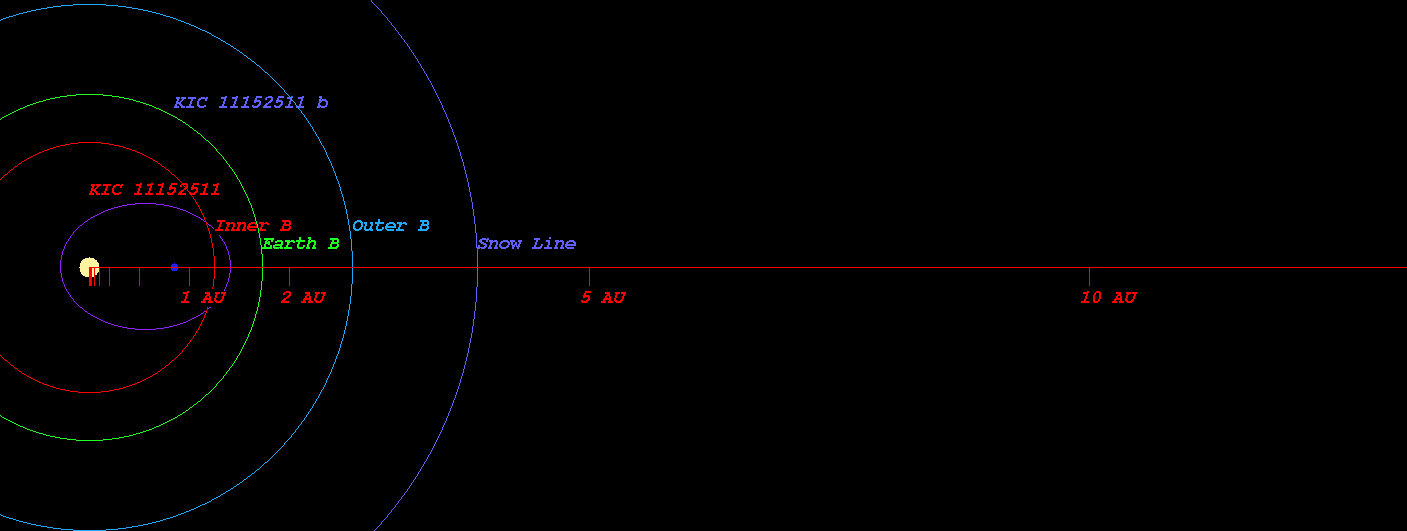

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star KIC 11152511)



  • Kopparapu Recent Venus for Star KIC 11152511 distance : 1.337 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star KIC 11152511 distance : 1.693 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star KIC 11152511 distance : 1.635 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star KIC 11152511 distance : 1.793 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star KIC 11152511 distance : 3.036 AU
  • Kopparapu Outer Boundary for Early Mars for Star KIC 11152511 distance : 3.203 AU

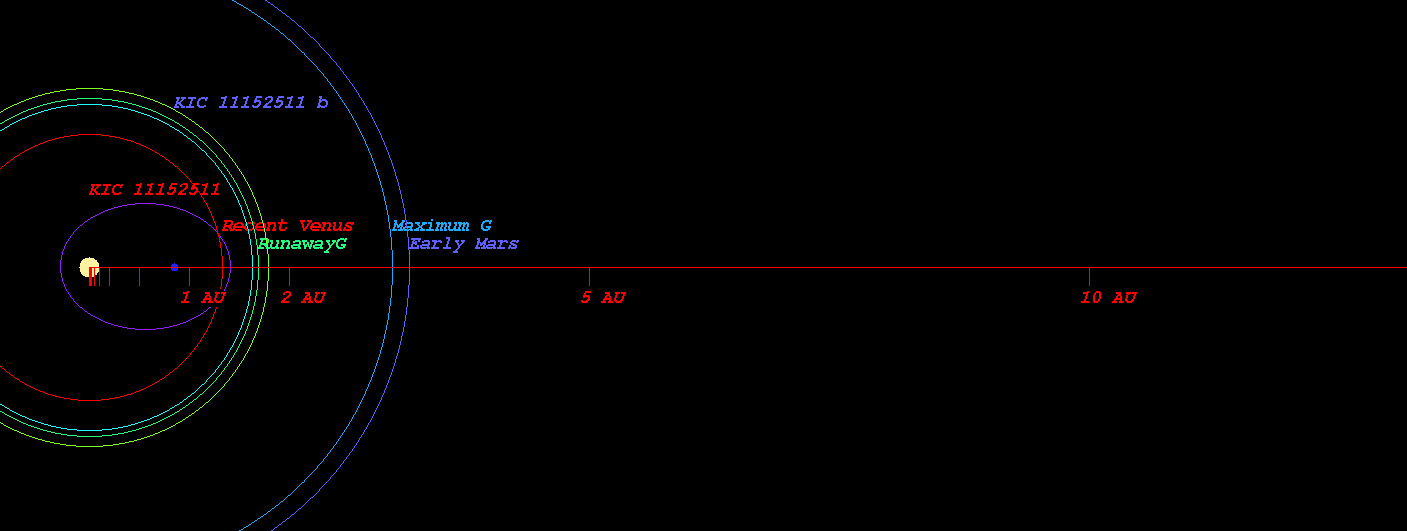

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star KIC 11152511)



  • Original Kopparapu Recent Venus for Star KIC 11152511 distance : 1.327 AU
  • Original Kopparapu Runaway Greenhouse for Star KIC 11152511 distance : 1.742 AU
  • Original Kopparapu Moist Greenhouse for Star KIC 11152511 distance : 1.756 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star KIC 11152511 distance : 3.088 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star KIC 11152511 distance : 3.211 AU

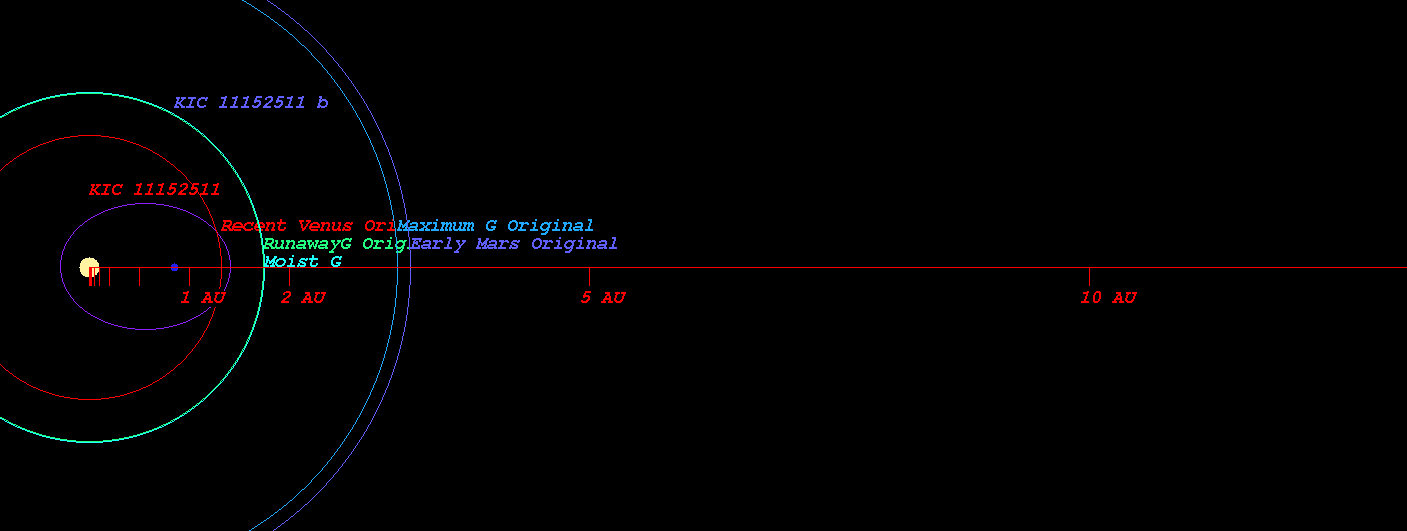

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star KIC 11152511)



    (Position in Stellar Map of star KIC 11152511 and its Exoplanet KIC 11152511 b)



    (Zoomed position in Stellar Map of star KIC 11152511 and its Exoplanet KIC 11152511 b (zoom level 3))

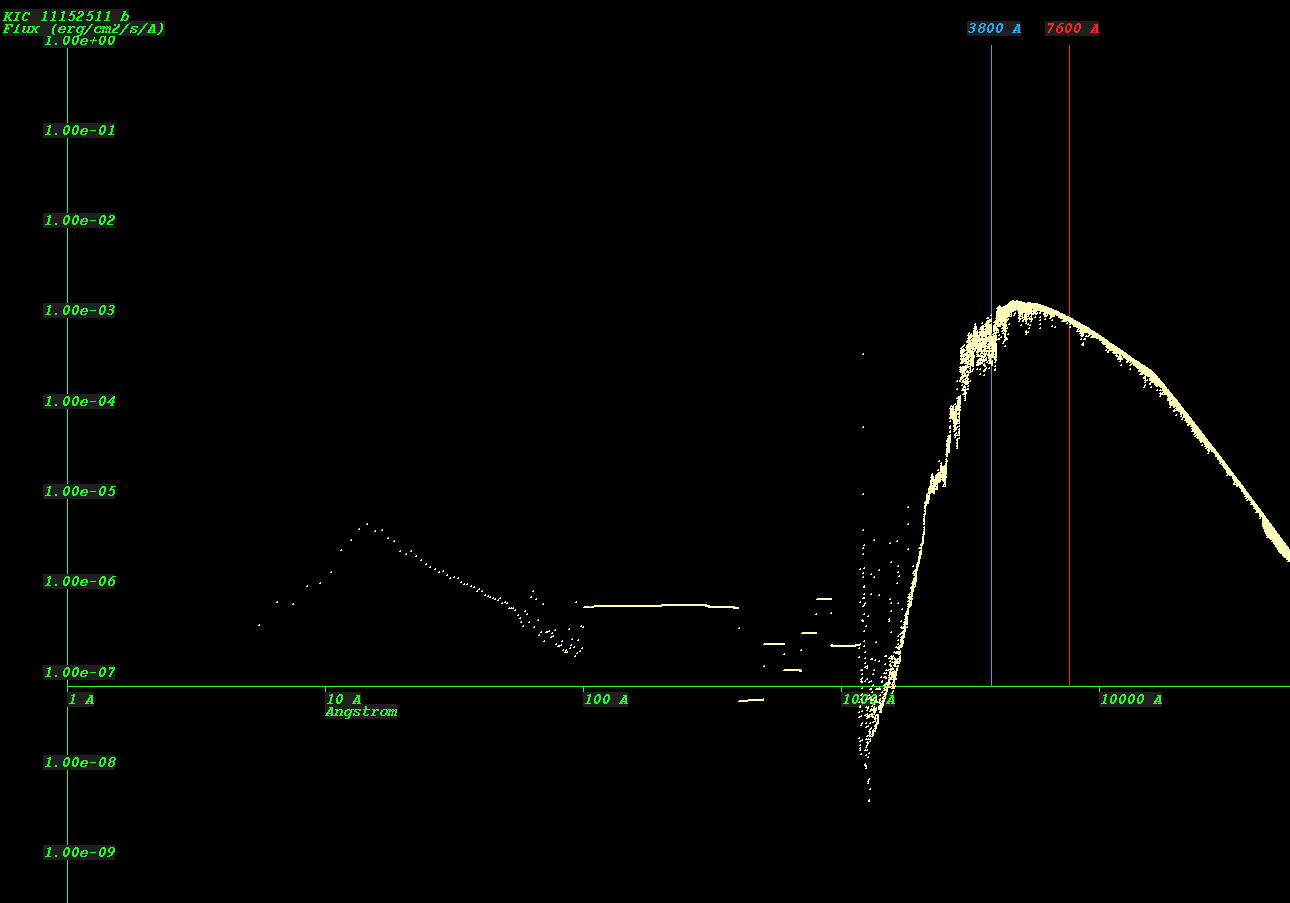

    (Synthetic Spectrum of star KIC 11152511*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
