Imaginary Picture of KIC 6185331 b

Display orbital revolution of KIC 6185331 b around the hoststar KIC 6185331
/
Exoplanet Name : KIC 6185331 b
Alternate Name : Kepler-943 b
Radius (Rjup / Re): 0.5290 (Rjup) 5.9296 (Rearth)
Mass (Mjup / Me): 0.1451 (Mjup) 46.1358 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.2672 (AU) 0.2672 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.1363
Orbital Period(Observed/Estimated) 49.77 (Days Obs.) 49.78 (Days Est.)
Surface Gravity (G Earth) 1.3122
Star Radiation at Atmospheric Boundary: 27616.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 575.4 (K)
Blackbody T 0.3(K) 540.3 (K)
Blackbody T 0.7(K) 437.2 (K)
Tidally Locked Blackbody T 0.1(K) 684.2 (K)
Tidally Locked Blackbody T 0.3(K) 642.6 (K)
Size Class: sub-Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : KIC 6185331
Alternate Name :
Star Distance(LY) : 0.0
Stellar Radius(Rsun) : 1.3 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 8.7 (GY)
Temperature : 5619 (K)
Spectral type : G6
UV portion[%]: 7.3
Visible portion[%]: 44.0
IR portion[%]: 48.7
Metalicity : 0.1
Absolute Magnitude: 25.0
Apparent Magnitude: 15.0
Right Ascension(RA) 284.2740
Declination (DEC) 41.5350
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors CUTRI R.M.; SKRUTSKIE M.F.; VAN DYK S.; BEICHMAN C.A.; CARPENTER J.M.; CHESTER T.; CAMBRESY L.; EVANS T.; FOWLER J.; GIZIS J.; HOWARD E.; HUCHRA J.; JARRETT T.; KOPAN E.L.; KIRKPATRICK J.D.; LIGHT R.M.; MARSH K.A.; McCALLON H.; SCHNEIDER S.; STIENING R.; SYKES M.; WEINBERG M.; WHEATON W.A.; WHEELOCK S.; ZACARIAS N.
Discovery Paper - Title 2MASS All Sky Catalog of point sources.
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=KIC+6185331+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/KIC%206185331%20b/
KIC 6185331 b
KIC 6185331 b

  • KIC 6185331 b is an exoplanet orbiting the star KIC 6185331. Its discovery was publicly announced on 2011.
  • The host star KIC 6185331 has apparent magnitude of 15.0, with absolute magnitude of 25.0.
  • It is 1.0 times more massive and 1.3 times bigger compared with our Sun. The surface temperature is 5619 with its spectral types of G6
  • In this planetary system, the extrasolar planet KIC 6185331 b orbits around the star KIC 6185331 every 49.8 days with its orbital distance of 0.27 AU ( 39972551.1 km)

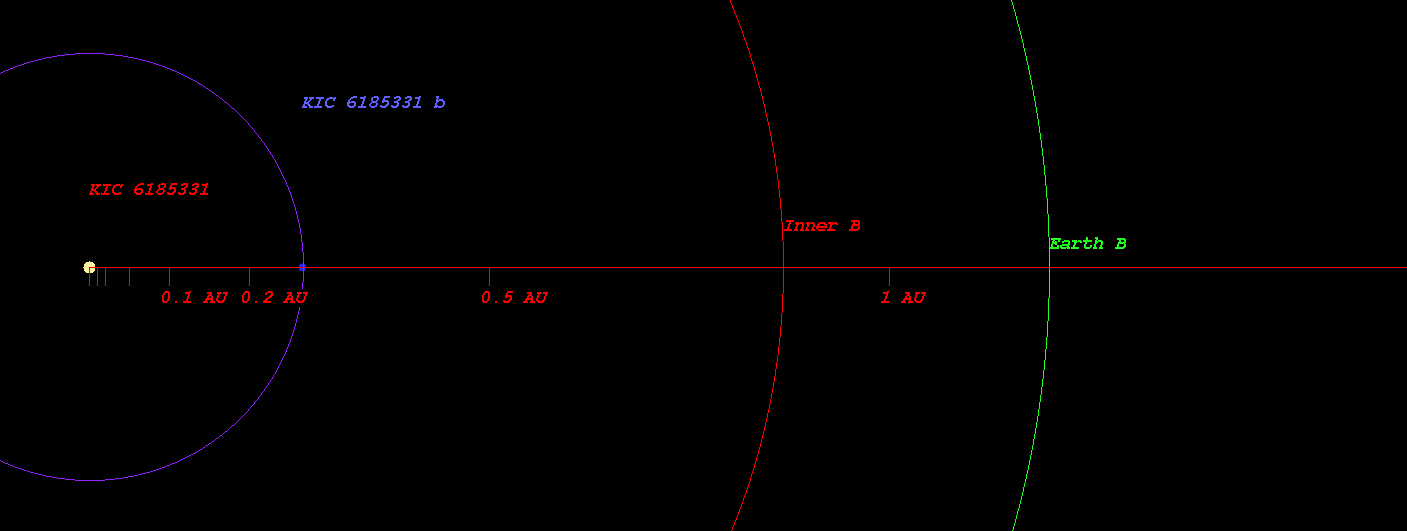

  • (Projected orbit of KIC 6185331 b around its host star KIC 6185331)


  • The Star KIC 6185331 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.869 AU ( 129951081.3 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.201 AU ( 179626354.7 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.830 AU ( 273710813.3 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.692 AU ( 402777452.2 km)
  • Radiation at Planetary Boundary of KIC 6185331 b : 27616.93 W/m2

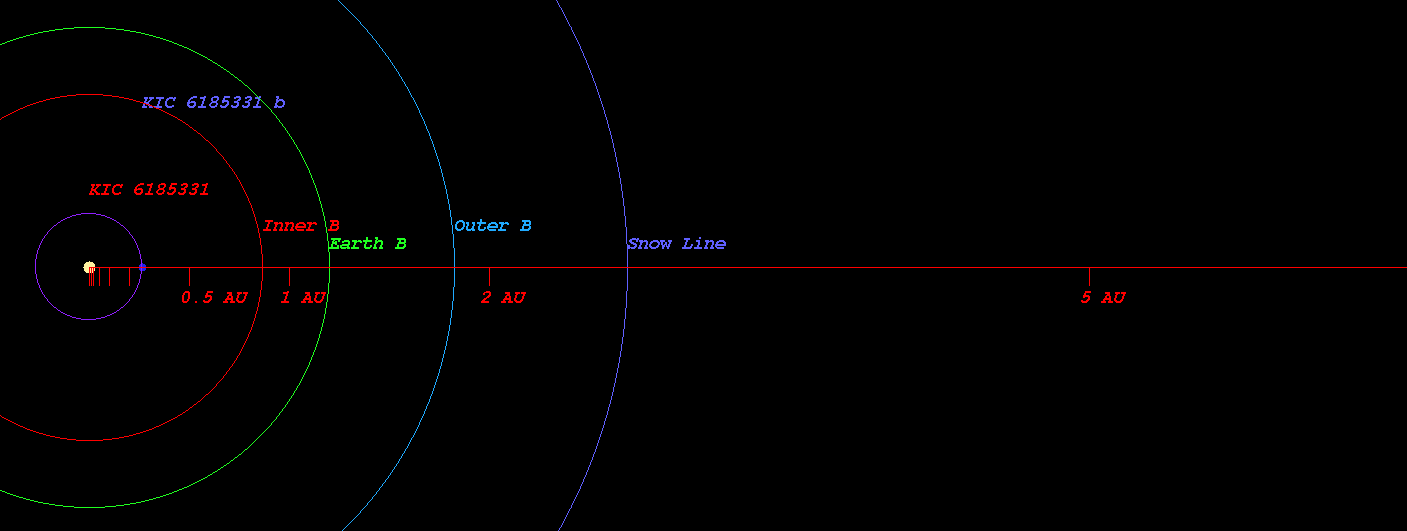

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star KIC 6185331)



  • Kopparapu Recent Venus for Star KIC 6185331 distance : 0.909 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star KIC 6185331 distance : 1.151 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star KIC 6185331 distance : 1.112 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star KIC 6185331 distance : 1.219 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star KIC 6185331 distance : 2.042 AU
  • Kopparapu Outer Boundary for Early Mars for Star KIC 6185331 distance : 2.153 AU

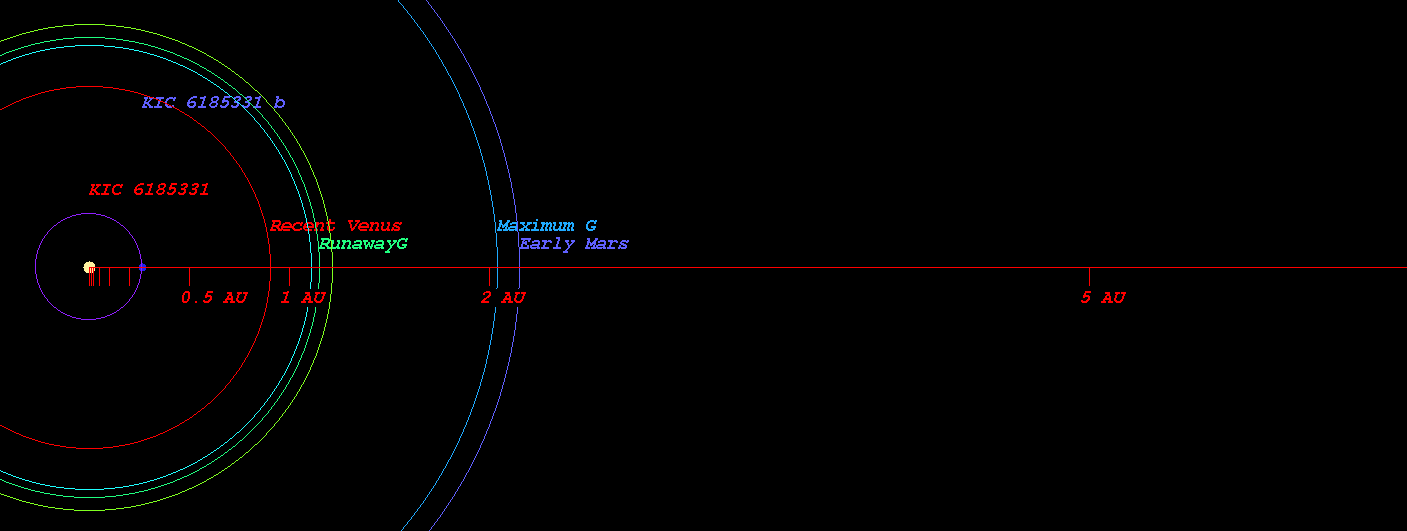

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star KIC 6185331)



  • Original Kopparapu Recent Venus for Star KIC 6185331 distance : 0.907 AU
  • Original Kopparapu Runaway Greenhouse for Star KIC 6185331 distance : 1.183 AU
  • Original Kopparapu Moist Greenhouse for Star KIC 6185331 distance : 1.201 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star KIC 6185331 distance : 2.077 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star KIC 6185331 distance : 2.160 AU

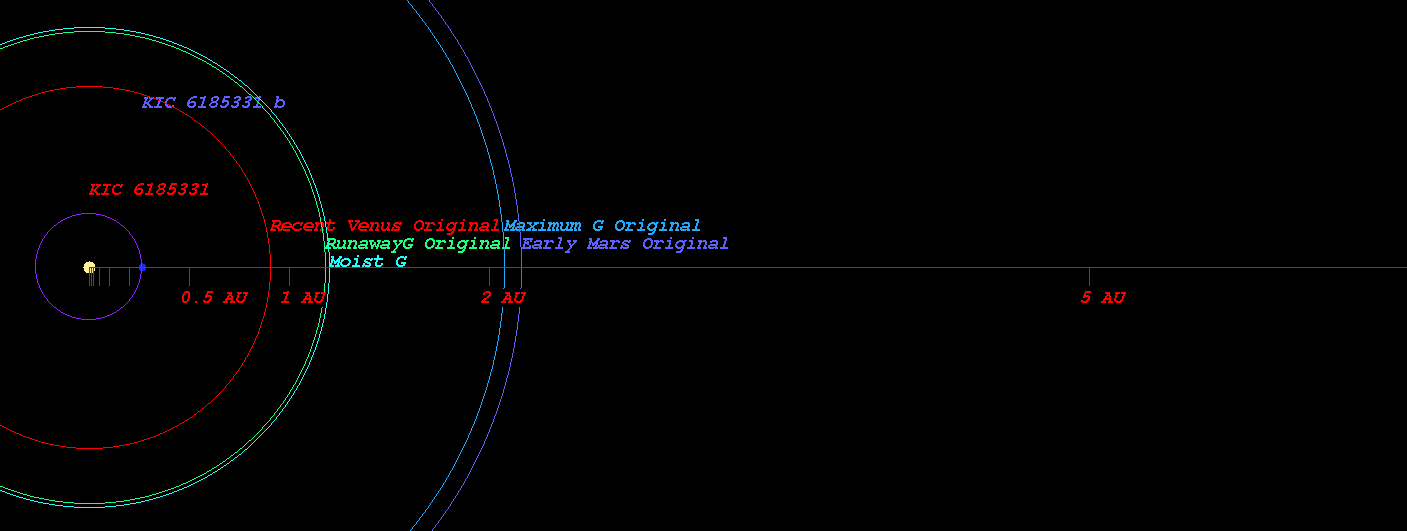

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star KIC 6185331)

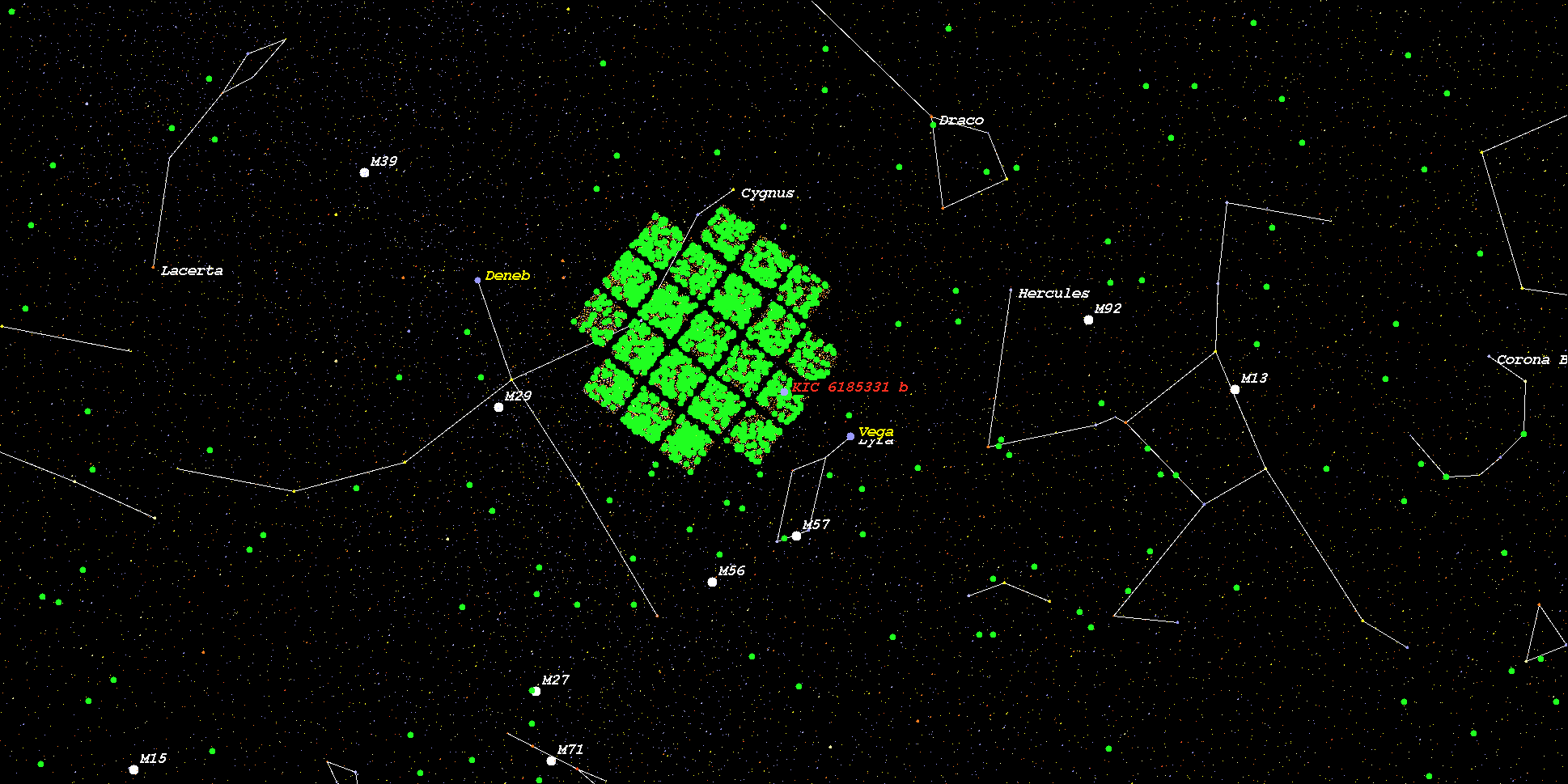

    (Position in Stellar Map of star KIC 6185331 and its Exoplanet KIC 6185331 b)



    (Zoomed position in Stellar Map of star KIC 6185331 and its Exoplanet KIC 6185331 b (zoom level 3))
