Imaginary Picture of Kepler-1000 b

Display orbital revolution of Kepler-1000 b around the hoststar Kepler-1000
/
Exoplanet Name : Kepler-1000 b
Alternate Name : "2MASS J19064452+4705535 b, K01888.01, KIC 10063802 b, KOI-1888 b, KOI-1888.01, WISE J190644.51+470553.5 b"
Status : Confirmed
Radius (Rjup / Re): 0.4250 (Rjup) 4.7638 (Rearth)
Mass (Mjup / Me): 0.0752 (Mjup) 23.9242 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.5327 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.3286
Orbital Period(Observed/Estimated) 120.02 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.0542
Star Radiation at Atmospheric Boundary: 24682.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 559.4 (K)
Blackbody T 0.3(K) 525.4 (K)
Blackbody T 0.7(K) 425.1 (K)
Tidally Locked Blackbody T 0.1(K) 665.3 (K)
Tidally Locked Blackbody T 0.3(K) 624.8 (K)
Size Class: Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1000
Alternate Name : "2MASS J19064452+4705535, KIC 10063802, KOI-1888, WISE J190644.51+470553.5"
Star Distance(LY) : 3636.4
Stellar Radius(Rsun) : 1.8 (Rsun Measured)
Stellar Mass(Msun) : 1.4 (Msun Measured) 1.4 (Msun Estimated)
Star Age : 1.3 (GY)
Temperature : 6421 (K)
Spectral type : F7
UV portion[%]: 0.3
Visible portion[%]: 1.5
IR portion[%]: 98.2
Metalicity : 0.3
Absolute Magnitude: 2.1
Apparent Magnitude: 12.3
Right Ascension(RA) 286.6855
Declination (DEC) 47.0982
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1000+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1000%20b/
Kepler-1000 b
Kepler-1000 b

  • Kepler-1000 b is an exoplanet orbiting the star Kepler-1000, located about 3636.4 light-years (1114.9 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1000 has apparent magnitude of 12.3, with absolute magnitude of 2.1.
  • It is 1.4 times more massive and 1.8 times bigger compared with our Sun. The surface temperature is 6421 with its spectral types of F7
  • In this planetary system, the extrasolar planet Kepler-1000 b orbits around the star Kepler-1000 every 120.0 days with its orbital distance of 0.53 AU ( 79690369.0 km)

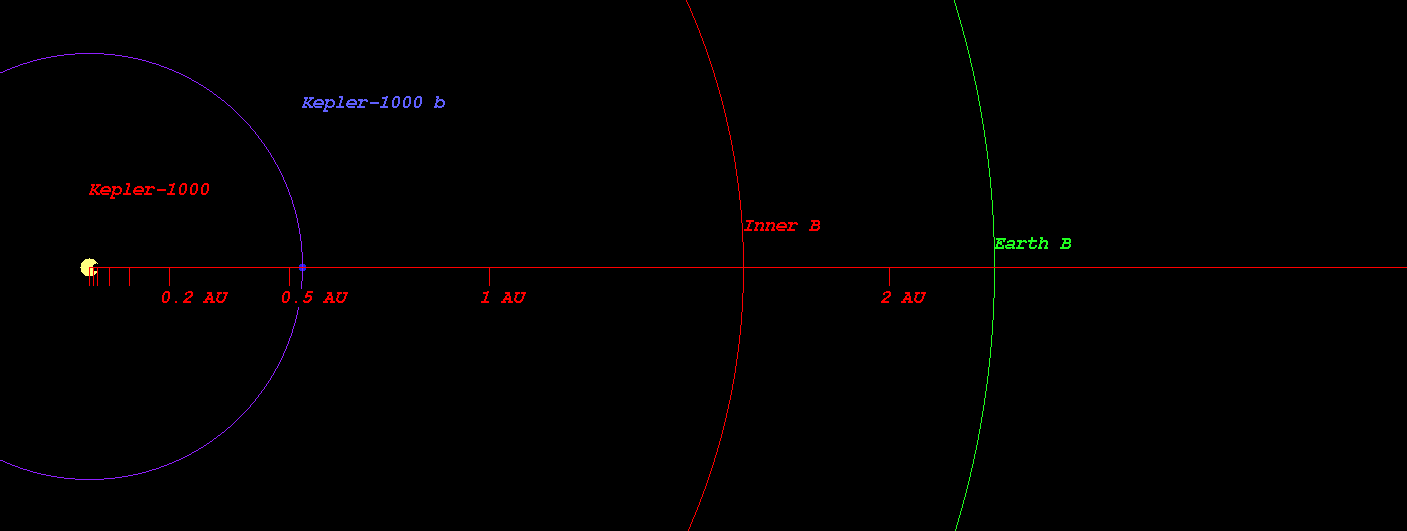

  • (Projected orbit of Kepler-1000 b around its host star Kepler-1000)


  • The Star Kepler-1000 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.637 AU ( 244920939.8 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 2.263 AU ( 338544744.3 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 3.448 AU ( 515867270.6 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 5.074 AU ( 759121287.3 km)
  • Radiation at Planetary Boundary of Kepler-1000 b : 24681.96 W/m2

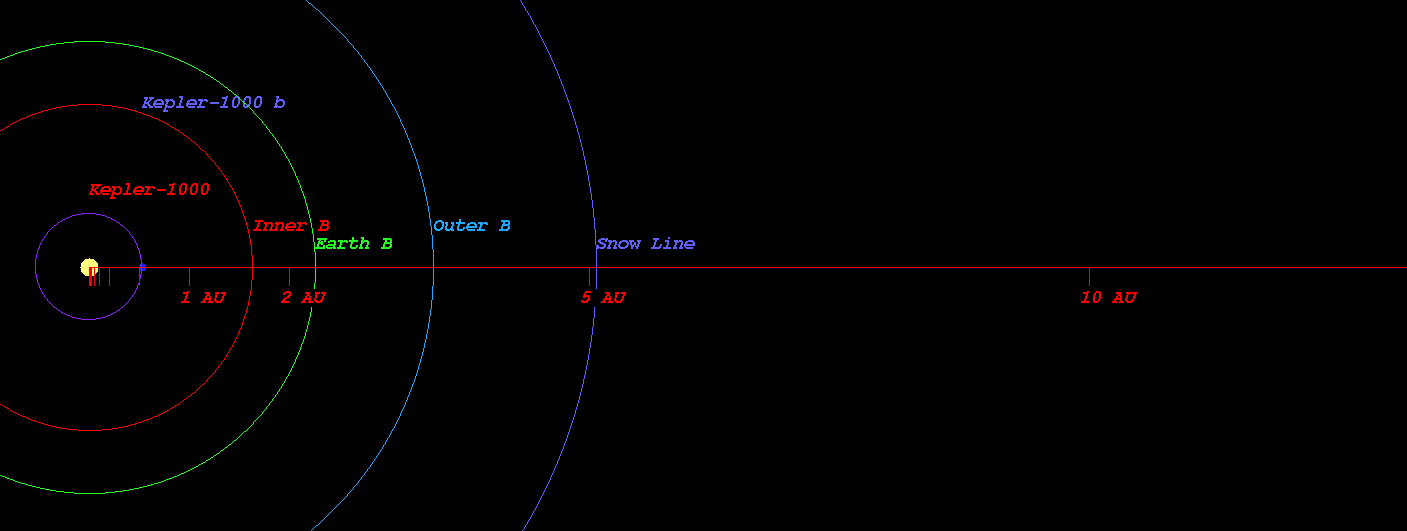

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1000)



  • Kopparapu Recent Venus for Star Kepler-1000 distance : 1.632 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1000 distance : 2.067 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1000 distance : 1.996 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1000 distance : 2.187 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1000 distance : 3.600 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1000 distance : 3.797 AU

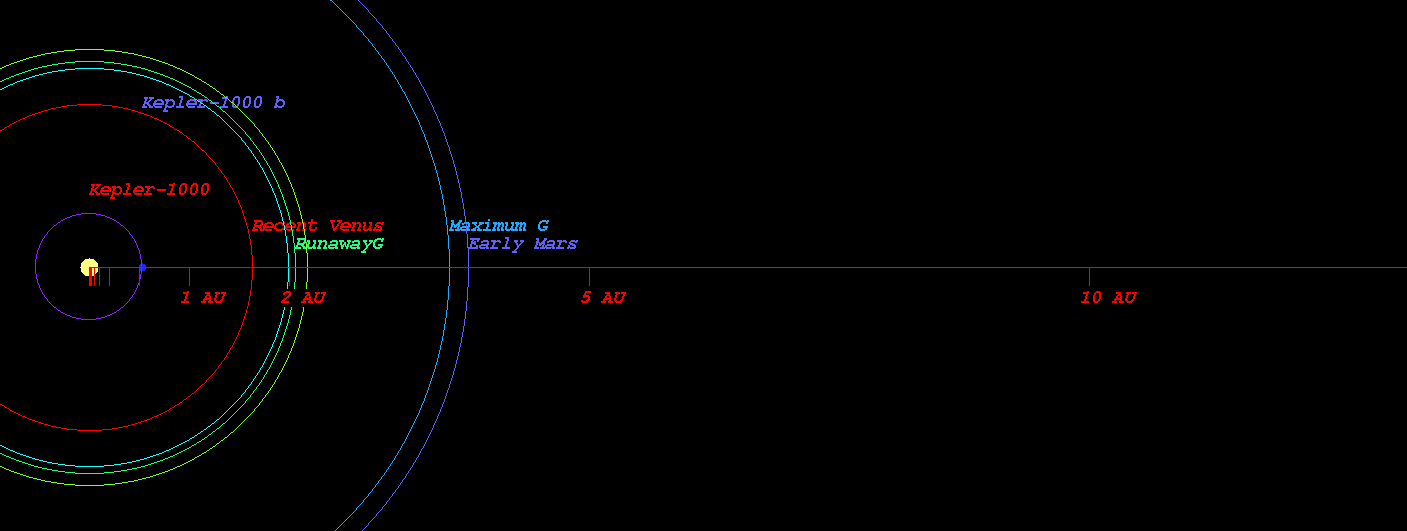

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1000)



  • Original Kopparapu Recent Venus for Star Kepler-1000 distance : 1.657 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1000 distance : 2.120 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1000 distance : 2.193 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1000 distance : 3.665 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1000 distance : 3.812 AU

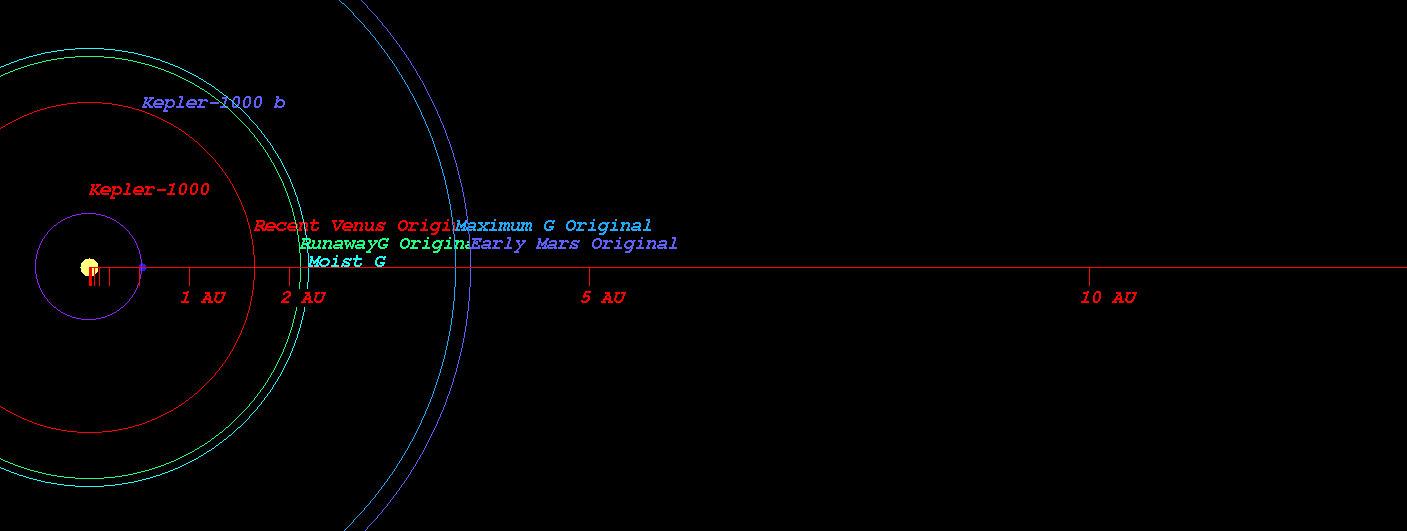

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1000)



    (Position in Stellar Map of star Kepler-1000 and its Exoplanet Kepler-1000 b)



    (Zoomed position in Stellar Map of star Kepler-1000 and its Exoplanet Kepler-1000 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1000*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
