Imaginary Picture of Kepler-1014 b

Display orbital revolution of Kepler-1014 b around the hoststar Kepler-1014
/
Exoplanet Name : Kepler-1014 b
Alternate Name : "2MASS J19002928+4406381 b, K01920.01, KIC 8218379 b, KOI-1920 b, KOI-1920.01, WISE J190029.28+440638.0 b"
Status : Confirmed
Radius (Rjup / Re): 0.2130 (Rjup) 2.3875 (Rearth)
Mass (Mjup / Me): 0.0186 (Mjup) 5.9266 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1219 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0454
Orbital Period(Observed/Estimated) 16.57 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.0397
Star Radiation at Atmospheric Boundary: 44981.2 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 650.0 (K)
Blackbody T 0.3(K) 610.4 (K)
Blackbody T 0.7(K) 493.9 (K)
Tidally Locked Blackbody T 0.1(K) 773.0 (K)
Tidally Locked Blackbody T 0.3(K) 725.9 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1014
Alternate Name : "2MASS J19002928+4406381, KIC 8218379, KOI-1920, WISE J190029.28+440638.0"
Star Distance(LY) : 2037.0
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 4.8 (GY)
Temperature : 5485 (K)
Spectral type : G7
UV portion[%]: 6.8
Visible portion[%]: 43.1
IR portion[%]: 50.1
Metalicity : -0.1
Absolute Magnitude: 4.4
Apparent Magnitude: 13.4
Right Ascension(RA) 285.1220
Declination (DEC) 44.1106
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1014+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1014%20b/
Kepler-1014 b
Kepler-1014 b

  • Kepler-1014 b is an exoplanet orbiting the star Kepler-1014, located about 2037.0 light-years (624.6 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1014 has apparent magnitude of 13.4, with absolute magnitude of 4.4.
  • It is 0.9 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5485 with its spectral types of G7
  • In this planetary system, the extrasolar planet Kepler-1014 b orbits around the star Kepler-1014 every 16.6 days with its orbital distance of 0.12 AU ( 18235896.1 km)

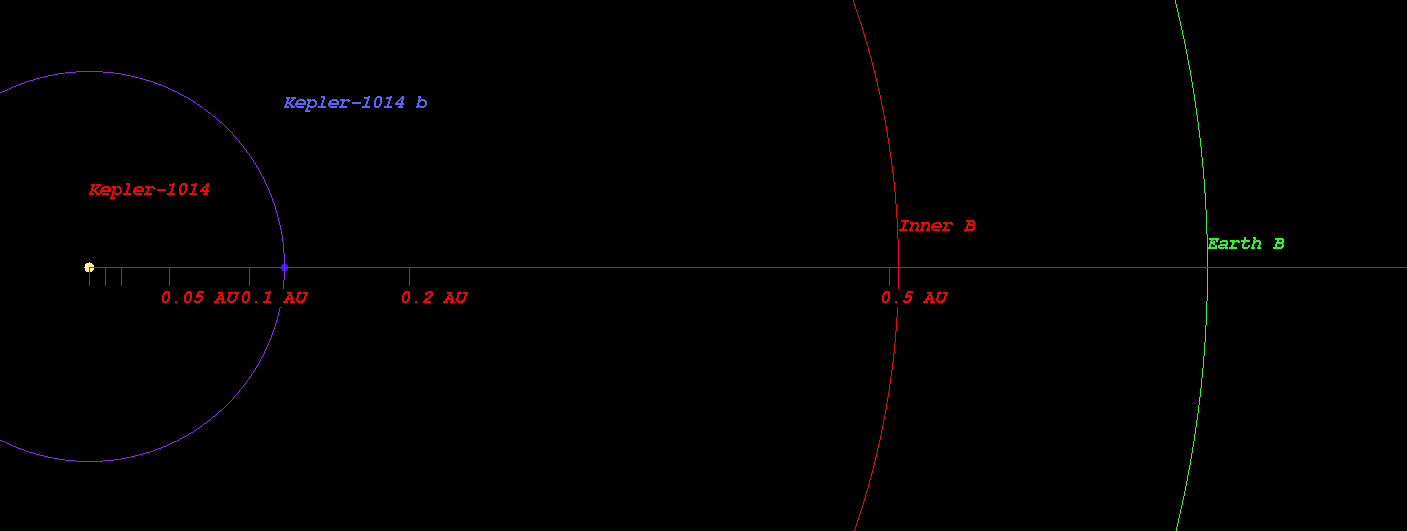

  • (Projected orbit of Kepler-1014 b around its host star Kepler-1014)


  • The Star Kepler-1014 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.506 AU ( 75661177.8 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.699 AU ( 104583520.3 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.065 AU ( 159362140.7 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.568 AU ( 234508371.3 km)
  • Radiation at Planetary Boundary of Kepler-1014 b : 44981.24 W/m2

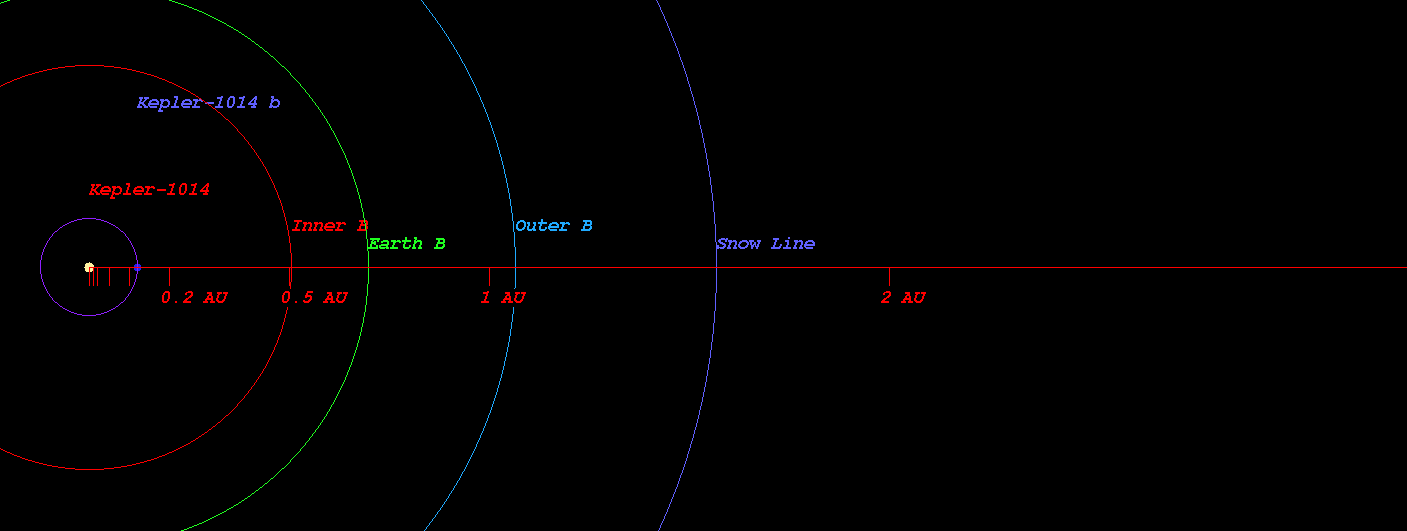

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1014)



  • Kopparapu Recent Venus for Star Kepler-1014 distance : 0.533 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1014 distance : 0.675 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1014 distance : 0.652 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1014 distance : 0.715 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1014 distance : 1.203 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1014 distance : 1.269 AU

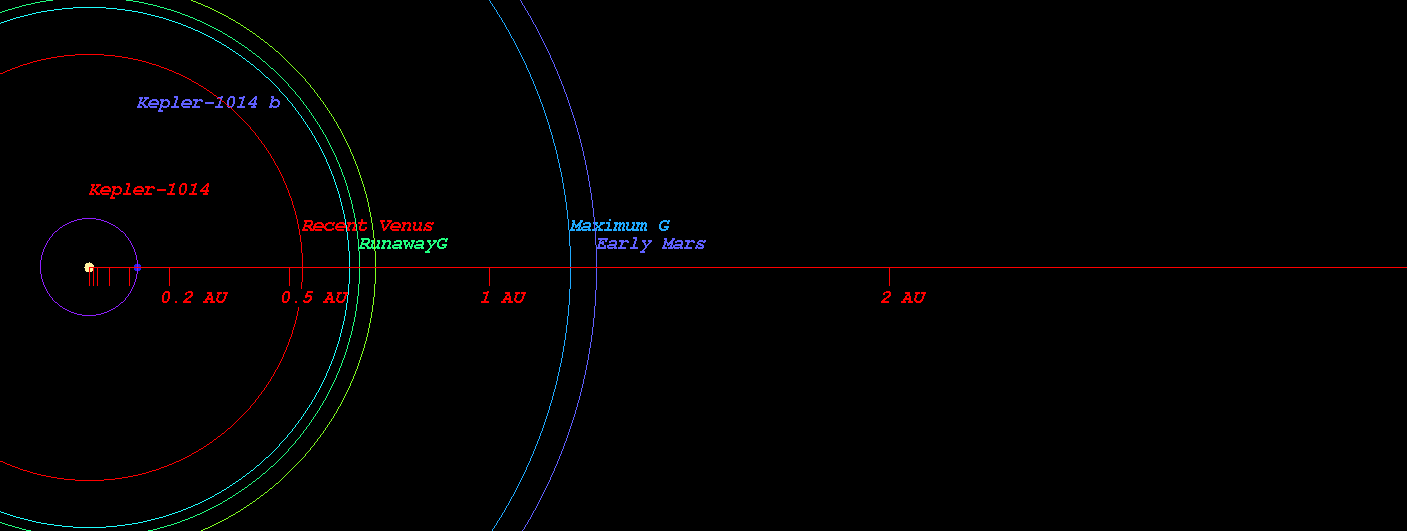

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1014)



  • Original Kopparapu Recent Venus for Star Kepler-1014 distance : 0.531 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1014 distance : 0.695 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1014 distance : 0.703 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1014 distance : 1.224 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1014 distance : 1.272 AU

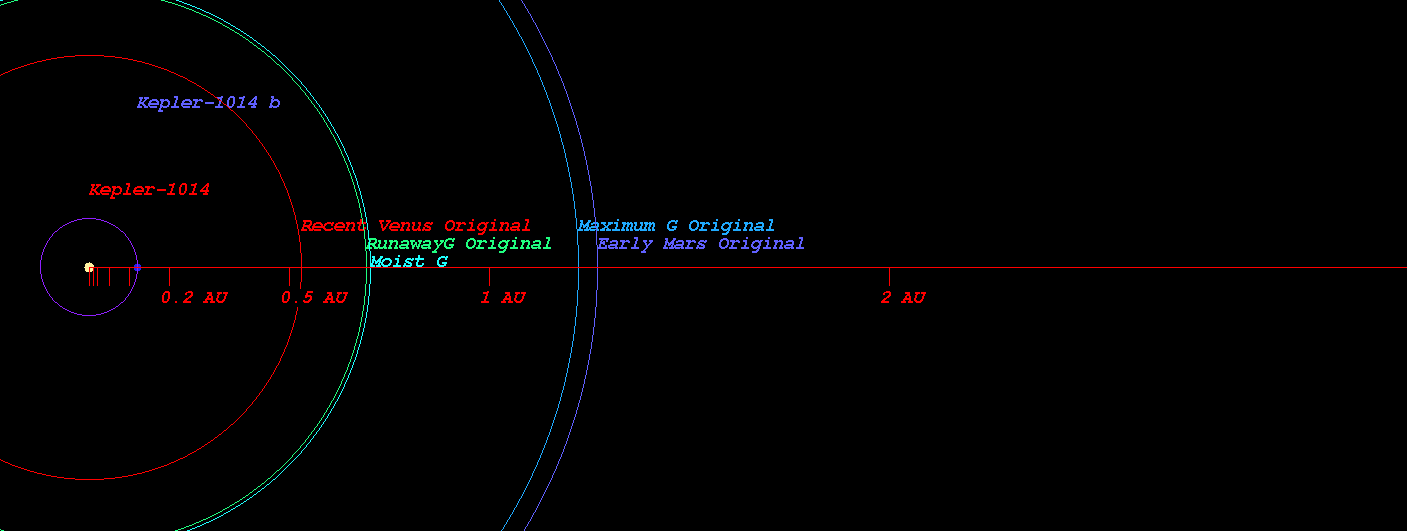

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1014)

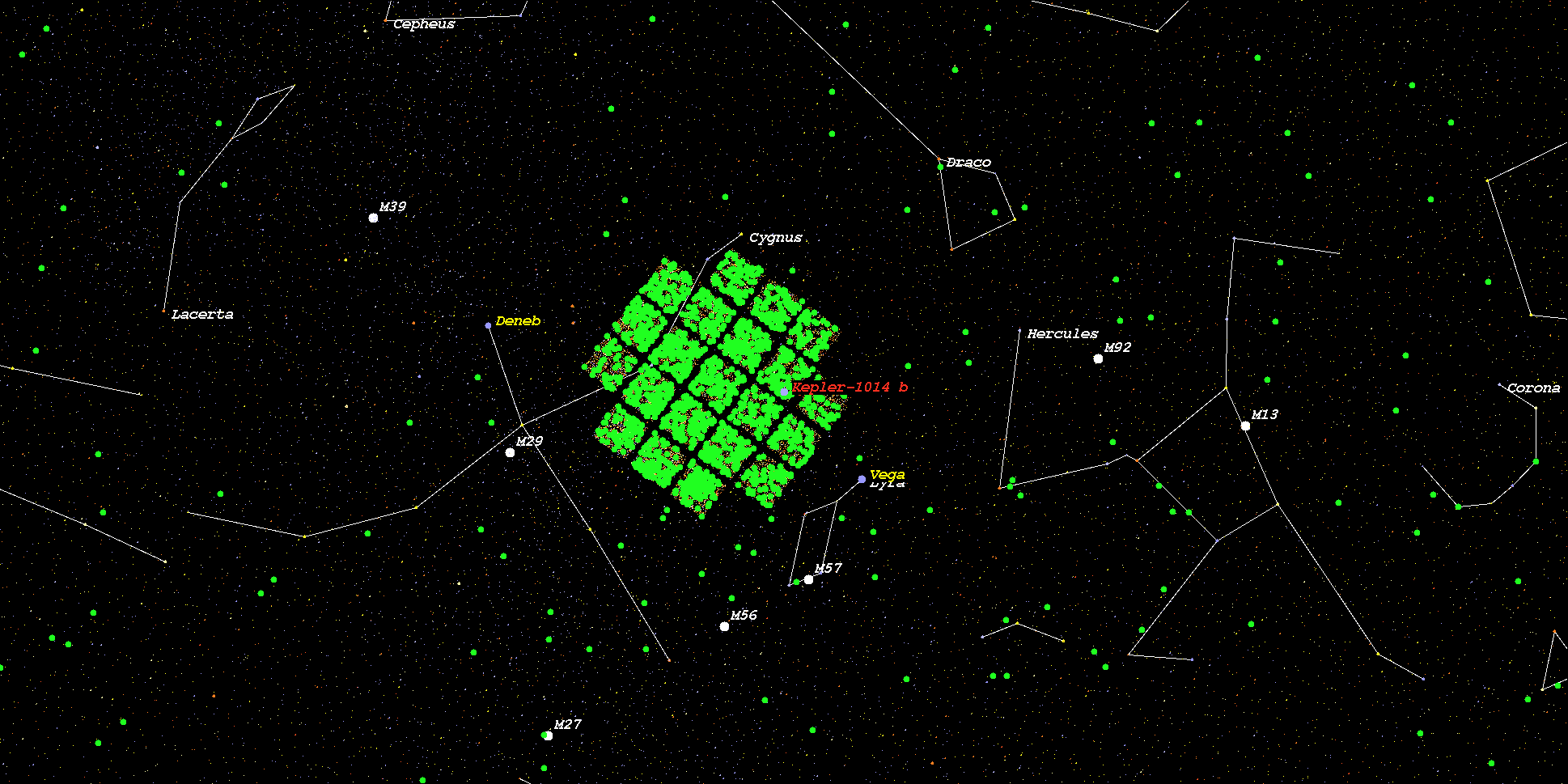

    (Position in Stellar Map of star Kepler-1014 and its Exoplanet Kepler-1014 b)



    (Zoomed position in Stellar Map of star Kepler-1014 and its Exoplanet Kepler-1014 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1014*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
