Imaginary Picture of Kepler-1032 b

Display orbital revolution of Kepler-1032 b around the hoststar Kepler-1032
/
Exoplanet Name : Kepler-1032 b
Alternate Name : "2MASS J19194340+4005519 b, K01973.01, KIC 4917596 b, KOI-1973 b, KOI-1973.01, WISE J191943.40+400551.9 b"
Status : Confirmed
Radius (Rjup / Re): 0.1670 (Rjup) 1.8719 (Rearth)
Mass (Mjup / Me): 0.0149 (Mjup) 4.7265 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0397 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0090
Orbital Period(Observed/Estimated) 3.29 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.3489
Star Radiation at Atmospheric Boundary: 199464.6 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 943.2 (K)
Blackbody T 0.3(K) 885.8 (K)
Blackbody T 0.7(K) 716.7 (K)
Tidally Locked Blackbody T 0.1(K) 1121.7 (K)
Tidally Locked Blackbody T 0.3(K) 1053.4 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1032
Alternate Name : "2MASS J19194340+4005519, KIC 4917596, KOI-1973, WISE J191943.40+400551.9"
Star Distance(LY) : 2205.8
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.8 (Msun Estimated)
Star Age : 1.9 (GY)
Temperature : 4481 (K)
Spectral type : K4
UV portion[%]: 1.5
Visible portion[%]: 30.8
IR portion[%]: 67.7
Metalicity : 0.2
Absolute Magnitude: 4.8
Apparent Magnitude: 13.9
Right Ascension(RA) 289.9309
Declination (DEC) 40.0978
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1032+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1032%20b/
Kepler-1032 b
Kepler-1032 b

  • Kepler-1032 b is an exoplanet orbiting the star Kepler-1032, located about 2205.8 light-years (676.3 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1032 has apparent magnitude of 13.9, with absolute magnitude of 4.8.
  • It is 0.8 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 4481 with its spectral types of K4
  • In this planetary system, the extrasolar planet Kepler-1032 b orbits around the star Kepler-1032 every 3.3 days with its orbital distance of 0.04 AU ( 5936126.5 km)

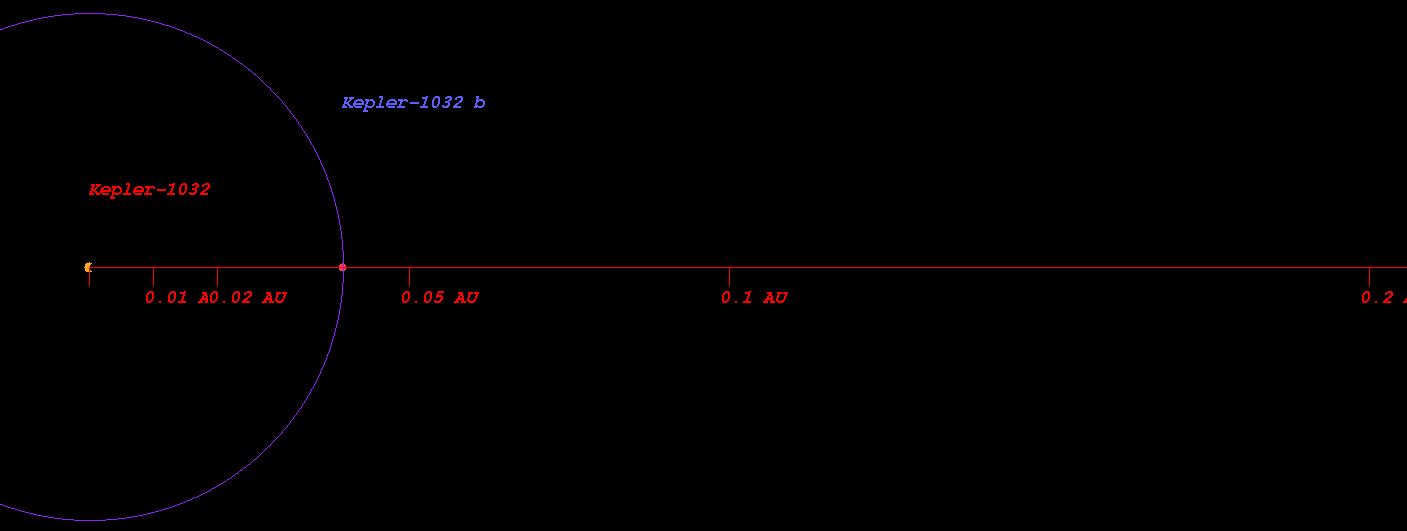

  • (Projected orbit of Kepler-1032 b around its host star Kepler-1032)


  • The Star Kepler-1032 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.347 AU ( 51864037.4 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.479 AU ( 71689653.4 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.730 AU ( 109239166.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.075 AU ( 160750219.5 km)
  • Radiation at Planetary Boundary of Kepler-1032 b : 199464.57 W/m2

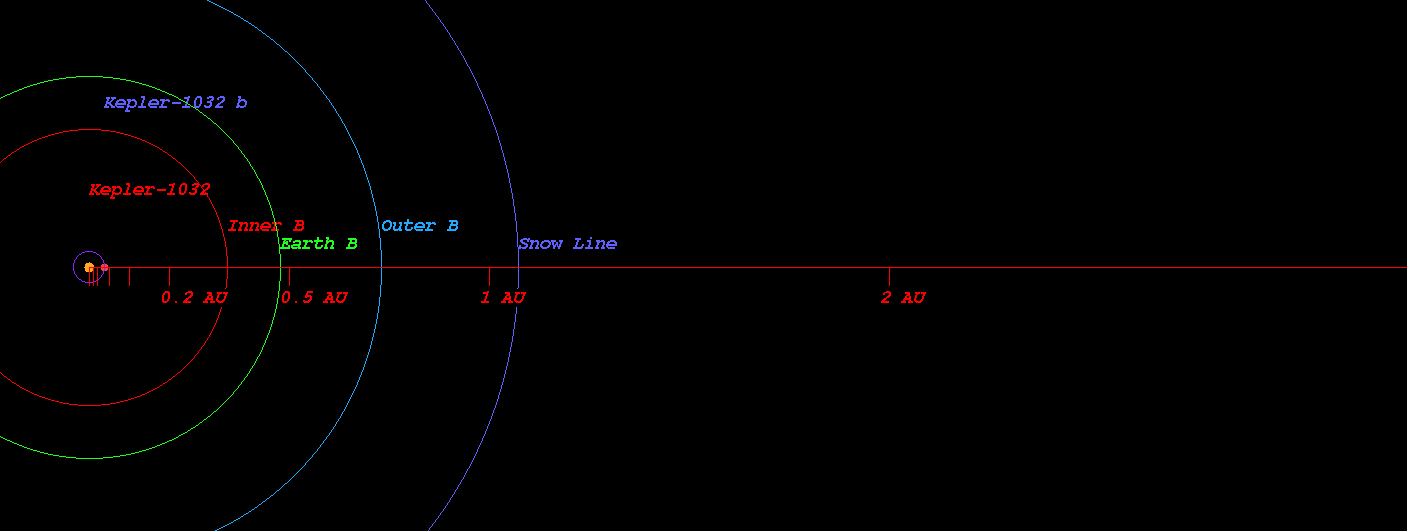

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1032)



  • Kopparapu Recent Venus for Star Kepler-1032 distance : 0.383 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1032 distance : 0.485 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1032 distance : 0.469 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1032 distance : 0.515 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1032 distance : 0.899 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1032 distance : 0.949 AU

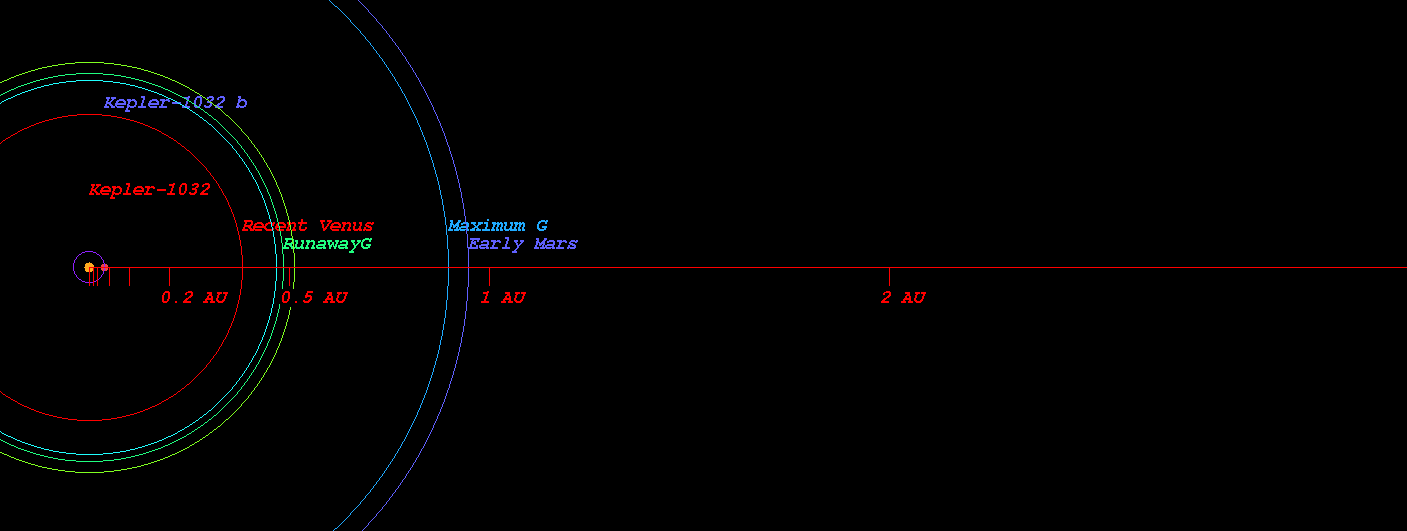

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1032)



  • Original Kopparapu Recent Venus for Star Kepler-1032 distance : 0.378 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1032 distance : 0.501 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1032 distance : 0.500 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1032 distance : 0.914 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1032 distance : 0.950 AU

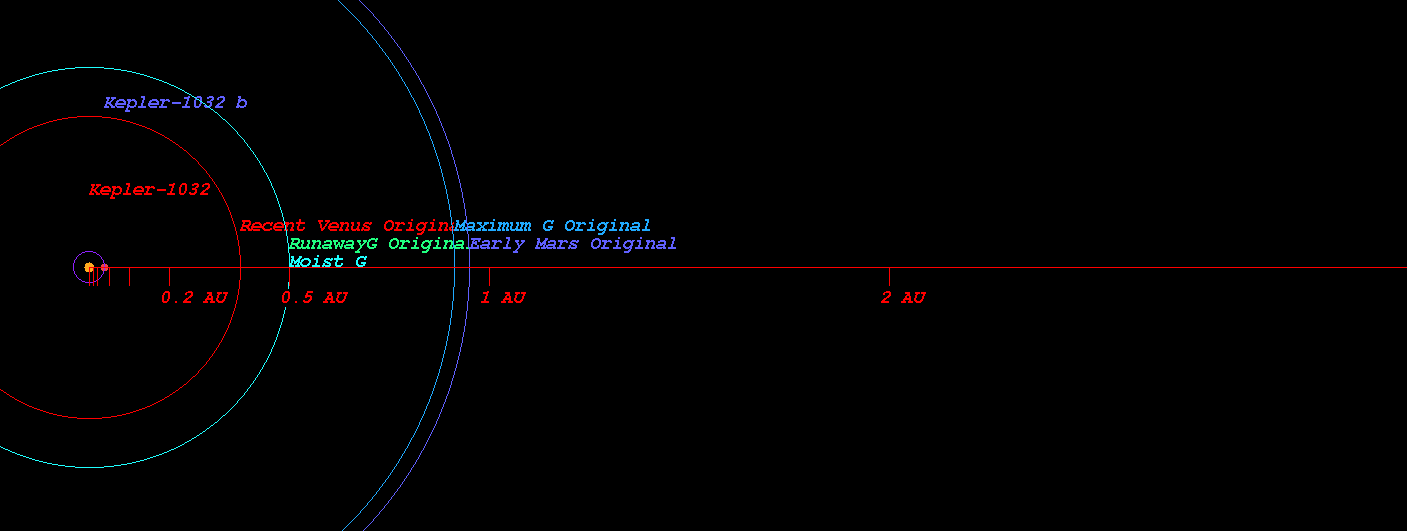

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1032)

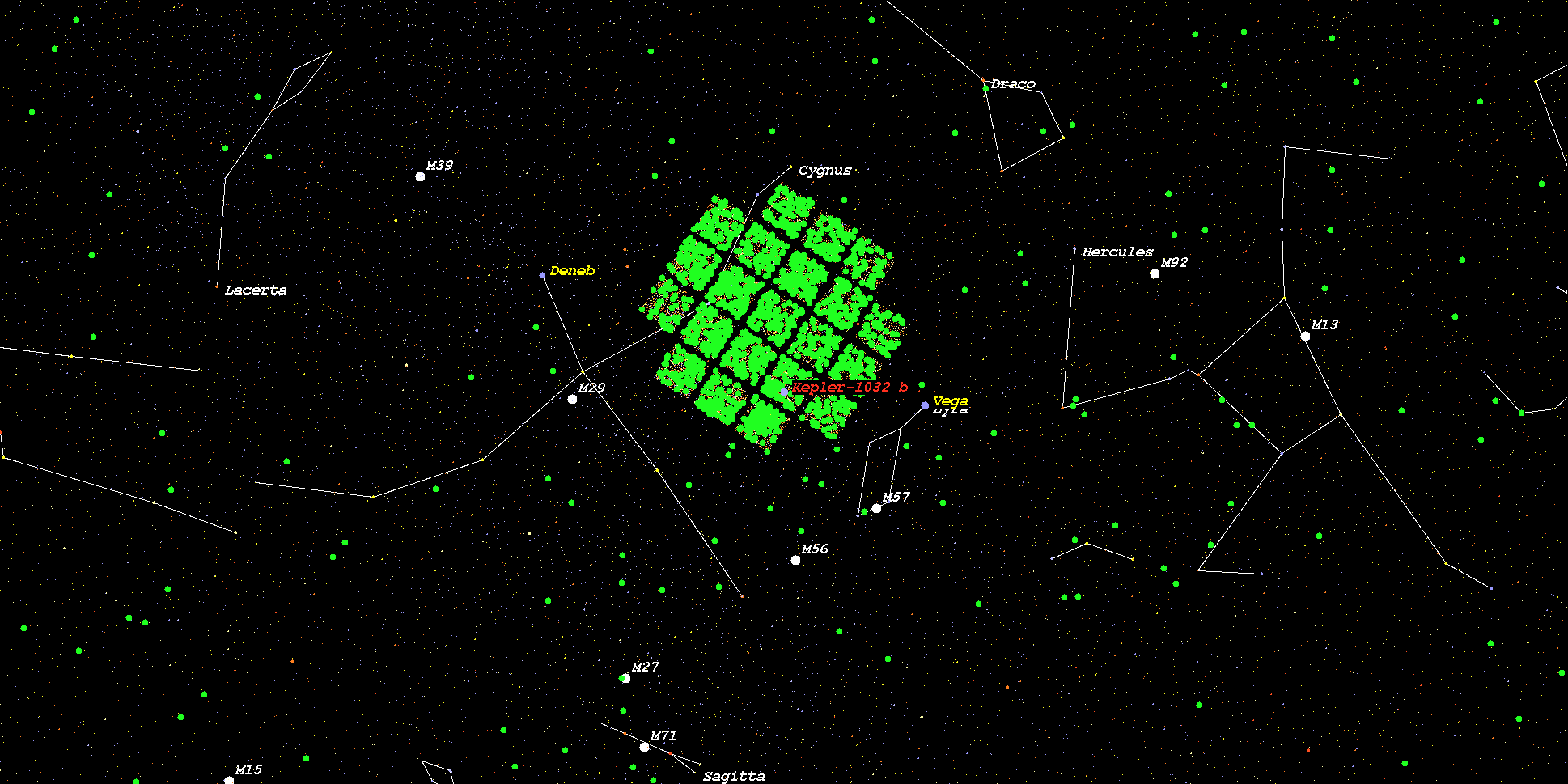

    (Position in Stellar Map of star Kepler-1032 and its Exoplanet Kepler-1032 b)



    (Zoomed position in Stellar Map of star Kepler-1032 and its Exoplanet Kepler-1032 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1032*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
