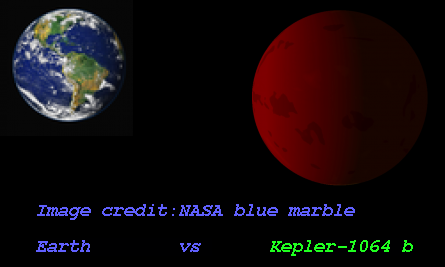

Imaginary Picture of Kepler-1064 b

Display orbital revolution of Kepler-1064 b around the hoststar Kepler-1064
/
Exoplanet Name : Kepler-1064 b
Alternate Name : "2MASS J19265799+3741202 b, K02033.01, KIC 2304320 b, KOI-2033 b, KOI-2033.01, WISE J192657.98+374119.8 b"
Status : Confirmed
Radius (Rjup / Re): 0.1380 (Rjup) 1.5468 (Rearth)
Mass (Mjup / Me): 0.0124 (Mjup) 3.9582 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1204 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0453
Orbital Period(Observed/Estimated) 16.54 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.6543
Star Radiation at Atmospheric Boundary: 32925.4 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 601.2 (K)
Blackbody T 0.3(K) 564.6 (K)
Blackbody T 0.7(K) 456.8 (K)
Tidally Locked Blackbody T 0.1(K) 715.0 (K)
Tidally Locked Blackbody T 0.3(K) 671.4 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1064
Alternate Name : "2MASS J19265799+3741202, KIC 2304320, KOI-2033, WISE J192657.98+374119.8"
Star Distance(LY) : 1048.5
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 3.9 (GY)
Temperature : 5064 (K)
Spectral type : K1
UV portion[%]: 3.7
Visible portion[%]: 37.9
IR portion[%]: 58.5
Metalicity : 0.0
Absolute Magnitude: 4.8
Apparent Magnitude: 12.3
Right Ascension(RA) 291.7416
Declination (DEC) 37.6889
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1064+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1064%20b/
Kepler-1064 b
Kepler-1064 b

  • Kepler-1064 b is an exoplanet orbiting the star Kepler-1064, located about 1048.5 light-years (321.5 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1064 has apparent magnitude of 12.3, with absolute magnitude of 4.8.

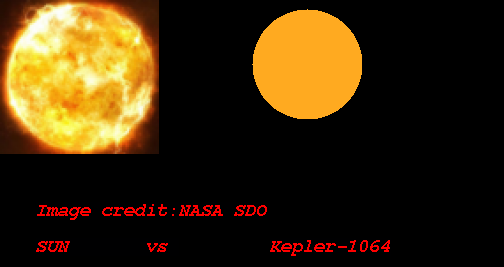

  • It is 0.8 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5064 with its spectral types of K1
  • In this planetary system, the extrasolar planet Kepler-1064 b orbits around the star Kepler-1064 every 16.5 days with its orbital distance of 0.12 AU ( 18004288.7 km)

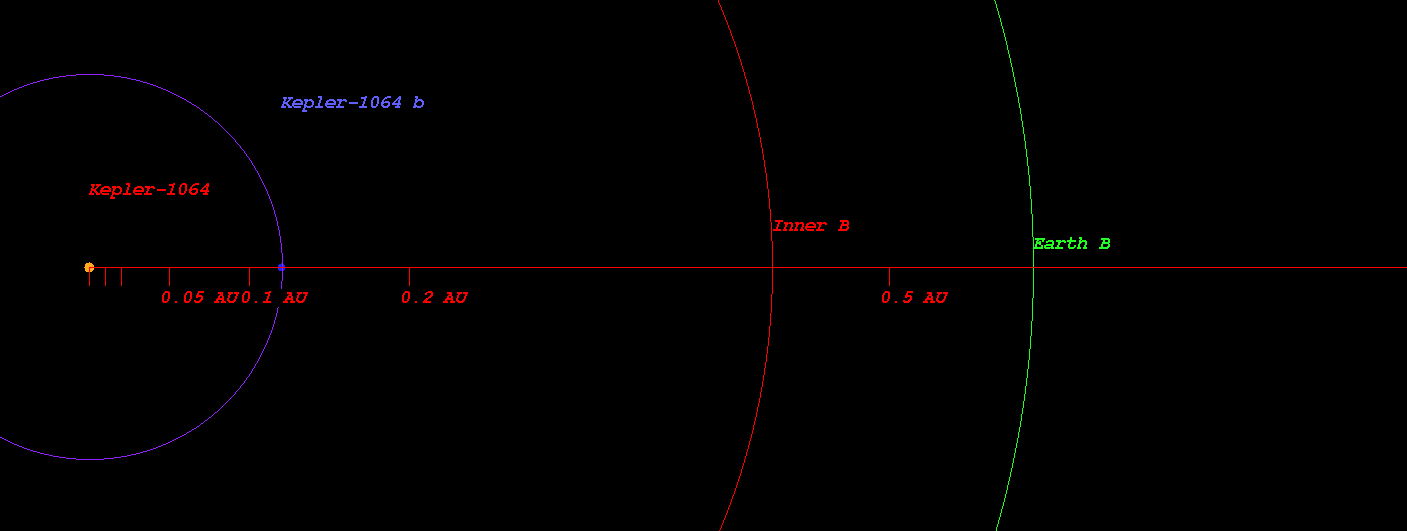

  • (Projected orbit of Kepler-1064 b around its host star Kepler-1064)


  • The Star Kepler-1064 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.427 AU ( 63910445.7 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.591 AU ( 88340937.8 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.900 AU ( 134612039.3 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.324 AU ( 198087512.9 km)
  • Radiation at Planetary Boundary of Kepler-1064 b : 32925.41 W/m2

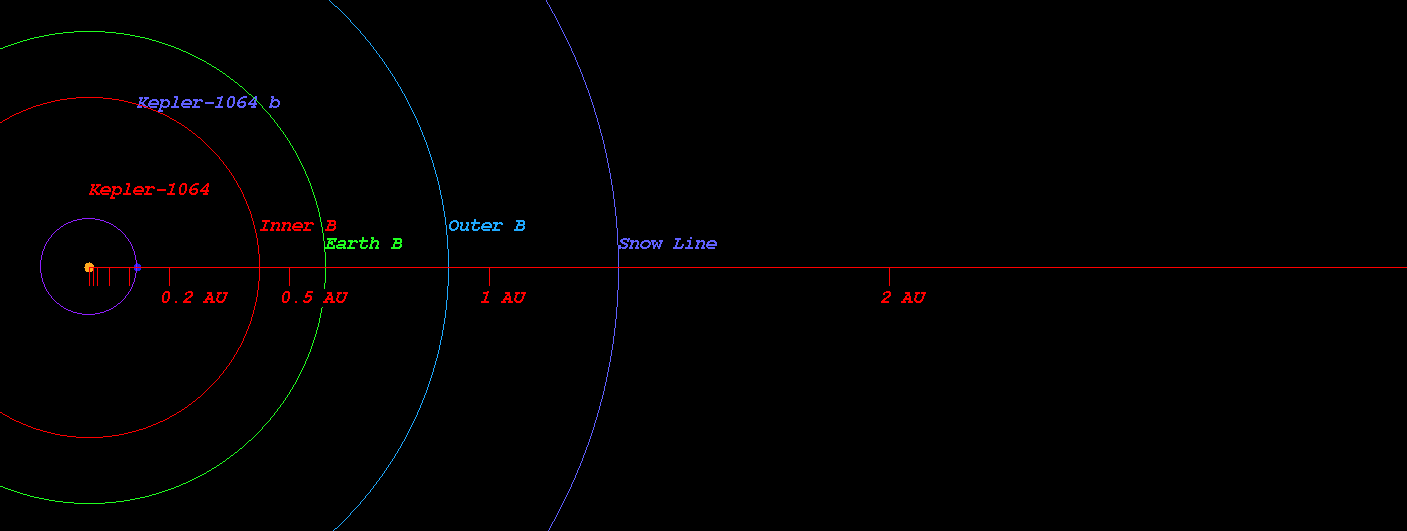

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1064)



  • Kopparapu Recent Venus for Star Kepler-1064 distance : 0.461 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1064 distance : 0.583 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1064 distance : 0.563 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1064 distance : 0.618 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1064 distance : 1.055 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1064 distance : 1.112 AU

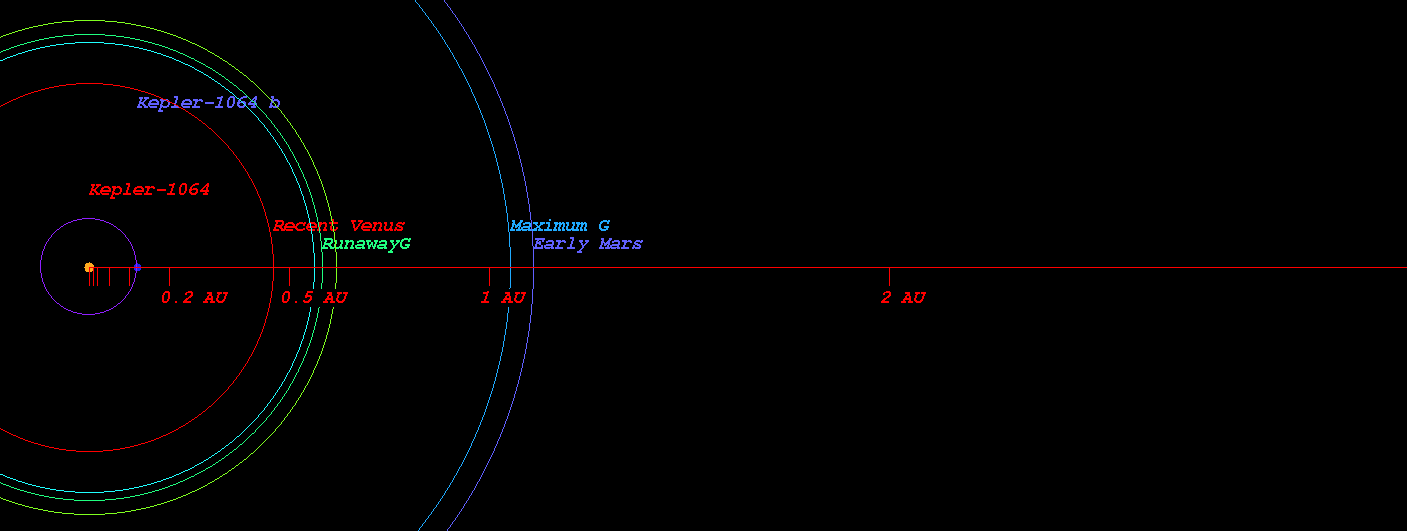

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1064)



  • Original Kopparapu Recent Venus for Star Kepler-1064 distance : 0.456 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1064 distance : 0.601 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1064 distance : 0.604 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1064 distance : 1.072 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1064 distance : 1.115 AU

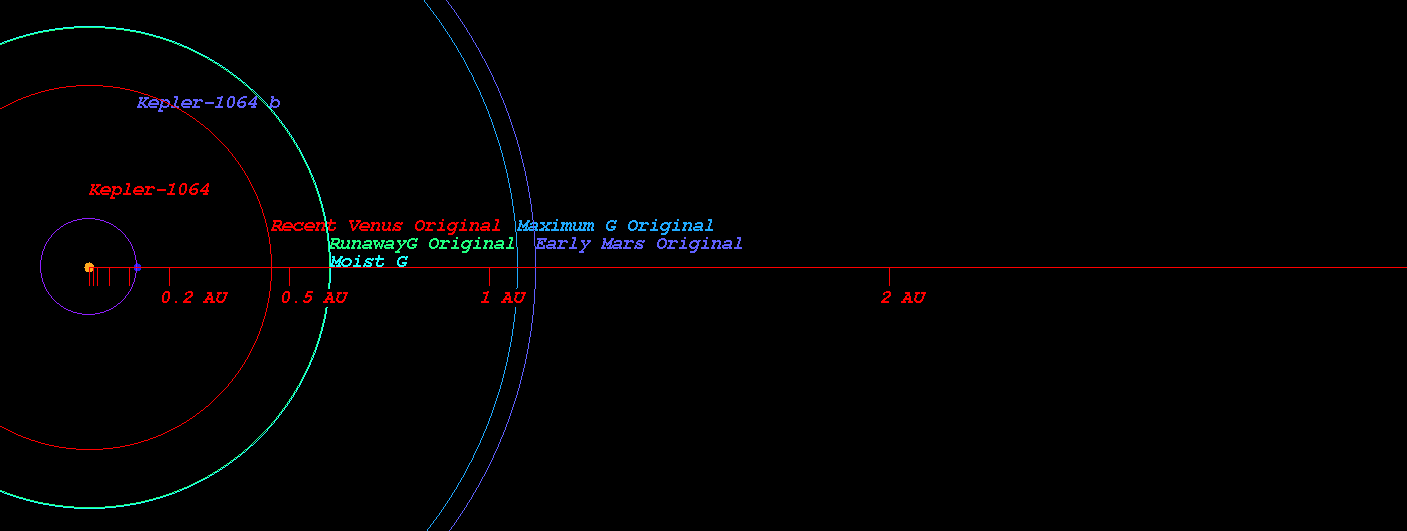

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1064)

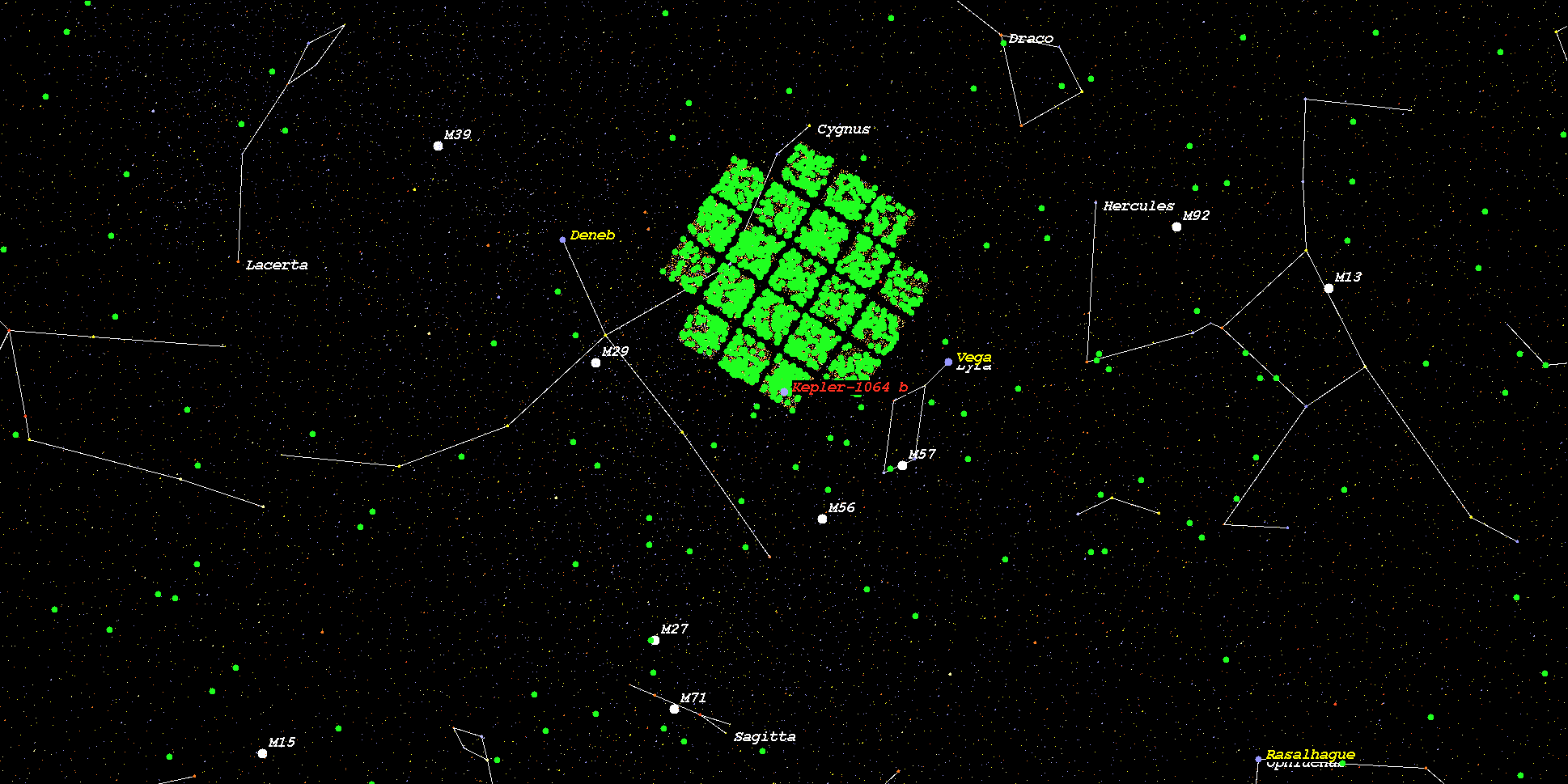

    (Position in Stellar Map of star Kepler-1064 and its Exoplanet Kepler-1064 b)



    (Zoomed position in Stellar Map of star Kepler-1064 and its Exoplanet Kepler-1064 b (zoom level 3))

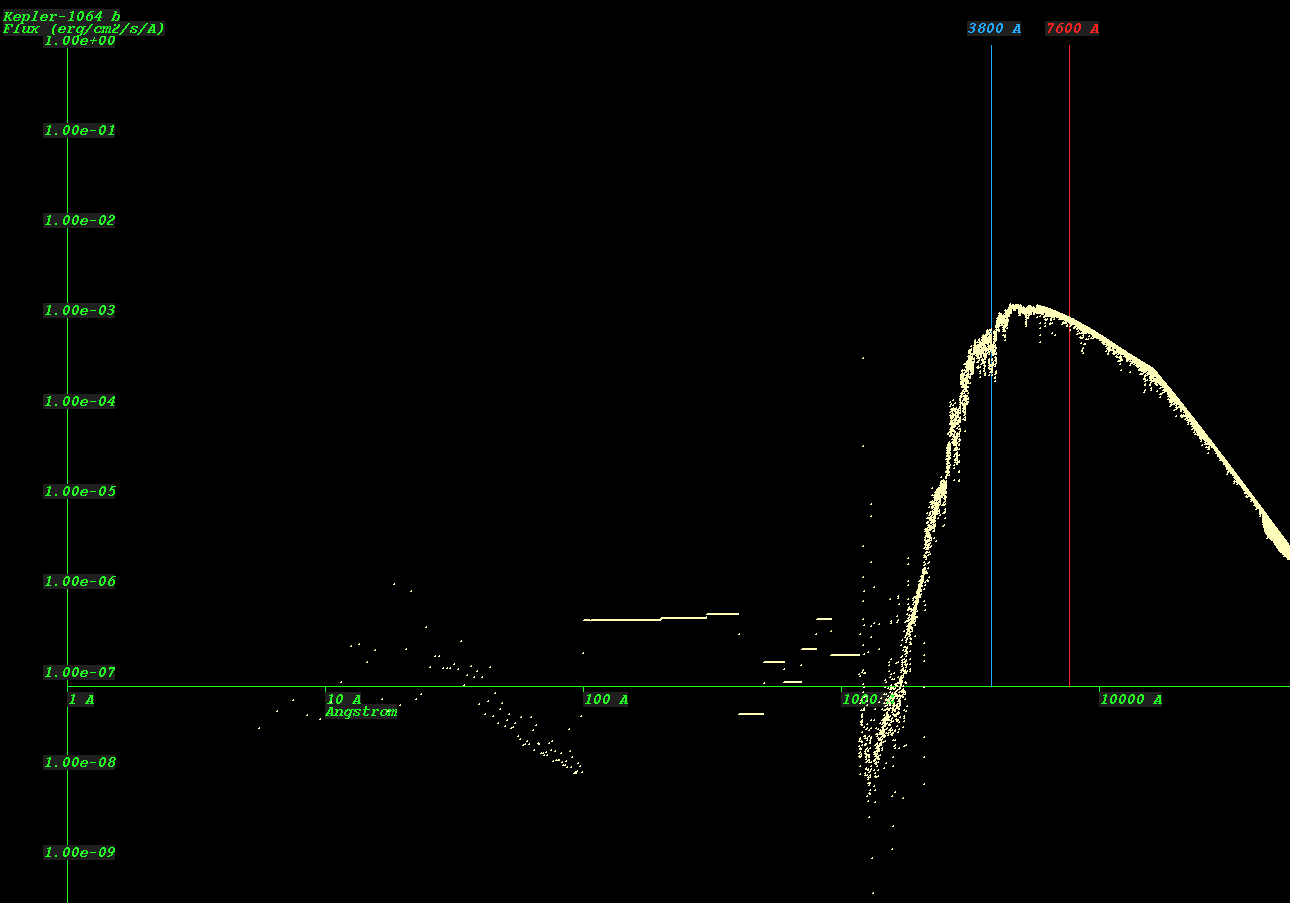

    (Synthetic Spectrum of star Kepler-1064*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
