Imaginary Picture of Kepler-1086 c

Display orbital revolution of Kepler-1086 c around the hoststar Kepler-1086
/
Exoplanet Name : Kepler-1086 c
Alternate Name : "2MASS J19410027+4550346 c, K02078.02, KIC 9351316 c, KOI-2078 c, KOI-2078.02, Kepler-1086 B c, WISE J194100.28+455034.6
Status : Confirmed
Radius (Rjup / Re): 0.2620 (Rjup) 2.9368 (Rearth)
Mass (Mjup / Me): 0.0226 (Mjup) 7.1851 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.5154 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.4422
Orbital Period(Observed/Estimated) 161.52 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.8331
Star Radiation at Atmospheric Boundary: 676.4 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 227.6 (K)
Blackbody T 0.3(K) 213.8 (K)
Blackbody T 0.7(K) 172.9 (K)
Tidally Locked Blackbody T 0.1(K) 270.7 (K)
Tidally Locked Blackbody T 0.3(K) 254.2 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1086
Alternate Name : "2MASS J19410027+4550346, KIC 9351316, KOI-2078, Kepler-1086 B, WISE J194100.28+455034.6"
Star Distance(LY) : 1520.1
Stellar Radius(Rsun) : 0.7 (Rsun Measured)
Stellar Mass(Msun) : 0.7 (Msun Measured) 0.7 (Msun Estimated)
Star Age : 2.9 (GY)
Temperature : 4244 (K)
Spectral type : K5
UV portion[%]: 0.9
Visible portion[%]: 27.2
IR portion[%]: 71.9
Metalicity : 0.1
Absolute Magnitude: 5.3
Apparent Magnitude: 13.7
Right Ascension(RA) 295.2512
Declination (DEC) 45.8430
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1086+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1086%20c/
Kepler-1086 c
Kepler-1086 c

  • Kepler-1086 c is an exoplanet orbiting the star Kepler-1086, located about 1520.1 light-years (466.1 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1086 has apparent magnitude of 13.7, with absolute magnitude of 5.3.
  • It is 0.7 times more massive and 0.7 times bigger compared with our Sun. The surface temperature is 4244 with its spectral types of K5
  • In this planetary system, the extrasolar planet Kepler-1086 c orbits around the star Kepler-1086 every 161.5 days with its orbital distance of 0.52 AU ( 77097845.6 km)
  • (Projected orbit of Kepler-1086 c around its host star Kepler-1086)


  • The Star Kepler-1086 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.262 AU ( 39226371.4 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.362 AU ( 54221096.4 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.552 AU ( 82620951.7 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.813 AU ( 121580349.9 km)
  • Radiation at Planetary Boundary of Kepler-1086 c : 676.41 W/m2

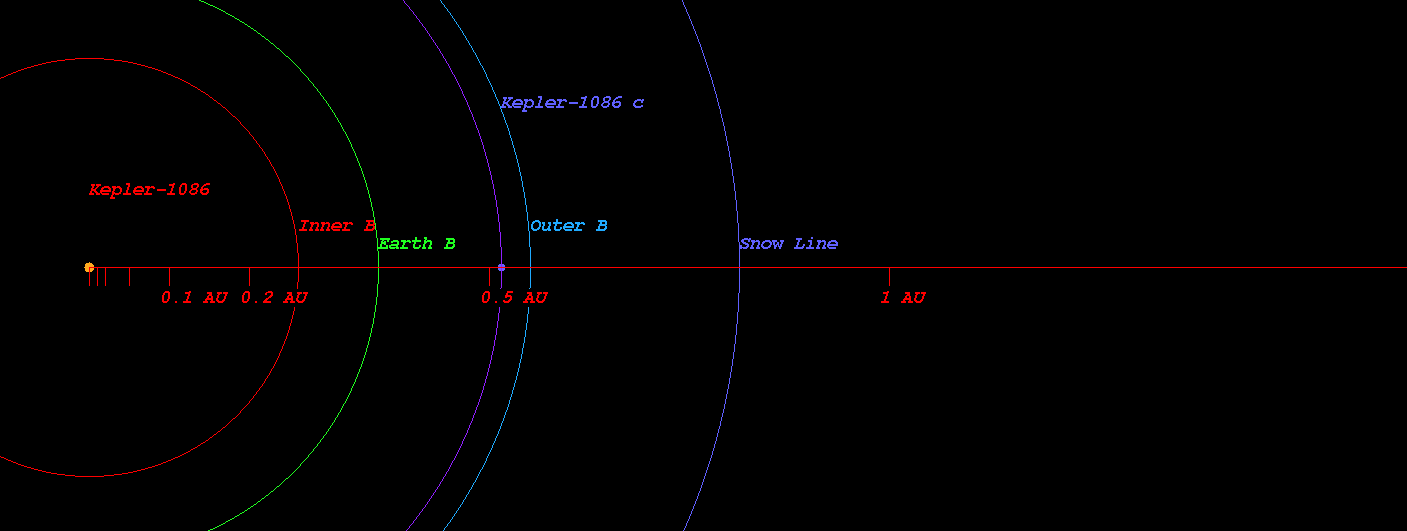

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1086)



  • Kopparapu Recent Venus for Star Kepler-1086 distance : 0.292 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1086 distance : 0.370 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1086 distance : 0.357 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1086 distance : 0.392 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1086 distance : 0.693 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1086 distance : 0.731 AU

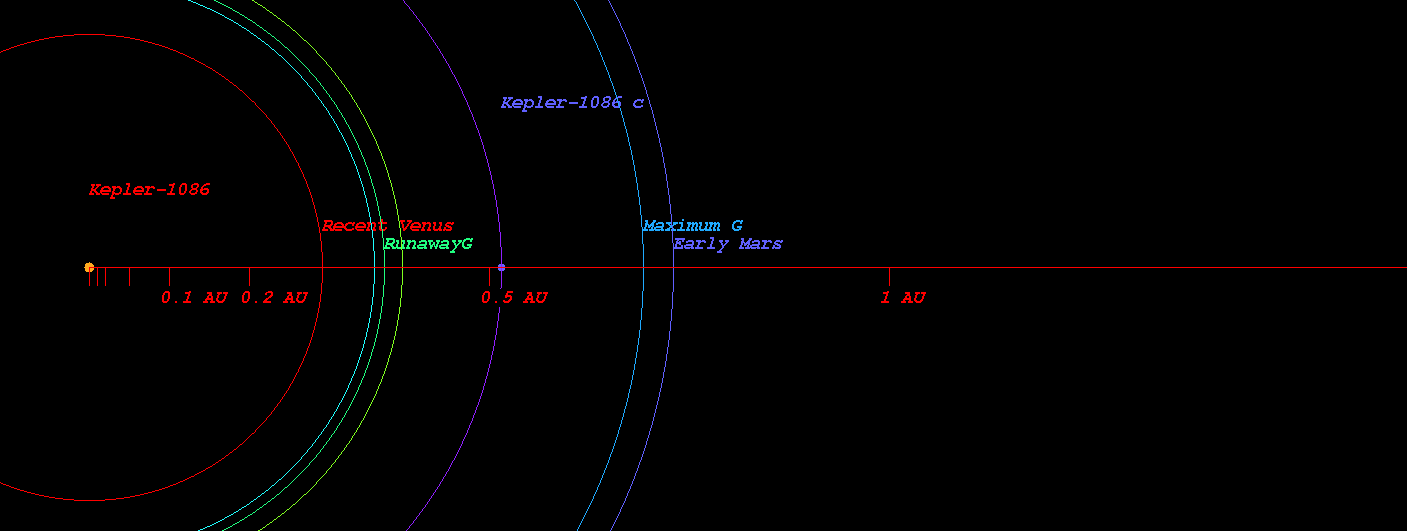

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1086)



  • Original Kopparapu Recent Venus for Star Kepler-1086 distance : 0.288 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1086 distance : 0.382 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1086 distance : 0.381 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1086 distance : 0.704 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1086 distance : 0.732 AU

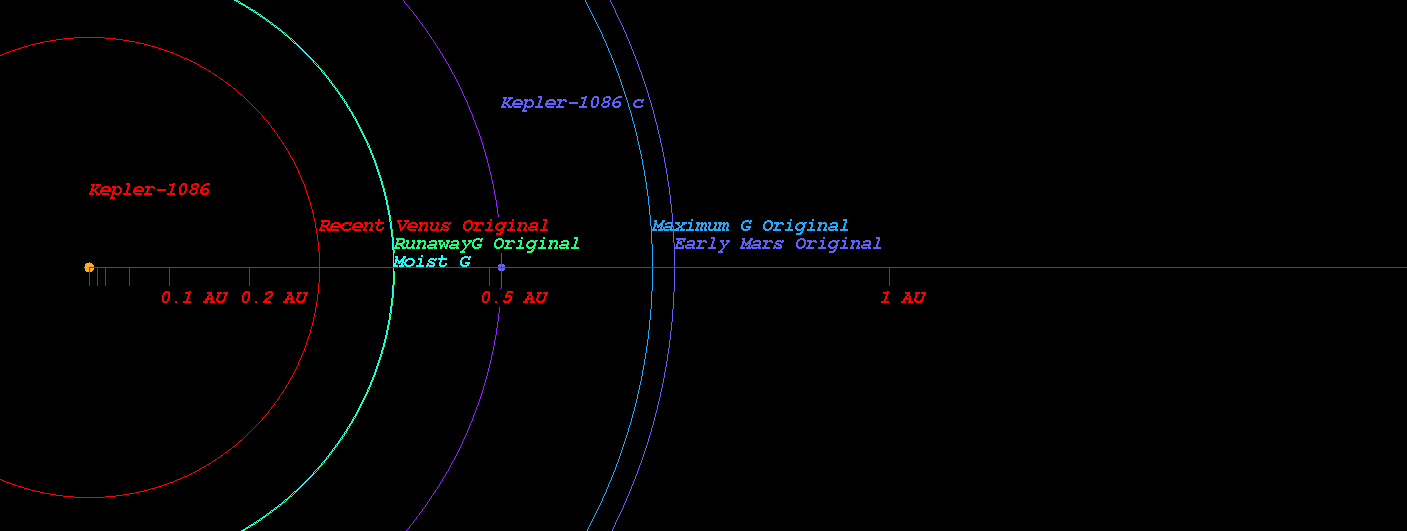

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1086)

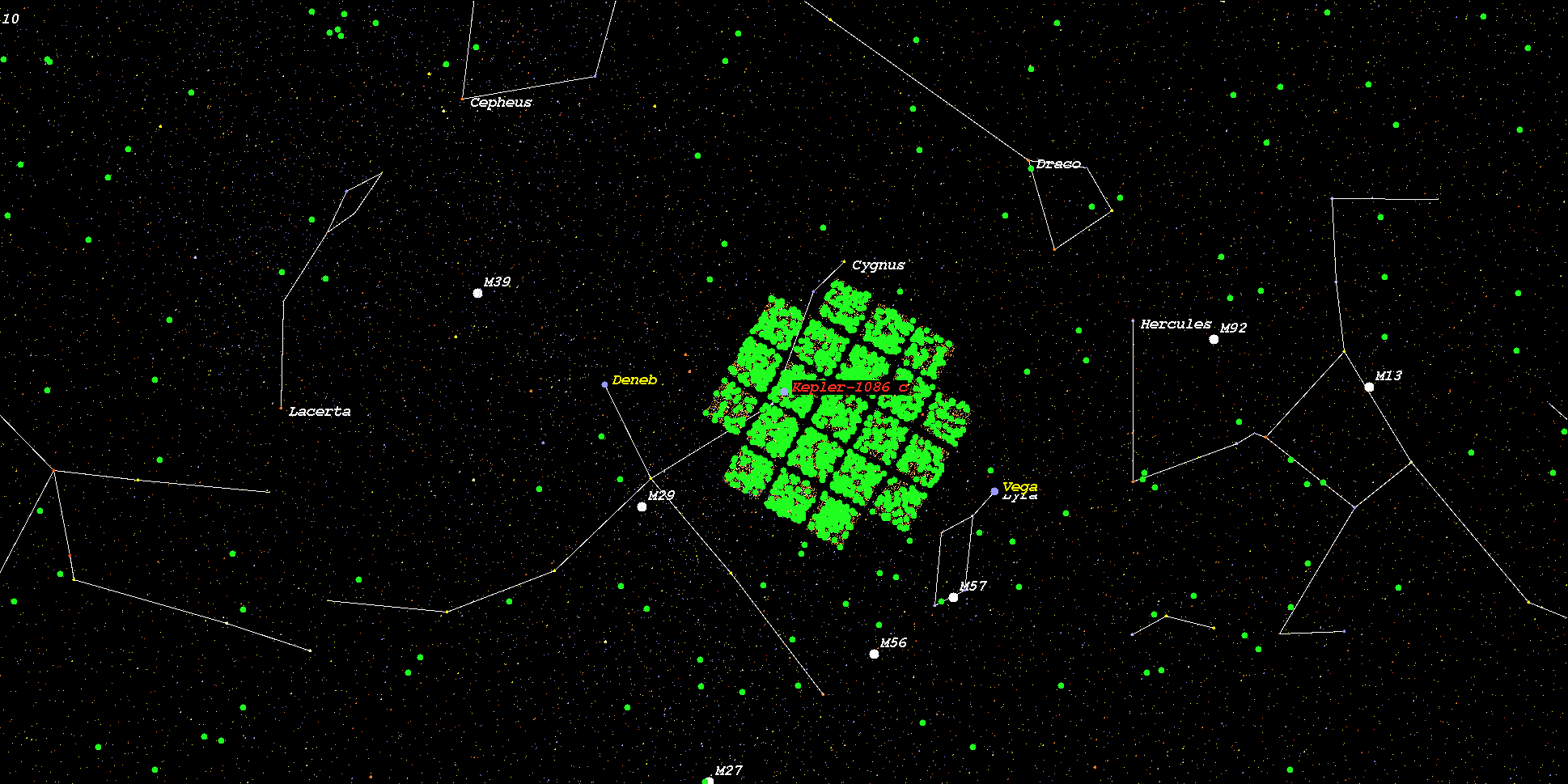

    (Position in Stellar Map of star Kepler-1086 and its Exoplanet Kepler-1086 c)



    (Zoomed position in Stellar Map of star Kepler-1086 and its Exoplanet Kepler-1086 c (zoom level 3))

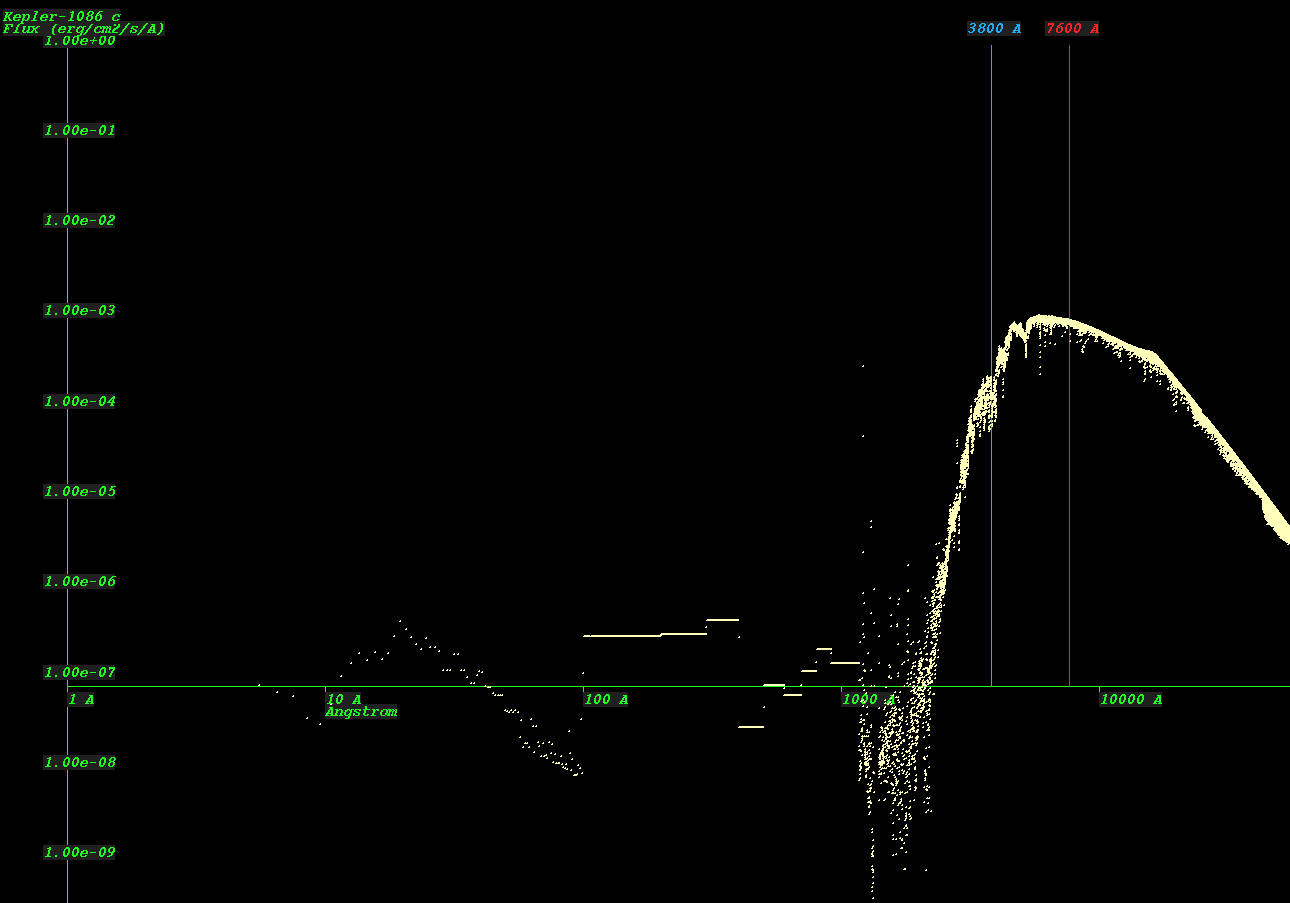

    (Synthetic Spectrum of star Kepler-1086*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
