Kepler-109

Display orbital revolution around the star Kepler-109
Imaginary Picture of Star Kepler-109
Star Name : Kepler-109
Alternate Name : "KOI-123, KIC 5094751, 2MASS J19213425+4017055, WISE J192134.24+401705.6"
Star Distance (LY/pc): 1545.7630 (LY) 473.9336 (pc)
Stellar Radius (Rsun): 0.0000 (Rsun, measured) 1.3200 (Rsun, estimated)
Stellar Mass (Msun): 1.0400 (Msun/observed) 1.0400 (Msun/estimated)
Spectral type : G1
Metalicity : -0.0800
Absolute Magnitude : 3.99
Apparent Magnitude : 12.37
Right Ascension(RA) : 290.39272
Declination(DEC) : 40.28487
  • This is the Kepler-109 . The star Kepler-109 islocated about 1545.8 light-years (473.9 pc) away from our Solar System.
  • The star Kepler-109 has apparent magnitude of 12.4, with absolute magnitude of 4.0.

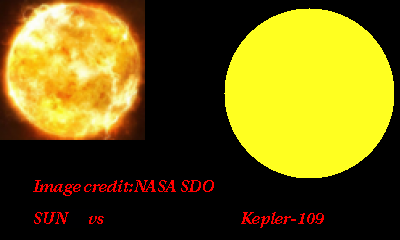

  • It is 1.0 times more massive and 1.3 times bigger compared with our Sun. The surface temperature is 5952 with its spectral types of G1
  • Number of Extrasolar Planets : 2
  • Name of the 1 Planet Kepler-109 b radius 0.211000 mass 0.022970 orbital distance 0.000000
  • Name of the 2 Planet Kepler-109 c radius 0.225000 mass 0.068590 orbital distance 0.000000

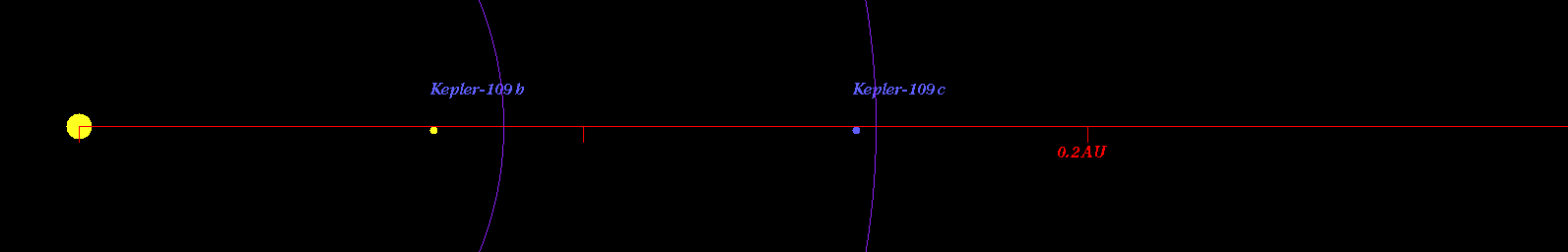

    (Illustration of the Kepler-109's Planetary System)



    The Star Kepler-109 's habitable zone is located at the following distance

    Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.013 AU ( 151550679.8 km)
    Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.400 AU ( 209482644.4 km)
    Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.134 AU ( 319205191.6 km)
    Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.140 AU ( 469724423.0 km)

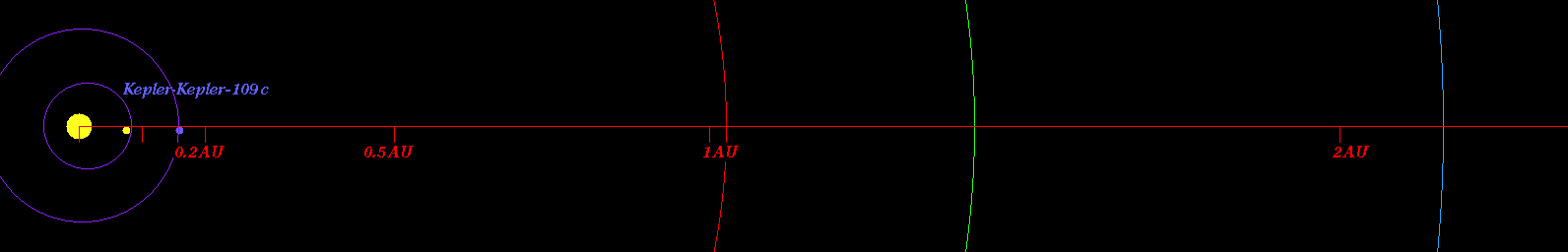

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-109)

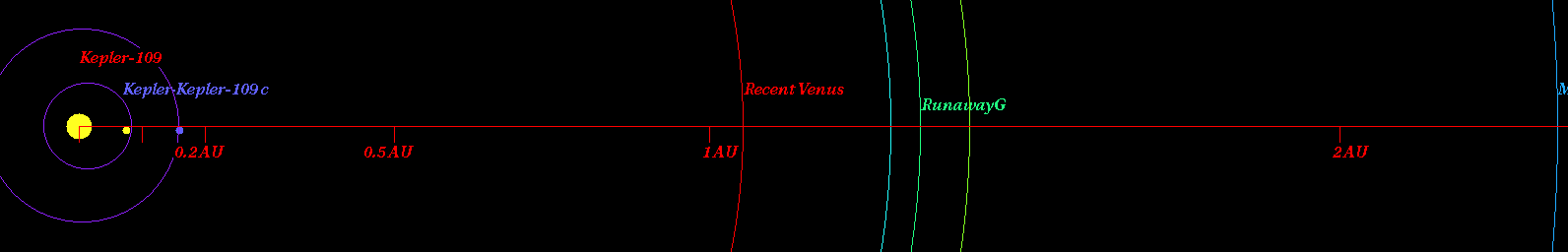

    Kopparapu's Recent Venus for Star Kepler-109 distance : 1.039 AU
    Kopparapu's Runaway Greenhouse for Earth-sized planet for Star Kepler-109 distance : 1.316 AU
    Kopparapu's Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-109 distance : 1.271 AU
    Kopparapu's Runaway Greenhouse for Mars-sized planet for Star Kepler-109 distance : 1.393 AU
    Kopparapu's Outer Boundary for Maximum Greenhouse for Star Kepler-109 distance : 2.313 AU
    Kopparapu's Outer Boundary for Early Mars for Star Kepler-109 distance : 2.440 AU
    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-109)



  • Original Kopparapu Recent Venus for Star Kepler-109 distance : 1.044 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-109 distance : 1.351 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-109 distance : 1.381 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-109 distance : 2.354 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-109 distance : 2.448 AU

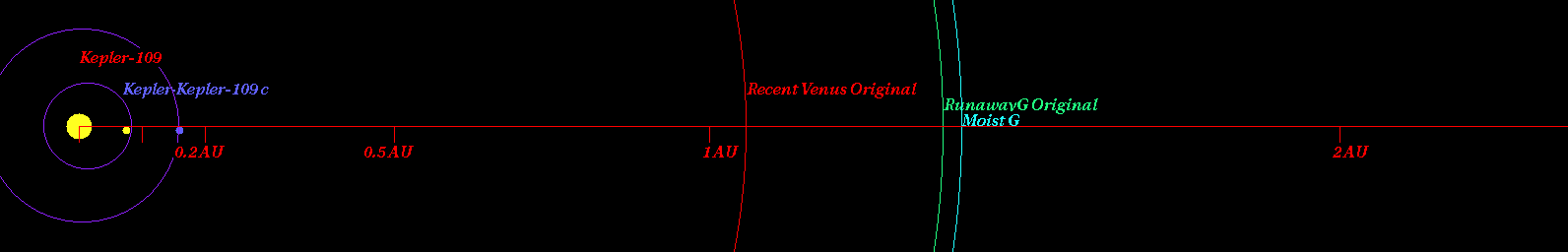

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-109)



    (Position in Stellar Map of star Kepler-109 )



    (Zoomed position in Stellar Map of star Kepler-109 (zoom level 3))

    (Synthetic Spectrum of star HIP 67851*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
