Imaginary Picture of Kepler-1105 b

Display orbital revolution of Kepler-1105 b around the hoststar Kepler-1105
/
Exoplanet Name : Kepler-1105 b
Alternate Name : "2MASS J18442682+4227176 b, K02114.01, KIC 6921944 b, KOI-2114 b, KOI-2114.01, WISE J184426.82+422717.9 b"
Status : Confirmed
Radius (Rjup / Re): 0.1790 (Rjup) 2.0064 (Rearth)
Mass (Mjup / Me): 0.0159 (Mjup) 5.0415 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0470 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0121
Orbital Period(Observed/Estimated) 4.42 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.2523
Star Radiation at Atmospheric Boundary: 64577.2 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 711.5 (K)
Blackbody T 0.3(K) 668.2 (K)
Blackbody T 0.7(K) 540.6 (K)
Tidally Locked Blackbody T 0.1(K) 846.1 (K)
Tidally Locked Blackbody T 0.3(K) 794.6 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1105
Alternate Name : "2MASS J18442682+4227176, KIC 6921944, KOI-2114, WISE J184426.82+422717.9"
Star Distance(LY) : 1037.0
Stellar Radius(Rsun) : 0.6 (Rsun Measured)
Stellar Mass(Msun) : 0.7 (Msun Measured) 0.7 (Msun Estimated)
Star Age : 8.7 (GY)
Temperature : 4299 (K)
Spectral type : K6
UV portion[%]: 0.9
Visible portion[%]: 27.5
IR portion[%]: 71.6
Metalicity : 0.3
Absolute Magnitude: 5.6
Apparent Magnitude: 13.1
Right Ascension(RA) 281.1118
Declination (DEC) 42.4549
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1105+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1105%20b/
Kepler-1105 b
Kepler-1105 b

  • Kepler-1105 b is an exoplanet orbiting the star Kepler-1105, located about 1037.0 light-years (317.9 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1105 has apparent magnitude of 13.1, with absolute magnitude of 5.6.

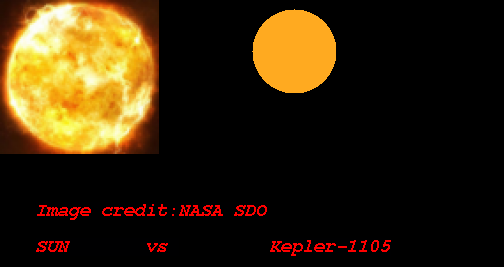

  • It is 0.7 times more massive and 0.6 times bigger compared with our Sun. The surface temperature is 4299 with its spectral types of K6
  • In this planetary system, the extrasolar planet Kepler-1105 b orbits around the star Kepler-1105 every 4.4 days with its orbital distance of 0.05 AU ( 7036162.5 km)

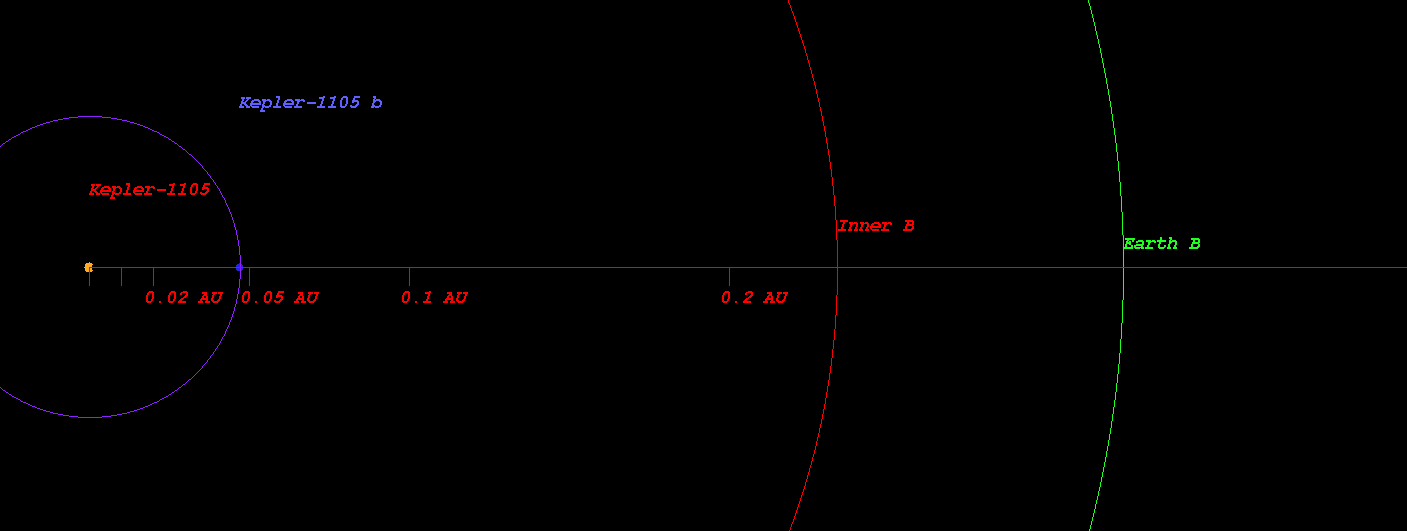

  • (Projected orbit of Kepler-1105 b around its host star Kepler-1105)


  • The Star Kepler-1105 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.234 AU ( 34978876.0 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.323 AU ( 48349947.7 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.492 AU ( 73674620.5 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.725 AU ( 108415431.5 km)
  • Radiation at Planetary Boundary of Kepler-1105 b : 64577.23 W/m2

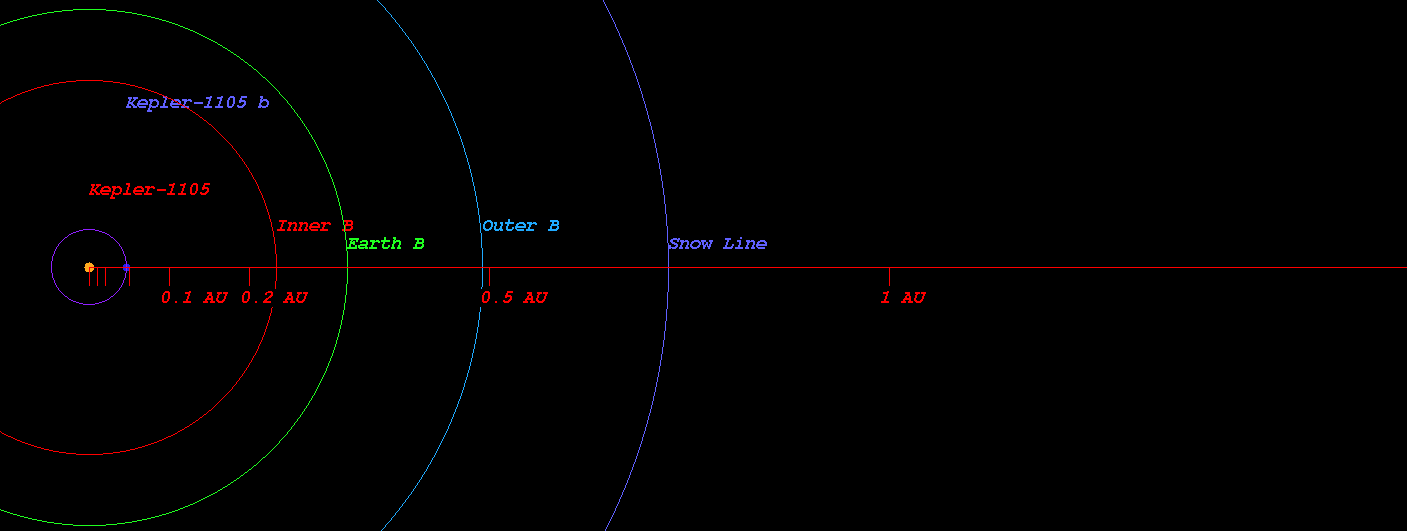

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1105)



  • Kopparapu Recent Venus for Star Kepler-1105 distance : 0.260 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1105 distance : 0.329 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1105 distance : 0.318 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1105 distance : 0.349 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1105 distance : 0.615 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1105 distance : 0.649 AU

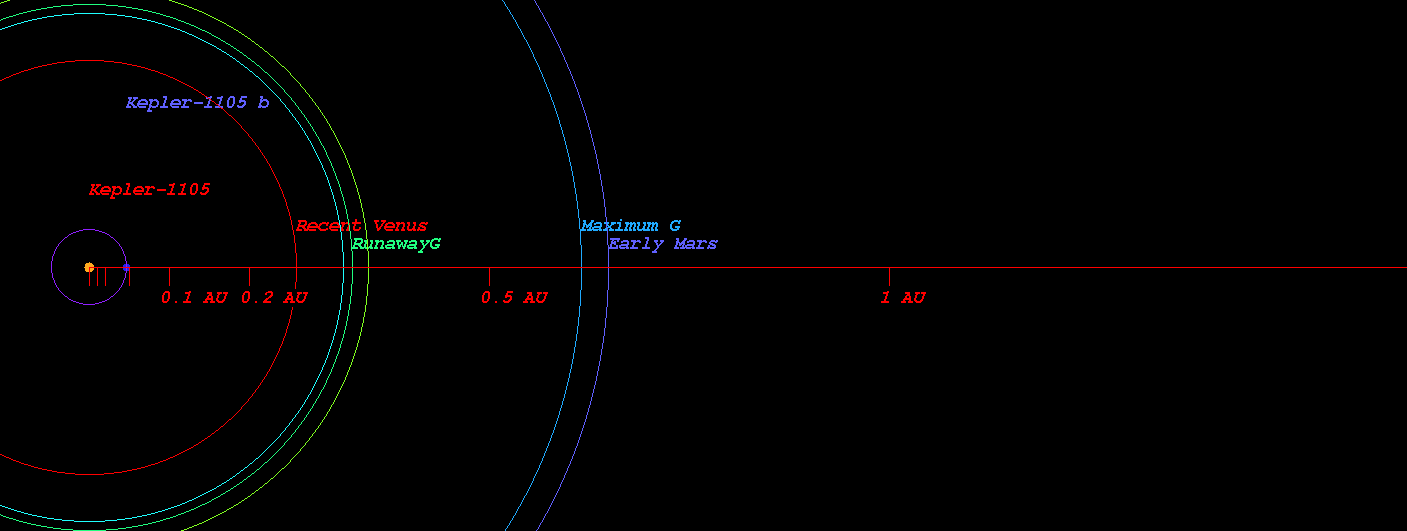

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1105)



  • Original Kopparapu Recent Venus for Star Kepler-1105 distance : 0.256 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1105 distance : 0.340 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1105 distance : 0.339 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1105 distance : 0.625 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1105 distance : 0.650 AU

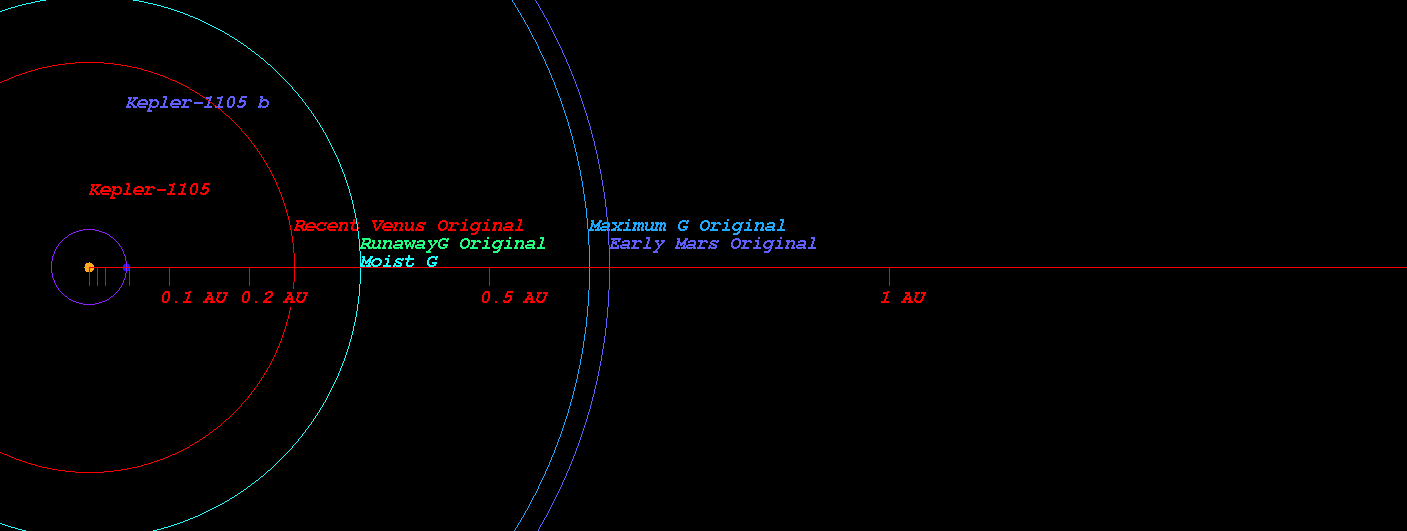

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1105)



    (Position in Stellar Map of star Kepler-1105 and its Exoplanet Kepler-1105 b)

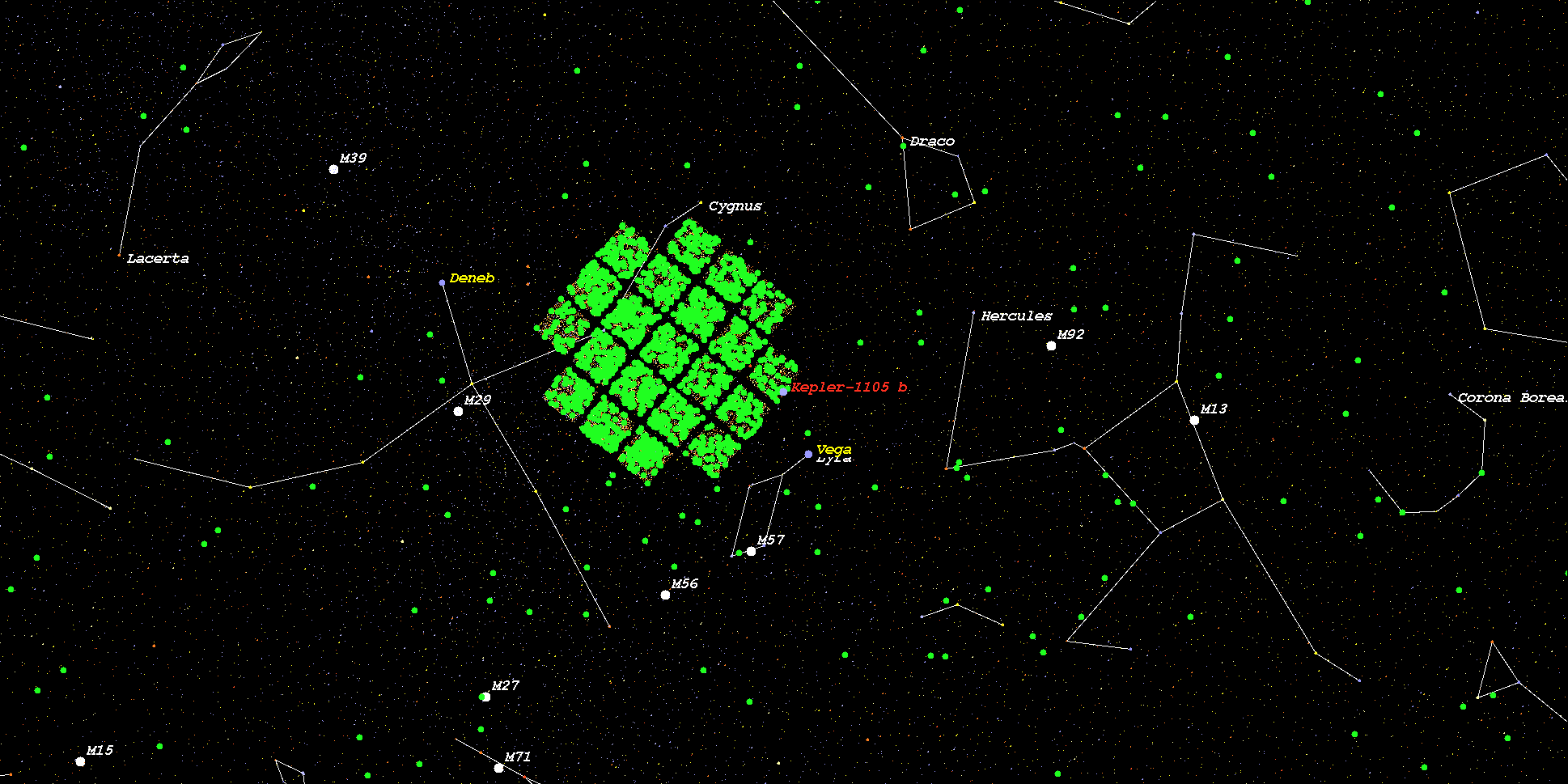

    (Zoomed position in Stellar Map of star Kepler-1105 and its Exoplanet Kepler-1105 b (zoom level 3))

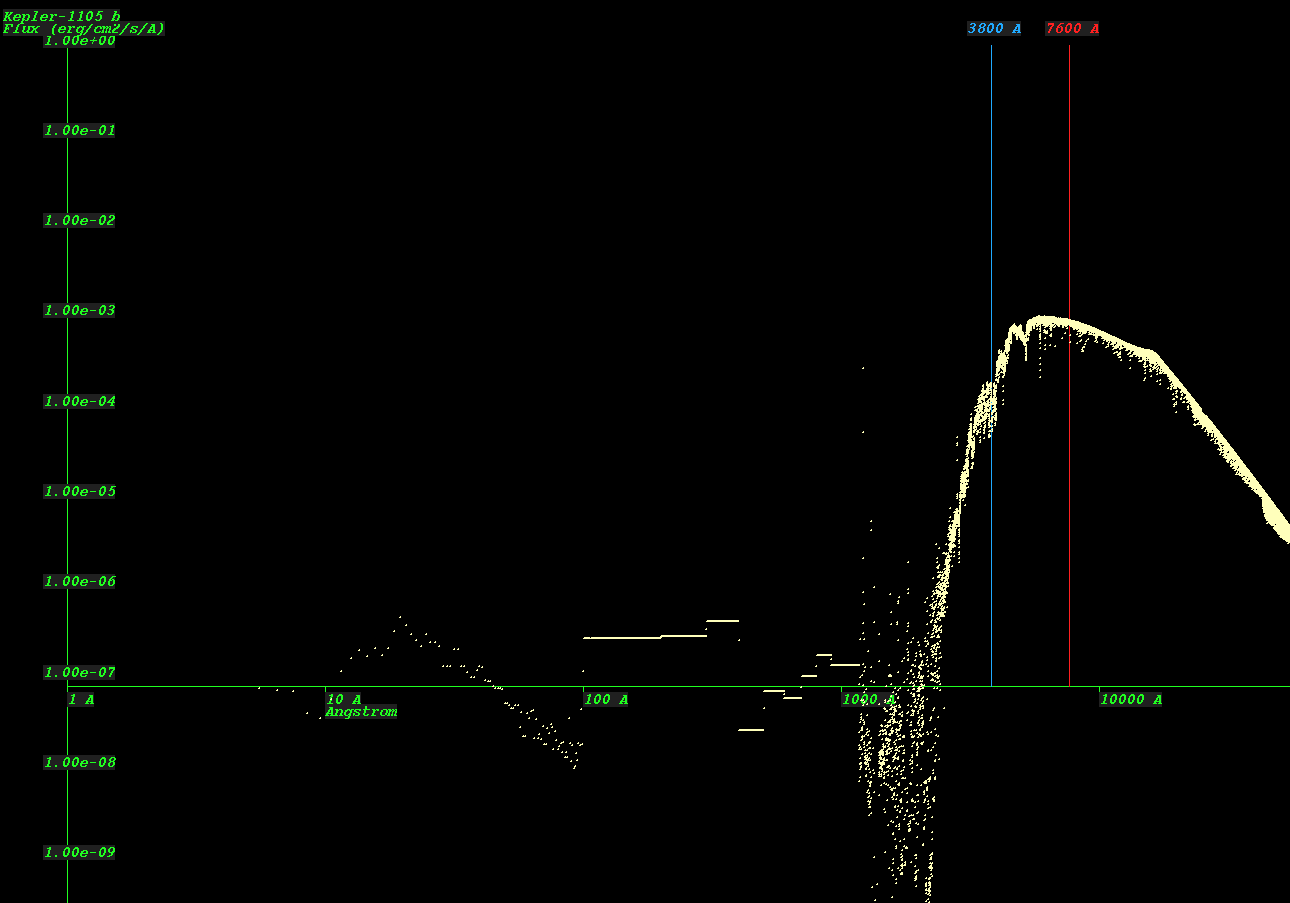

    (Synthetic Spectrum of star Kepler-1105*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
