Imaginary Picture of Kepler-1110 b

Display orbital revolution of Kepler-1110 b around the hoststar Kepler-1110
/
Exoplanet Name : Kepler-1110 b
Alternate Name : "2MASS J19271392+3837217 b, K02126.01, KIC 3546060 b, KOI-2126 b, KOI-2126.01, WISE J192713.91+383721.8 b"
Status : Confirmed
Radius (Rjup / Re): 0.2370 (Rjup) 2.6565 (Rearth)
Mass (Mjup / Me): 0.0206 (Mjup) 6.5453 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0801 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0265
Orbital Period(Observed/Estimated) 9.69 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.9275
Star Radiation at Atmospheric Boundary: 52181.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 674.6 (K)
Blackbody T 0.3(K) 633.5 (K)
Blackbody T 0.7(K) 512.6 (K)
Tidally Locked Blackbody T 0.1(K) 802.2 (K)
Tidally Locked Blackbody T 0.3(K) 753.3 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1110
Alternate Name : "2MASS J19271392+3837217, KIC 3546060, KOI-2126, WISE J192713.91+383721.8"
Star Distance(LY) : 2371.1
Stellar Radius(Rsun) : 0.7 (Rsun Measured)
Stellar Mass(Msun) : 0.7 (Msun Measured) 0.7 (Msun Estimated)
Star Age : 4.8 (GY)
Temperature : 4821 (K)
Spectral type : K3
UV portion[%]: 2.5
Visible portion[%]: 35.6
IR portion[%]: 61.9
Metalicity : -0.2
Absolute Magnitude: 5.0
Apparent Magnitude: 14.3
Right Ascension(RA) 291.8080
Declination (DEC) 38.6227
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1110+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1110%20b/
Kepler-1110 b
Kepler-1110 b

  • Kepler-1110 b is an exoplanet orbiting the star Kepler-1110, located about 2371.1 light-years (727.0 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1110 has apparent magnitude of 14.3, with absolute magnitude of 5.0.
  • It is 0.7 times more massive and 0.7 times bigger compared with our Sun. The surface temperature is 4821 with its spectral types of K3
  • In this planetary system, the extrasolar planet Kepler-1110 b orbits around the star Kepler-1110 every 9.7 days with its orbital distance of 0.08 AU ( 11984372.1 km)
  • (Projected orbit of Kepler-1110 b around its host star Kepler-1110)


  • The Star Kepler-1110 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.358 AU ( 53555240.8 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.495 AU ( 74027338.4 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.754 AU ( 112801281.5 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.110 AU ( 165992027.3 km)
  • Radiation at Planetary Boundary of Kepler-1110 b : 52181.05 W/m2

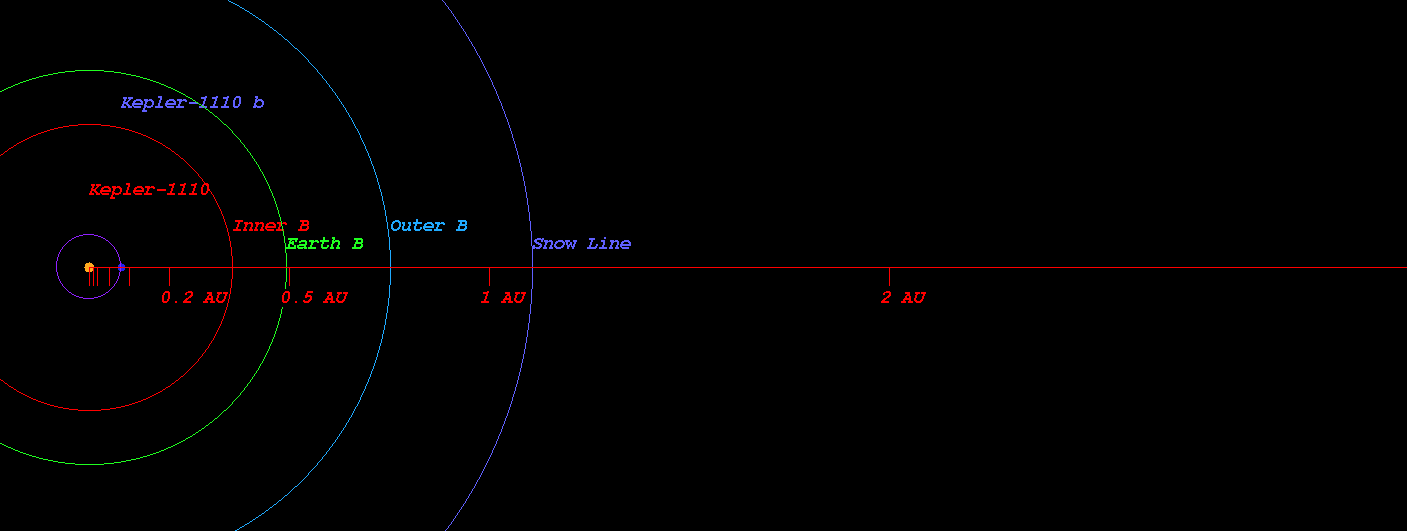

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1110)



  • Kopparapu Recent Venus for Star Kepler-1110 distance : 0.390 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1110 distance : 0.494 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1110 distance : 0.477 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1110 distance : 0.524 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1110 distance : 0.903 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1110 distance : 0.952 AU

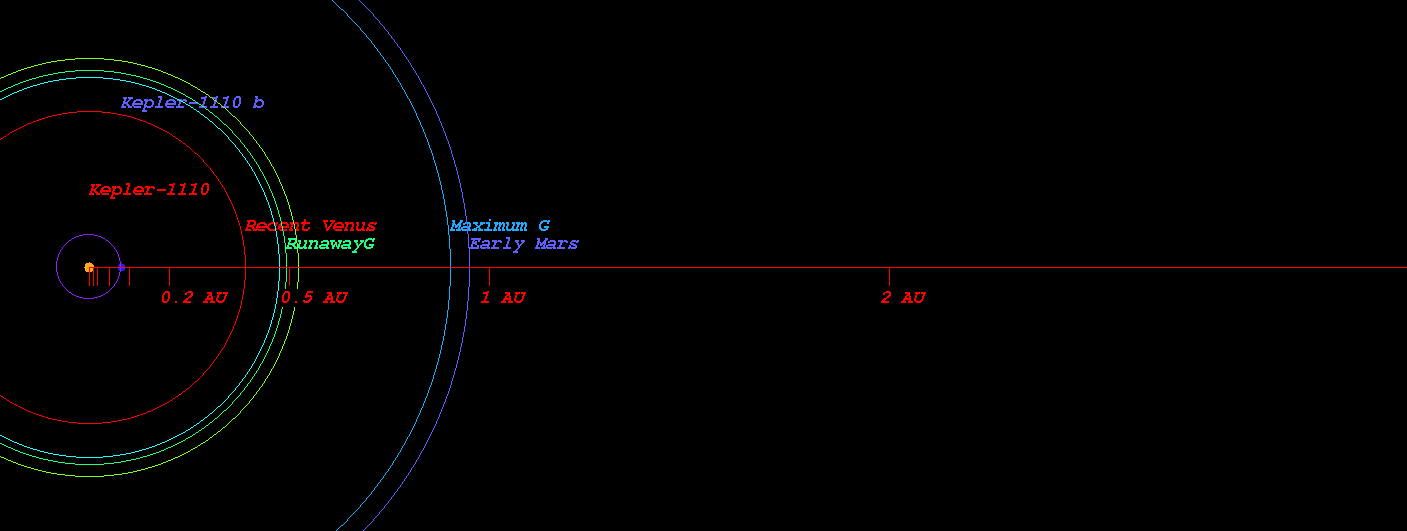

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1110)



  • Original Kopparapu Recent Venus for Star Kepler-1110 distance : 0.386 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1110 distance : 0.510 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1110 distance : 0.510 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1110 distance : 0.918 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1110 distance : 0.954 AU

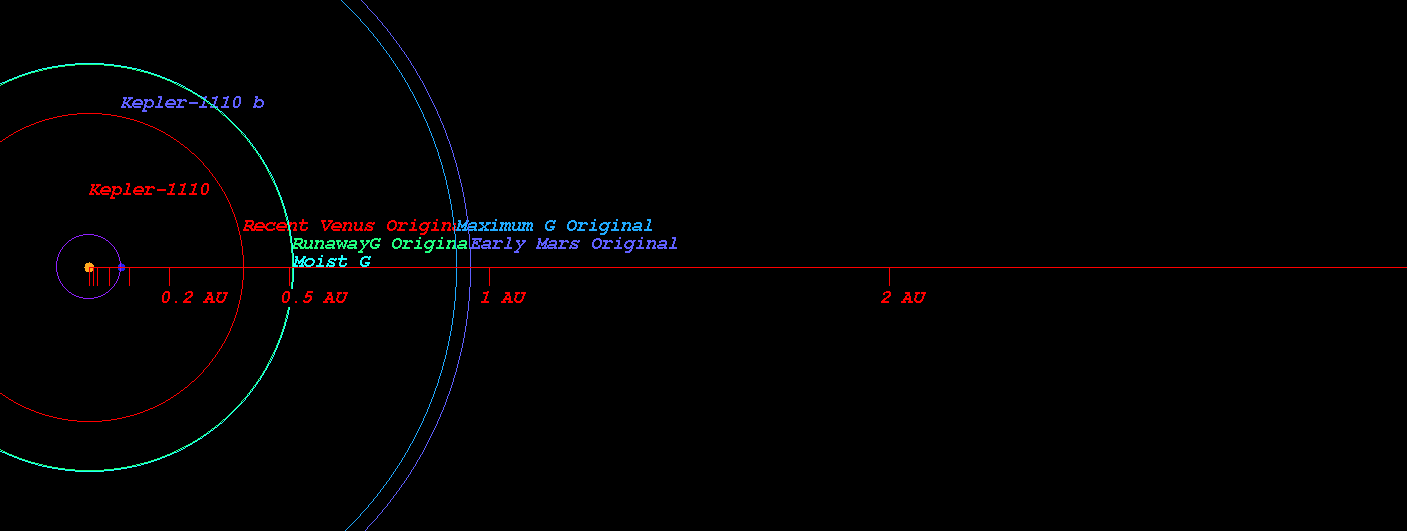

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1110)



    (Position in Stellar Map of star Kepler-1110 and its Exoplanet Kepler-1110 b)

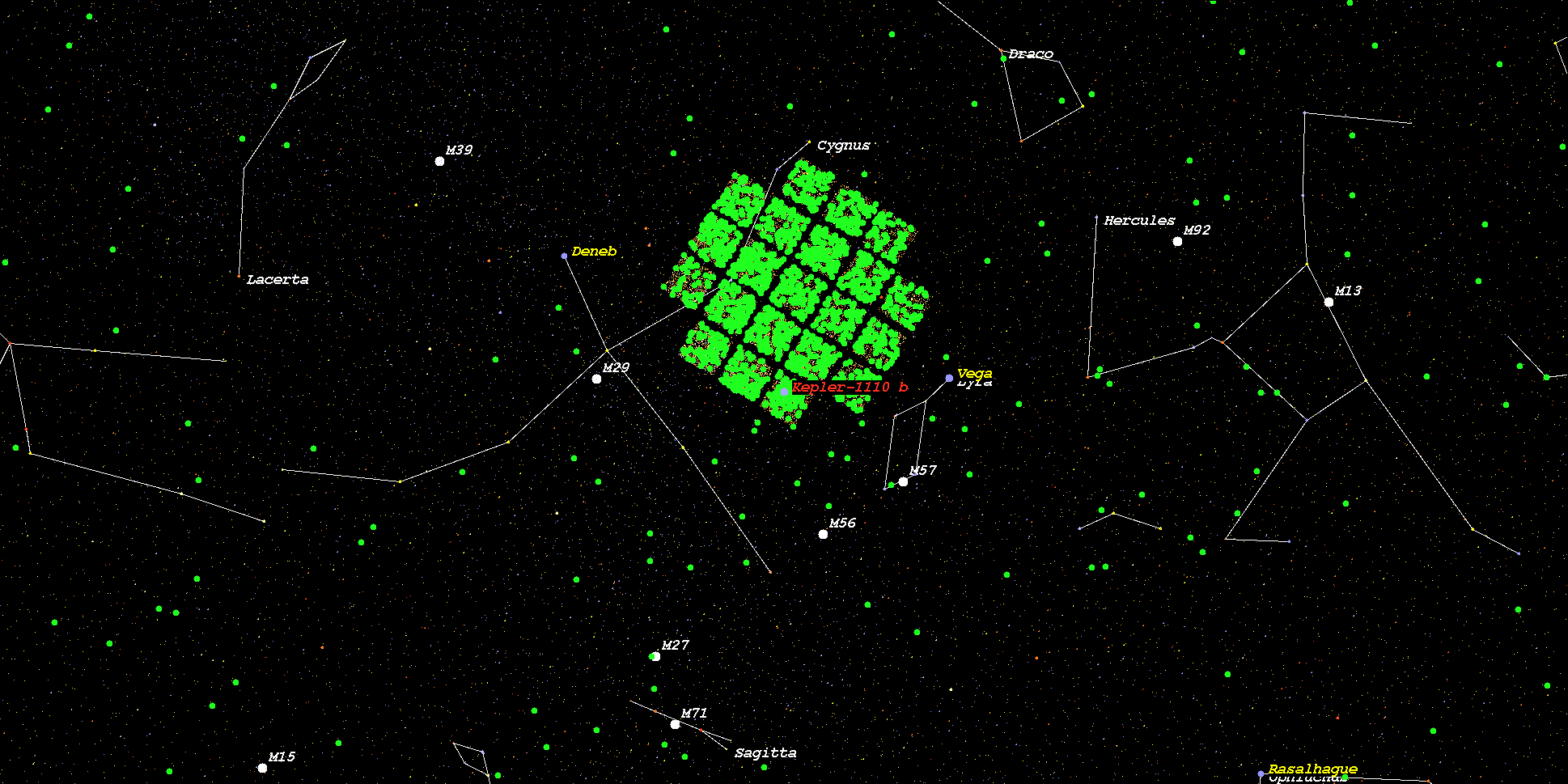

    (Zoomed position in Stellar Map of star Kepler-1110 and its Exoplanet Kepler-1110 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1110*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
