Imaginary Picture of Kepler-1129 b

Display orbital revolution of Kepler-1129 b around the hoststar Kepler-1129
/
Exoplanet Name : Kepler-1129 b
Alternate Name : "2MASS J19262507+4118336 b, K02167.01, KIC 6041734 b, KOI-2167 b, KOI-2167.01, WISE J192625.06+411833.6 b"
Status : Confirmed
Radius (Rjup / Re): 0.2640 (Rjup) 2.9592 (Rearth)
Mass (Mjup / Me): 0.0228 (Mjup) 7.2361 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1644 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0666
Orbital Period(Observed/Estimated) 24.34 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.8263
Star Radiation at Atmospheric Boundary: 44098.6 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 646.8 (K)
Blackbody T 0.3(K) 607.4 (K)
Blackbody T 0.7(K) 491.4 (K)
Tidally Locked Blackbody T 0.1(K) 769.1 (K)
Tidally Locked Blackbody T 0.3(K) 722.3 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1129
Alternate Name : "2MASS J19262507+4118336, KIC 6041734, KOI-2167, WISE J192625.06+411833.6"
Star Distance(LY) : 3866.5
Stellar Radius(Rsun) : 1.0 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 4.1 (GY)
Temperature : 5707 (K)
Spectral type : G2
UV portion[%]: 7.6
Visible portion[%]: 44.4
IR portion[%]: 47.9
Metalicity : -0.0
Absolute Magnitude: 3.8
Apparent Magnitude: 14.2
Right Ascension(RA) 291.6045
Declination (DEC) 41.3094
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1129+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1129%20b/
Kepler-1129 b
Kepler-1129 b

  • Kepler-1129 b is an exoplanet orbiting the star Kepler-1129, located about 3866.5 light-years (1185.5 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1129 has apparent magnitude of 14.2, with absolute magnitude of 3.8.
  • It is 1.0 times more massive and 1.0 times bigger compared with our Sun. The surface temperature is 5707 with its spectral types of G2
  • In this planetary system, the extrasolar planet Kepler-1129 b orbits around the star Kepler-1129 every 24.3 days with its orbital distance of 0.16 AU ( 24589122.6 km)

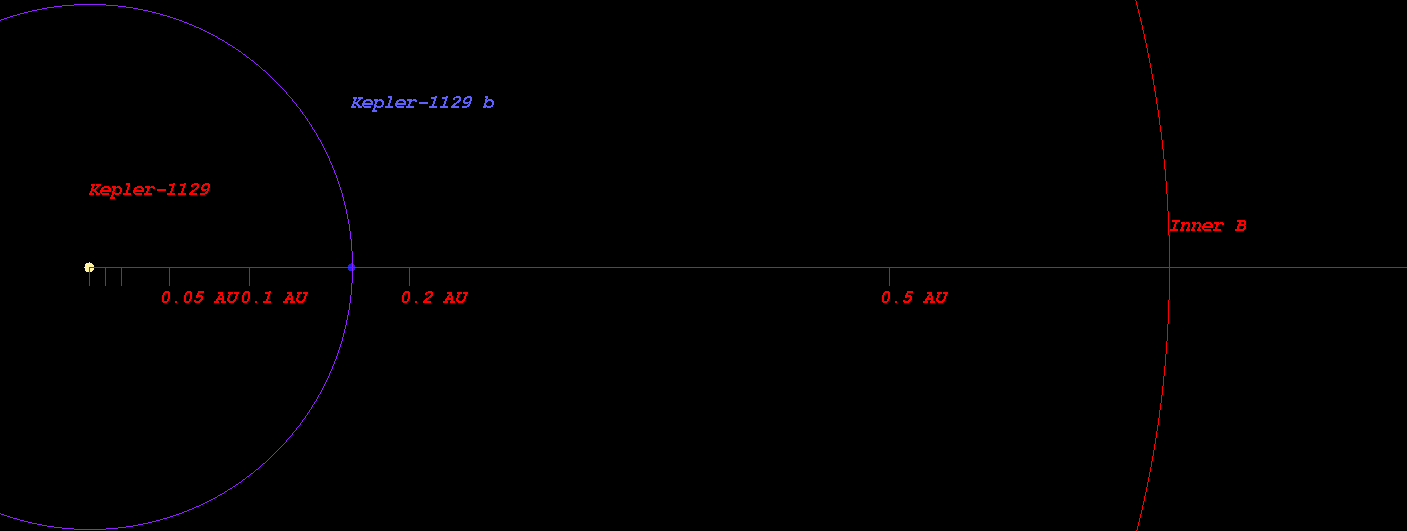

  • (Projected orbit of Kepler-1129 b around its host star Kepler-1129)


  • The Star Kepler-1129 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.675 AU ( 101014983.1 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.933 AU ( 139629105.0 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.422 AU ( 212763856.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.093 AU ( 313091334.8 km)
  • Radiation at Planetary Boundary of Kepler-1129 b : 44098.61 W/m2

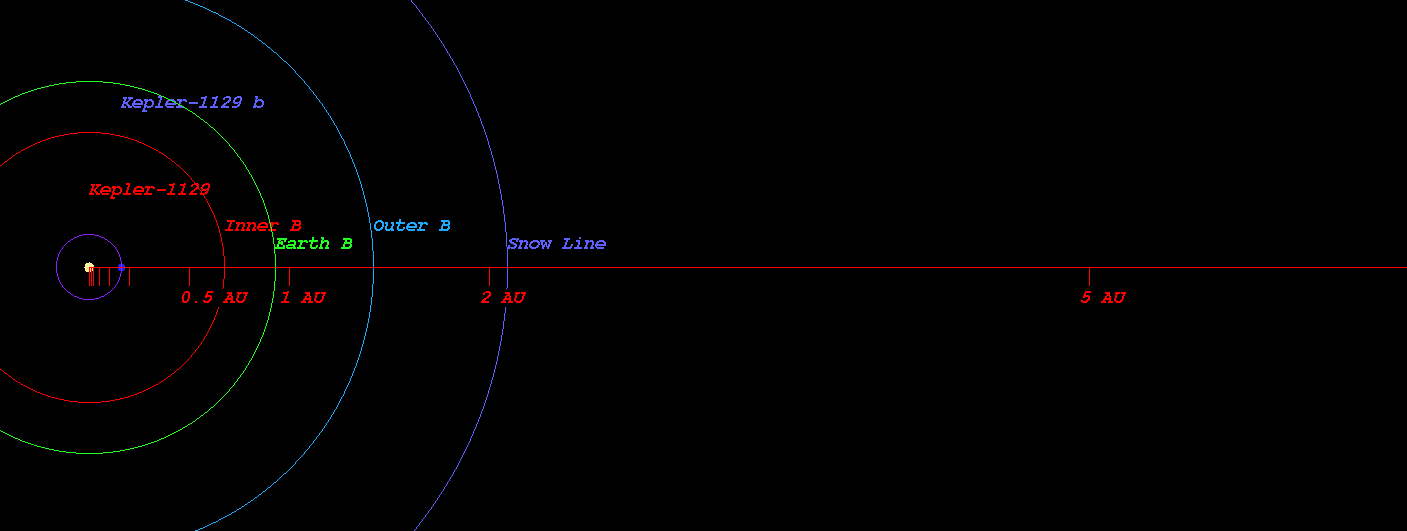

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1129)



  • Kopparapu Recent Venus for Star Kepler-1129 distance : 0.703 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1129 distance : 0.890 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1129 distance : 0.860 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1129 distance : 0.943 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1129 distance : 1.575 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1129 distance : 1.661 AU

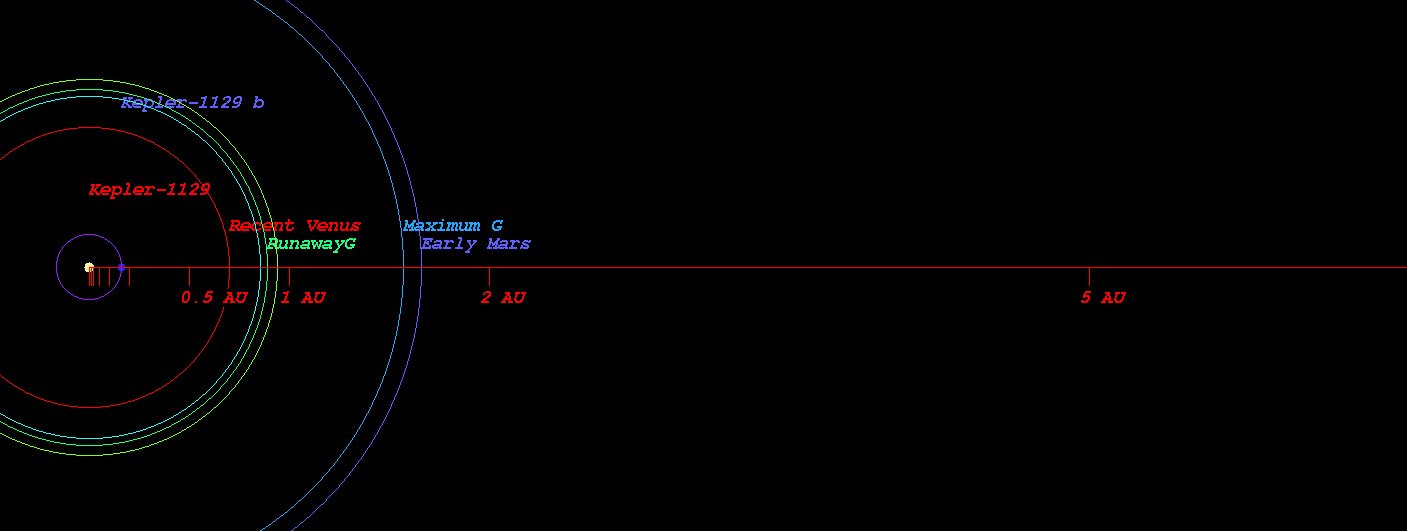

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1129)



  • Original Kopparapu Recent Venus for Star Kepler-1129 distance : 0.703 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1129 distance : 0.915 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1129 distance : 0.930 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1129 distance : 1.602 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1129 distance : 1.666 AU

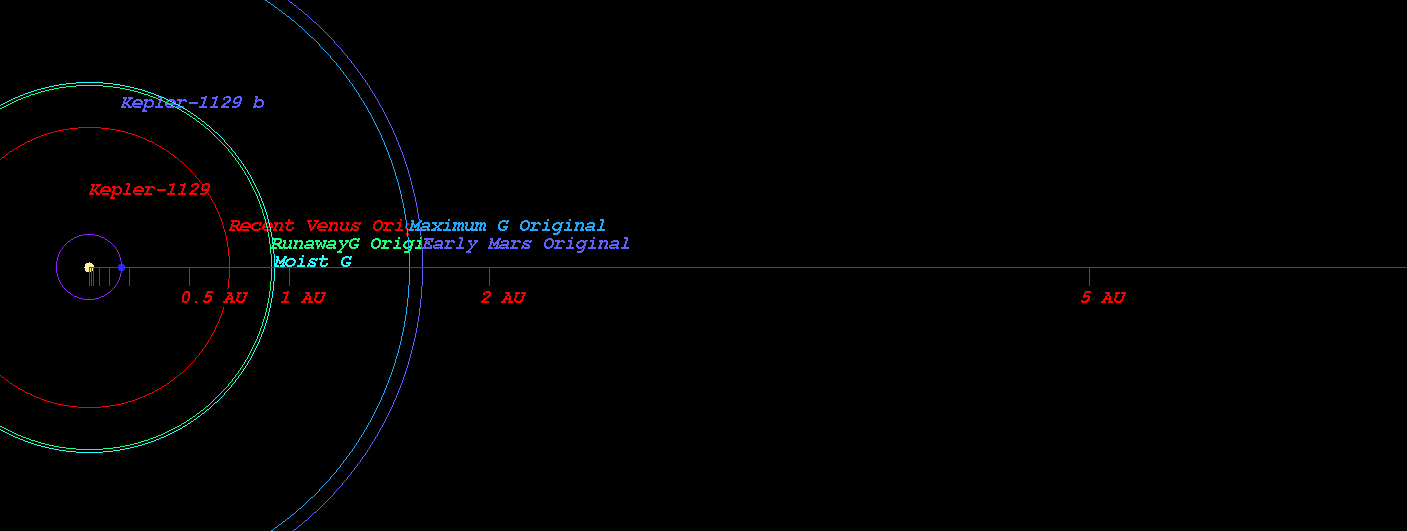

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1129)

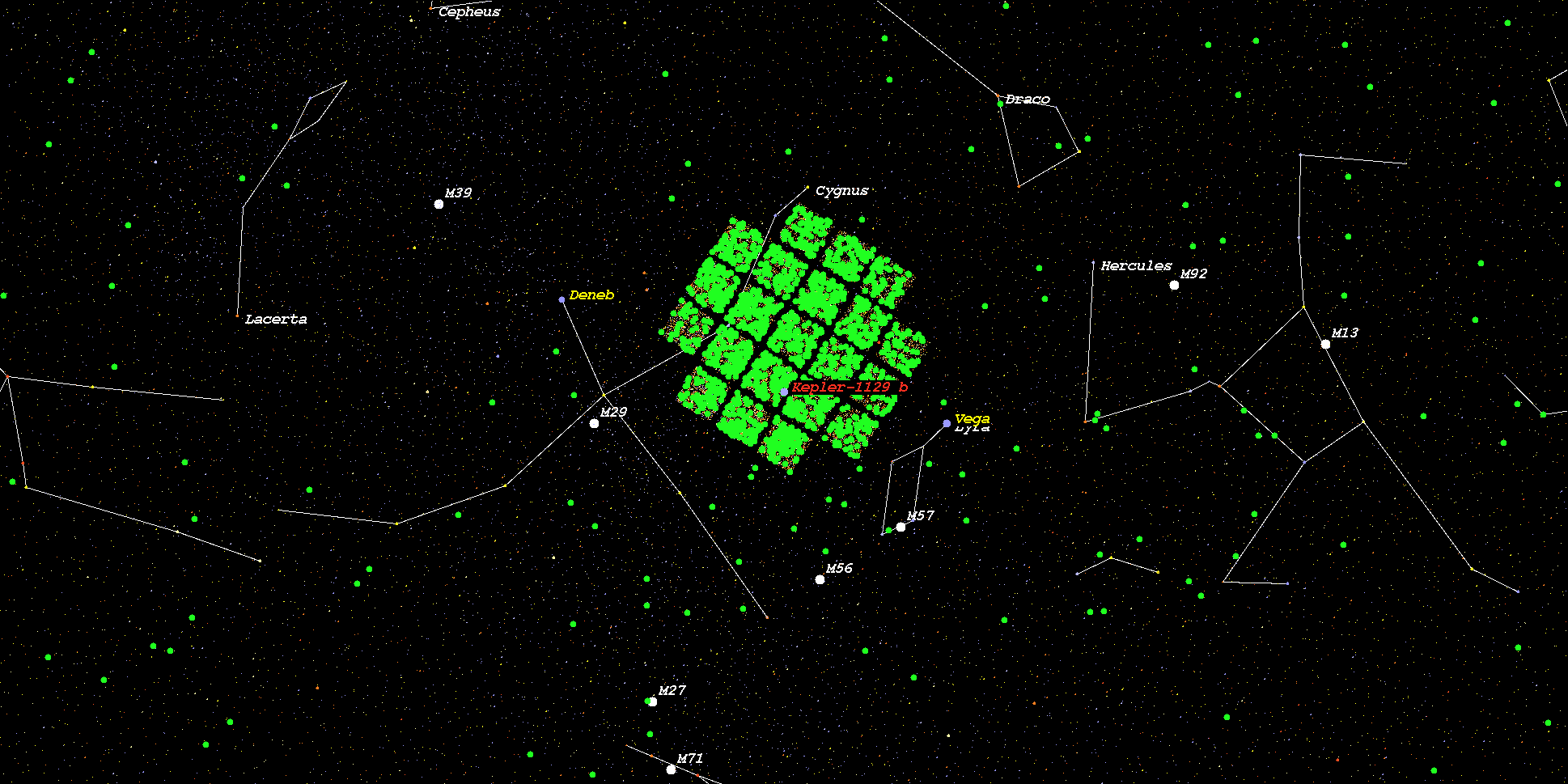

    (Position in Stellar Map of star Kepler-1129 and its Exoplanet Kepler-1129 b)



    (Zoomed position in Stellar Map of star Kepler-1129 and its Exoplanet Kepler-1129 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1129*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
