Imaginary Picture of Kepler-1153 b

Display orbital revolution of Kepler-1153 b around the hoststar Kepler-1153
/
Exoplanet Name : Kepler-1153 b
Alternate Name : "2MASS J19163533+4551582 b, K02242.01, KIC 9336200 b, KOI-2242 b, KOI-2242.01, WISE J191635.33+455158.0 b"
Status : Confirmed
Radius (Rjup / Re): 0.1540 (Rjup) 1.7262 (Rearth)
Mass (Mjup / Me): 0.0138 (Mjup) 4.3833 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0276 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0048
Orbital Period(Observed/Estimated) 1.76 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.4711
Star Radiation at Atmospheric Boundary: 1048809.3 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1428.3 (K)
Blackbody T 0.3(K) 1341.3 (K)
Blackbody T 0.7(K) 1085.3 (K)
Tidally Locked Blackbody T 0.1(K) 1698.5 (K)
Tidally Locked Blackbody T 0.3(K) 1595.1 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1153
Alternate Name : "2MASS J19163533+4551582, KIC 9336200, KOI-2242, WISE J191635.33+455158.0"
Star Distance(LY) : 3659.4
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 4.6 (GY)
Temperature : 5576 (K)
Spectral type : G7
UV portion[%]: 7.2
Visible portion[%]: 43.7
IR portion[%]: 49.1
Metalicity : 0.0
Absolute Magnitude: 4.2
Apparent Magnitude: 14.5
Right Ascension(RA) 289.1472
Declination (DEC) 45.8662
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1153+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1153%20b/
Kepler-1153 b
Kepler-1153 b

  • Kepler-1153 b is an exoplanet orbiting the star Kepler-1153, located about 3659.4 light-years (1122.0 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1153 has apparent magnitude of 14.5, with absolute magnitude of 4.2.
  • It is 0.9 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5576 with its spectral types of G7
  • In this planetary system, the extrasolar planet Kepler-1153 b orbits around the star Kepler-1153 every 1.8 days with its orbital distance of 0.03 AU ( 4129222.2 km)

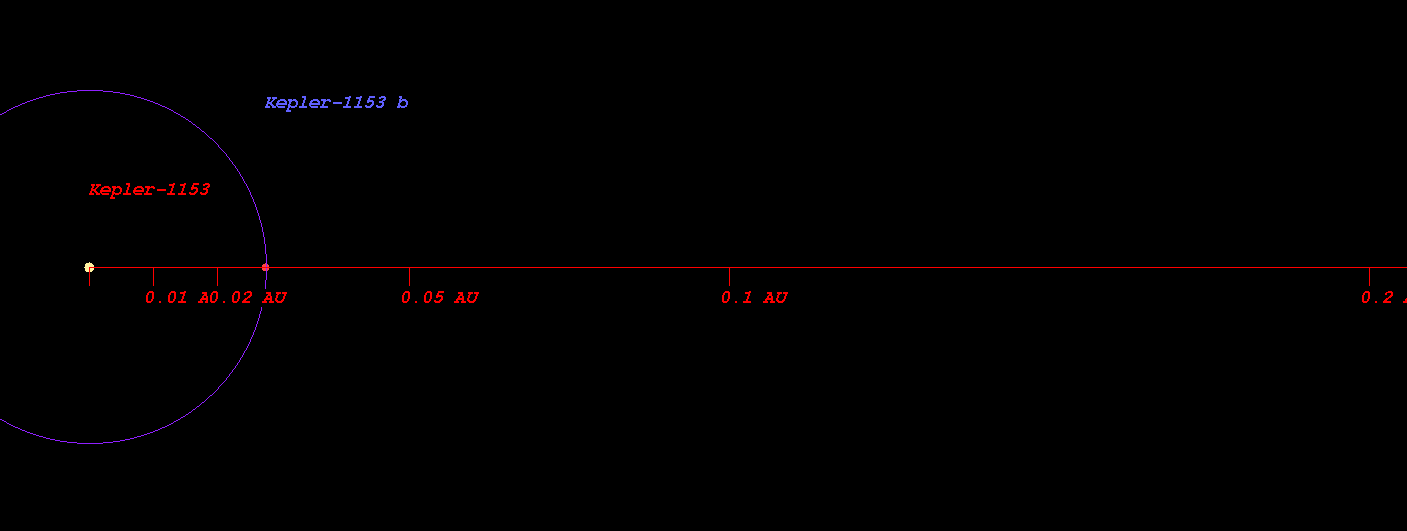

  • (Projected orbit of Kepler-1153 b around its host star Kepler-1153)


  • The Star Kepler-1153 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.553 AU ( 82726909.4 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.764 AU ( 114350207.9 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.165 AU ( 174244411.2 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.714 AU ( 256408284.2 km)
  • Radiation at Planetary Boundary of Kepler-1153 b : 1048809.26 W/m2

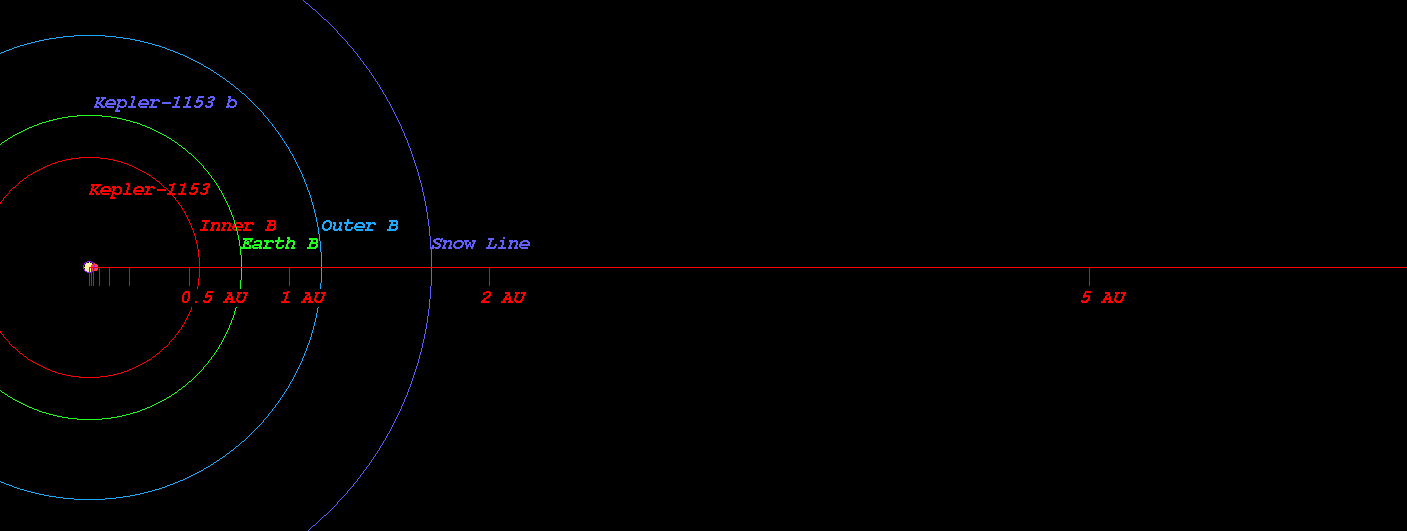

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1153)



  • Kopparapu Recent Venus for Star Kepler-1153 distance : 0.580 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1153 distance : 0.735 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1153 distance : 0.709 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1153 distance : 0.778 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1153 distance : 1.305 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1153 distance : 1.376 AU

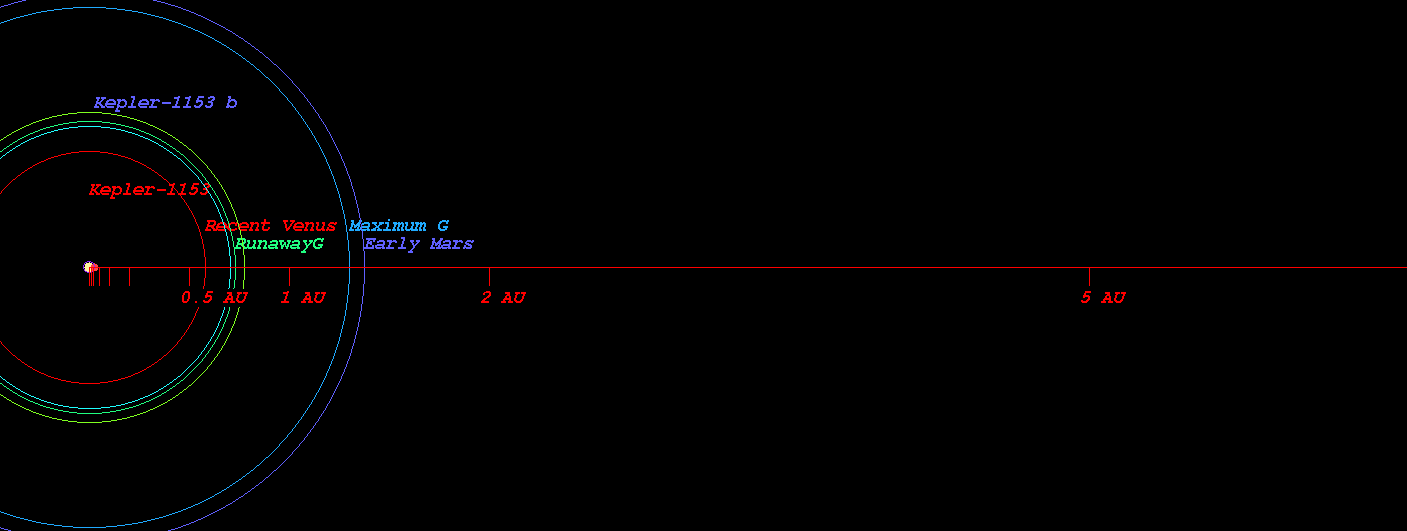

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1153)



  • Original Kopparapu Recent Venus for Star Kepler-1153 distance : 0.579 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1153 distance : 0.755 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1153 distance : 0.766 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1153 distance : 1.327 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1153 distance : 1.380 AU

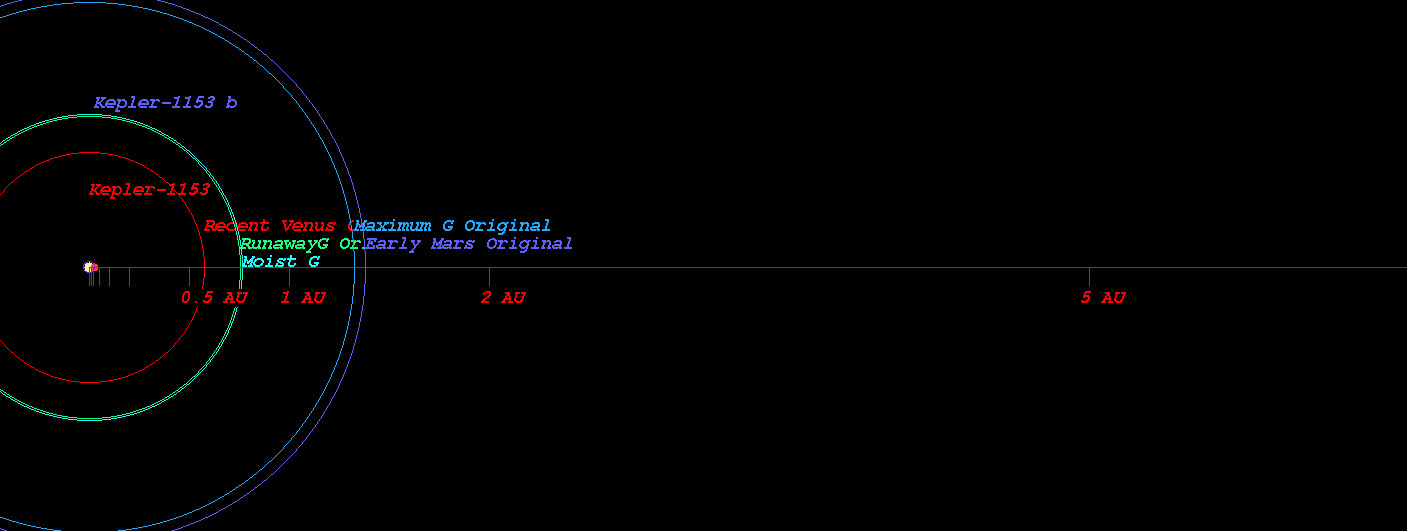

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1153)



    (Position in Stellar Map of star Kepler-1153 and its Exoplanet Kepler-1153 b)

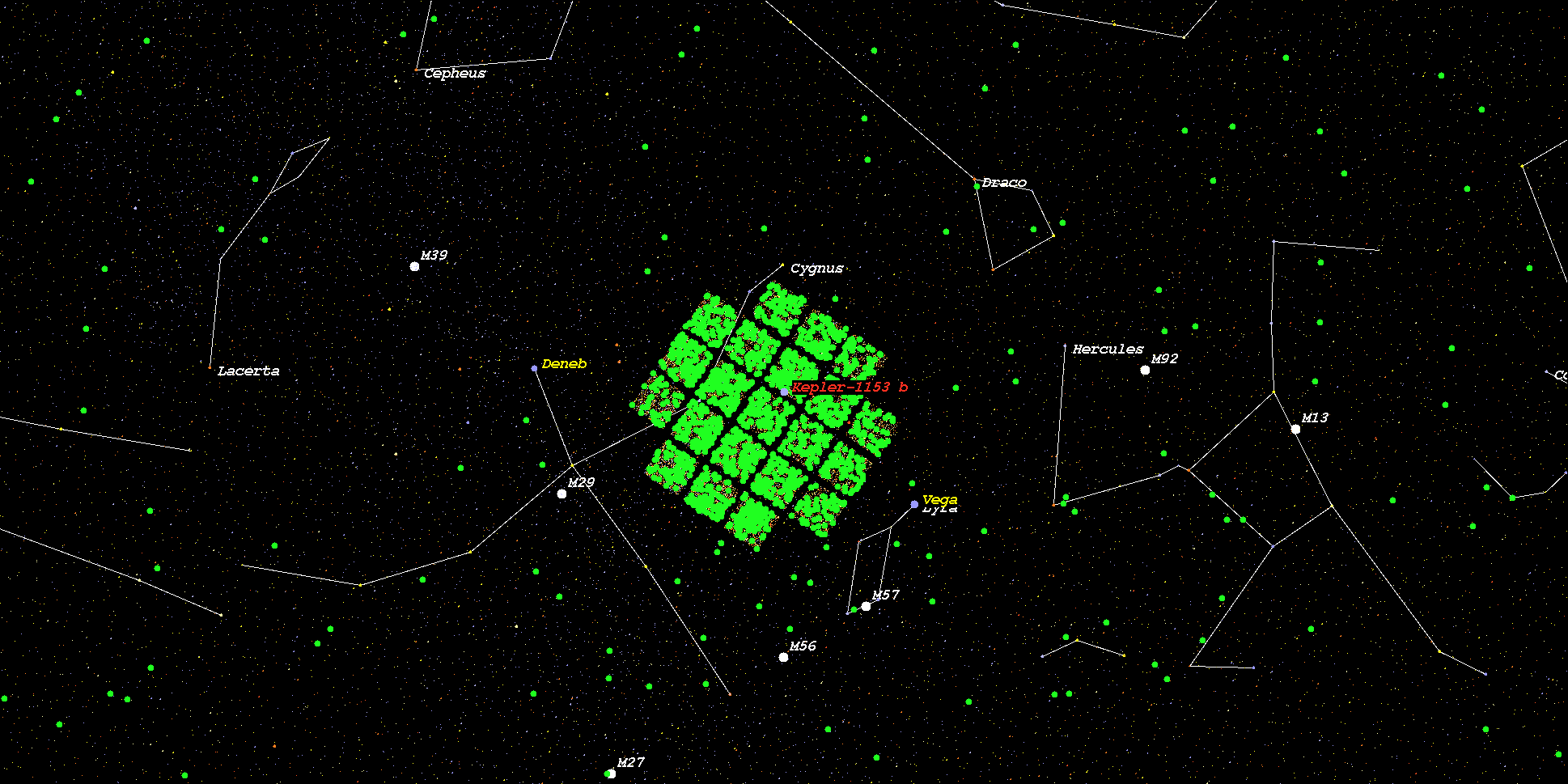

    (Zoomed position in Stellar Map of star Kepler-1153 and its Exoplanet Kepler-1153 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1153*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
