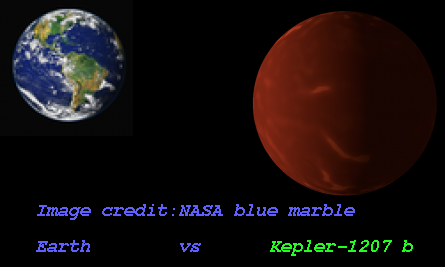

Imaginary Picture of Kepler-1207 b

Display orbital revolution of Kepler-1207 b around the hoststar Kepler-1207
/
Exoplanet Name : Kepler-1207 b
Alternate Name : "2MASS J19401541+4921323 b, K02356.01, KIC 11461844 b, KOI-2356 b, KOI-2356.01, WISE J194015.40+492132.2 b"
Status : Confirmed
Radius (Rjup / Re): 0.1450 (Rjup) 1.6253 (Rearth)
Mass (Mjup / Me): 0.0130 (Mjup) 4.1446 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1142 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0375
Orbital Period(Observed/Estimated) 13.68 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.5690
Star Radiation at Atmospheric Boundary: 494001.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1183.2 (K)
Blackbody T 0.3(K) 1111.2 (K)
Blackbody T 0.7(K) 899.1 (K)
Tidally Locked Blackbody T 0.1(K) 1407.1 (K)
Tidally Locked Blackbody T 0.3(K) 1321.4 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1207
Alternate Name : "2MASS J19401541+4921323, KIC 11461844, KOI-2356, WISE J194015.40+492132.2"
Star Distance(LY) : 5724.7
Stellar Radius(Rsun) : 1.9 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 3.6 (GY)
Temperature : 6097 (K)
Spectral type : G1
UV portion[%]: 0.3
Visible portion[%]: 1.5
IR portion[%]: 98.2
Metalicity : 0.1
Absolute Magnitude: 2.1
Apparent Magnitude: 13.4
Right Ascension(RA) 295.0642
Declination (DEC) 49.3590
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton1, Stephen T. Bryson2, Jeffrey L. Coughlin2,3, Jason F. Rowe4, Ganesh Ravichandran5, Erik A. Petigura6,7, Michael R. Haas2, and Natalie M. Batalha5"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 431 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1207+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1207%20b/
Kepler-1207 b
Kepler-1207 b

  • Kepler-1207 b is an exoplanet orbiting the star Kepler-1207, located about 5724.7 light-years (1755.2 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1207 has apparent magnitude of 13.4, with absolute magnitude of 2.1.

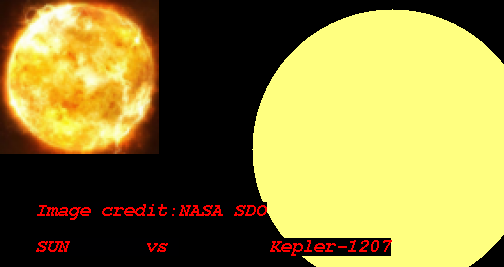

  • It is 1.1 times more massive and 1.9 times bigger compared with our Sun. The surface temperature is 6097 with its spectral types of G1
  • In this planetary system, the extrasolar planet Kepler-1207 b orbits around the star Kepler-1207 every 13.7 days with its orbital distance of 0.11 AU ( 17076864.4 km)

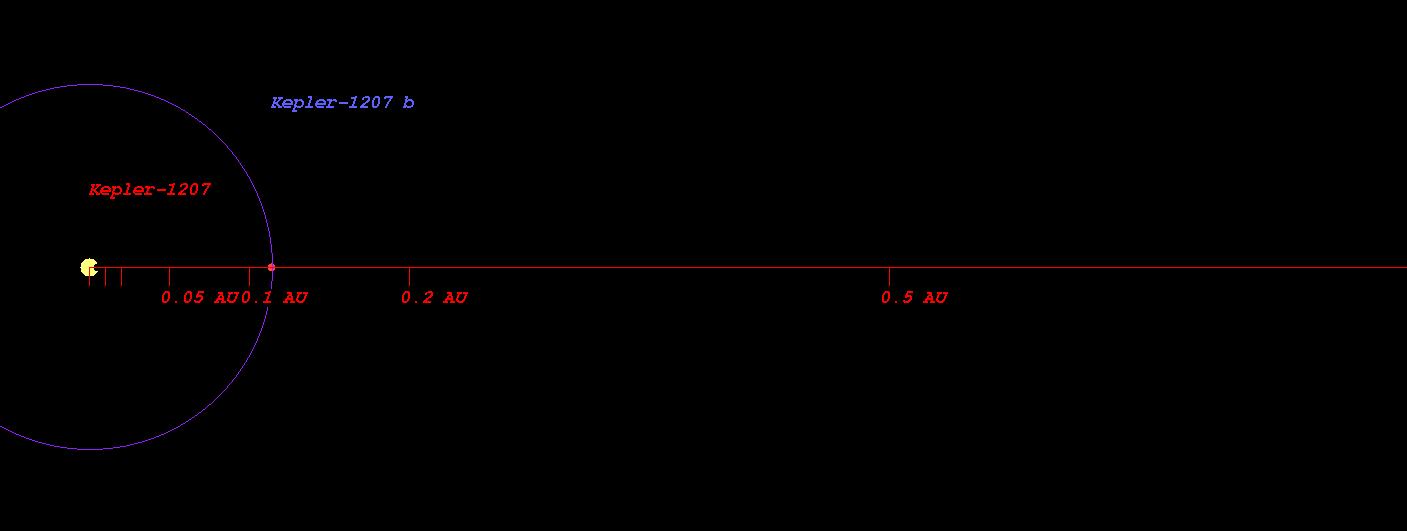

  • (Projected orbit of Kepler-1207 b around its host star Kepler-1207)


  • The Star Kepler-1207 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.570 AU ( 234802297.2 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 2.170 AU ( 324558136.0 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 3.306 AU ( 494554774.7 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 4.865 AU ( 727759016.0 km)
  • Radiation at Planetary Boundary of Kepler-1207 b : 494001.01 W/m2

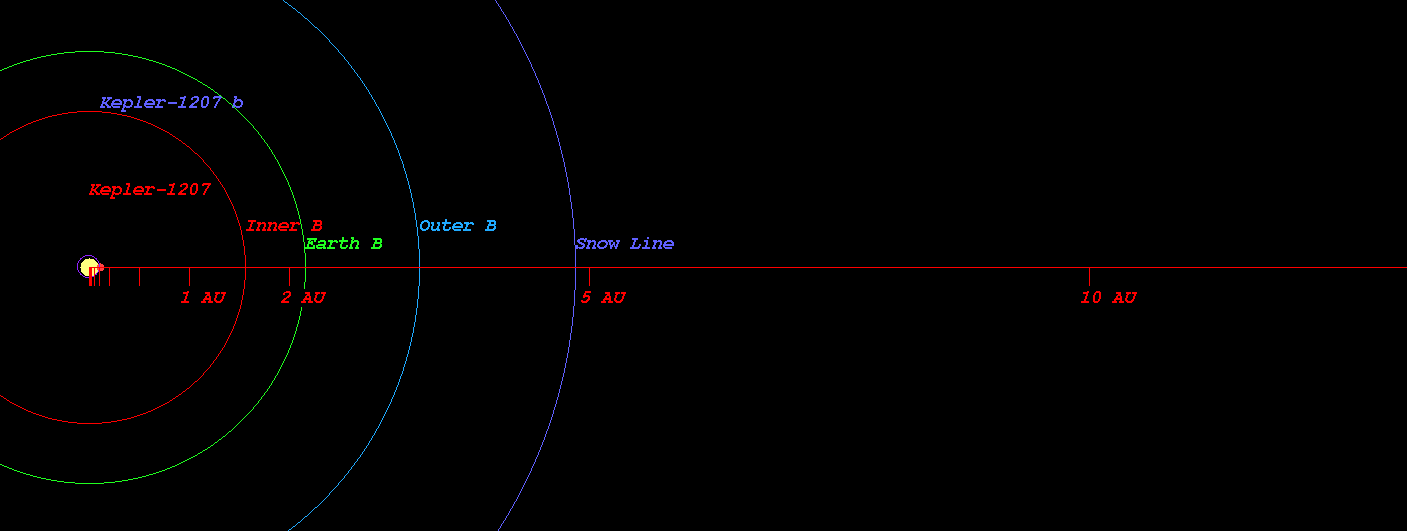

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1207)



  • Kopparapu Recent Venus for Star Kepler-1207 distance : 1.596 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1207 distance : 2.021 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1207 distance : 1.951 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1207 distance : 2.139 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1207 distance : 3.541 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1207 distance : 3.735 AU

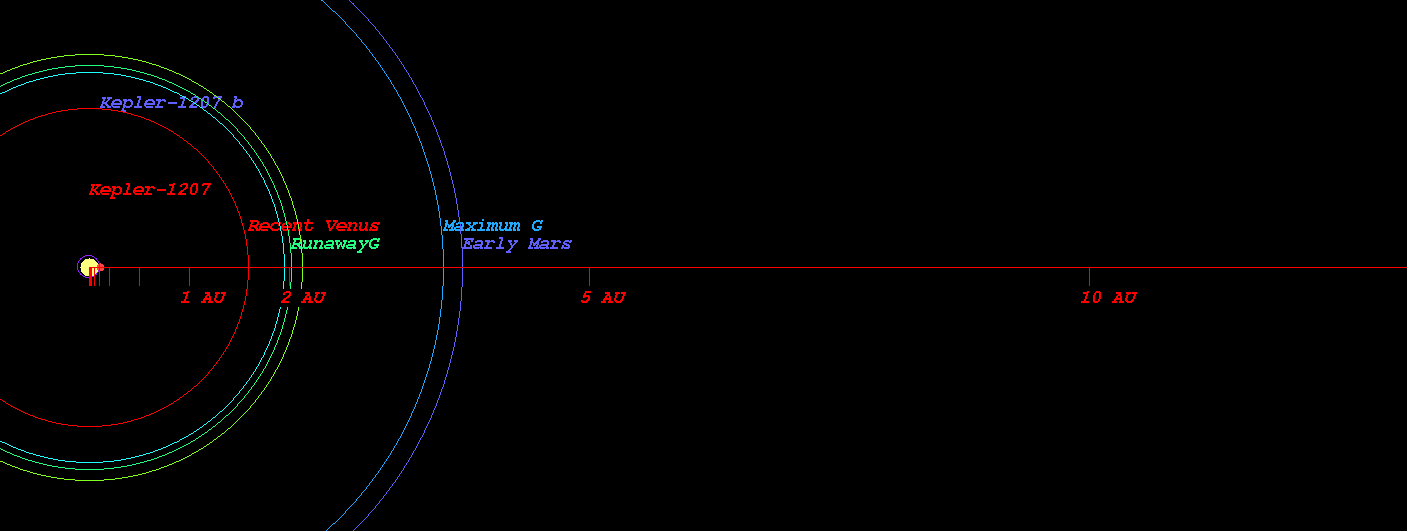

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1207)



  • Original Kopparapu Recent Venus for Star Kepler-1207 distance : 1.608 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1207 distance : 2.074 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1207 distance : 2.128 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1207 distance : 3.604 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1207 distance : 3.748 AU

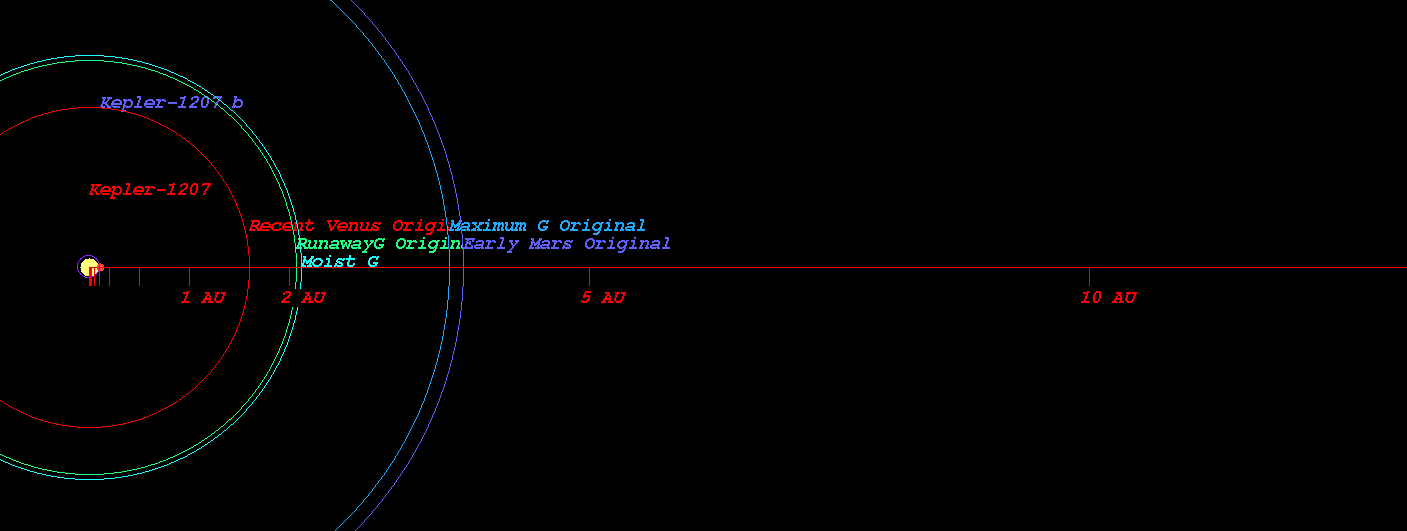

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1207)

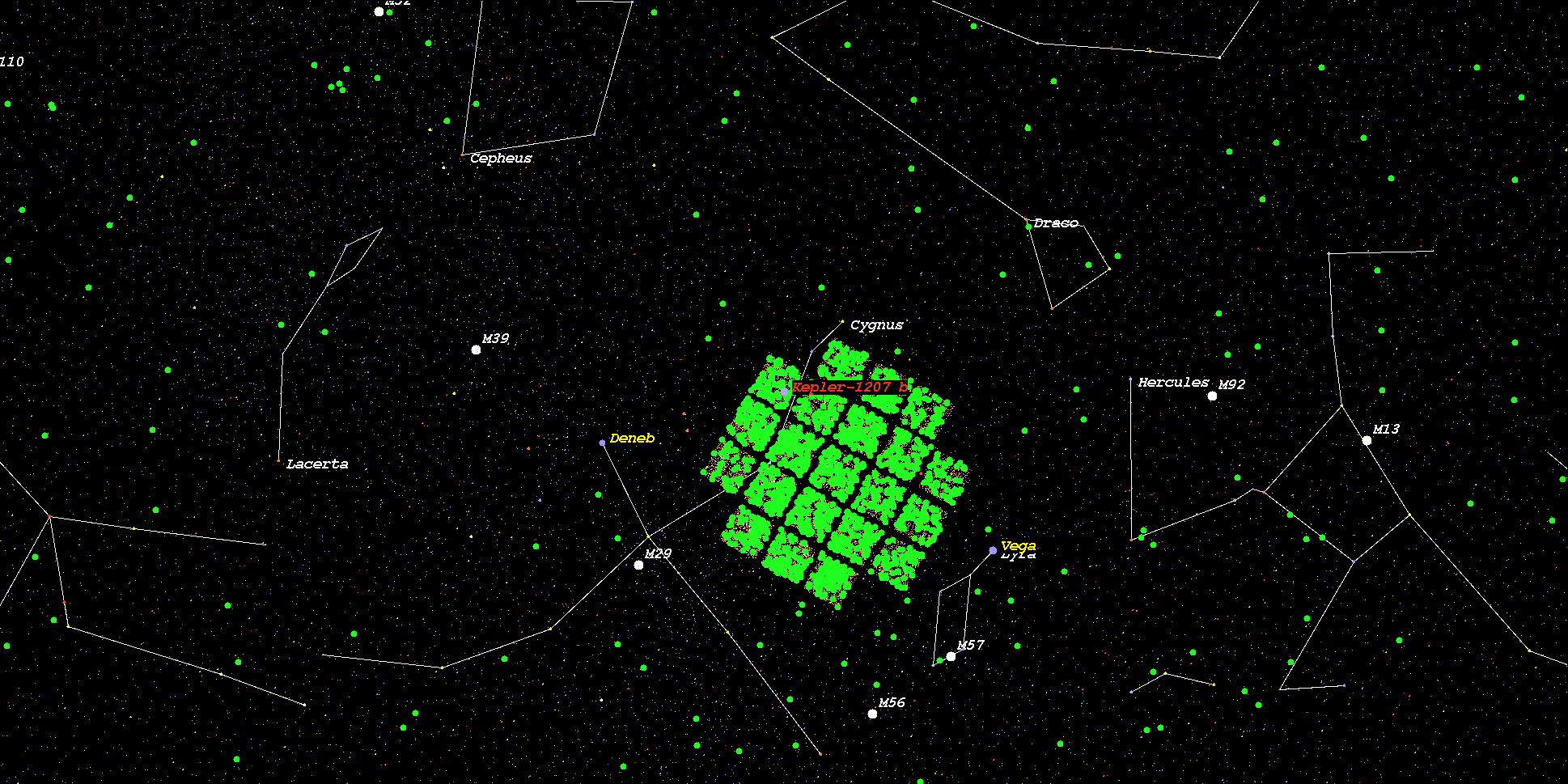

    (Position in Stellar Map of star Kepler-1207 and its Exoplanet Kepler-1207 b)



    (Zoomed position in Stellar Map of star Kepler-1207 and its Exoplanet Kepler-1207 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1207*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
