Imaginary Picture of Kepler-1324 b

Display orbital revolution of Kepler-1324 b around the hoststar Kepler-1324
/
Exoplanet Name : Kepler-1324 b
Alternate Name : "2MASS J19244439+4018403 b, K02719.01, KIC 5184911 b, KOI-2719 b, KOI-2719.01, WISE J192444.38+401840.3 b"
Status : Confirmed
Radius (Rjup / Re): 0.1350 (Rjup) 1.5132 (Rearth)
Mass (Mjup / Me): 0.0138 (Mjup) 4.3954 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0463 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0113
Orbital Period(Observed/Estimated) 4.12 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.9195
Star Radiation at Atmospheric Boundary: 136324.6 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 857.6 (K)
Blackbody T 0.3(K) 805.4 (K)
Blackbody T 0.7(K) 651.6 (K)
Tidally Locked Blackbody T 0.1(K) 1019.9 (K)
Tidally Locked Blackbody T 0.3(K) 957.8 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1324
Alternate Name : "2MASS J19244439+4018403, KIC 5184911, KOI-2719, WISE J192444.38+401840.3"
Star Distance(LY) : 1570.7
Stellar Radius(Rsun) : 0.7 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.8 (Msun Estimated)
Star Age : 2.9 (GY)
Temperature : 4820 (K)
Spectral type : K3
UV portion[%]: 2.5
Visible portion[%]: 35.6
IR portion[%]: 61.9
Metalicity : 0.1
Absolute Magnitude: 5.1
Apparent Magnitude: 13.5
Right Ascension(RA) 291.1850
Declination (DEC) 40.3112
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1324+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1324%20b/
Kepler-1324 b
Kepler-1324 b

  • Kepler-1324 b is an exoplanet orbiting the star Kepler-1324, located about 1570.7 light-years (481.6 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1324 has apparent magnitude of 13.5, with absolute magnitude of 5.1.
  • It is 0.8 times more massive and 0.7 times bigger compared with our Sun. The surface temperature is 4820 with its spectral types of K3
  • In this planetary system, the extrasolar planet Kepler-1324 b orbits around the star Kepler-1324 every 4.1 days with its orbital distance of 0.05 AU ( 6921540.8 km)

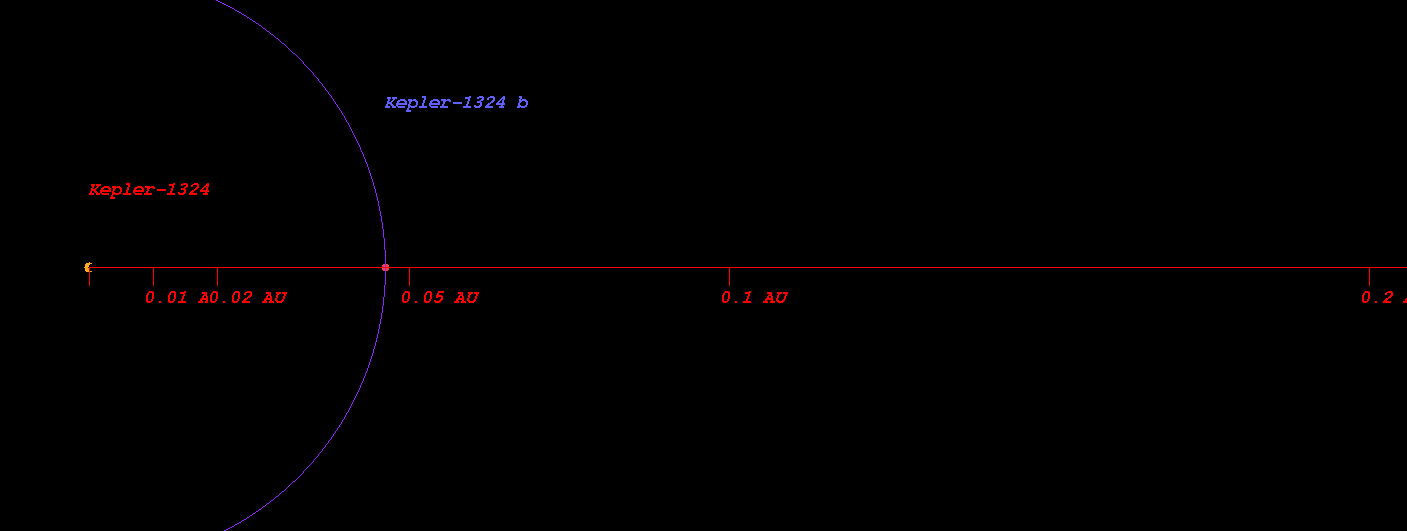

  • (Projected orbit of Kepler-1324 b around its host star Kepler-1324)


  • The Star Kepler-1324 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.334 AU ( 49994274.3 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.462 AU ( 69105152.1 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.704 AU ( 105300958.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.036 AU ( 154954973.9 km)
  • Radiation at Planetary Boundary of Kepler-1324 b : 136324.65 W/m2

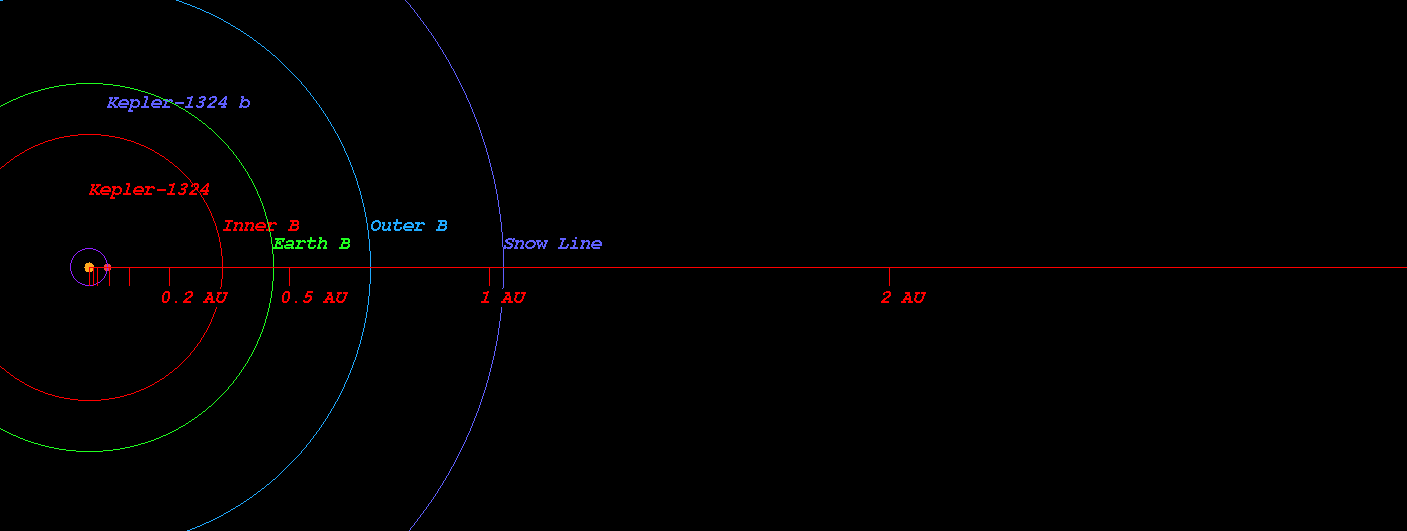

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1324)



  • Kopparapu Recent Venus for Star Kepler-1324 distance : 0.365 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1324 distance : 0.461 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1324 distance : 0.446 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1324 distance : 0.489 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1324 distance : 0.843 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1324 distance : 0.889 AU

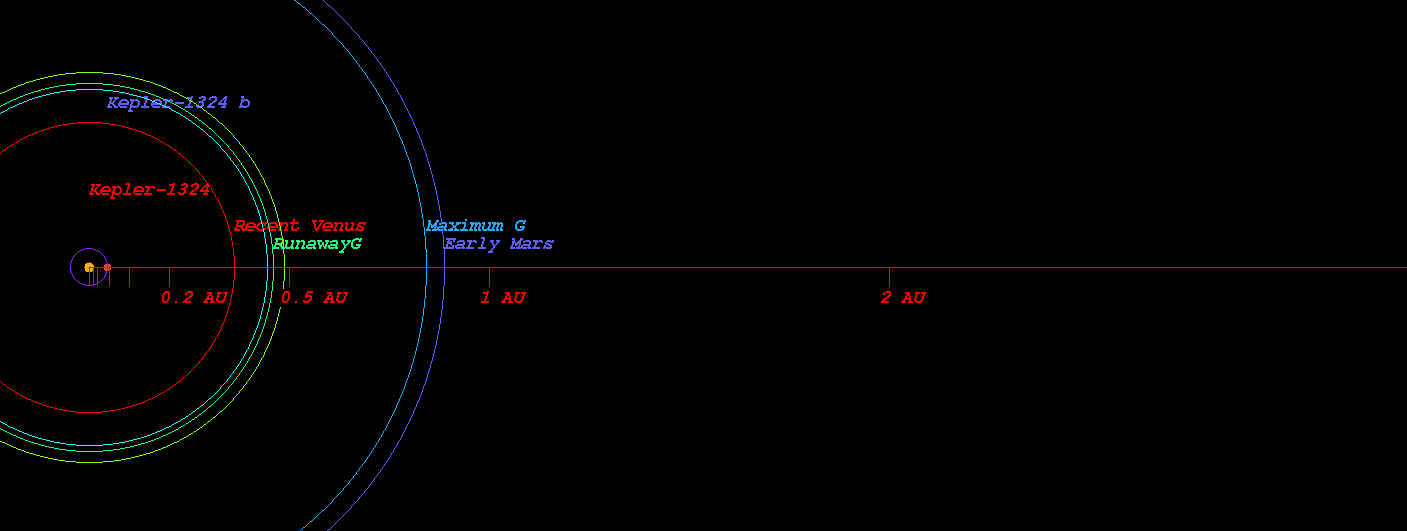

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1324)



  • Original Kopparapu Recent Venus for Star Kepler-1324 distance : 0.360 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1324 distance : 0.476 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1324 distance : 0.477 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1324 distance : 0.857 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1324 distance : 0.891 AU

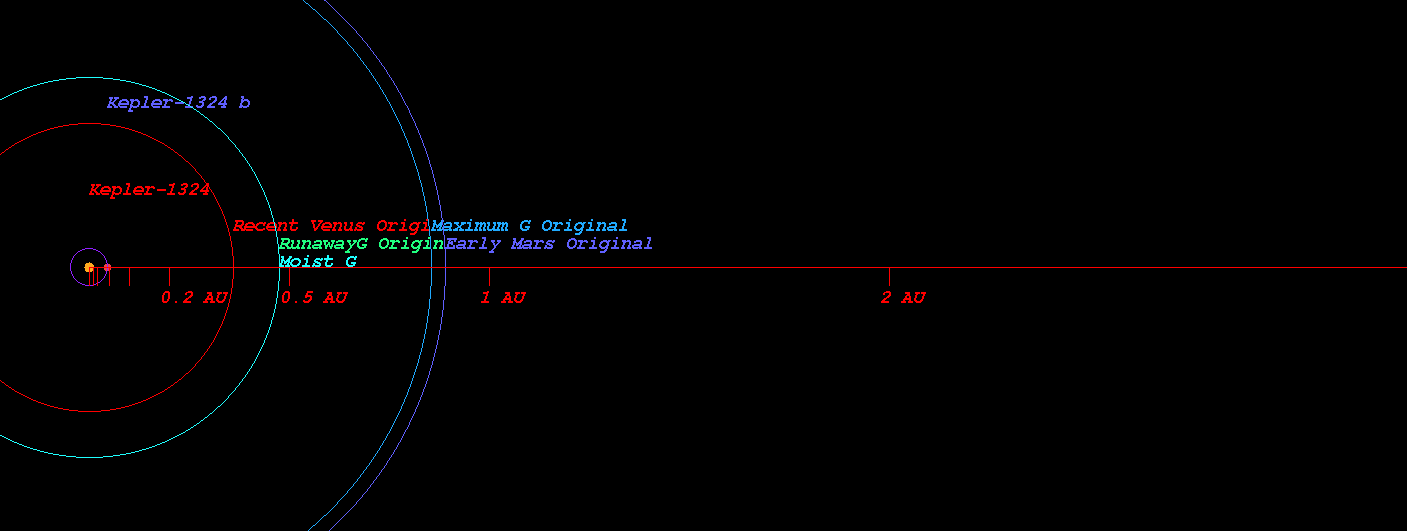

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1324)

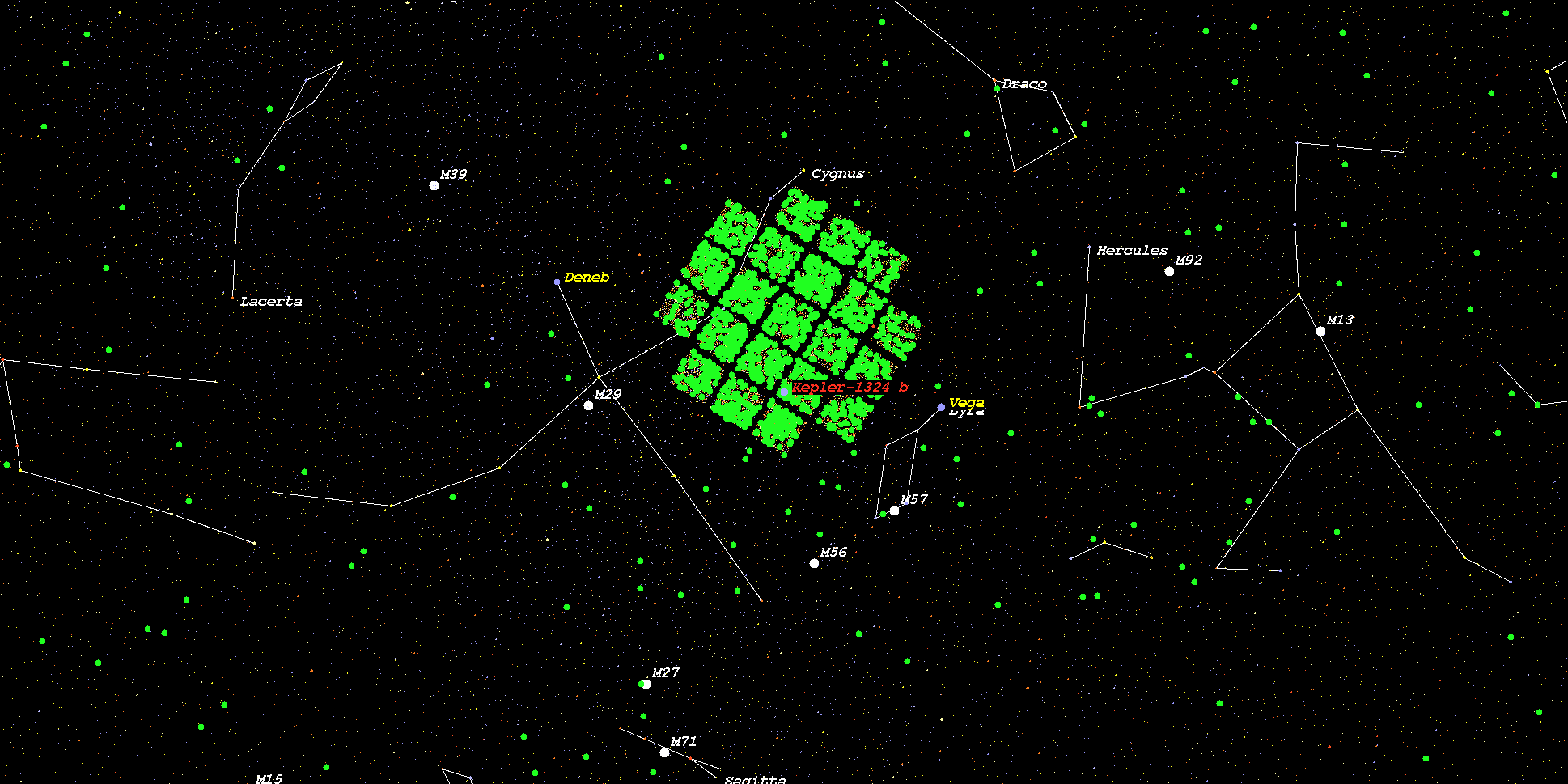

    (Position in Stellar Map of star Kepler-1324 and its Exoplanet Kepler-1324 b)



    (Zoomed position in Stellar Map of star Kepler-1324 and its Exoplanet Kepler-1324 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1324*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
