Imaginary Picture of Kepler-1332 b

Display orbital revolution of Kepler-1332 b around the hoststar Kepler-1332
/
Exoplanet Name : Kepler-1332 b
Alternate Name : "2MASS J19240686+4354492 b, K02743.01, KIC 8095441 b, KOI-2743 b, KOI-2743.01, WISE J192406.86+435449.2 b"
Status : Confirmed
Radius (Rjup / Re): 0.1220 (Rjup) 1.3675 (Rearth)
Mass (Mjup / Me): 0.0095 (Mjup) 3.0334 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1001 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0325
Orbital Period(Observed/Estimated) 11.87 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.6221
Star Radiation at Atmospheric Boundary: 102620.2 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 798.8 (K)
Blackbody T 0.3(K) 750.2 (K)
Blackbody T 0.7(K) 607.0 (K)
Tidally Locked Blackbody T 0.1(K) 950.0 (K)
Tidally Locked Blackbody T 0.3(K) 892.1 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1332
Alternate Name : "2MASS J19240686+4354492, KIC 8095441, KOI-2743, WISE J192406.86+435449.2"
Star Distance(LY) : 1723.6
Stellar Radius(Rsun) : 0.9 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 3.2 (GY)
Temperature : 5581 (K)
Spectral type : G6
UV portion[%]: 7.2
Visible portion[%]: 43.8
IR portion[%]: 49.0
Metalicity : 0.0
Absolute Magnitude: 4.0
Apparent Magnitude: 12.6
Right Ascension(RA) 291.0286
Declination (DEC) 43.9137
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1332+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1332%20b/
Kepler-1332 b

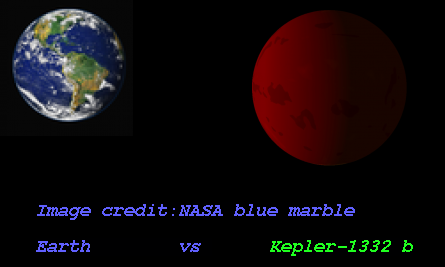

Kepler-1332 b

  • Kepler-1332 b is an exoplanet orbiting the star Kepler-1332, located about 1723.6 light-years (528.4 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1332 has apparent magnitude of 12.6, with absolute magnitude of 4.0.

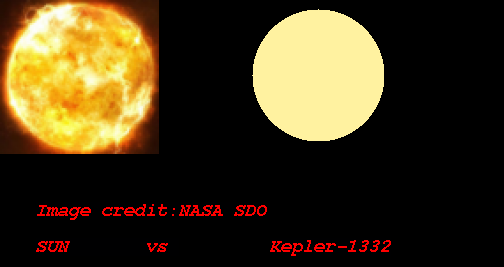

  • It is 0.9 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5581 with its spectral types of G6
  • In this planetary system, the extrasolar planet Kepler-1332 b orbits around the star Kepler-1332 every 11.9 days with its orbital distance of 0.10 AU ( 14980225.5 km)

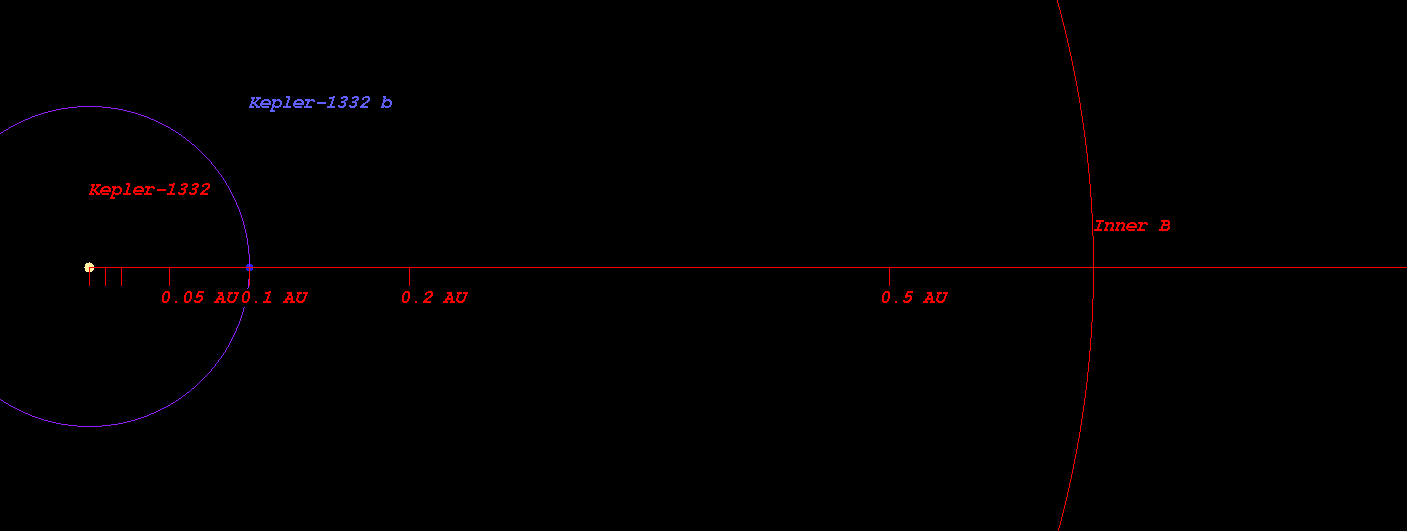

  • (Projected orbit of Kepler-1332 b around its host star Kepler-1332)


  • The Star Kepler-1332 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.628 AU ( 93878276.1 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.867 AU ( 129764310.9 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.322 AU ( 197732093.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.945 AU ( 290971437.0 km)
  • Radiation at Planetary Boundary of Kepler-1332 b : 102620.21 W/m2

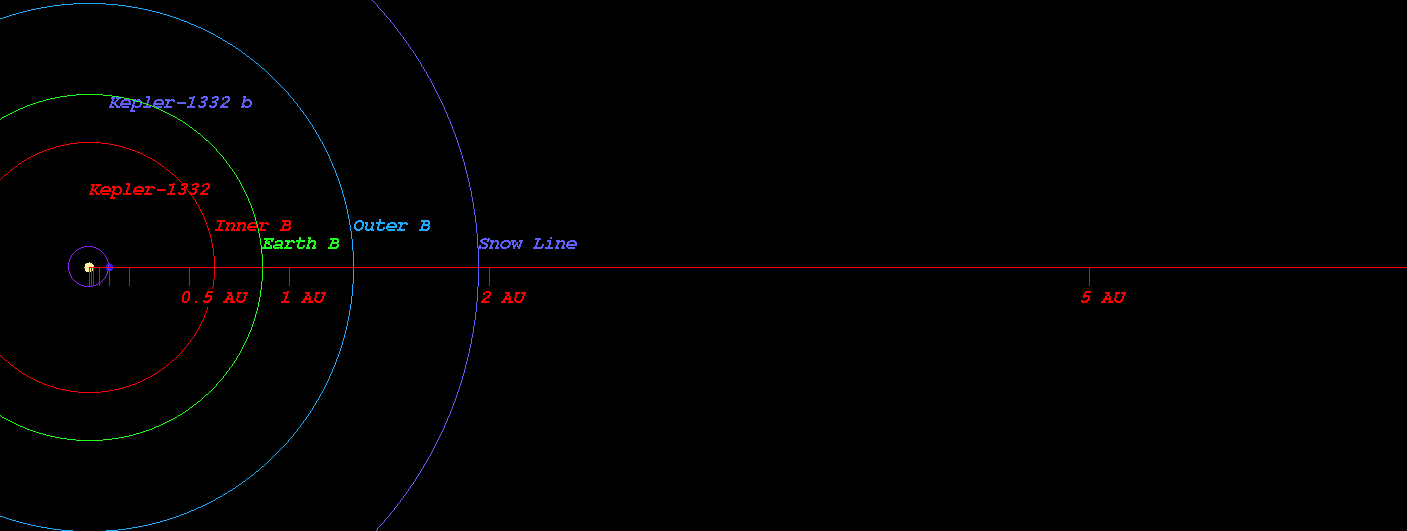

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1332)



  • Kopparapu Recent Venus for Star Kepler-1332 distance : 0.658 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1332 distance : 0.833 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1332 distance : 0.805 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1332 distance : 0.883 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1332 distance : 1.480 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1332 distance : 1.561 AU

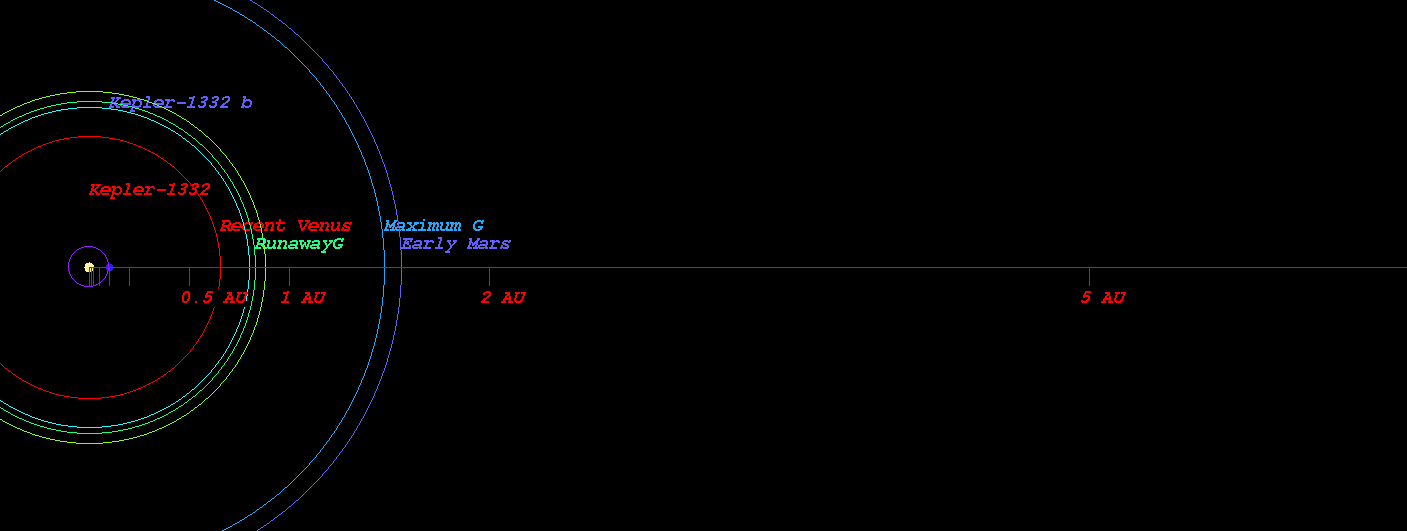

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1332)



  • Original Kopparapu Recent Venus for Star Kepler-1332 distance : 0.656 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1332 distance : 0.857 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1332 distance : 0.869 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1332 distance : 1.505 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1332 distance : 1.566 AU

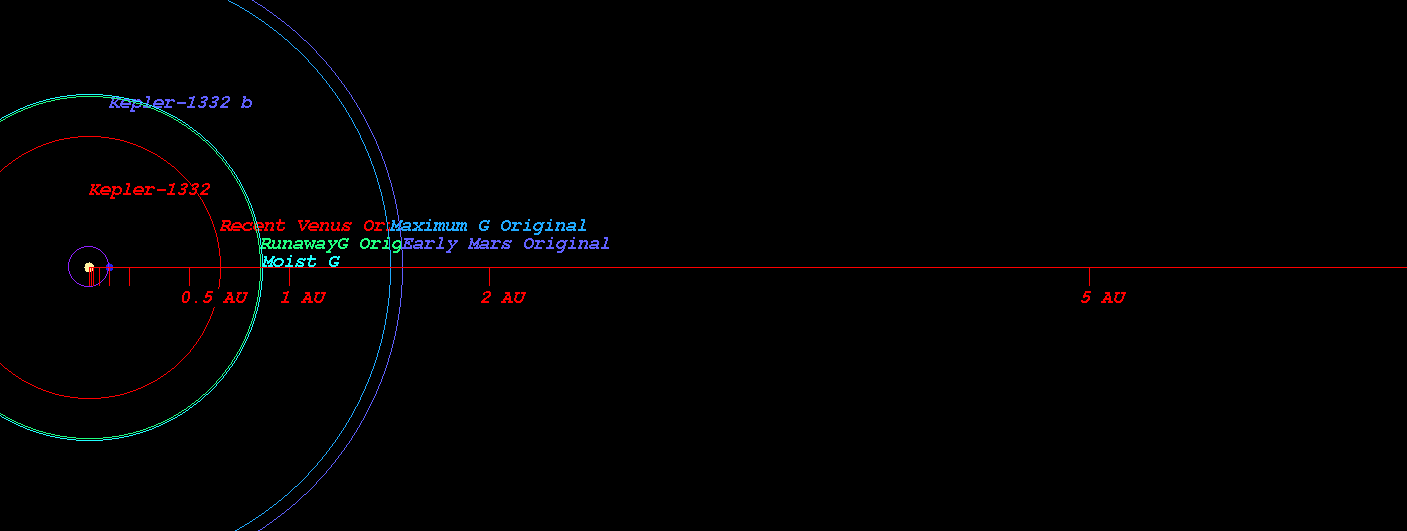

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1332)

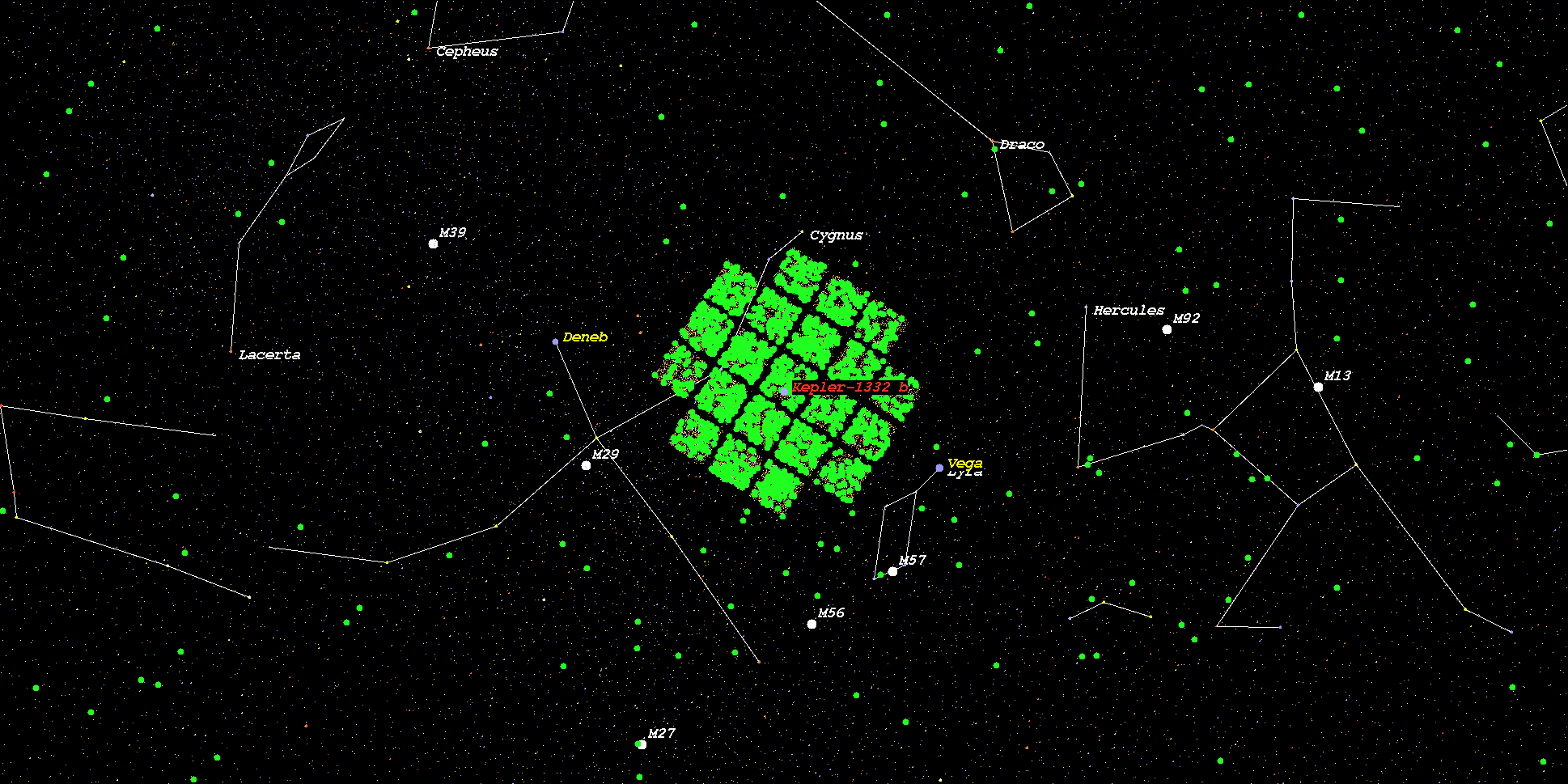

    (Position in Stellar Map of star Kepler-1332 and its Exoplanet Kepler-1332 b)



    (Zoomed position in Stellar Map of star Kepler-1332 and its Exoplanet Kepler-1332 b (zoom level 3))

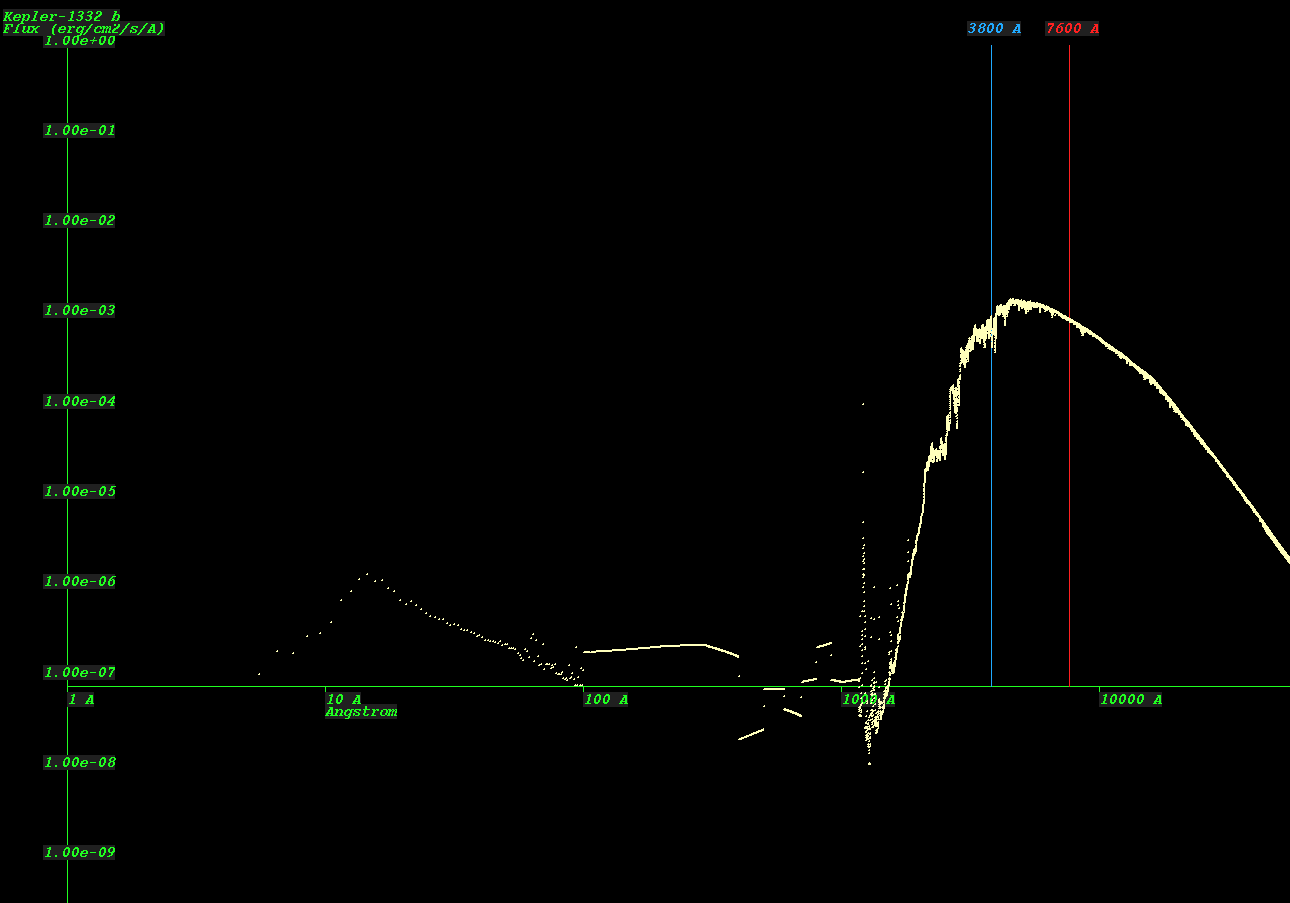

    (Synthetic Spectrum of star Kepler-1332*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
