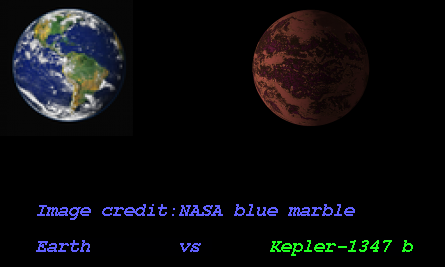

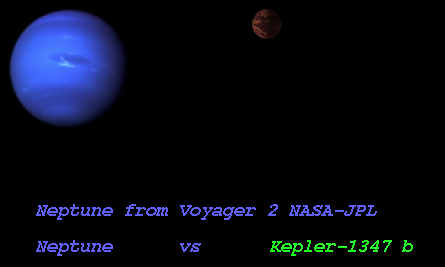

Imaginary Picture of Kepler-1347 b

Display orbital revolution of Kepler-1347 b around the hoststar Kepler-1347
/
Exoplanet Name : Kepler-1347 b
Alternate Name : "2MASS J19583830+4050378 b, K02790.01, KIC 5652893 b, KOI-2790 b, KOI-2790.01, WISE J195838.30+405037.8 b"
Status : Confirmed
Radius (Rjup / Re): 0.0920 (Rjup) 1.0312 (Rearth)
Mass (Mjup / Me): 0.0034 (Mjup) 1.0925 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1065 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0384
Orbital Period(Observed/Estimated) 14.01 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.0273
Star Radiation at Atmospheric Boundary: 44886.7 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 649.6 (K)
Blackbody T 0.3(K) 610.1 (K)
Blackbody T 0.7(K) 493.6 (K)
Tidally Locked Blackbody T 0.1(K) 772.6 (K)
Tidally Locked Blackbody T 0.3(K) 725.5 (K)
Size Class: Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1347
Alternate Name : "2MASS J19583830+4050378, KIC 5652893, KOI-2790, WISE J195838.30+405037.8"
Star Distance(LY) : 938.4
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.8 (Msun Estimated)
Star Age : 5.6 (GY)
Temperature : 5153 (K)
Spectral type : K0
UV portion[%]: 4.4
Visible portion[%]: 39.4
IR portion[%]: 56.1
Metalicity : -0.1
Absolute Magnitude: 4.7
Apparent Magnitude: 12.0
Right Ascension(RA) 299.6596
Declination (DEC) 40.8439
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1347+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1347%20b/
Kepler-1347 b
Kepler-1347 b

  • Kepler-1347 b is an exoplanet orbiting the star Kepler-1347, located about 938.4 light-years (287.7 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1347 has apparent magnitude of 12.0, with absolute magnitude of 4.7.

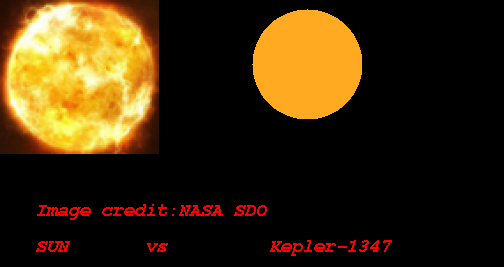

  • It is 0.8 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5153 with its spectral types of K0
  • In this planetary system, the extrasolar planet Kepler-1347 b orbits around the star Kepler-1347 every 14.0 days with its orbital distance of 0.11 AU ( 15925184.0 km)

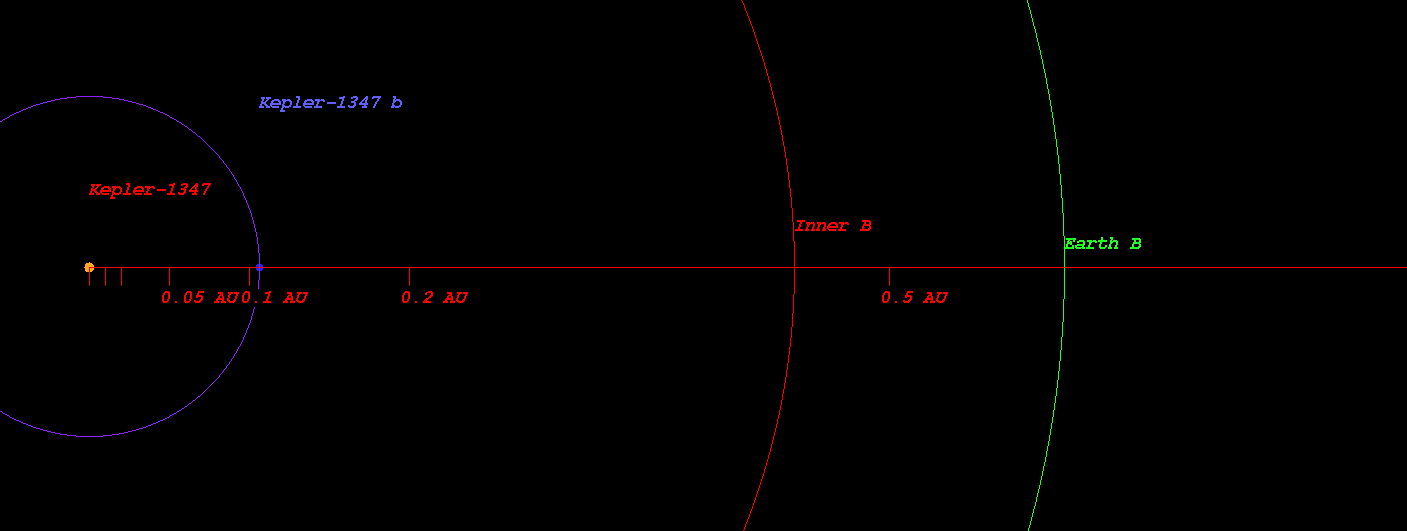

  • (Projected orbit of Kepler-1347 b around its host star Kepler-1347)


  • The Star Kepler-1347 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.441 AU ( 66004532.8 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.610 AU ( 91235513.4 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.929 AU ( 139022732.0 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.368 AU ( 204578040.3 km)
  • Radiation at Planetary Boundary of Kepler-1347 b : 44886.73 W/m2

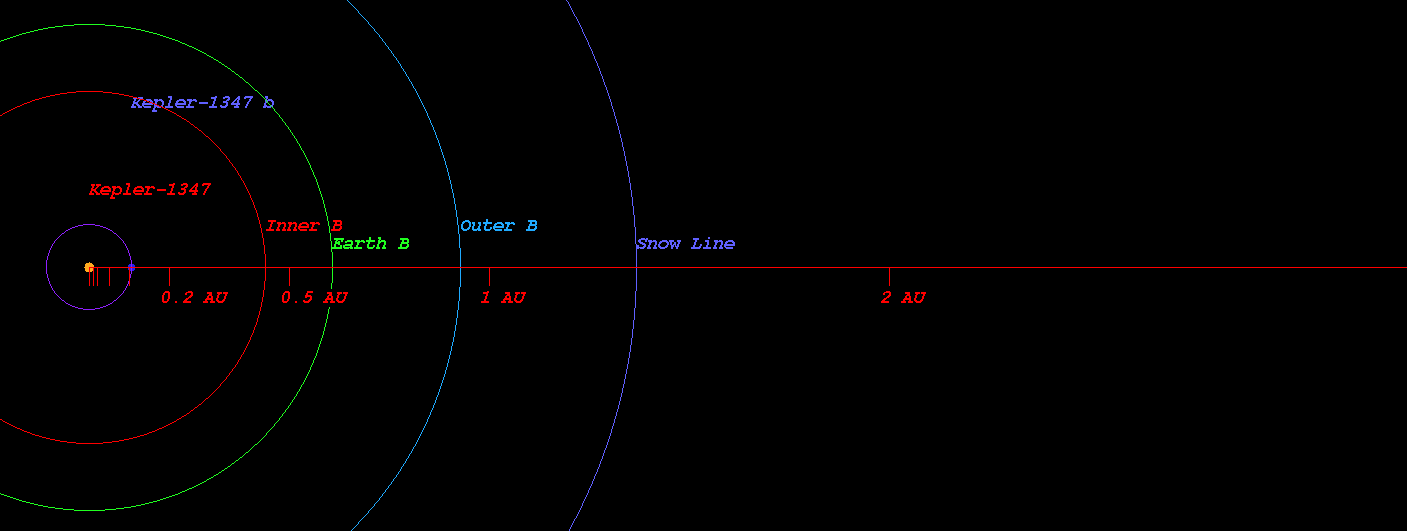

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1347)



  • Kopparapu Recent Venus for Star Kepler-1347 distance : 0.474 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1347 distance : 0.600 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1347 distance : 0.579 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1347 distance : 0.636 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1347 distance : 1.081 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1347 distance : 1.140 AU

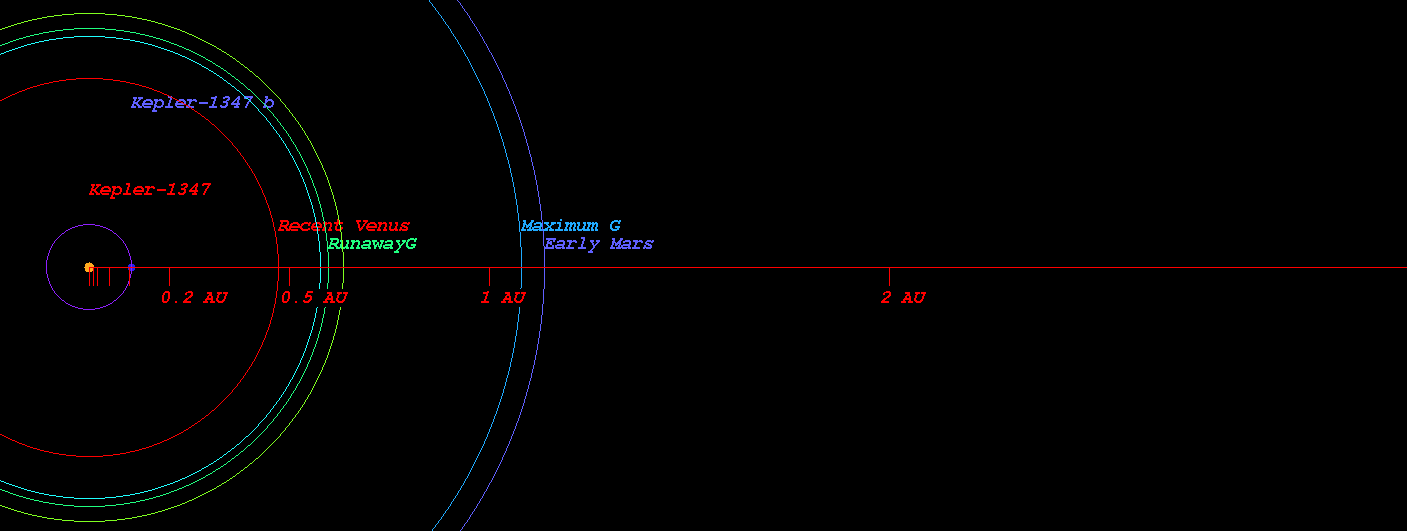

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1347)



  • Original Kopparapu Recent Venus for Star Kepler-1347 distance : 0.469 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1347 distance : 0.618 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1347 distance : 0.621 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1347 distance : 1.099 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1347 distance : 1.143 AU

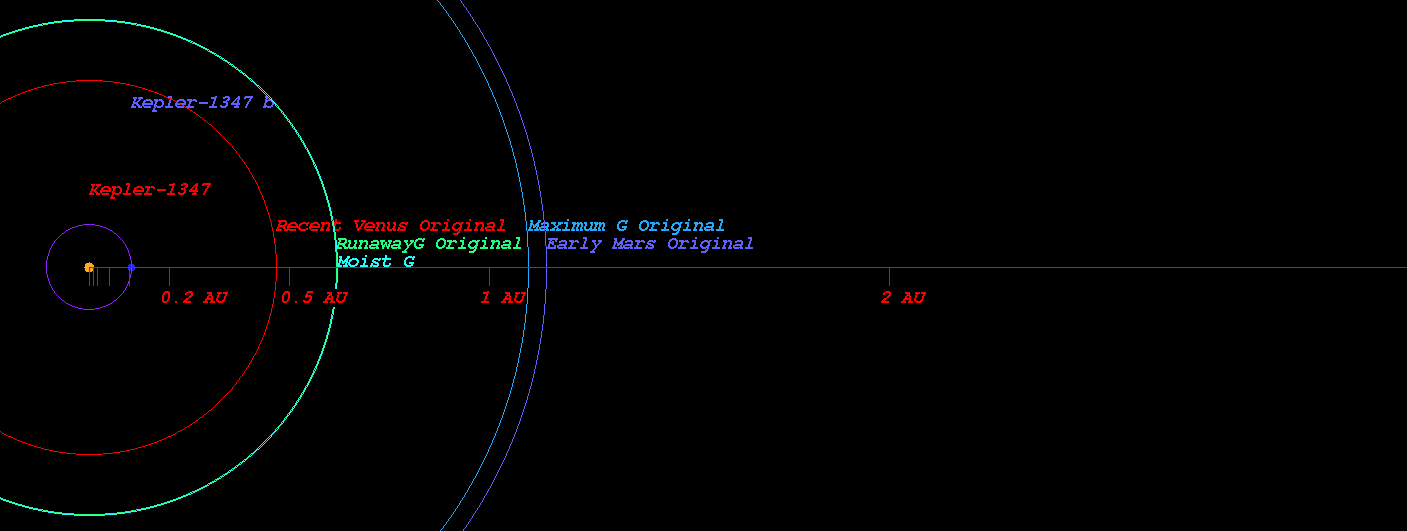

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1347)

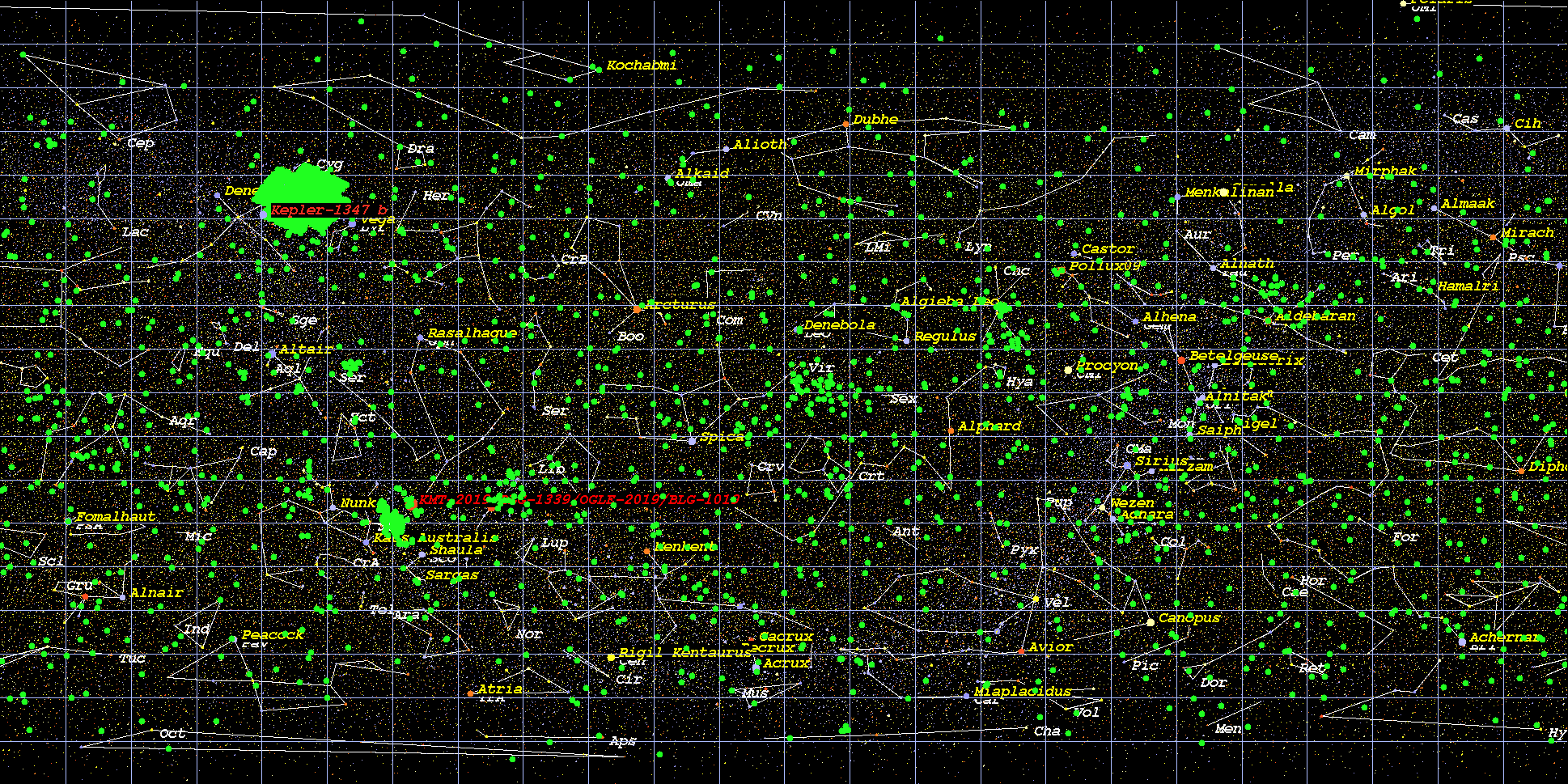

    (Position in Stellar Map of star Kepler-1347 and its Exoplanet Kepler-1347 b)

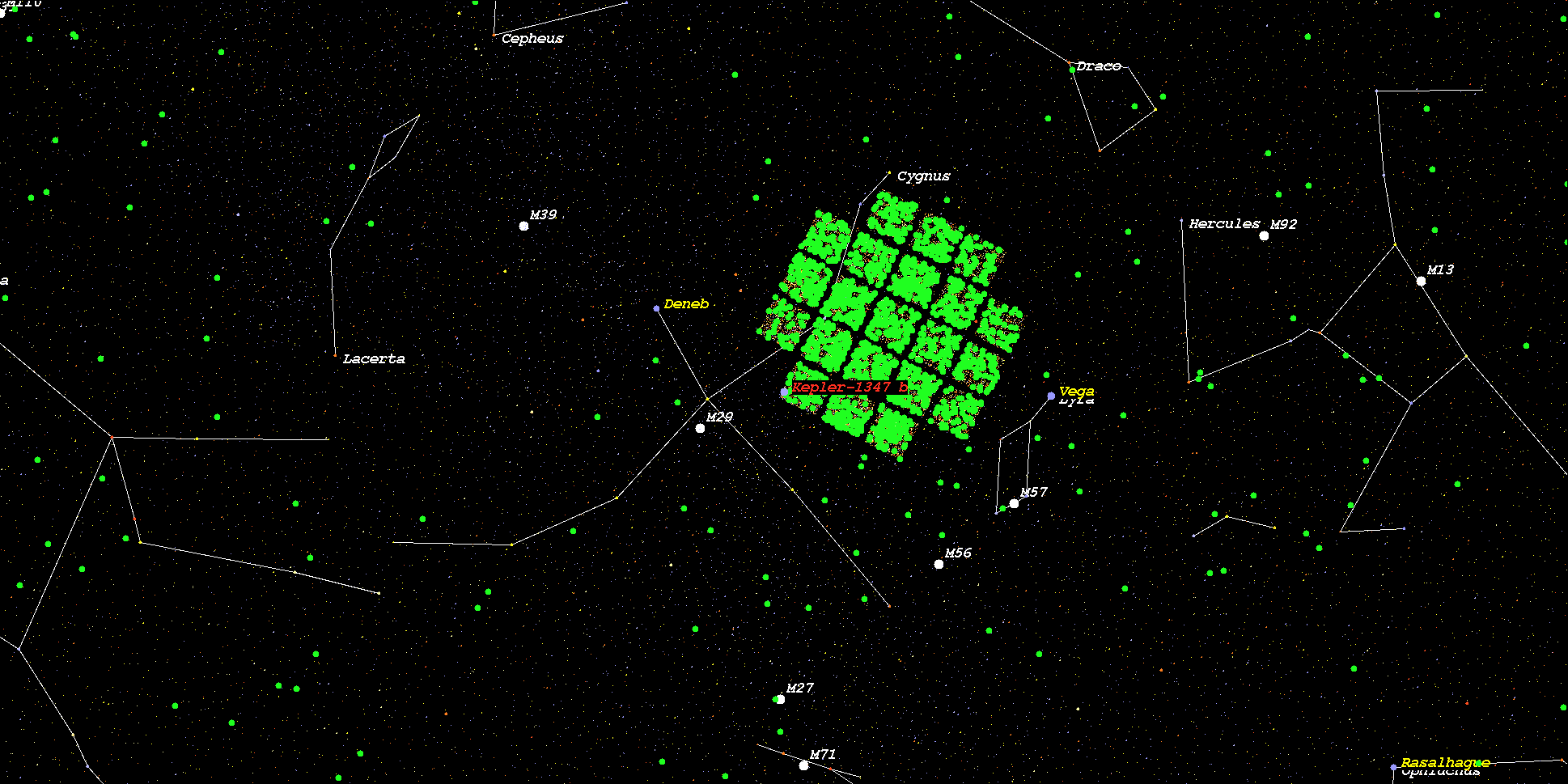

    (Zoomed position in Stellar Map of star Kepler-1347 and its Exoplanet Kepler-1347 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1347*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
