Imaginary Picture of Kepler-1418 b

Display orbital revolution of Kepler-1418 b around the hoststar Kepler-1418
/
Exoplanet Name : Kepler-1418 b
Alternate Name : "2MASS J18515939+4140427 b, K03049.01, KIC 6263593 b, KOI-3049 b, KOI-3049.01, WISE J185159.40+414042.7 b"
Status : Confirmed
Radius (Rjup / Re): 0.1480 (Rjup) 1.6589 (Rearth)
Mass (Mjup / Me): 0.0133 (Mjup) 4.2243 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1429 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0615
Orbital Period(Observed/Estimated) 22.48 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.5350
Star Radiation at Atmospheric Boundary: 8373.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 426.9 (K)
Blackbody T 0.3(K) 400.9 (K)
Blackbody T 0.7(K) 324.4 (K)
Tidally Locked Blackbody T 0.1(K) 507.7 (K)
Tidally Locked Blackbody T 0.3(K) 476.8 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1418
Alternate Name : "2MASS J18515939+4140427, KIC 6263593, KOI-3049, WISE J185159.40+414042.7"
Star Distance(LY) : 1092.0
Stellar Radius(Rsun) : 0.6 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.8 (Msun Estimated)
Star Age : 3.6 (GY)
Temperature : 4563 (K)
Spectral type : K3
UV portion[%]: 1.8
Visible portion[%]: 32.1
IR portion[%]: 66.1
Metalicity : 0.0
Absolute Magnitude: 5.8
Apparent Magnitude: 13.4
Right Ascension(RA) 282.9975
Declination (DEC) 41.6786
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1418+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1418%20b/
Kepler-1418 b
Kepler-1418 b

  • Kepler-1418 b is an exoplanet orbiting the star Kepler-1418, located about 1092.0 light-years (334.8 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1418 has apparent magnitude of 13.4, with absolute magnitude of 5.8.
  • It is 0.8 times more massive and 0.6 times bigger compared with our Sun. The surface temperature is 4563 with its spectral types of K3
  • In this planetary system, the extrasolar planet Kepler-1418 b orbits around the star Kepler-1418 every 22.5 days with its orbital distance of 0.14 AU ( 21372101.1 km)

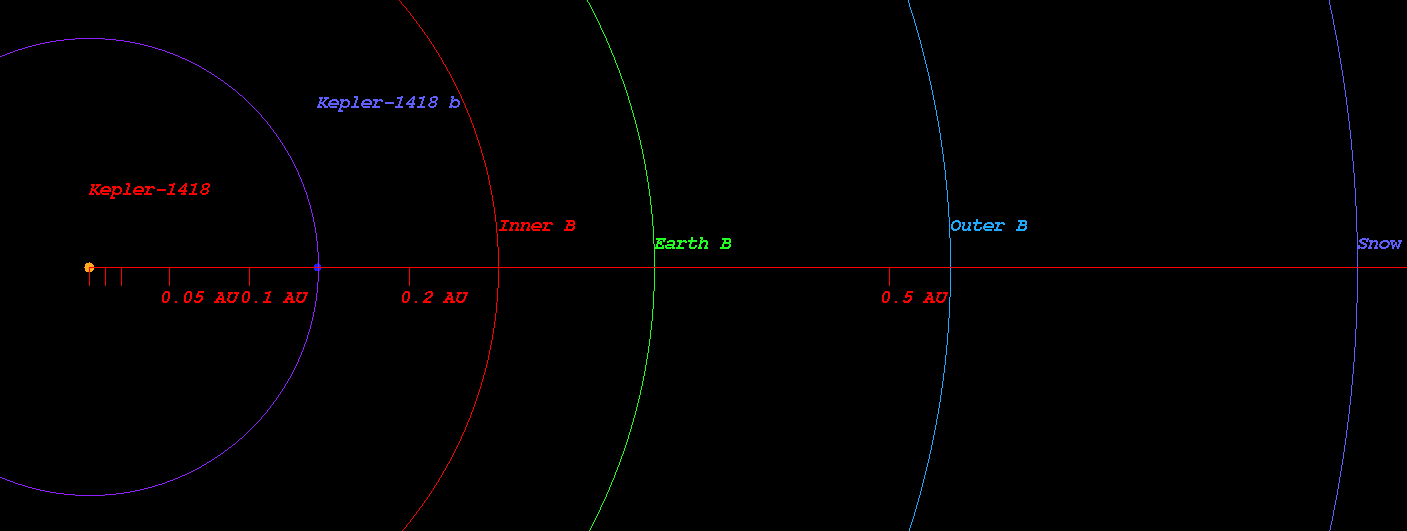

  • (Projected orbit of Kepler-1418 b around its host star Kepler-1418)


  • The Star Kepler-1418 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.256 AU ( 38259748.3 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.354 AU ( 52884970.7 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.539 AU ( 80584991.9 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.793 AU ( 118584345.7 km)
  • Radiation at Planetary Boundary of Kepler-1418 b : 8373.93 W/m2

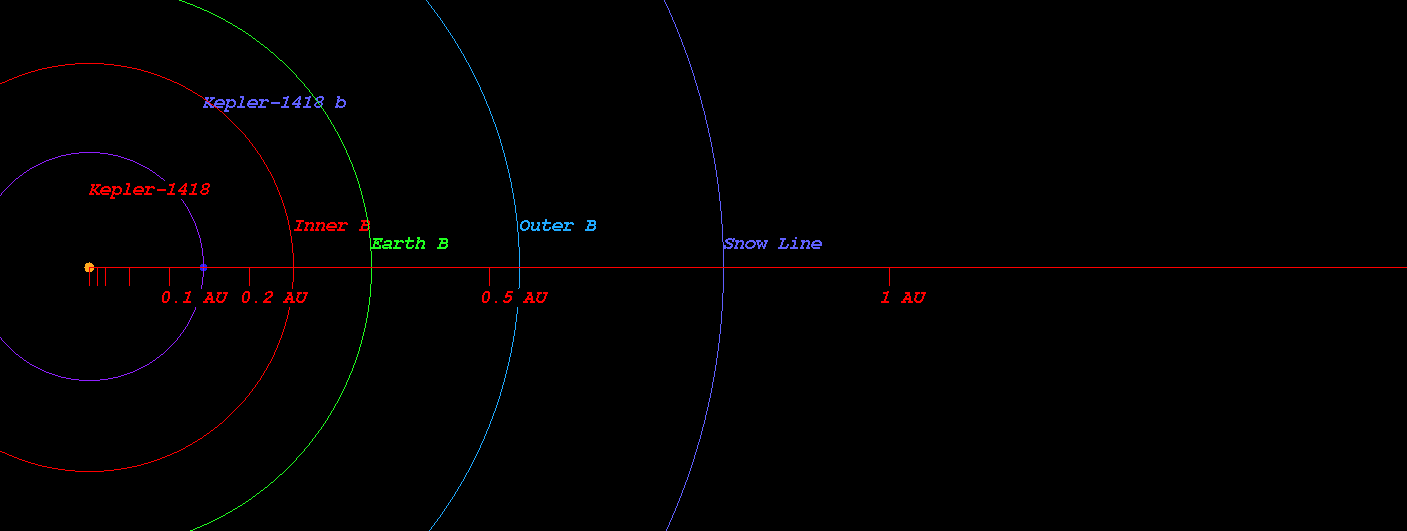

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1418)



  • Kopparapu Recent Venus for Star Kepler-1418 distance : 0.282 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1418 distance : 0.357 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1418 distance : 0.345 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1418 distance : 0.378 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1418 distance : 0.659 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1418 distance : 0.695 AU

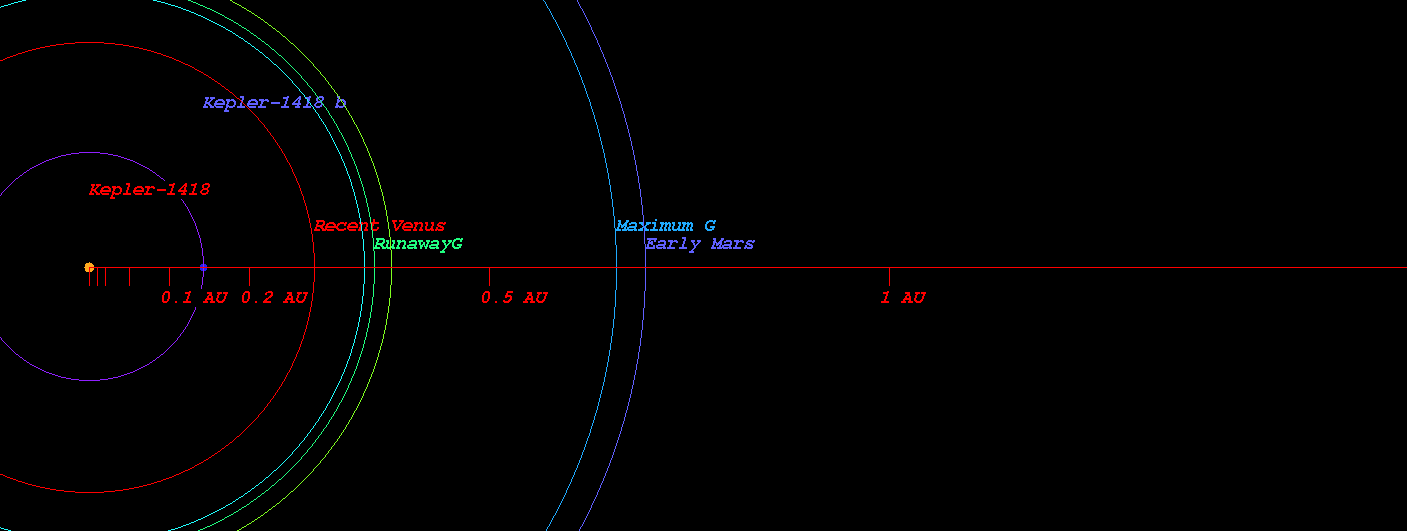

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1418)



  • Original Kopparapu Recent Venus for Star Kepler-1418 distance : 0.278 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1418 distance : 0.368 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1418 distance : 0.368 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1418 distance : 0.670 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1418 distance : 0.697 AU

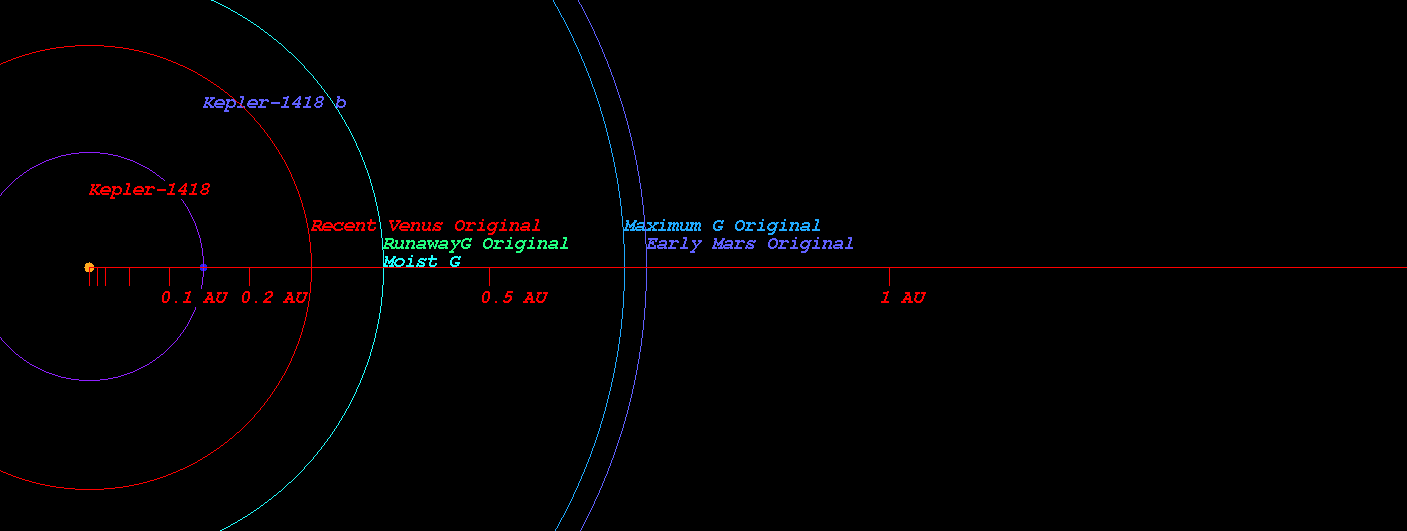

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1418)



    (Position in Stellar Map of star Kepler-1418 and its Exoplanet Kepler-1418 b)

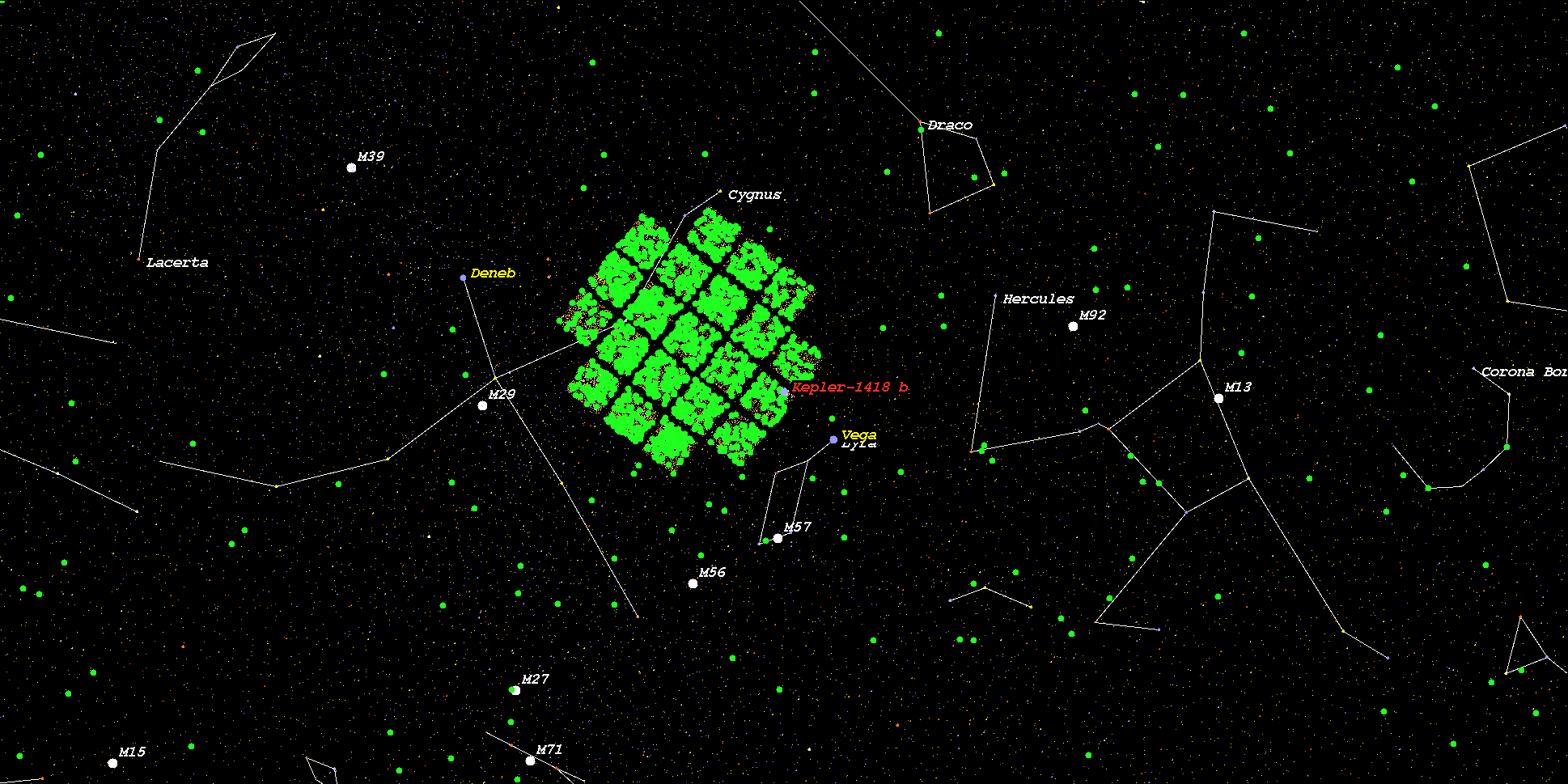

    (Zoomed position in Stellar Map of star Kepler-1418 and its Exoplanet Kepler-1418 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1418*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
