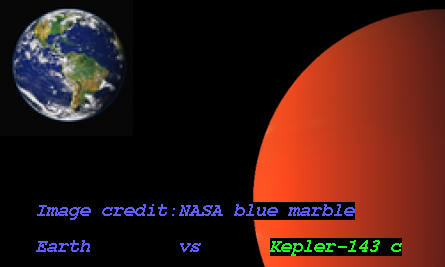

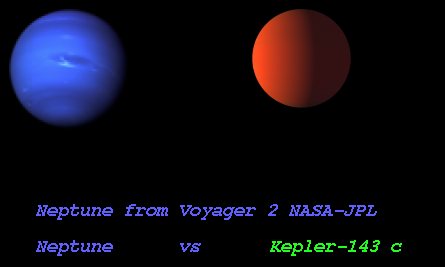

Imaginary Picture of Kepler-143 c

Display orbital revolution of Kepler-143 c around the hoststar Kepler-143
/
Exoplanet Name : Kepler-143 c
Alternate Name : "2MASS J19521624+4924453 c, K00352.01, KIC 11521793 c, KOI-352 c, KOI-352.01, WISE J195216.24+492445.0 c"
Status : Confirmed
Radius (Rjup / Re): 0.3010 (Rjup) 3.3739 (Rearth)
Mass (Mjup / Me): 0.0257 (Mjup) 8.1748 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.1810 (AU) 0.1810 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0741
Orbital Period(Observed/Estimated) 27.08 (Days Obs.) 30.33 (Days Est.)
Surface Gravity (G Earth) 0.7181
Star Radiation at Atmospheric Boundary: 75940.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 740.9 (K)
Blackbody T 0.3(K) 695.8 (K)
Blackbody T 0.7(K) 563.0 (K)
Tidally Locked Blackbody T 0.1(K) 881.1 (K)
Tidally Locked Blackbody T 0.3(K) 827.4 (K)
Size Class: Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-143
Alternate Name : "2MASS J19521624+4924453, KIC 11521793, KOI-352, WISE J195216.24+492445.0"
Star Distance(LY) : 2638.9
Stellar Radius(Rsun) : 1.3 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5802 (K)
Spectral type : G2
UV portion[%]: 0.3
Visible portion[%]: 1.5
IR portion[%]: 98.2
Metalicity : -0.2
Absolute Magnitude: 3.1
Apparent Magnitude: 12.6
Right Ascension(RA) 298.0677
Declination (DEC) 49.4126
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-143+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-143%20c/
Kepler-143 c
Kepler-143 c

  • Kepler-143 c is an exoplanet orbiting the star Kepler-143, located about 2638.9 light-years (809.1 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-143 has apparent magnitude of 12.6, with absolute magnitude of 3.1.

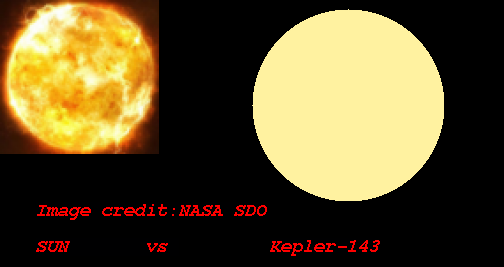

  • It is 0.9 times more massive and 1.3 times bigger compared with our Sun. The surface temperature is 5802 with its spectral types of G2
  • In this planetary system, the extrasolar planet Kepler-143 c orbits around the star Kepler-143 every 27.1 days with its orbital distance of 0.18 AU ( 27077214.6 km)

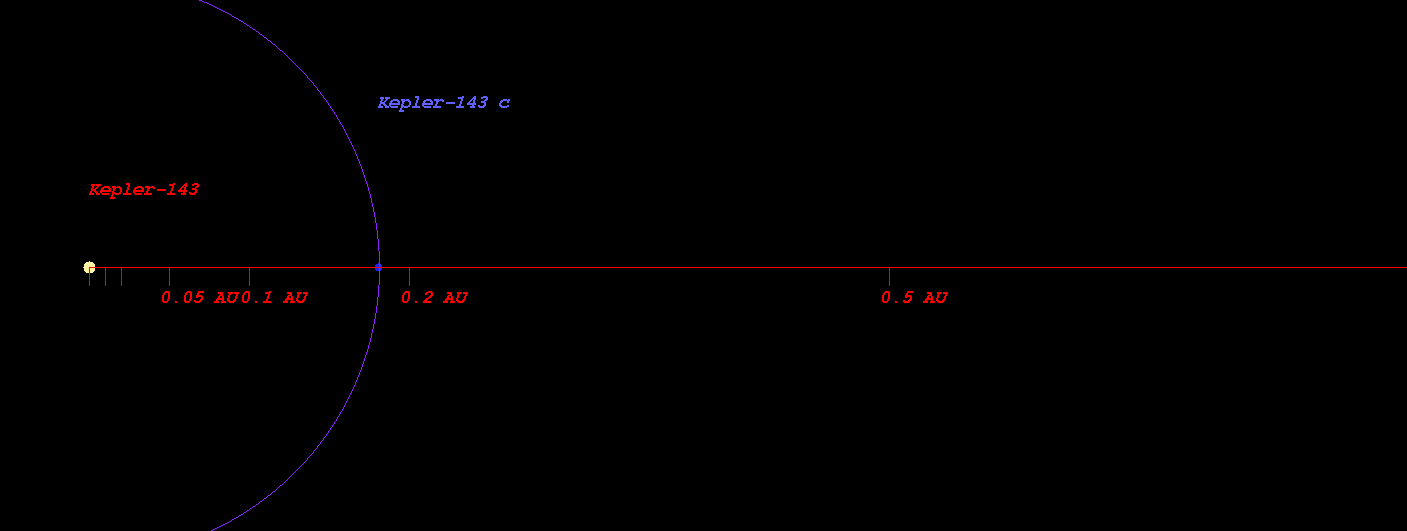

  • (Projected orbit of Kepler-143 c around its host star Kepler-143)


  • The Star Kepler-143 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.976 AU ( 145972039.1 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.349 AU ( 201771505.1 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.055 AU ( 307455121.9 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.024 AU ( 452433680.6 km)
  • Radiation at Planetary Boundary of Kepler-143 c : 75940.03 W/m2

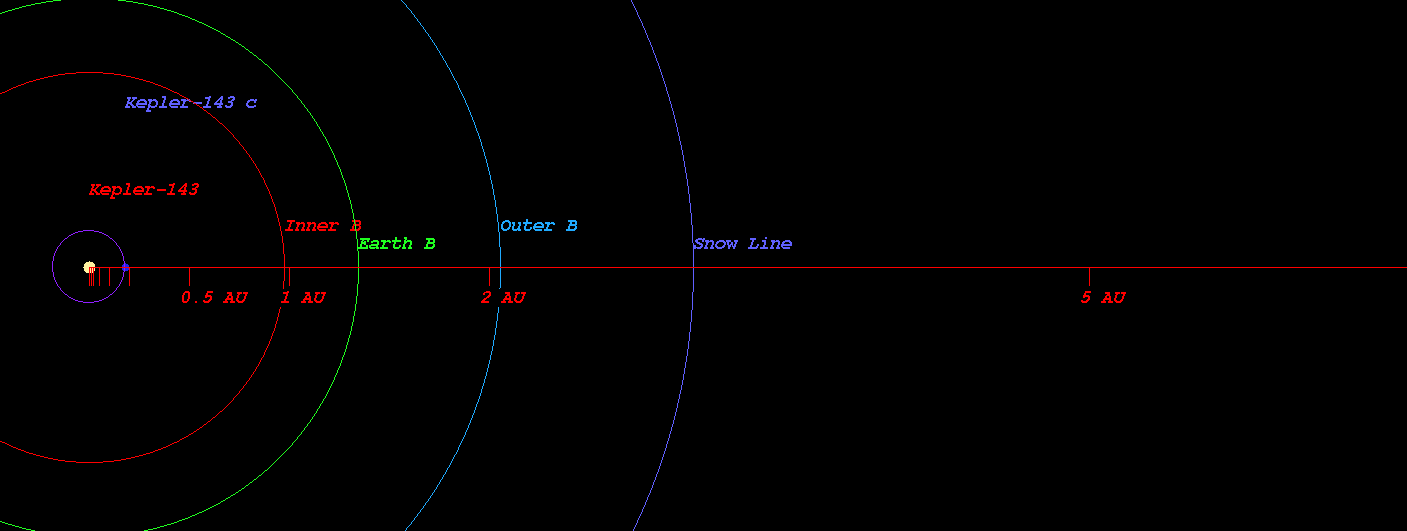

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-143)



  • Kopparapu Recent Venus for Star Kepler-143 distance : 1.010 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-143 distance : 1.279 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-143 distance : 1.235 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-143 distance : 1.354 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-143 distance : 2.257 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-143 distance : 2.380 AU

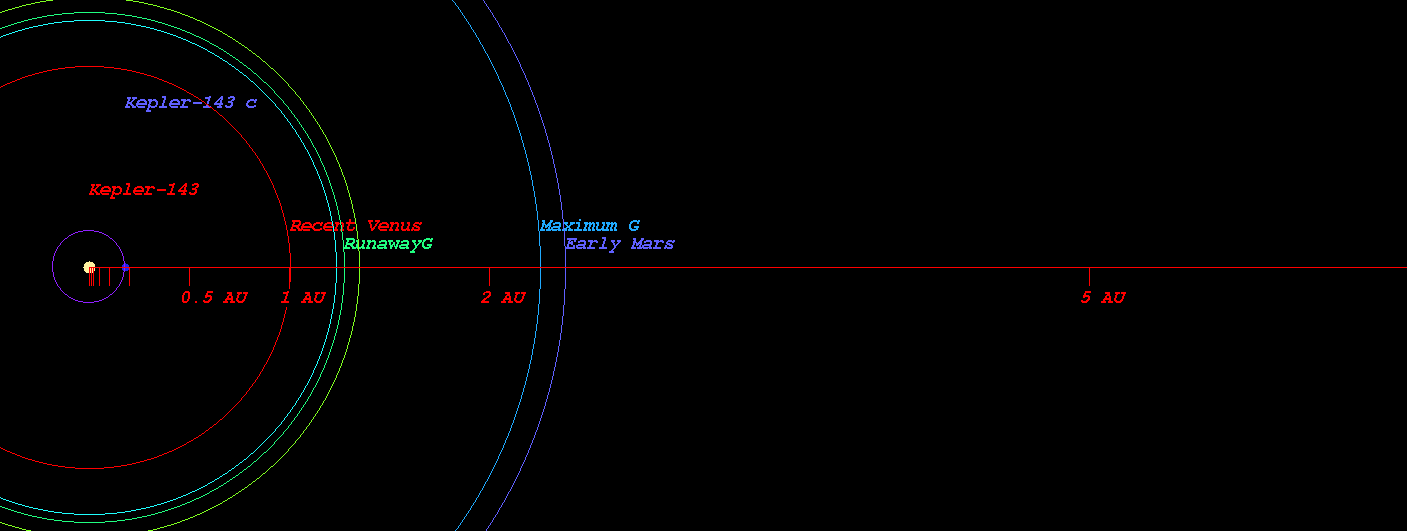

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-143)



  • Original Kopparapu Recent Venus for Star Kepler-143 distance : 1.012 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-143 distance : 1.314 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-143 distance : 1.339 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-143 distance : 2.297 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-143 distance : 2.388 AU

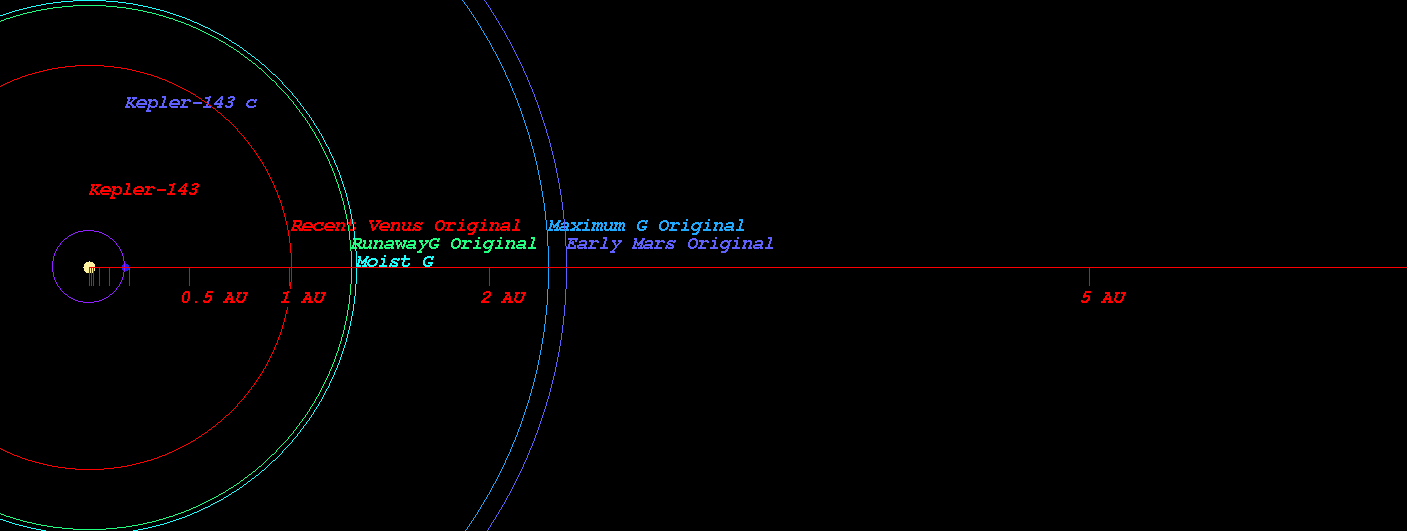

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-143)

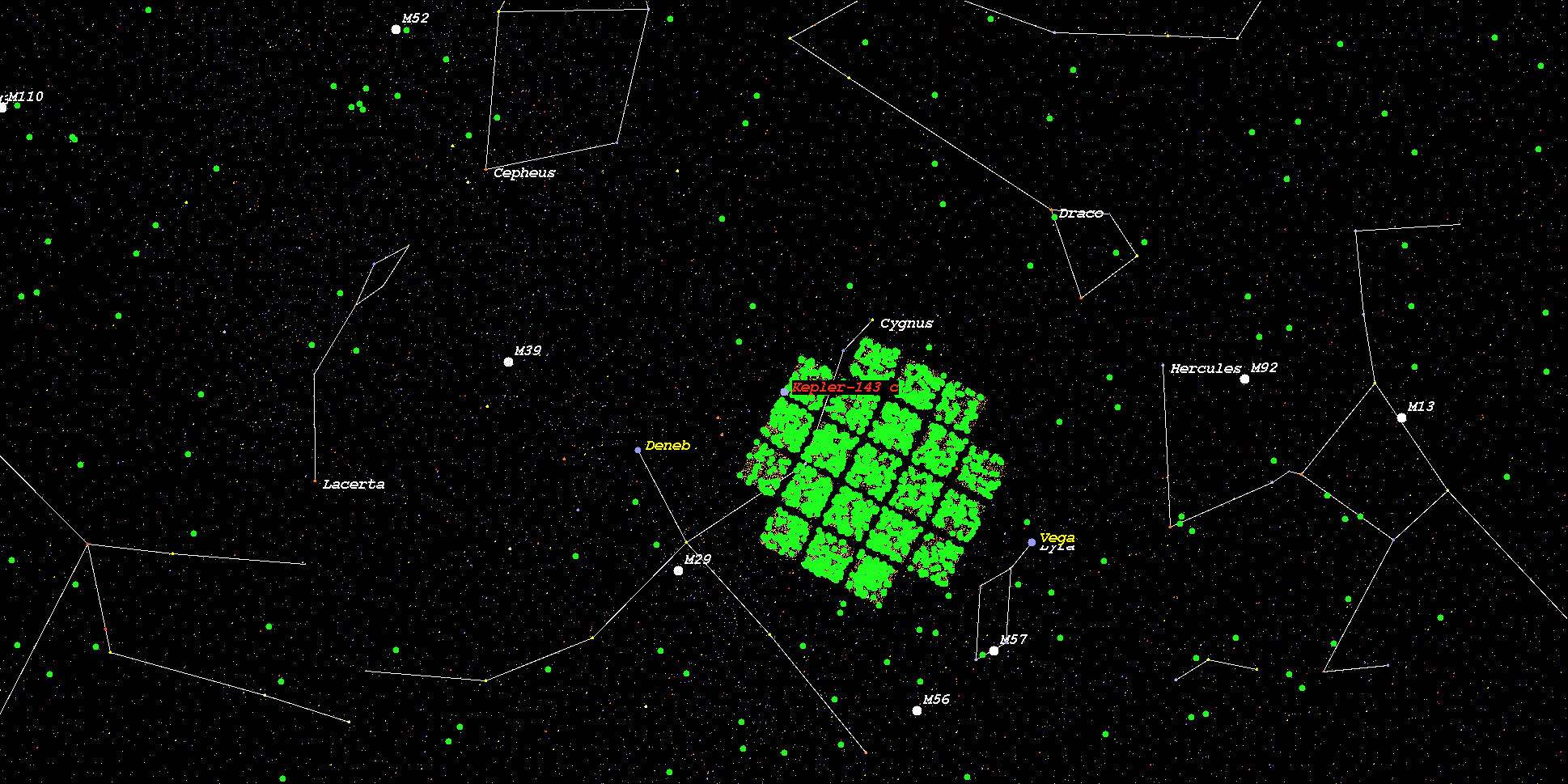

    (Position in Stellar Map of star Kepler-143 and its Exoplanet Kepler-143 c)



    (Zoomed position in Stellar Map of star Kepler-143 and its Exoplanet Kepler-143 c (zoom level 3))

    (Synthetic Spectrum of star Kepler-143*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
