Imaginary Picture of Kepler-149 b

Display orbital revolution of Kepler-149 b around the hoststar Kepler-149
/
Exoplanet Name : Kepler-149 b
Alternate Name : "2MASS J19032487+3823028 b, K00401.01, KIC 3217264 b, KOI-401 b, KOI-401.01, WISE J190324.86+382302.7 b"
Status : Confirmed
Radius (Rjup / Re): 0.3760 (Rjup) 4.2146 (Rearth)
Mass (Mjup / Me): 0.0521 (Mjup) 16.5667 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.1840 (AU) 0.1840 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0799
Orbital Period(Observed/Estimated) 29.20 (Days Obs.) 28.27 (Days Est.)
Surface Gravity (G Earth) 0.9327
Star Radiation at Atmospheric Boundary: 31371.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 594.0 (K)
Blackbody T 0.3(K) 557.8 (K)
Blackbody T 0.7(K) 451.3 (K)
Tidally Locked Blackbody T 0.1(K) 706.4 (K)
Tidally Locked Blackbody T 0.3(K) 663.4 (K)
Size Class: Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-149
Alternate Name : "2MASS J19032487+3823028, KIC 3217264, KOI-401, WISE J190324.86+382302.7"
Star Distance(LY) : 1861.8
Stellar Radius(Rsun) : 1.0 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5455 (K)
Spectral type : G7
UV portion[%]: 6.7
Visible portion[%]: 42.9
IR portion[%]: 50.4
Metalicity : 0.1
Absolute Magnitude: 3.9
Apparent Magnitude: 12.7
Right Ascension(RA) 285.8537
Declination (DEC) 38.3841
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-149+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-149%20b/
Kepler-149 b
Kepler-149 b

  • Kepler-149 b is an exoplanet orbiting the star Kepler-149, located about 1861.8 light-years (570.8 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-149 has apparent magnitude of 12.7, with absolute magnitude of 3.9.

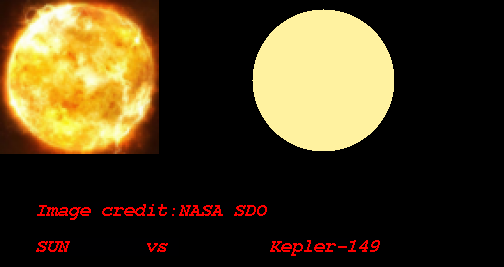

  • It is 1.0 times more massive and 1.0 times bigger compared with our Sun. The surface temperature is 5455 with its spectral types of G7
  • In this planetary system, the extrasolar planet Kepler-149 b orbits around the star Kepler-149 every 29.2 days with its orbital distance of 0.18 AU ( 27526008.2 km)

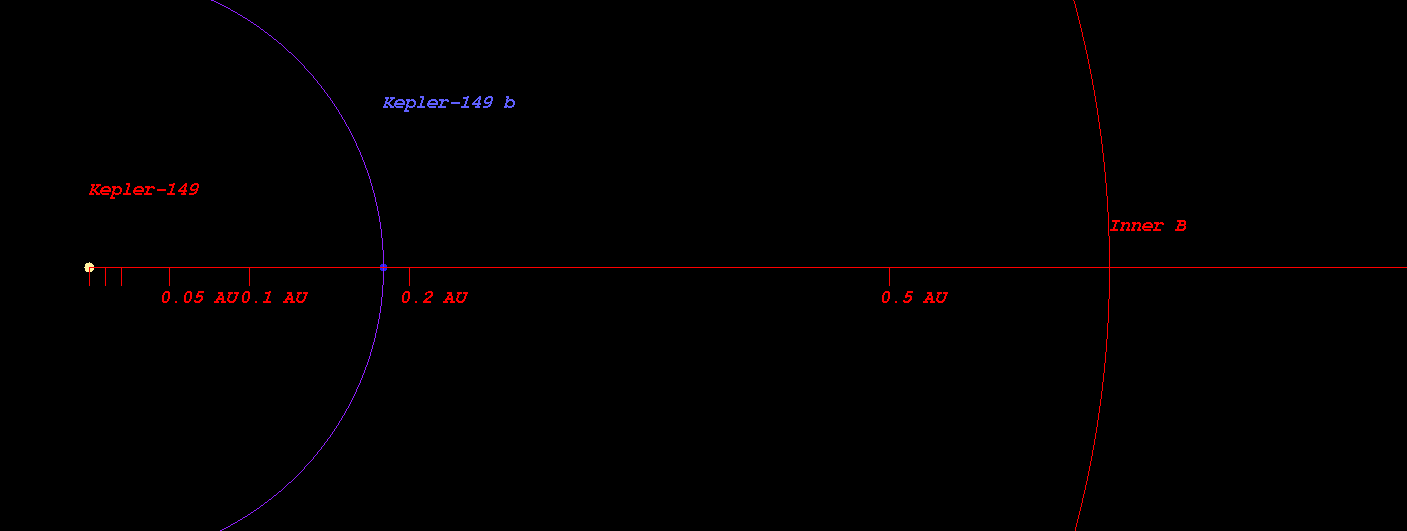

  • (Projected orbit of Kepler-149 b around its host star Kepler-149)


  • The Star Kepler-149 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.638 AU ( 95377056.2 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.881 AU ( 131836016.7 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.343 AU ( 200888914.2 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.976 AU ( 295616837.6 km)
  • Radiation at Planetary Boundary of Kepler-149 b : 31371.90 W/m2

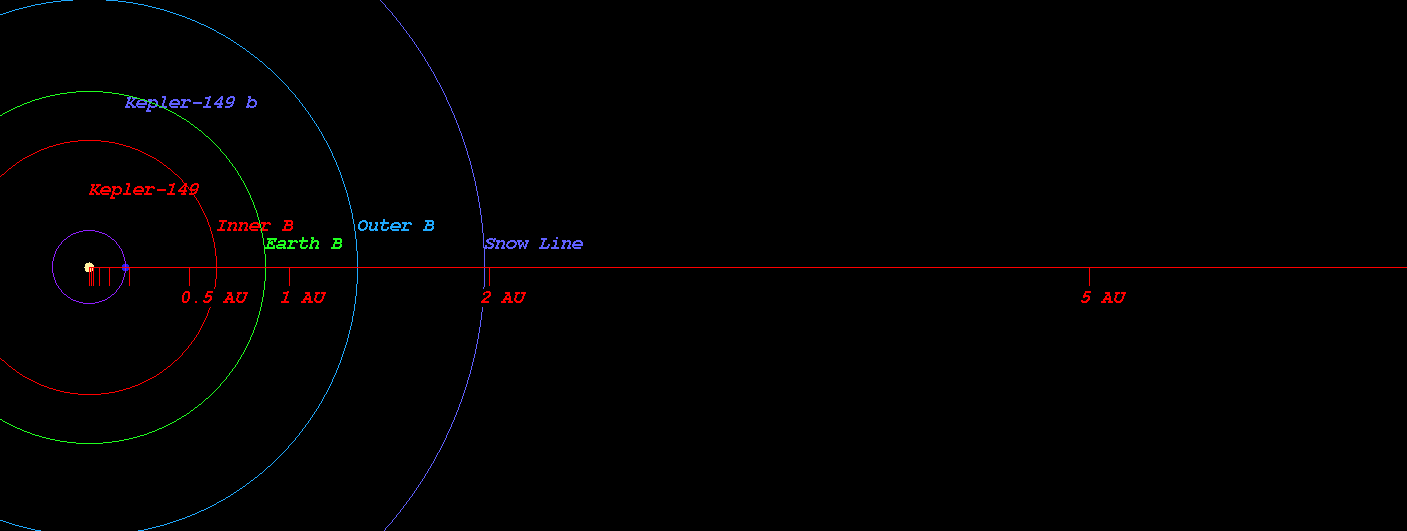

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-149)



  • Kopparapu Recent Venus for Star Kepler-149 distance : 0.673 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-149 distance : 0.853 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-149 distance : 0.824 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-149 distance : 0.903 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-149 distance : 1.520 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-149 distance : 1.604 AU

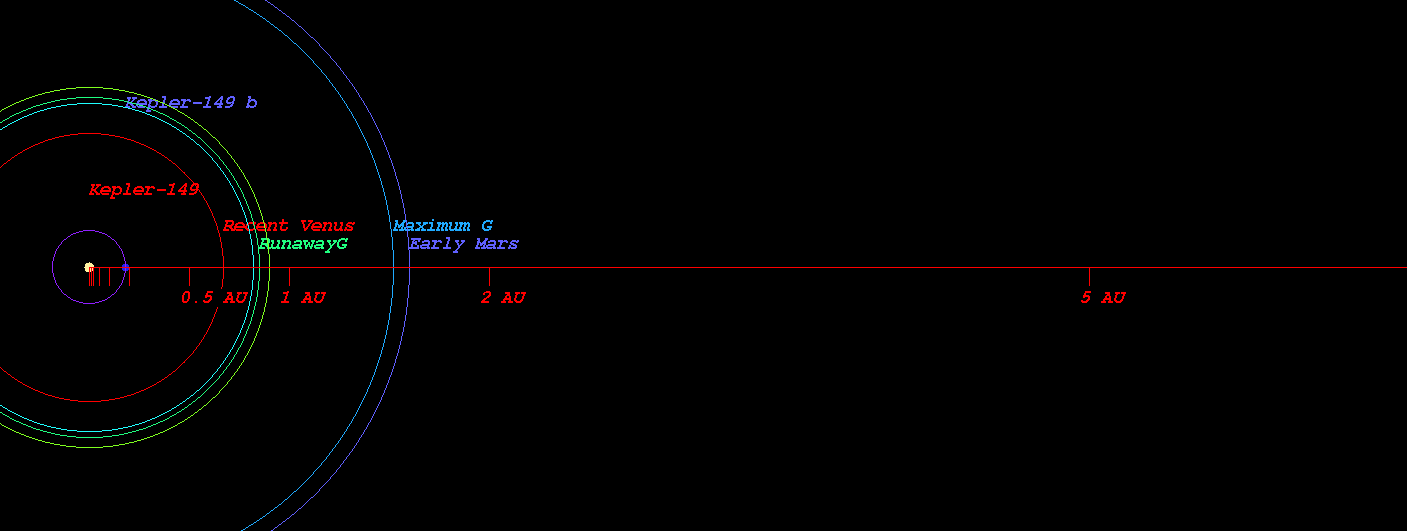

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-149)



  • Original Kopparapu Recent Venus for Star Kepler-149 distance : 0.670 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-149 distance : 0.877 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-149 distance : 0.887 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-149 distance : 1.546 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-149 distance : 1.608 AU

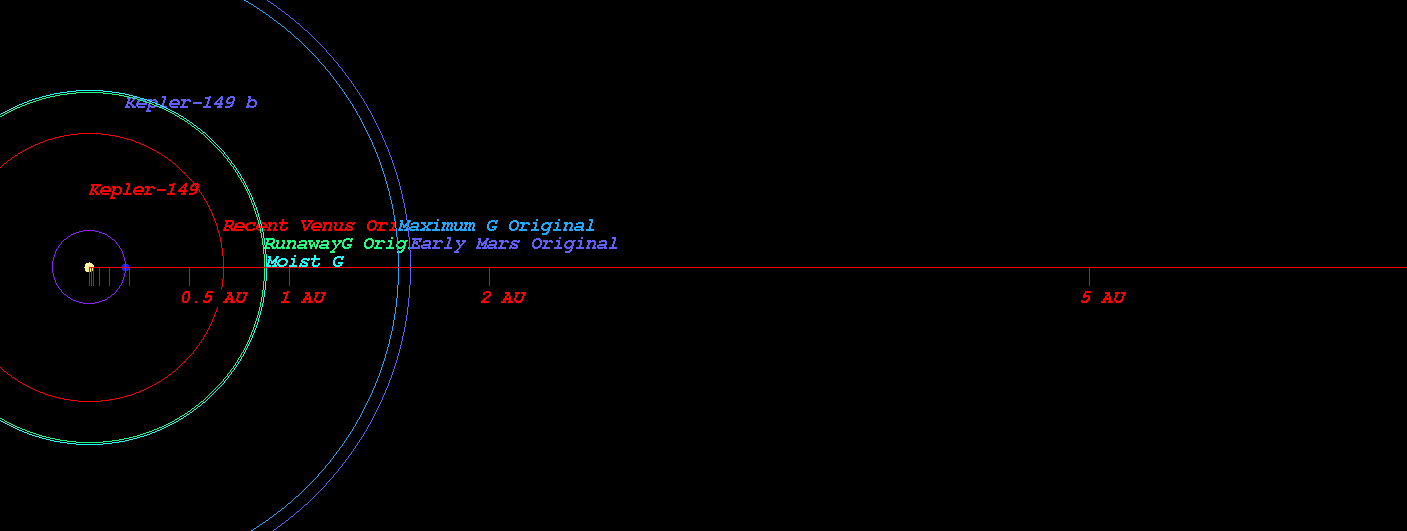

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-149)

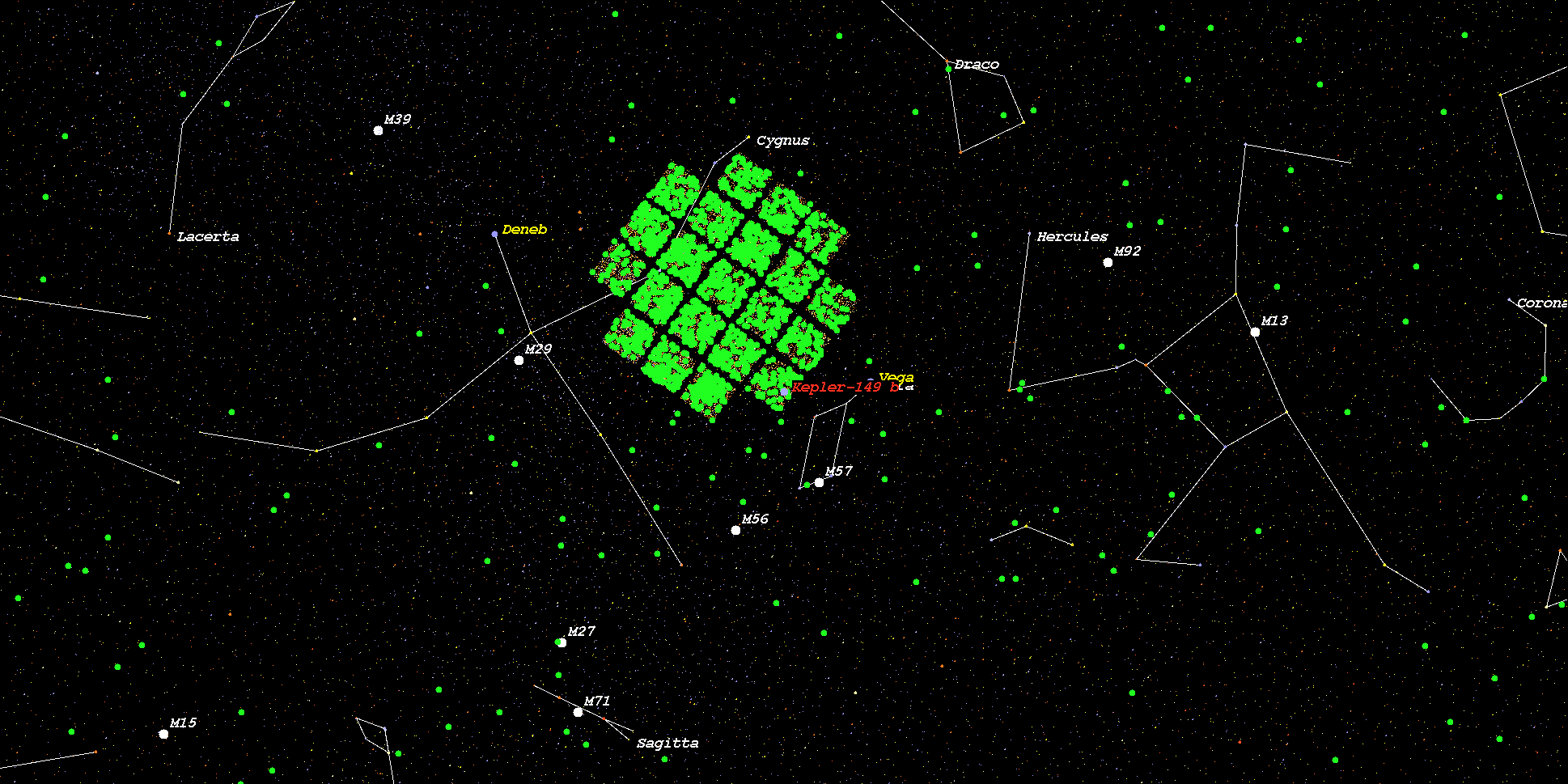

    (Position in Stellar Map of star Kepler-149 and its Exoplanet Kepler-149 b)



    (Zoomed position in Stellar Map of star Kepler-149 and its Exoplanet Kepler-149 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-149*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
