Imaginary Picture of Kepler-1507 b

Display orbital revolution of Kepler-1507 b around the hoststar Kepler-1507
/
Exoplanet Name : Kepler-1507 b
Alternate Name : "2MASS J19141476+4632097 b, K03465.01, KIC 9763612 b, KOI-3465 b, KOI-3465.01, WISE J191414.78+463209.9 b"
Status : Confirmed
Radius (Rjup / Re): 0.0750 (Rjup) 0.8407 (Rearth)
Mass (Mjup / Me): 0.0017 (Mjup) 0.5279 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1198 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0439
Orbital Period(Observed/Estimated) 16.05 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.7470
Star Radiation at Atmospheric Boundary: 44146.8 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 646.9 (K)
Blackbody T 0.3(K) 607.5 (K)
Blackbody T 0.7(K) 491.6 (K)
Tidally Locked Blackbody T 0.1(K) 769.4 (K)
Tidally Locked Blackbody T 0.3(K) 722.5 (K)
Size Class: Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1507
Alternate Name : "2MASS J19141476+4632097, KIC 9763612, KOI-3465, WISE J191414.78+463209.9"
Star Distance(LY) : 1045.0
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 4.6 (GY)
Temperature : 5297 (K)
Spectral type : G7
UV portion[%]: 5.8
Visible portion[%]: 41.4
IR portion[%]: 52.8
Metalicity : -0.0
Absolute Magnitude: 4.3
Apparent Magnitude: 11.9
Right Ascension(RA) 288.5615
Declination (DEC) 46.5361
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1507+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1507%20b/
Kepler-1507 b
Kepler-1507 b

  • Kepler-1507 b is an exoplanet orbiting the star Kepler-1507, located about 1045.0 light-years (320.4 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1507 has apparent magnitude of 11.9, with absolute magnitude of 4.3.
  • It is 0.9 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5297 with its spectral types of G7
  • In this planetary system, the extrasolar planet Kepler-1507 b orbits around the star Kepler-1507 every 16.1 days with its orbital distance of 0.12 AU ( 17919387.6 km)

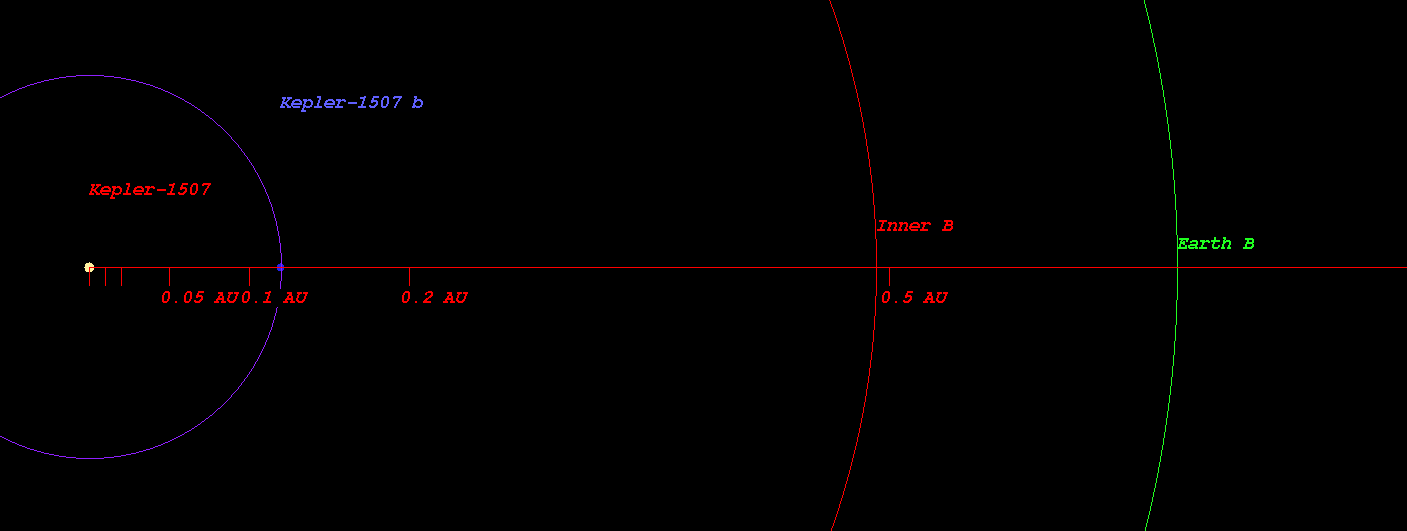

  • (Projected orbit of Kepler-1507 b around its host star Kepler-1507)


  • The Star Kepler-1507 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.492 AU ( 73655143.0 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.681 AU ( 101810656.1 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.037 AU ( 155136909.2 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.526 AU ( 228290758.0 km)
  • Radiation at Planetary Boundary of Kepler-1507 b : 44146.80 W/m2

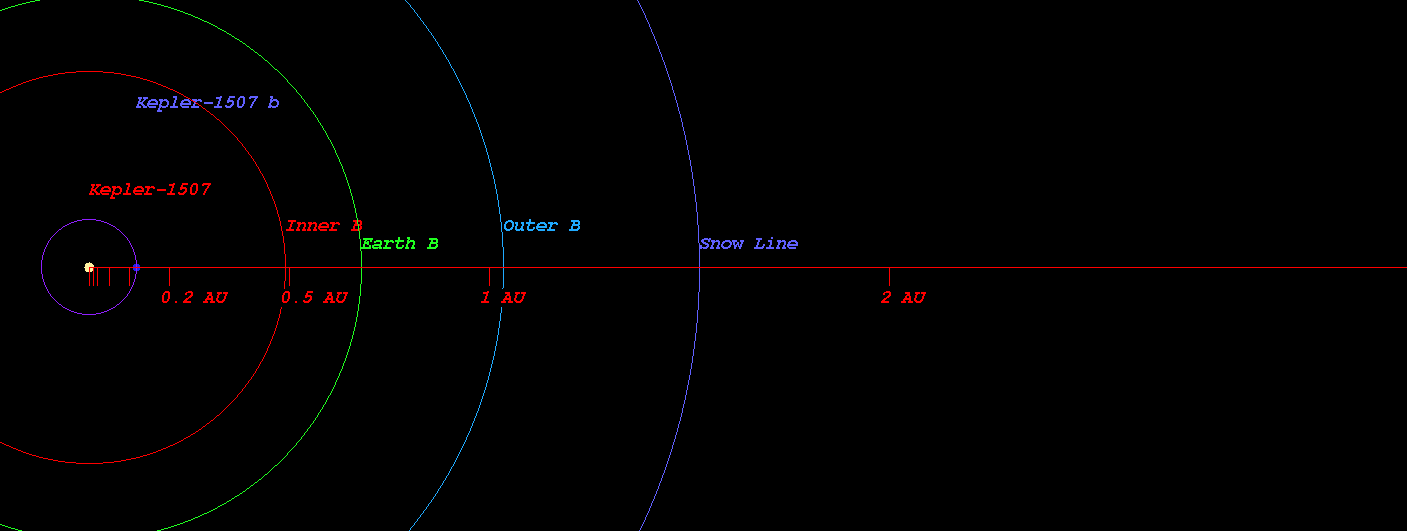

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1507)



  • Kopparapu Recent Venus for Star Kepler-1507 distance : 0.525 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1507 distance : 0.664 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1507 distance : 0.642 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1507 distance : 0.704 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1507 distance : 1.191 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1507 distance : 1.256 AU

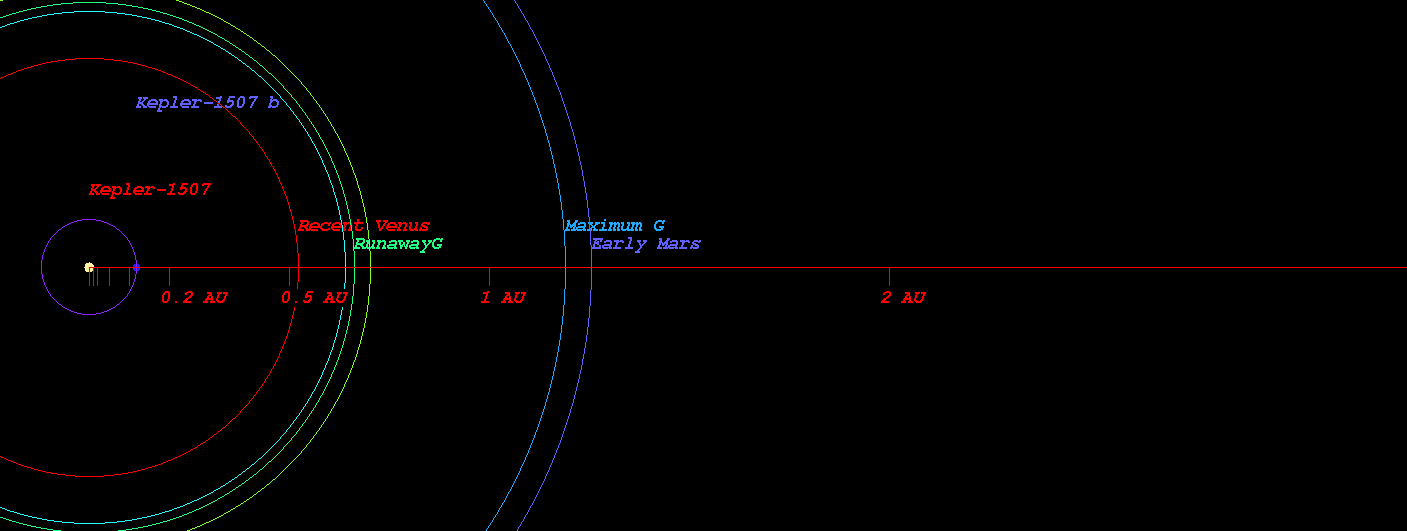

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1507)



  • Original Kopparapu Recent Venus for Star Kepler-1507 distance : 0.521 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1507 distance : 0.684 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1507 distance : 0.689 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1507 distance : 1.211 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1507 distance : 1.259 AU

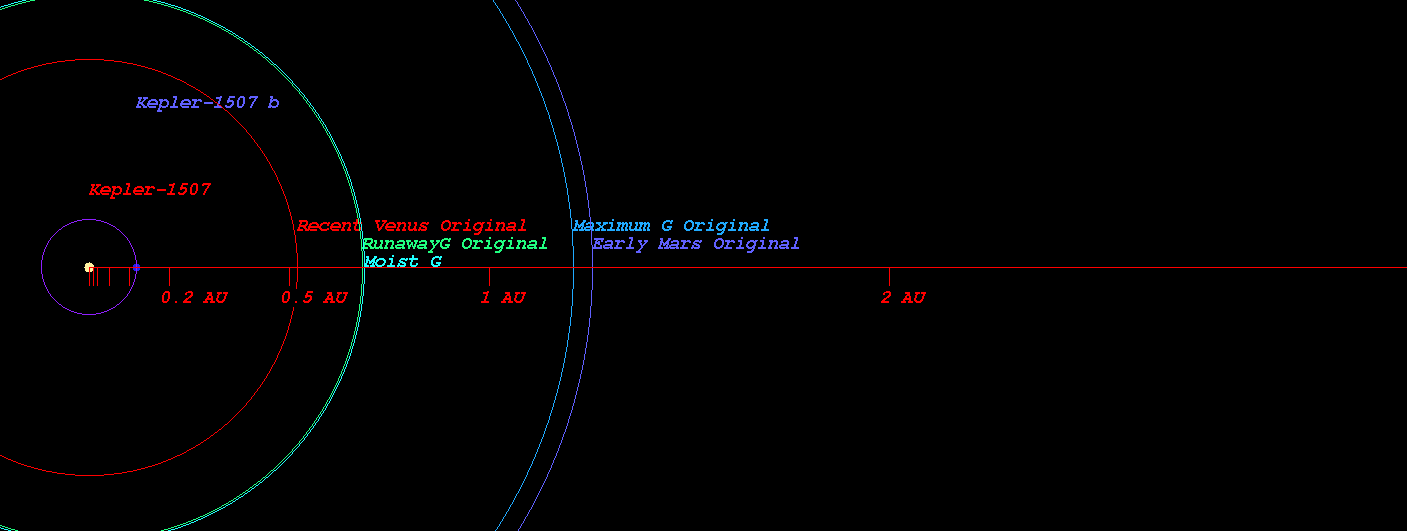

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1507)

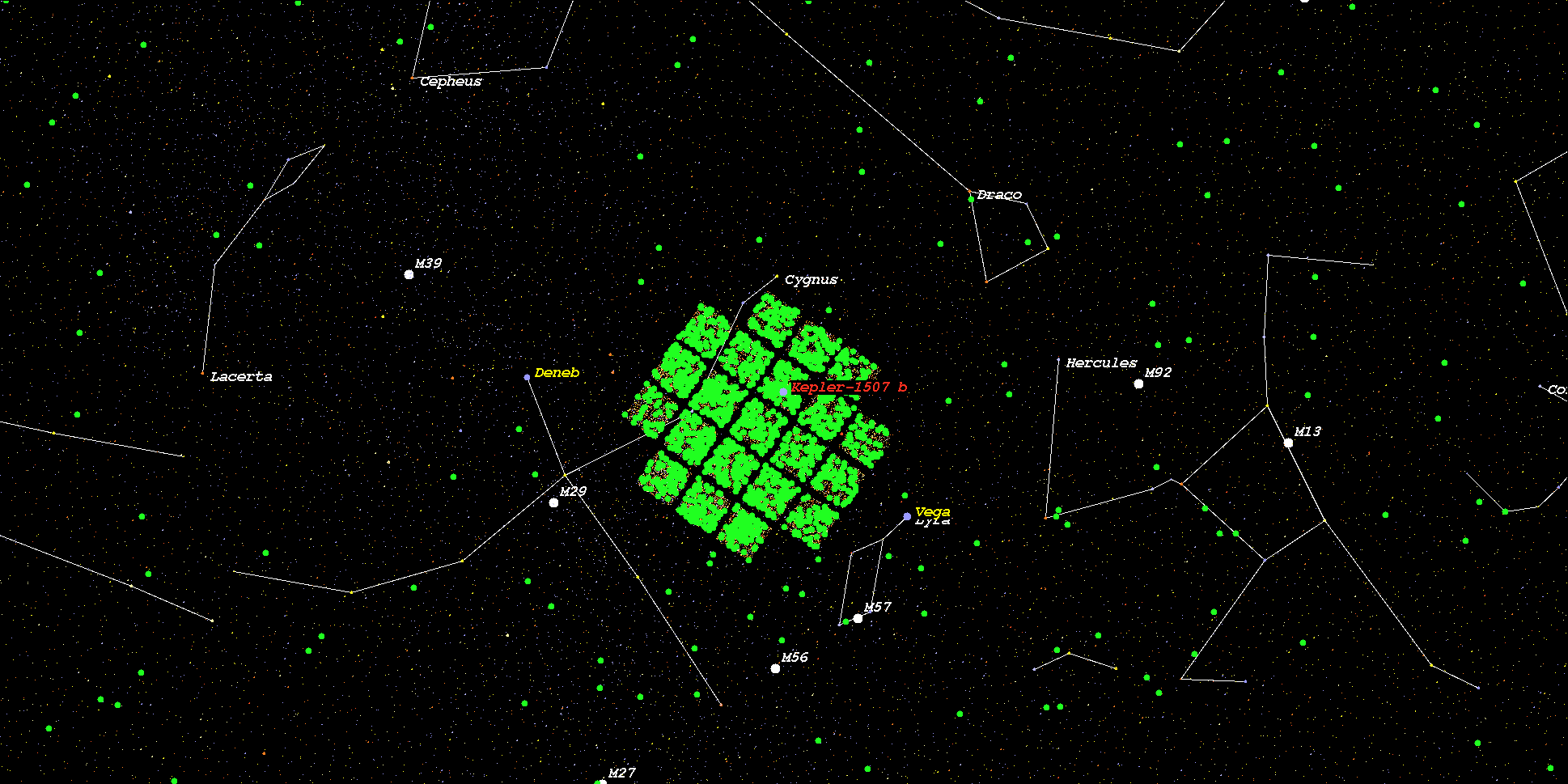

    (Position in Stellar Map of star Kepler-1507 and its Exoplanet Kepler-1507 b)



    (Zoomed position in Stellar Map of star Kepler-1507 and its Exoplanet Kepler-1507 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1507*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
