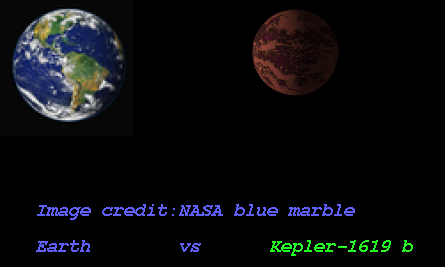

Imaginary Picture of Kepler-1619 b

Display orbital revolution of Kepler-1619 b around the hoststar Kepler-1619
/
Exoplanet Name : Kepler-1619 b
Alternate Name : "2MASS J19024883+4425192 b, K04693.01, KIC 8417078 b, KOI-4693 b, KOI-4693.01, WISE J190248.85+442519.5 b"
Status : Confirmed
Radius (Rjup / Re): 0.0680 (Rjup) 0.7622 (Rearth)
Mass (Mjup / Me): 0.0012 (Mjup) 0.3739 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1611 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0647
Orbital Period(Observed/Estimated) 23.62 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.6435
Star Radiation at Atmospheric Boundary: 101908.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 797.4 (K)
Blackbody T 0.3(K) 748.9 (K)
Blackbody T 0.7(K) 605.9 (K)
Tidally Locked Blackbody T 0.1(K) 948.3 (K)
Tidally Locked Blackbody T 0.3(K) 890.6 (K)
Size Class: Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1619
Alternate Name : "2MASS J19024883+4425192, KIC 8417078, KOI-4693, WISE J190248.85+442519.5"
Star Distance(LY) : 2395.6
Stellar Radius(Rsun) : 1.5 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 4.3 (GY)
Temperature : 5650 (K)
Spectral type : G2
UV portion[%]: 7.4
Visible portion[%]: 44.1
IR portion[%]: 48.4
Metalicity : -0.1
Absolute Magnitude: 2.9
Apparent Magnitude: 12.2
Right Ascension(RA) 285.7035
Declination (DEC) 44.4220
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1619+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1619%20b/
Kepler-1619 b
Kepler-1619 b

  • Kepler-1619 b is an exoplanet orbiting the star Kepler-1619, located about 2395.6 light-years (734.5 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1619 has apparent magnitude of 12.2, with absolute magnitude of 2.9.

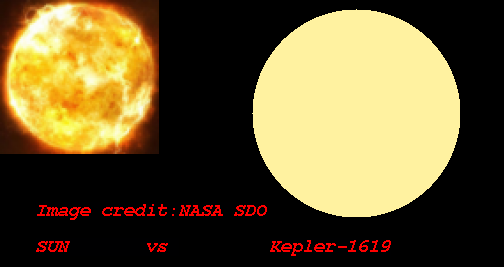

  • It is 1.0 times more massive and 1.5 times bigger compared with our Sun. The surface temperature is 5650 with its spectral types of G2
  • In this planetary system, the extrasolar planet Kepler-1619 b orbits around the star Kepler-1619 every 23.6 days with its orbital distance of 0.16 AU ( 24103694.8 km)

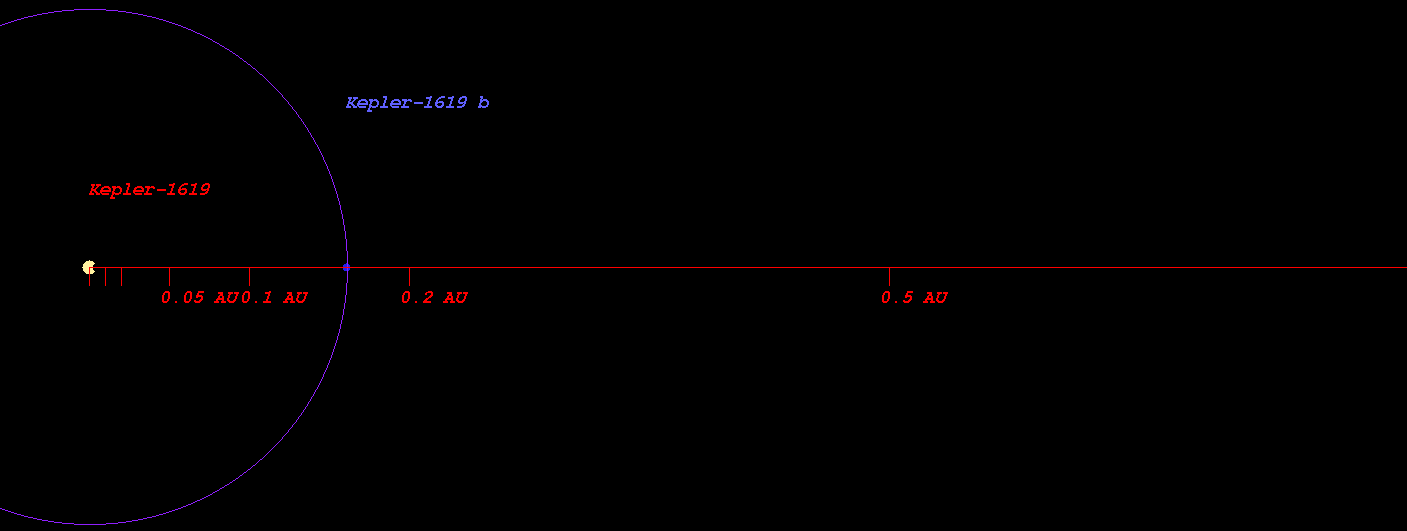

  • (Projected orbit of Kepler-1619 b around its host star Kepler-1619)


  • The Star Kepler-1619 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.006 AU ( 150528246.1 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.391 AU ( 208069373.8 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.119 AU ( 317051680.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.119 AU ( 466555436.4 km)
  • Radiation at Planetary Boundary of Kepler-1619 b : 101907.98 W/m2

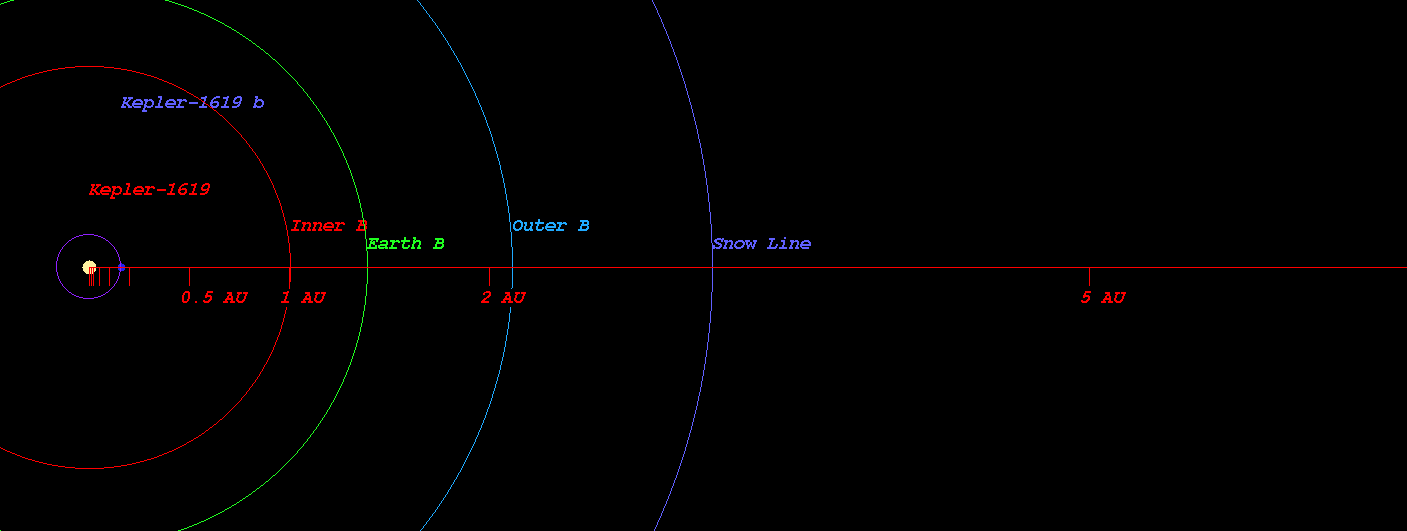

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1619)



  • Kopparapu Recent Venus for Star Kepler-1619 distance : 1.051 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1619 distance : 1.331 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1619 distance : 1.285 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1619 distance : 1.409 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1619 distance : 2.358 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1619 distance : 2.487 AU

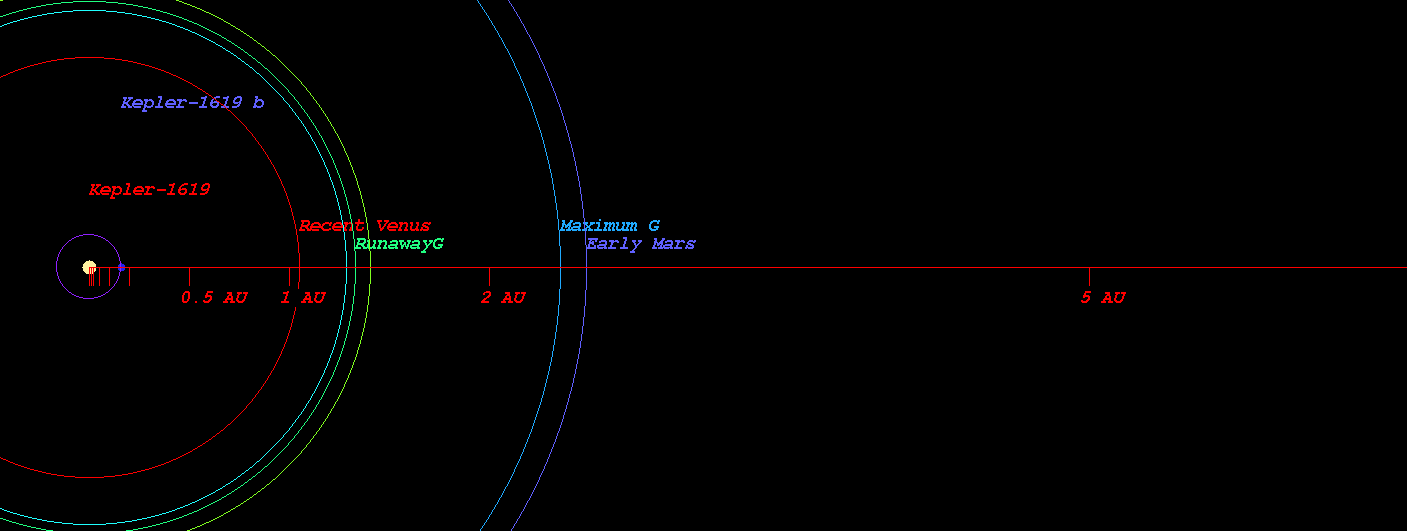

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1619)



  • Original Kopparapu Recent Venus for Star Kepler-1619 distance : 1.050 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1619 distance : 1.368 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1619 distance : 1.389 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1619 distance : 2.400 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1619 distance : 2.495 AU

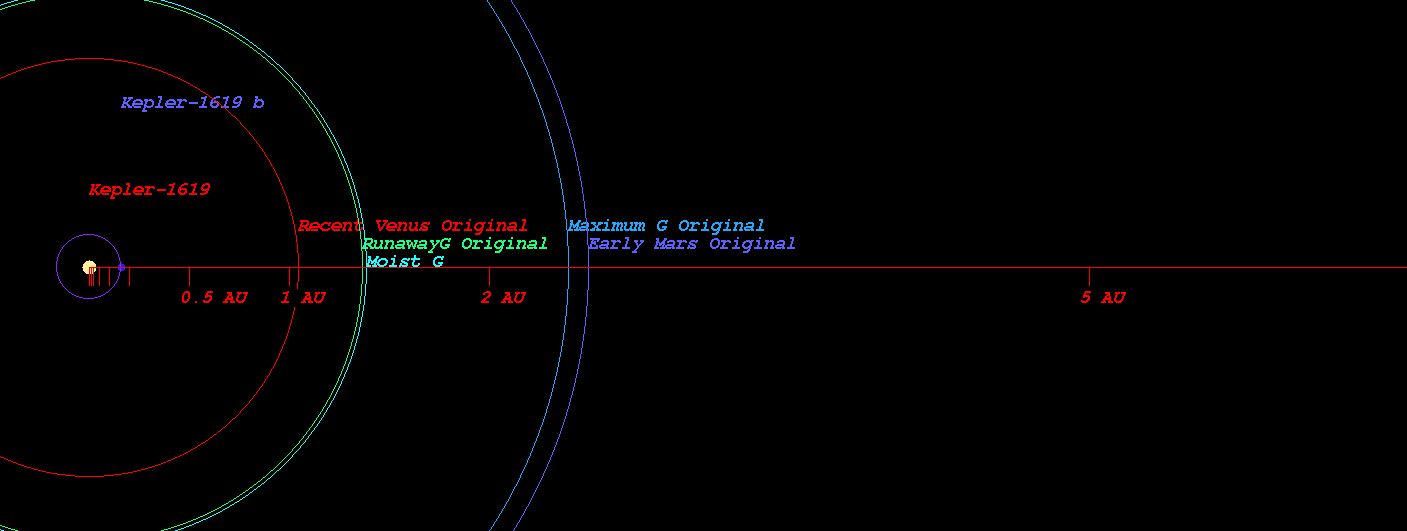

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1619)

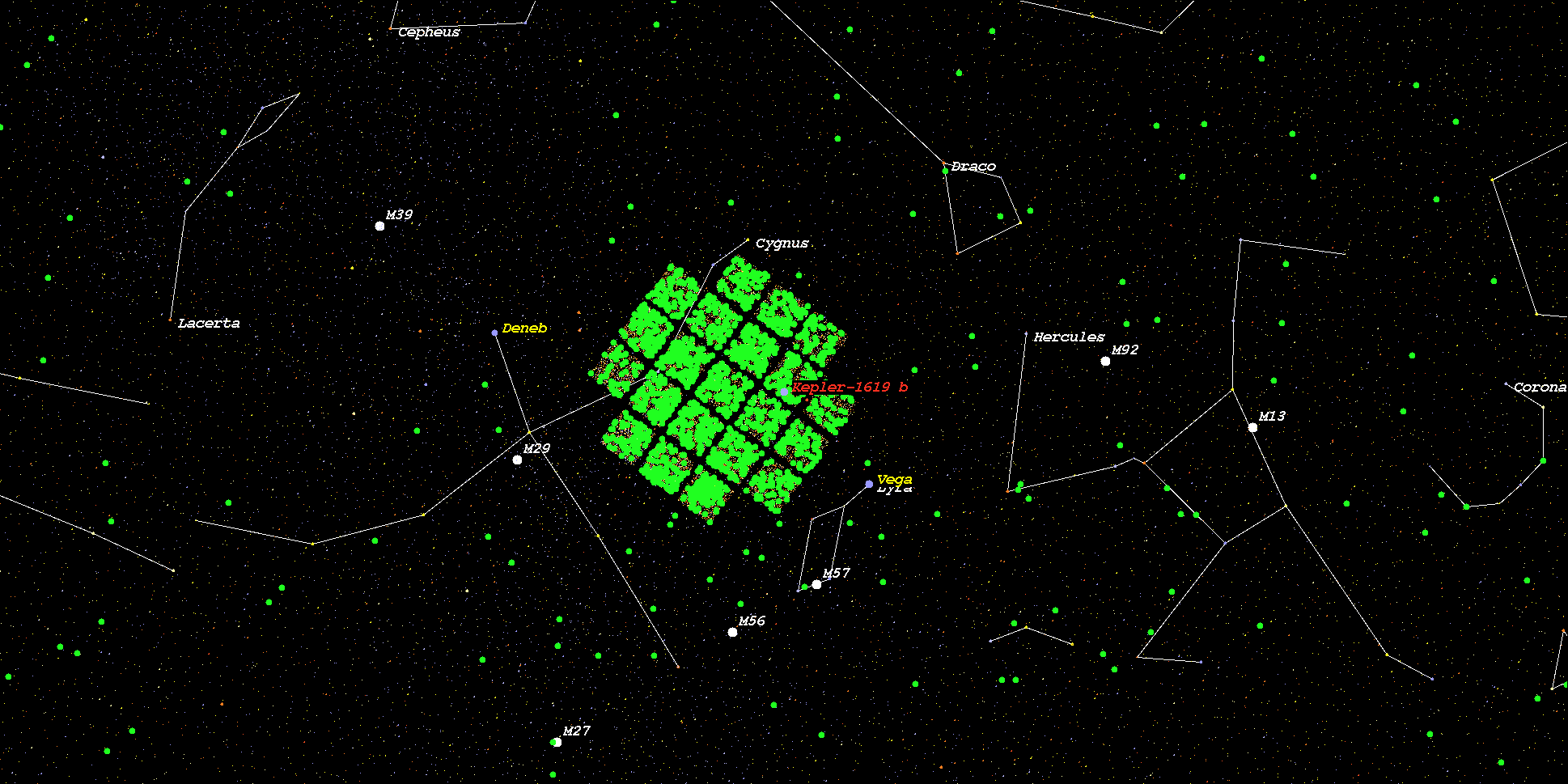

    (Position in Stellar Map of star Kepler-1619 and its Exoplanet Kepler-1619 b)



    (Zoomed position in Stellar Map of star Kepler-1619 and its Exoplanet Kepler-1619 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1619*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
