Imaginary Picture of Kepler-1629 b

Display orbital revolution of Kepler-1629 b around the hoststar Kepler-1629
/
Exoplanet Name : Kepler-1629 b
Alternate Name : "2MASS J18404958+4346274 b, K05447.02, KIC 7935997 b, KOI-5447 b, KOI-5447.02, WISE J184049.59+434627.5 b"
Status : Confirmed
Radius (Rjup / Re): 0.0690 (Rjup) 0.7734 (Rearth)
Mass (Mjup / Me): 0.0012 (Mjup) 0.3935 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0485 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0106
Orbital Period(Observed/Estimated) 3.88 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.6579
Star Radiation at Atmospheric Boundary: 431398.3 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1143.8 (K)
Blackbody T 0.3(K) 1074.2 (K)
Blackbody T 0.7(K) 869.1 (K)
Tidally Locked Blackbody T 0.1(K) 1360.3 (K)
Tidally Locked Blackbody T 0.3(K) 1277.4 (K)
Size Class: Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1629
Alternate Name : "2MASS J18404958+4346274, KIC 7935997, KOI-5447, WISE J184049.59+434627.5"
Star Distance(LY) : 1095.9
Stellar Radius(Rsun) : 0.9 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 4.3 (GY)
Temperature : 5708 (K)
Spectral type : G2
UV portion[%]: 7.6
Visible portion[%]: 44.4
IR portion[%]: 47.9
Metalicity : 0.1
Absolute Magnitude: 4.0
Apparent Magnitude: 11.6
Right Ascension(RA) 280.2066
Declination (DEC) 43.7743
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1629+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1629%20b/
Kepler-1629 b
Kepler-1629 b

  • Kepler-1629 b is an exoplanet orbiting the star Kepler-1629, located about 1095.9 light-years (336.0 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1629 has apparent magnitude of 11.6, with absolute magnitude of 4.0.
  • It is 1.0 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5708 with its spectral types of G2
  • In this planetary system, the extrasolar planet Kepler-1629 b orbits around the star Kepler-1629 every 3.9 days with its orbital distance of 0.05 AU ( 7248115.4 km)

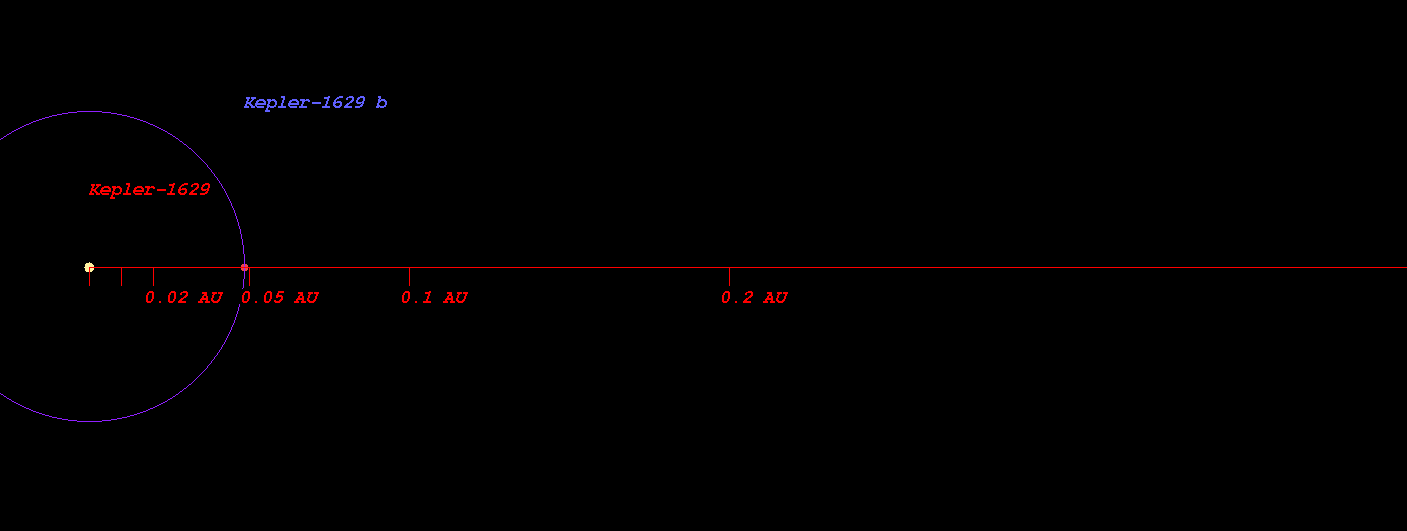

  • (Projected orbit of Kepler-1629 b around its host star Kepler-1629)


  • The Star Kepler-1629 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.623 AU ( 93131077.3 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.861 AU ( 128731486.8 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.311 AU ( 196158297.7 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.930 AU ( 288655528.2 km)
  • Radiation at Planetary Boundary of Kepler-1629 b : 431398.33 W/m2

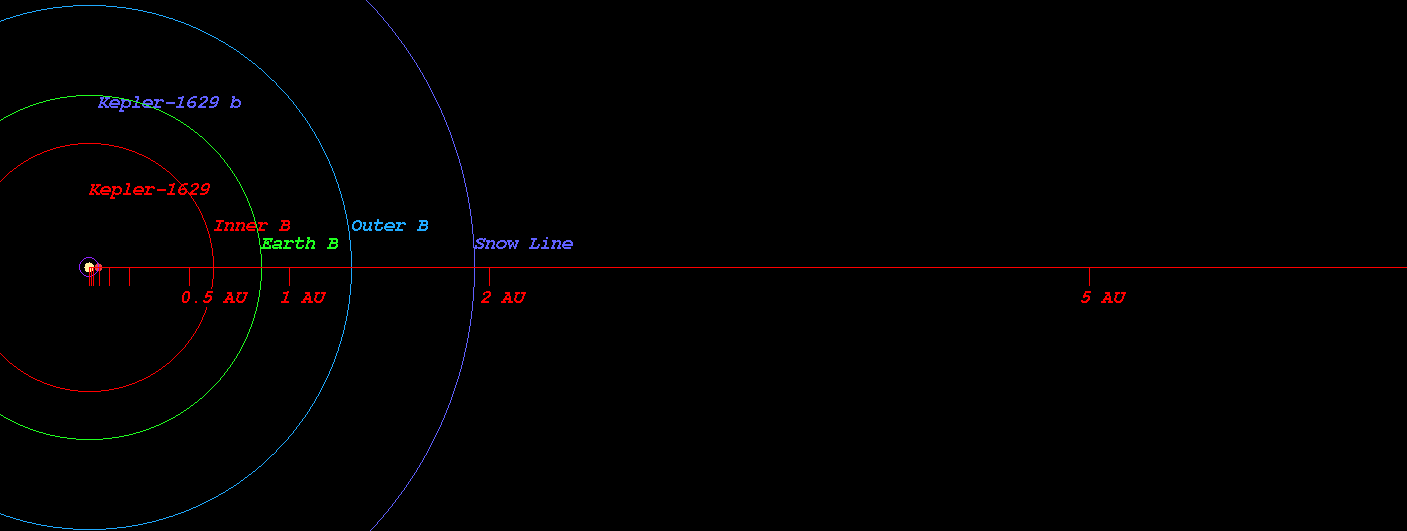

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1629)



  • Kopparapu Recent Venus for Star Kepler-1629 distance : 0.648 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1629 distance : 0.821 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1629 distance : 0.792 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1629 distance : 0.869 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1629 distance : 1.452 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1629 distance : 1.531 AU

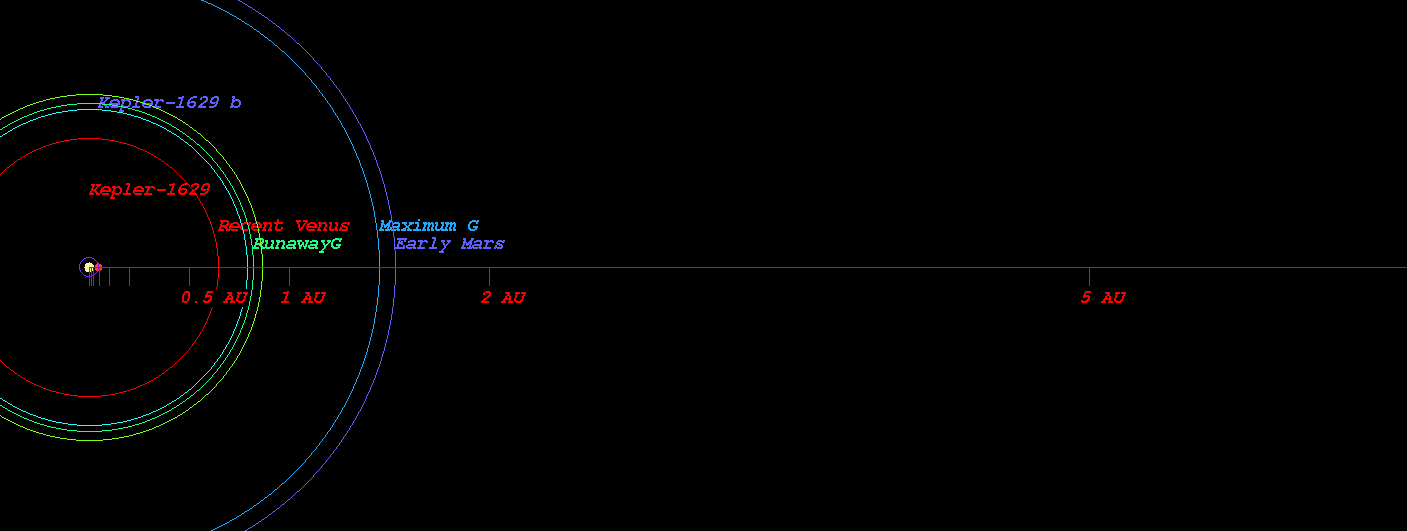

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1629)



  • Original Kopparapu Recent Venus for Star Kepler-1629 distance : 0.648 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1629 distance : 0.843 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1629 distance : 0.857 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1629 distance : 1.477 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1629 distance : 1.536 AU

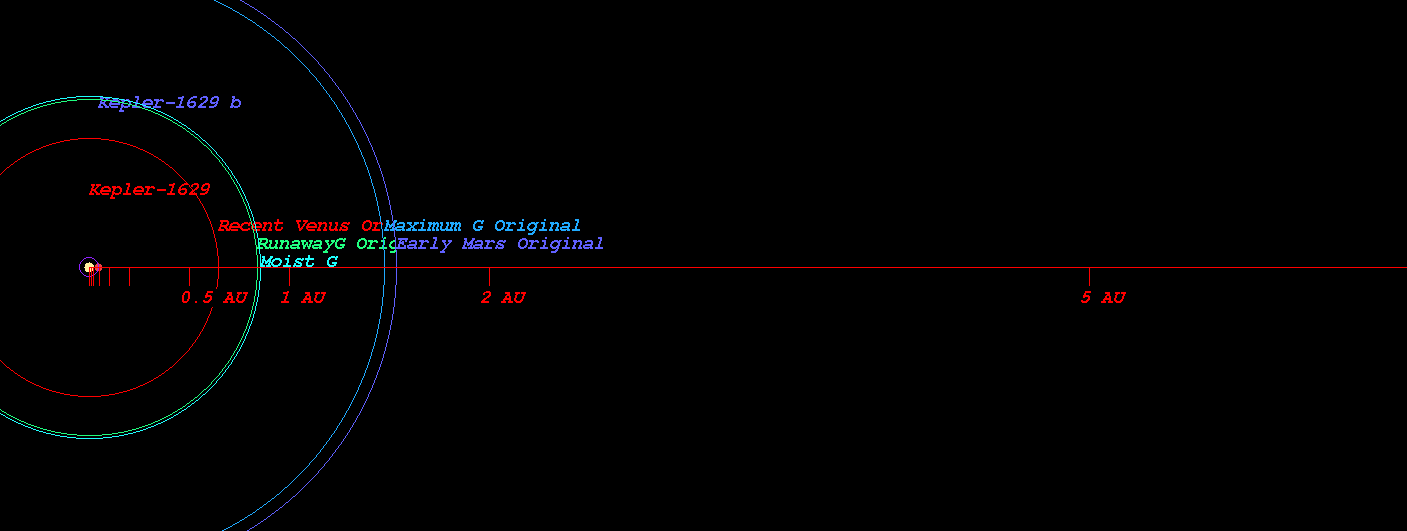

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1629)



    (Position in Stellar Map of star Kepler-1629 and its Exoplanet Kepler-1629 b)

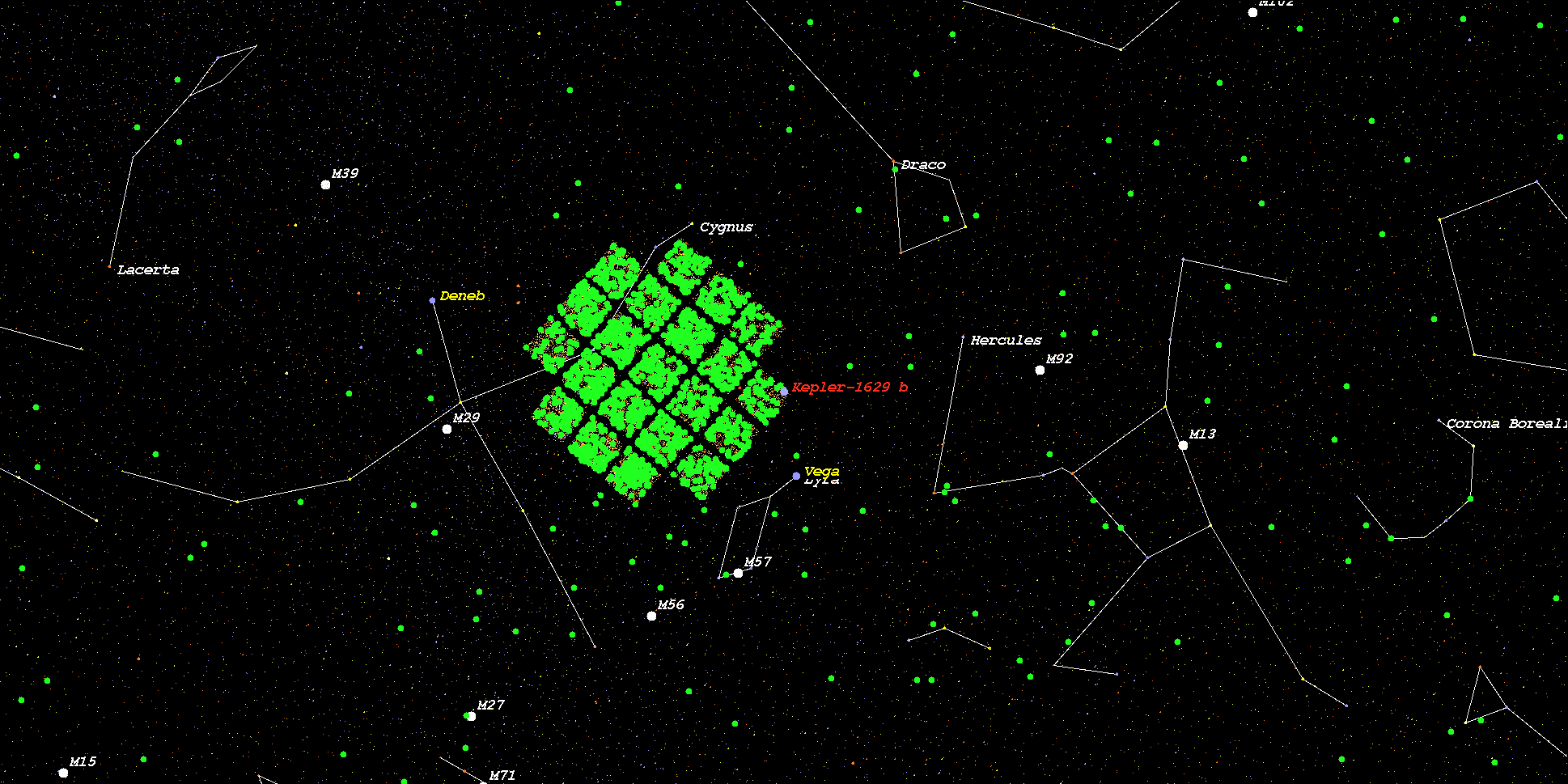

    (Zoomed position in Stellar Map of star Kepler-1629 and its Exoplanet Kepler-1629 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1629*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
