Imaginary Picture of Kepler-1679 b

Display orbital revolution of Kepler-1679 b around the hoststar Kepler-1679
/
Exoplanet Name : Kepler-1679 b
Alternate Name : "2MASS J19353613+5025373 b, K02106.01, KIC 12017109 b, KOI-2106 b, KOI-2106.01, WISE J193536.15+502537.3 b"
Status : Confirmed
Radius (Rjup / Re): 0.1850 (Rjup) 2.0737 (Rearth)
Mass (Mjup / Me): 0.0164 (Mjup) 5.1985 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0892 (AU) 0.0892 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0267
Orbital Period(Observed/Estimated) 9.75 (Days Obs.) 9.75 (Days Est.)
Surface Gravity (G Earth) 1.2089
Star Radiation at Atmospheric Boundary: 102889.5 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 799.3 (K)
Blackbody T 0.3(K) 750.7 (K)
Blackbody T 0.7(K) 607.4 (K)
Tidally Locked Blackbody T 0.1(K) 950.6 (K)
Tidally Locked Blackbody T 0.3(K) 892.7 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1679
Alternate Name : "12017109, 2MASS J19353613+5025373, KIC 12017109, KOI-2106, WISE J193536.15+502537.3"
Star Distance(LY) : 3041.8
Stellar Radius(Rsun) : 0.9 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5358 (K)
Spectral type : G7
UV portion[%]: 6.2
Visible portion[%]: 42.0
IR portion[%]: 51.8
Metalicity : -0.0
Absolute Magnitude: 5.1
Apparent Magnitude: 14.9
Right Ascension(RA) 293.9006
Declination (DEC) 50.4271
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal
Discovery Paper - URL
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1679+&submit=SIMBAD+search
Open Exoplanet Database Link
Kepler-1679 b
Kepler-1679 b

  • Kepler-1679 b is an exoplanet orbiting the star Kepler-1679, located about 3041.8 light-years (932.6 pc) away from Solar System. Its discovery was publicly announced on 2020.
  • The host star Kepler-1679 has apparent magnitude of 14.9, with absolute magnitude of 5.1.
  • It is 1.0 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5358 with its spectral types of G7
  • In this planetary system, the extrasolar planet Kepler-1679 b orbits around the star Kepler-1679 every 9.8 days with its orbital distance of 0.09 AU ( 13344130.1 km)
  • (Projected orbit of Kepler-1679 b around its host star Kepler-1679)


  • The Star Kepler-1679 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.560 AU ( 83734810.2 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.774 AU ( 115743390.3 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.179 AU ( 176367312.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.735 AU ( 259532227.0 km)
  • Radiation at Planetary Boundary of Kepler-1679 b : 102889.48 W/m2

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1679)



  • Kopparapu Recent Venus for Star Kepler-1679 distance : 0.594 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1679 distance : 0.753 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1679 distance : 0.727 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1679 distance : 0.797 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1679 distance : 1.346 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1679 distance : 1.420 AU

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1679)



  • Original Kopparapu Recent Venus for Star Kepler-1679 distance : 0.591 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1679 distance : 0.775 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1679 distance : 0.782 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1679 distance : 1.369 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1679 distance : 1.424 AU

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1679)



    (Position in Stellar Map of star Kepler-1679 and its Exoplanet Kepler-1679 b)



    (Zoomed position in Stellar Map of star Kepler-1679 and its Exoplanet Kepler-1679 b (zoom level 3))

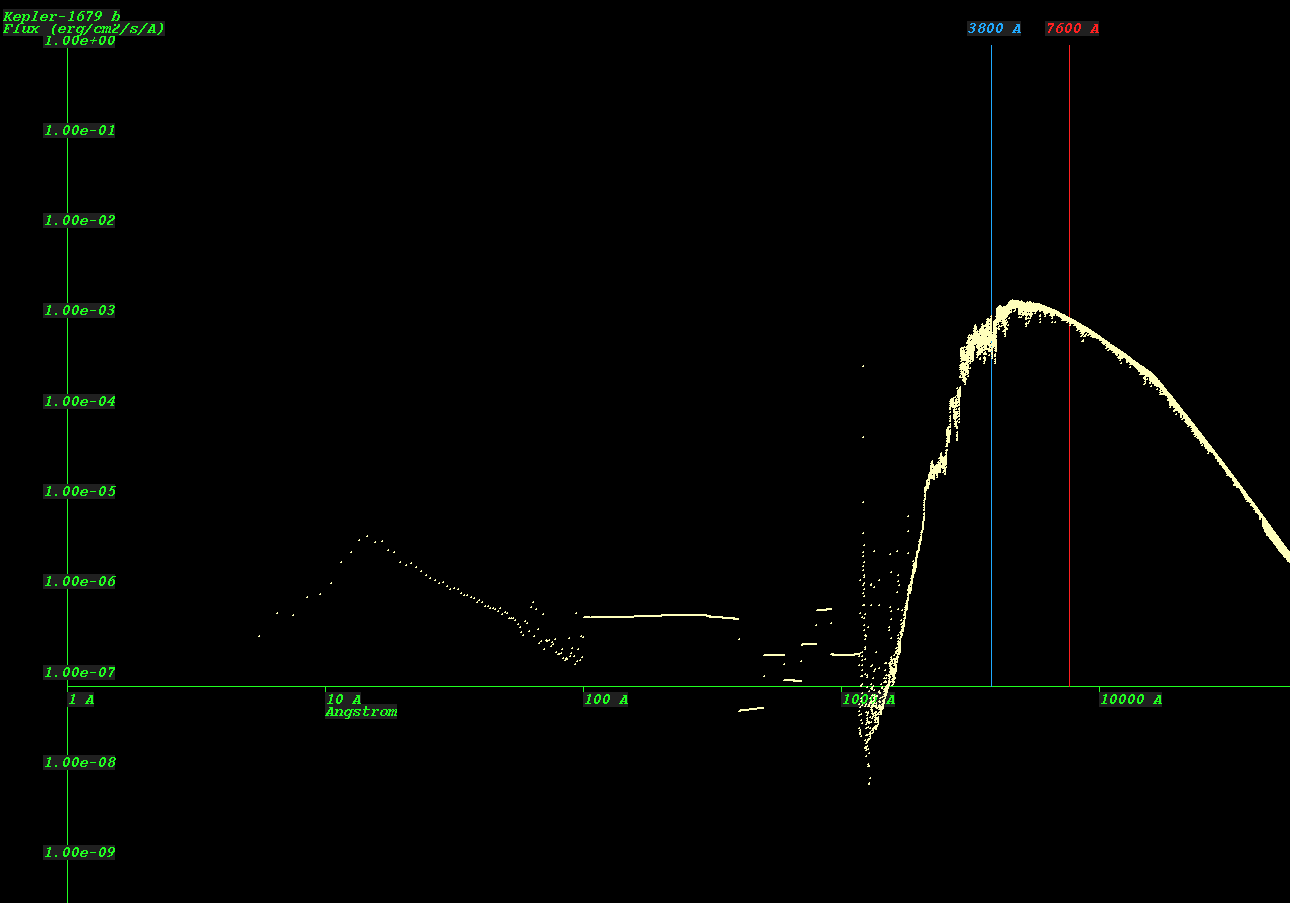

    (Synthetic Spectrum of star Kepler-1679*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
