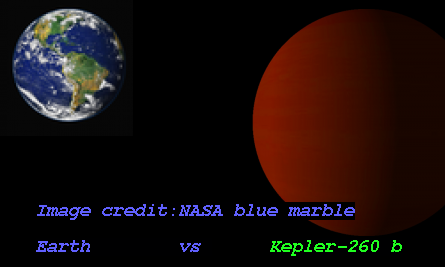

Imaginary Picture of Kepler-260 b

Display orbital revolution of Kepler-260 b around the hoststar Kepler-260
/
Exoplanet Name : Kepler-260 b
Alternate Name : "2MASS J19274223+3800508 b, K00986.01, KIC 2854698 b, KOI-986 b, KOI-986.01, WISE J192742.22+380050.5 b"
Status : Confirmed
Radius (Rjup / Re): 0.1790 (Rjup) 2.0064 (Rearth)
Mass (Mjup / Me): 0.0159 (Mjup) 5.0415 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0750 (AU) 0.0750 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0224
Orbital Period(Observed/Estimated) 8.19 (Days Obs.) 8.00 (Days Est.)
Surface Gravity (G Earth) 1.2523
Star Radiation at Atmospheric Boundary: 178128.8 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 916.9 (K)
Blackbody T 0.3(K) 861.1 (K)
Blackbody T 0.7(K) 696.7 (K)
Tidally Locked Blackbody T 0.1(K) 1090.4 (K)
Tidally Locked Blackbody T 0.3(K) 1024.0 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-260
Alternate Name : "2MASS J19274223+3800508, KIC 2854698, KOI-986, WISE J192742.22+380050.5"
Star Distance(LY) : 2045.3
Stellar Radius(Rsun) : 0.9 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.8 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5541 (K)
Spectral type : K0
UV portion[%]: 7.0
Visible portion[%]: 43.5
IR portion[%]: 49.4
Metalicity : -0.0
Absolute Magnitude: 3.9
Apparent Magnitude: 12.9
Right Ascension(RA) 291.9260
Declination (DEC) 38.0141
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-260+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-260%20b/
Kepler-260 b
Kepler-260 b

  • Kepler-260 b is an exoplanet orbiting the star Kepler-260, located about 2045.3 light-years (627.1 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-260 has apparent magnitude of 12.9, with absolute magnitude of 3.9.

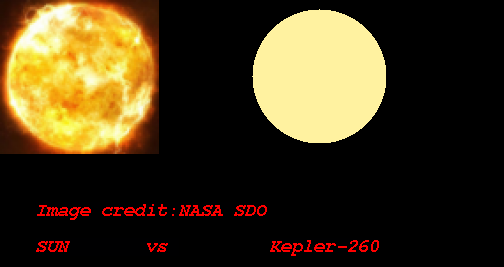

  • It is 0.9 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5541 with its spectral types of K0
  • In this planetary system, the extrasolar planet Kepler-260 b orbits around the star Kepler-260 every 8.2 days with its orbital distance of 0.07 AU ( 11219840.3 km)

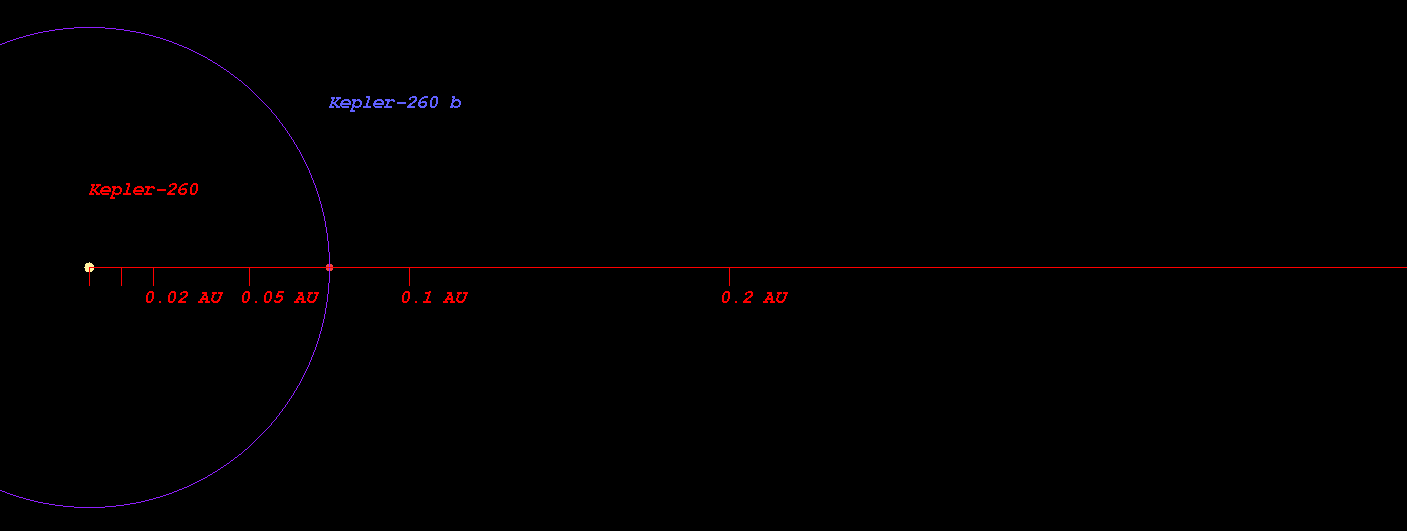

  • (Projected orbit of Kepler-260 b around its host star Kepler-260)


  • The Star Kepler-260 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.619 AU ( 92636917.1 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.856 AU ( 128048428.4 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.304 AU ( 195117467.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.919 AU ( 287123901.5 km)
  • Radiation at Planetary Boundary of Kepler-260 b : 178128.84 W/m2

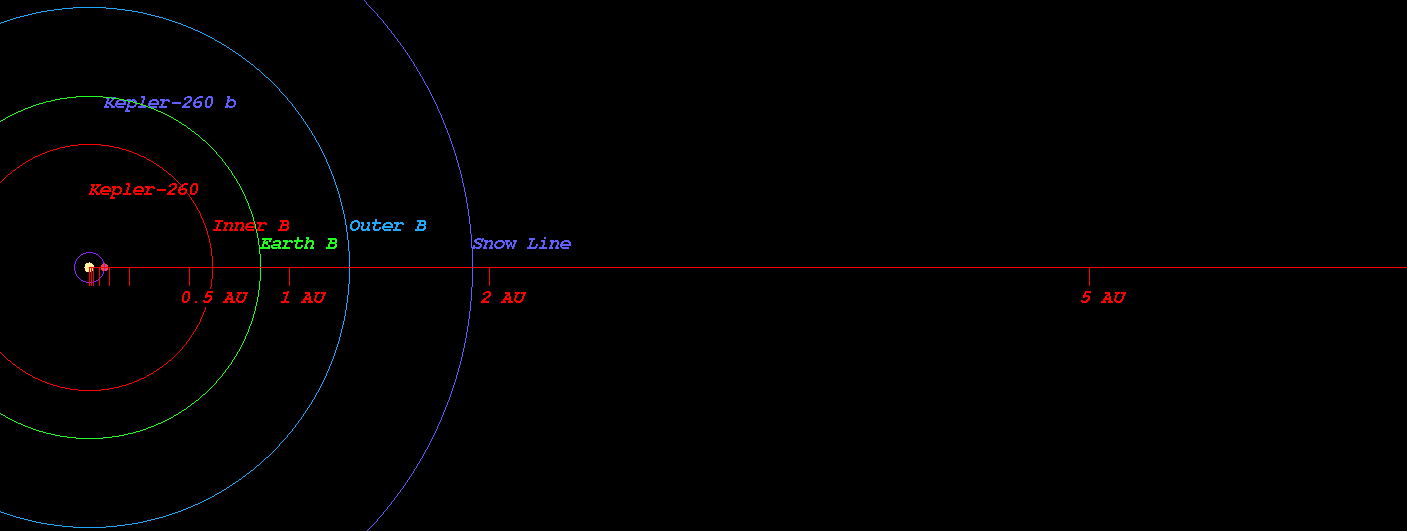

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-260)



  • Kopparapu Recent Venus for Star Kepler-260 distance : 0.651 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-260 distance : 0.824 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-260 distance : 0.796 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-260 distance : 0.873 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-260 distance : 1.465 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-260 distance : 1.546 AU

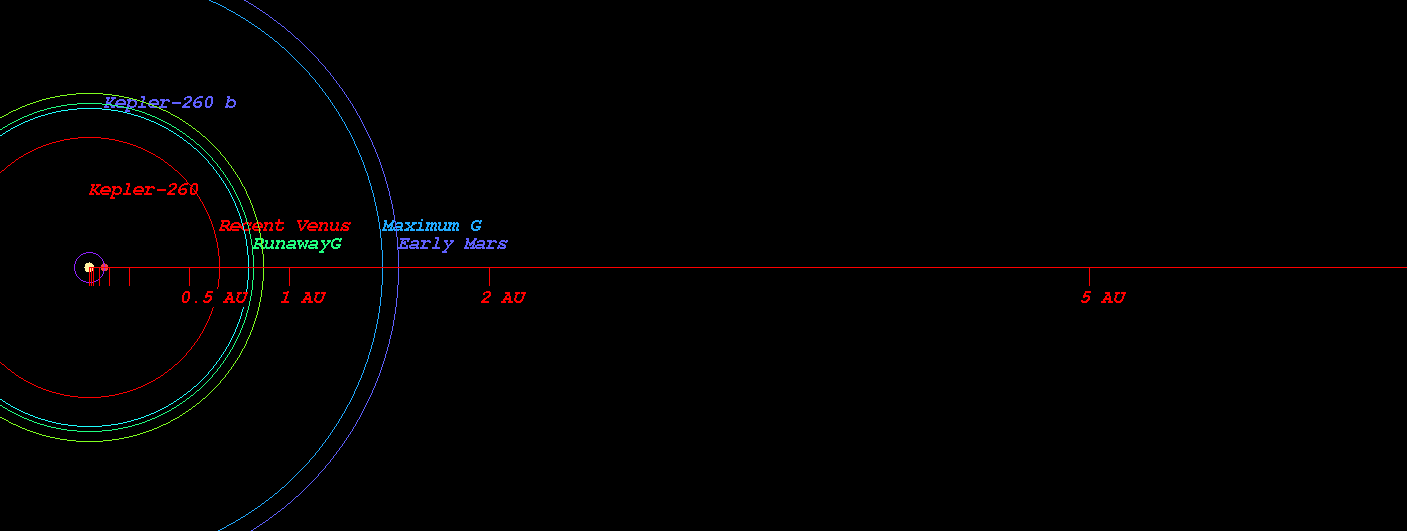

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-260)



  • Original Kopparapu Recent Venus for Star Kepler-260 distance : 0.649 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-260 distance : 0.848 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-260 distance : 0.859 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-260 distance : 1.491 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-260 distance : 1.550 AU

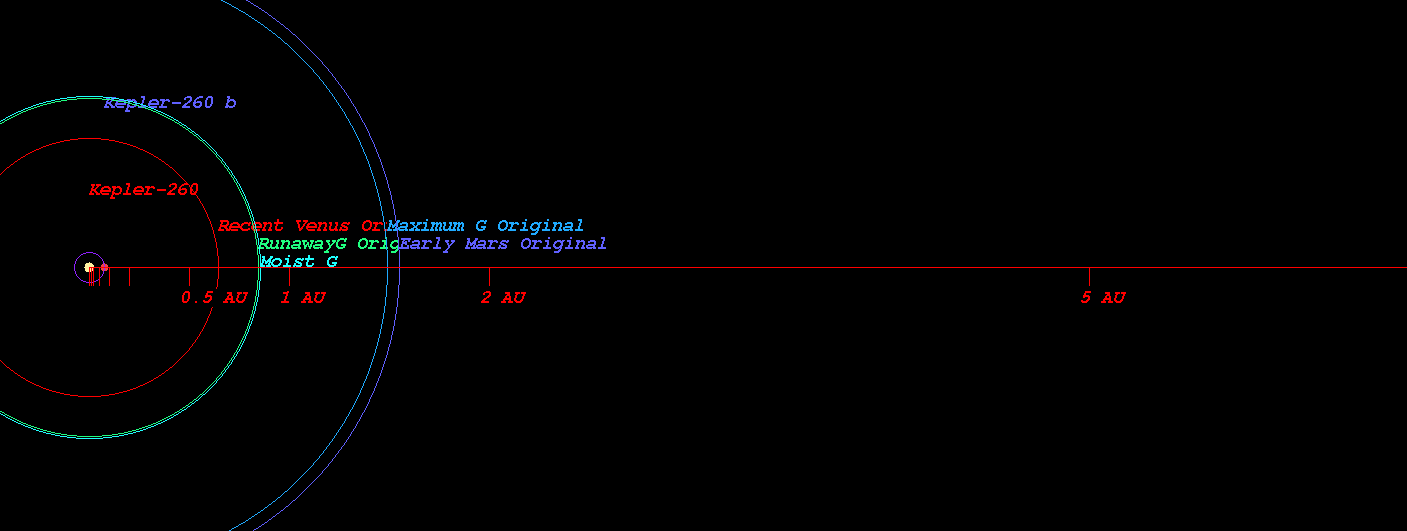

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-260)

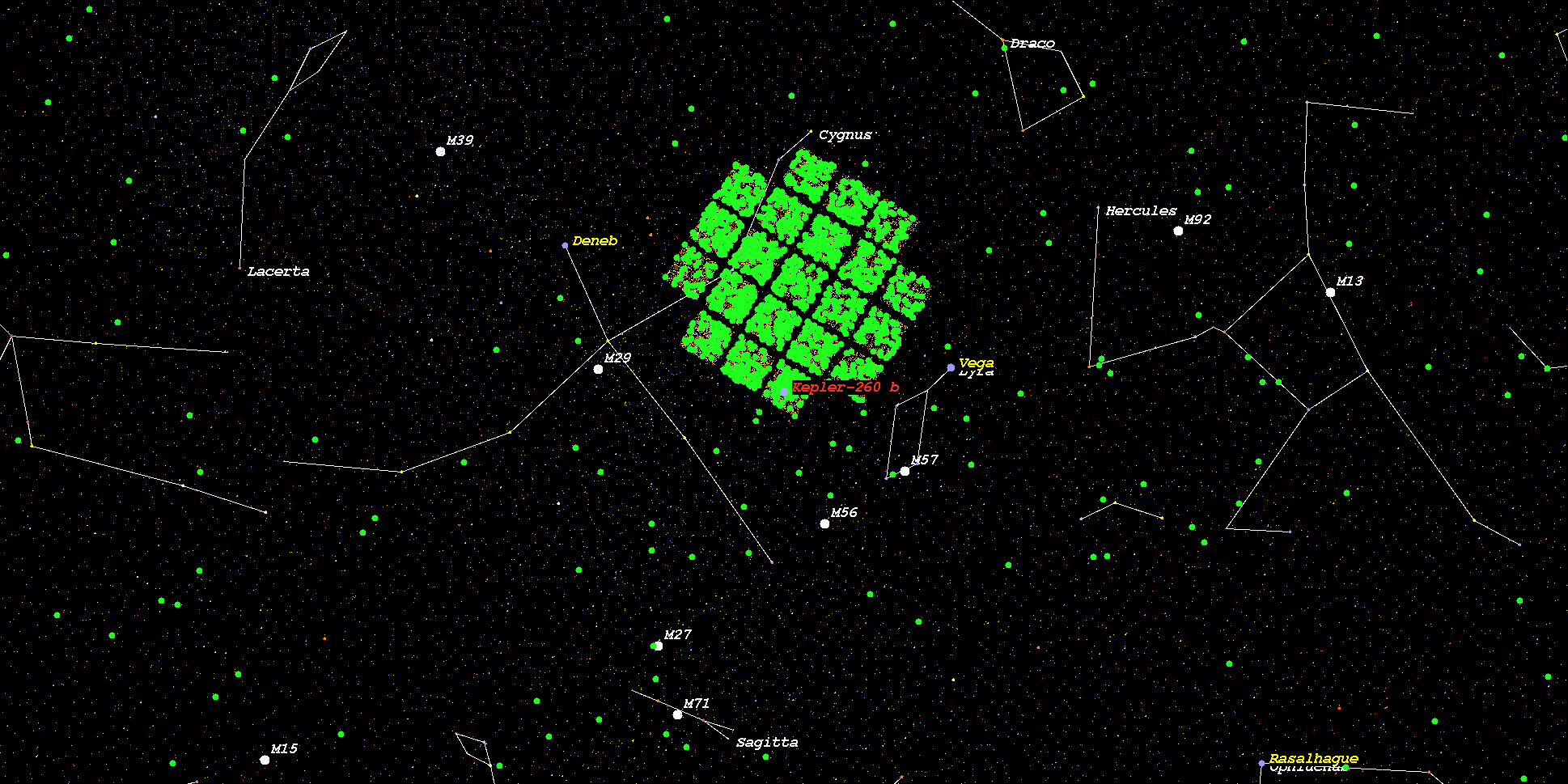

    (Position in Stellar Map of star Kepler-260 and its Exoplanet Kepler-260 b)



    (Zoomed position in Stellar Map of star Kepler-260 and its Exoplanet Kepler-260 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-260*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
