Imaginary Picture of Kepler-305 d

Display orbital revolution of Kepler-305 d around the hoststar Kepler-305
/
Exoplanet Name : Kepler-305 d
Alternate Name : "2MASS J19565383+4020354 d, K01563.04, KIC 5219234 d, KOI-1563 d, KOI-1563.04, WISE J195653.83+402035.4 d"
Status : Confirmed
Radius (Rjup / Re): 0.2420 (Rjup) 2.7126 (Rearth)
Mass (Mjup / Me): 0.0210 (Mjup) 6.6736 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.1210 (AU) 0.1210 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0458
Orbital Period(Observed/Estimated) 16.74 (Days Obs.) 16.87 (Days Est.)
Surface Gravity (G Earth) 0.9070
Star Radiation at Atmospheric Boundary: 34373.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 607.7 (K)
Blackbody T 0.3(K) 570.7 (K)
Blackbody T 0.7(K) 461.8 (K)
Tidally Locked Blackbody T 0.1(K) 722.7 (K)
Tidally Locked Blackbody T 0.3(K) 678.7 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-305
Alternate Name : "2MASS J19565383+4020354, KIC 5219234, KOI-1563, WISE J195653.83+402035.4"
Star Distance(LY) : 2834.3
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.8 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5080 (K)
Spectral type : K1
UV portion[%]: 3.8
Visible portion[%]: 38.1
IR portion[%]: 58.1
Metalicity : -0.1
Absolute Magnitude: 6.1
Apparent Magnitude: 15.8
Right Ascension(RA) 299.2243
Declination (DEC) 40.3432
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-305+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-305%20d/
Kepler-305 d
Kepler-305 d

  • Kepler-305 d is an exoplanet orbiting the star Kepler-305, located about 2834.3 light-years (869.0 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-305 has apparent magnitude of 15.8, with absolute magnitude of 6.1.

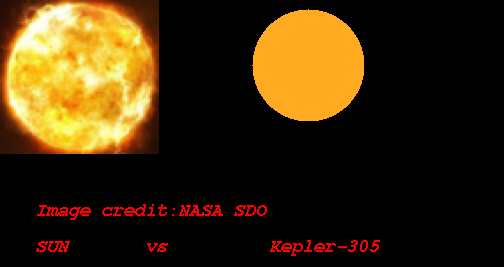

  • It is 0.8 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5080 with its spectral types of K1
  • In this planetary system, the extrasolar planet Kepler-305 d orbits around the star Kepler-305 every 16.7 days with its orbital distance of 0.12 AU ( 18101342.4 km)

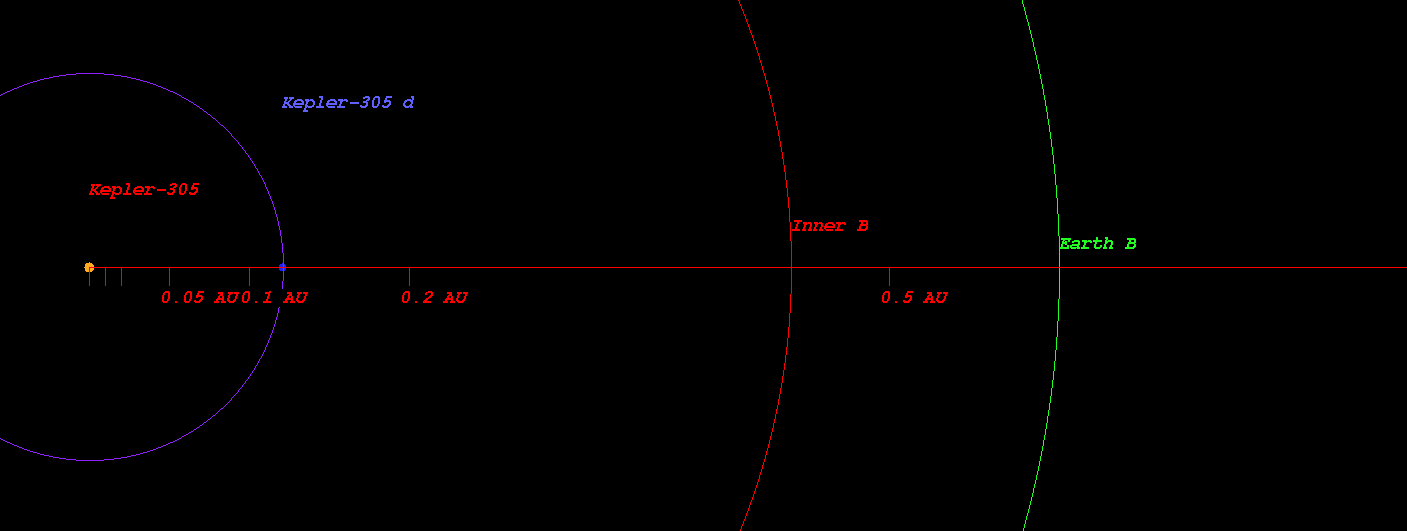

  • (Projected orbit of Kepler-305 d around its host star Kepler-305)


  • The Star Kepler-305 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.439 AU ( 65653093.4 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.607 AU ( 90749732.3 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.924 AU ( 138282509.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.360 AU ( 203488770.0 km)
  • Radiation at Planetary Boundary of Kepler-305 d : 34373.85 W/m2

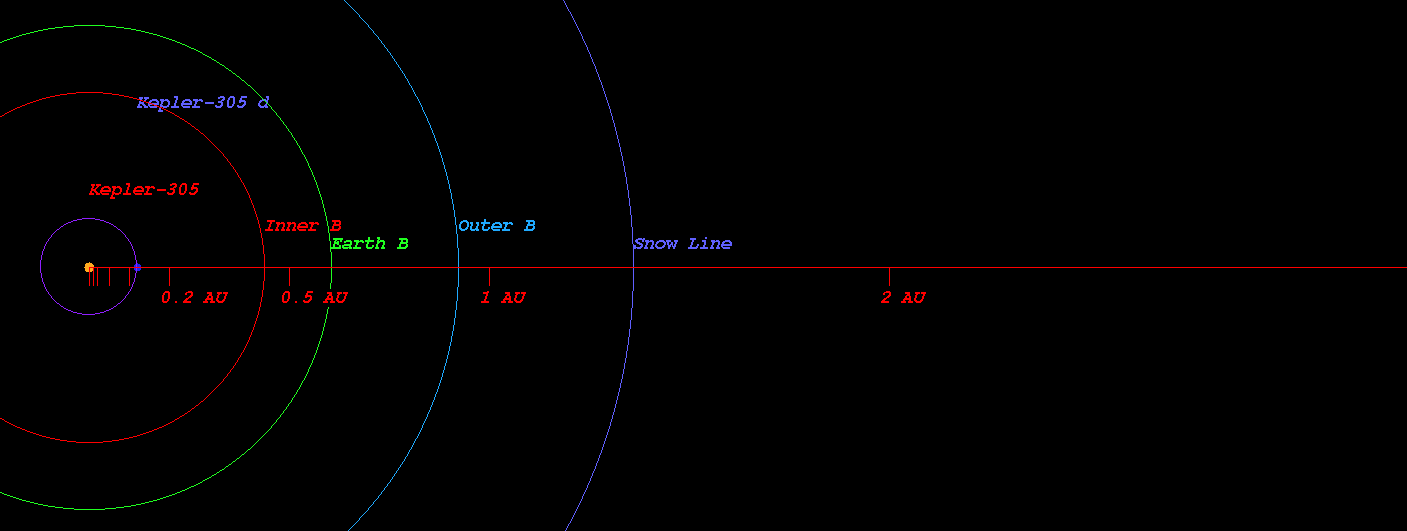

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-305)



  • Kopparapu Recent Venus for Star Kepler-305 distance : 0.473 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-305 distance : 0.599 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-305 distance : 0.578 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-305 distance : 0.635 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-305 distance : 1.082 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-305 distance : 1.141 AU

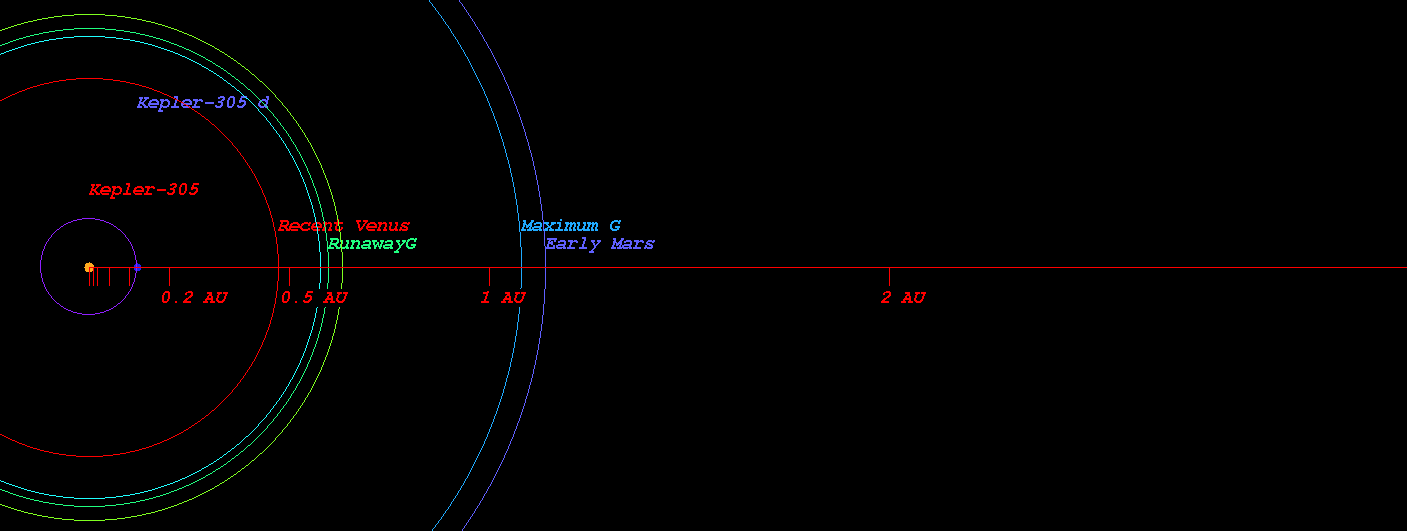

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-305)



  • Original Kopparapu Recent Venus for Star Kepler-305 distance : 0.468 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-305 distance : 0.617 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-305 distance : 0.620 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-305 distance : 1.100 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-305 distance : 1.144 AU

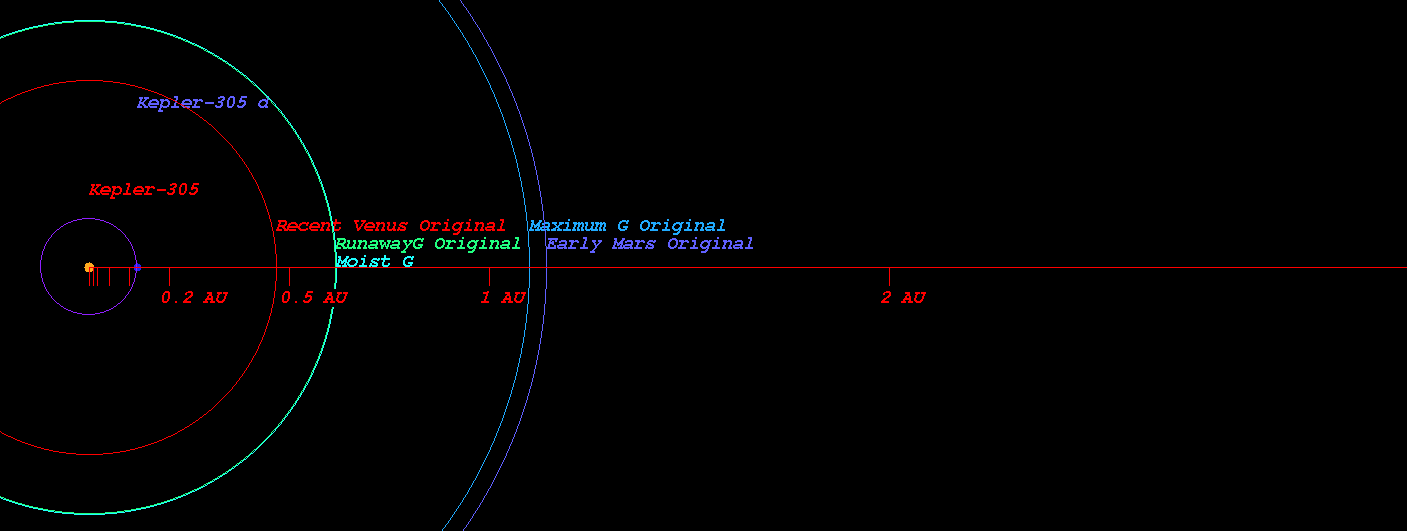

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-305)

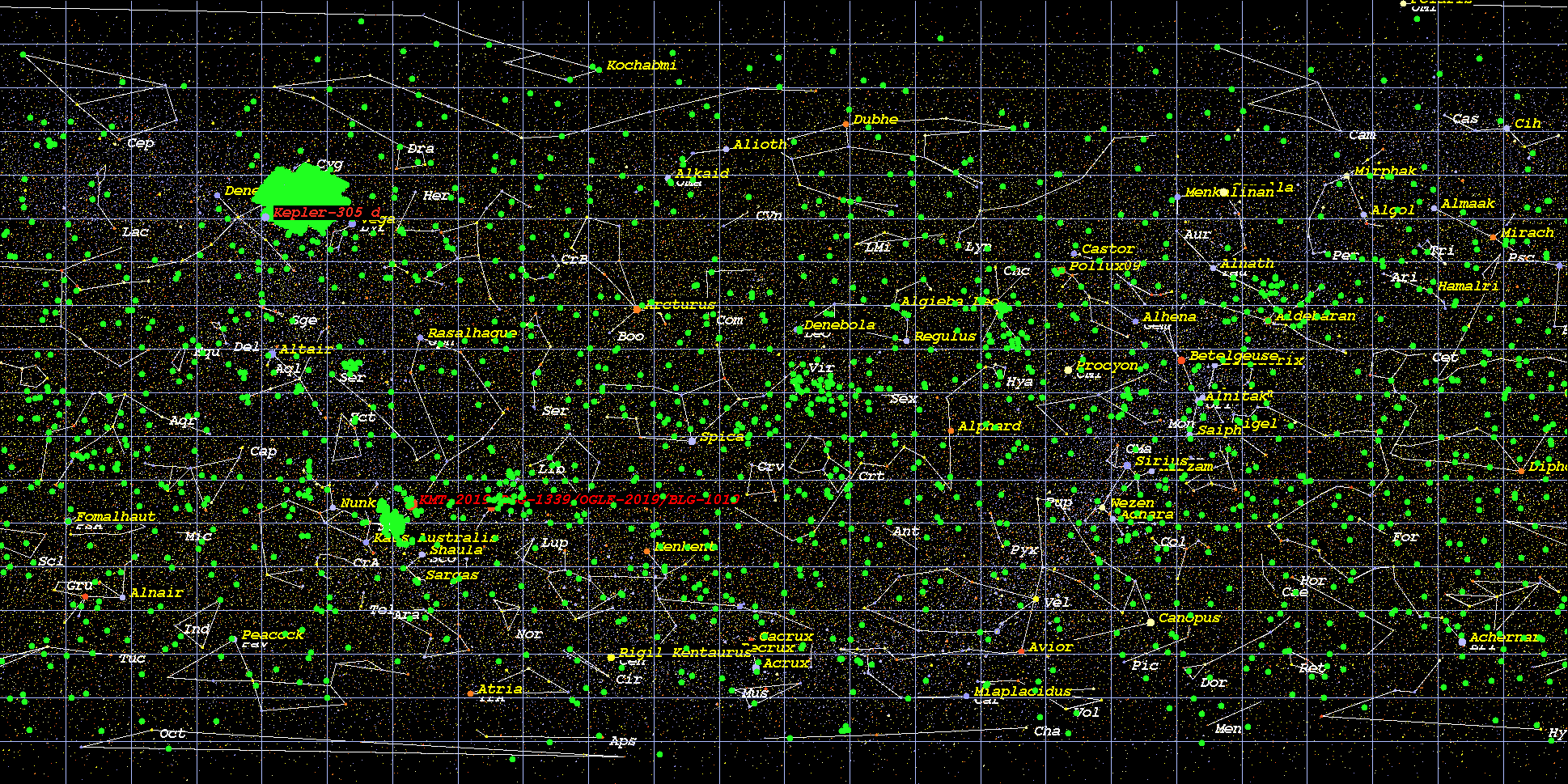

    (Position in Stellar Map of star Kepler-305 and its Exoplanet Kepler-305 d)

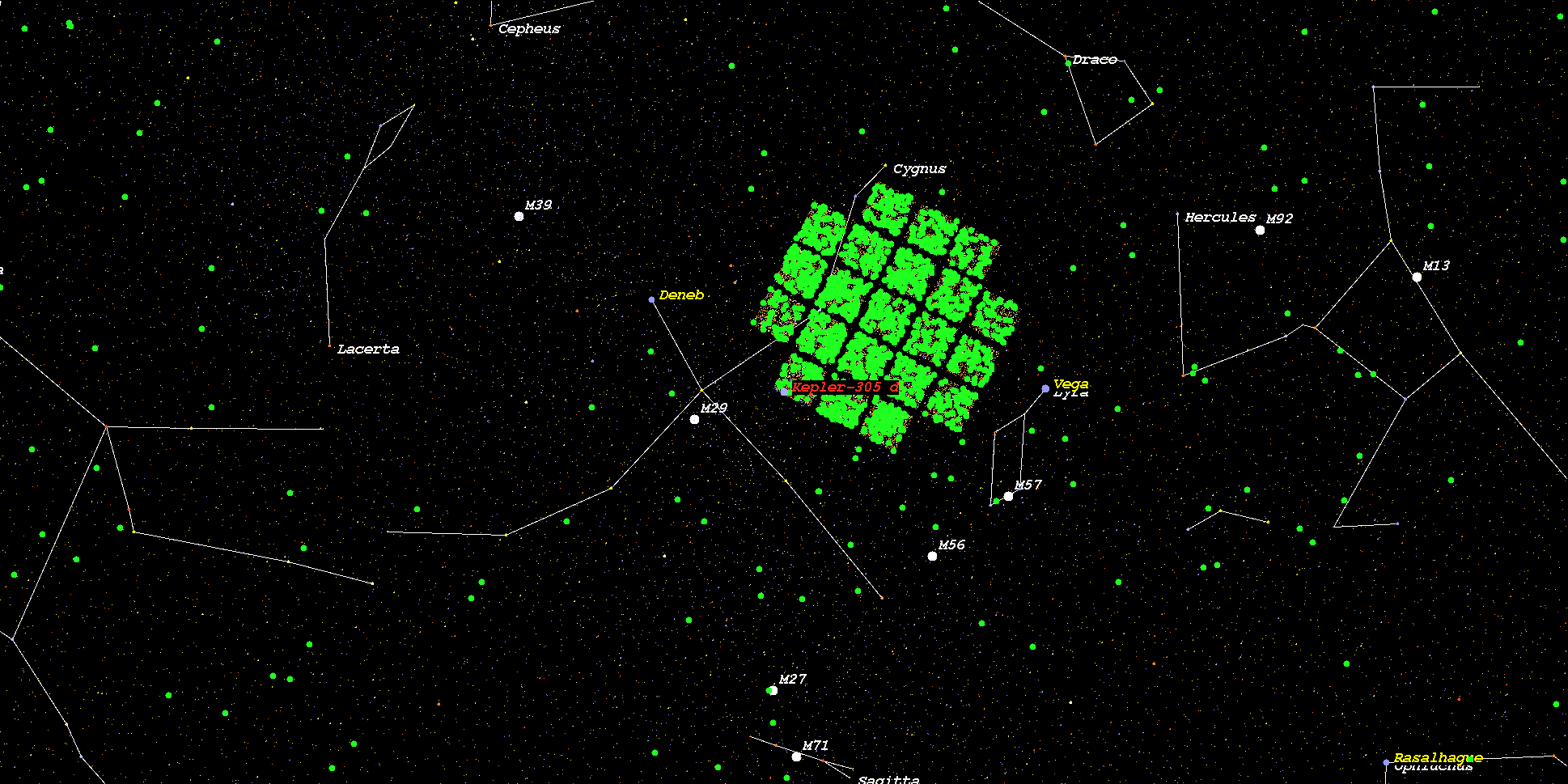

    (Zoomed position in Stellar Map of star Kepler-305 and its Exoplanet Kepler-305 d (zoom level 3))

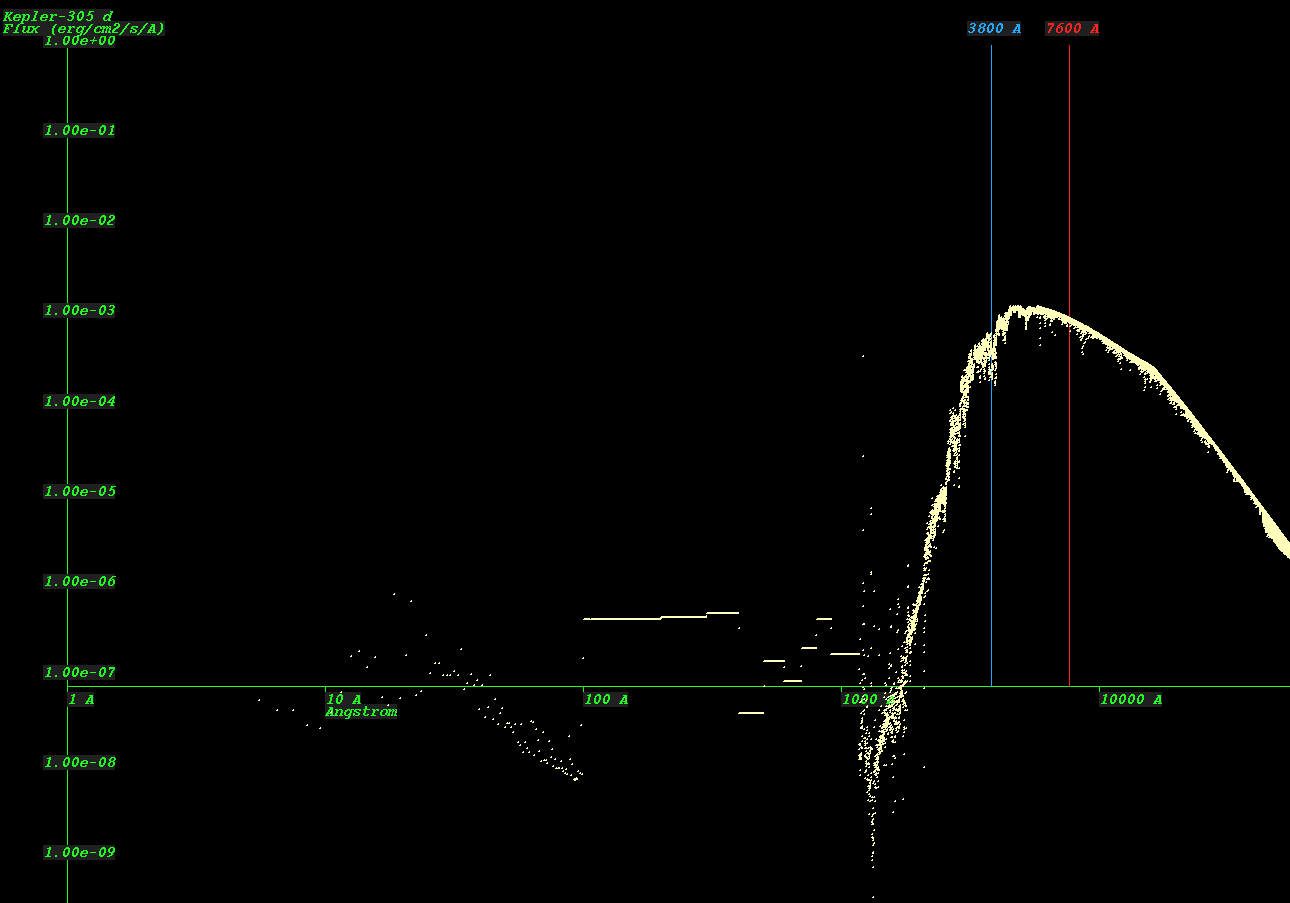

    (Synthetic Spectrum of star Kepler-305*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
