Imaginary Picture of Kepler-349 c

Display orbital revolution of Kepler-349 c around the hoststar Kepler-349
/
Exoplanet Name : Kepler-349 c
Alternate Name : "2MASS J19344235+4436560 c, K02022.02, KIC 8564674 c, KOI-2022 c, KOI-2022.02, WISE J193442.37+443656.2 c"
Status : Confirmed
Radius (Rjup / Re): 0.1750 (Rjup) 1.9616 (Rearth)
Mass (Mjup / Me): 0.0155 (Mjup) 4.9367 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.1050 (AU) 0.1050 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0335
Orbital Period(Observed/Estimated) 12.25 (Days Obs.) 12.62 (Days Est.)
Surface Gravity (G Earth) 1.2830
Star Radiation at Atmospheric Boundary: 129619.6 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 846.9 (K)
Blackbody T 0.3(K) 795.3 (K)
Blackbody T 0.7(K) 643.5 (K)
Tidally Locked Blackbody T 0.1(K) 1007.1 (K)
Tidally Locked Blackbody T 0.3(K) 945.8 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-349
Alternate Name : "2MASS J19344235+4436560, KIC 8564674, KOI-2022, WISE J193442.37+443656.2"
Star Distance(LY) : 3067.7
Stellar Radius(Rsun) : 1.0 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5884 (K)
Spectral type : G1
UV portion[%]: 0.3
Visible portion[%]: 1.5
IR portion[%]: 98.2
Metalicity : -0.1
Absolute Magnitude: 3.7
Apparent Magnitude: 13.6
Right Ascension(RA) 293.6765
Declination (DEC) 44.6156
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-349+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-349%20c/
Kepler-349 c
Kepler-349 c

  • Kepler-349 c is an exoplanet orbiting the star Kepler-349, located about 3067.7 light-years (940.6 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-349 has apparent magnitude of 13.6, with absolute magnitude of 3.7.
  • It is 1.0 times more massive and 1.0 times bigger compared with our Sun. The surface temperature is 5884 with its spectral types of G1
  • In this planetary system, the extrasolar planet Kepler-349 c orbits around the star Kepler-349 every 12.2 days with its orbital distance of 0.10 AU ( 15707776.4 km)

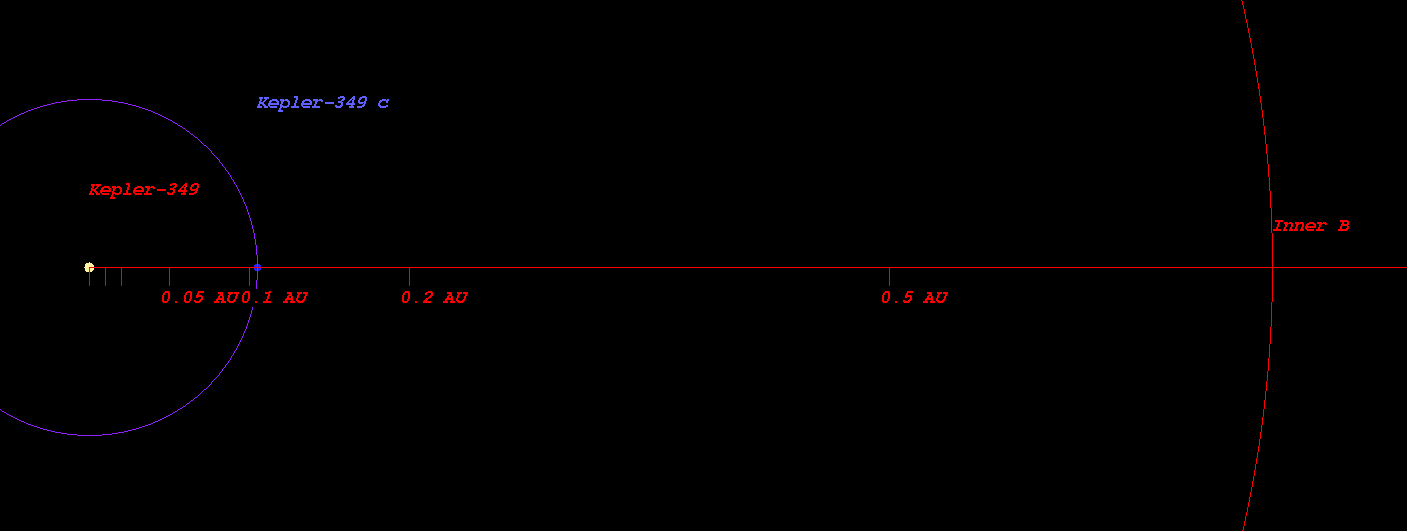

  • (Projected orbit of Kepler-349 c around its host star Kepler-349)


  • The Star Kepler-349 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.740 AU ( 110631896.0 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.022 AU ( 152922191.9 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.558 AU ( 233019578.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.292 AU ( 342898518.2 km)
  • Radiation at Planetary Boundary of Kepler-349 c : 129619.61 W/m2

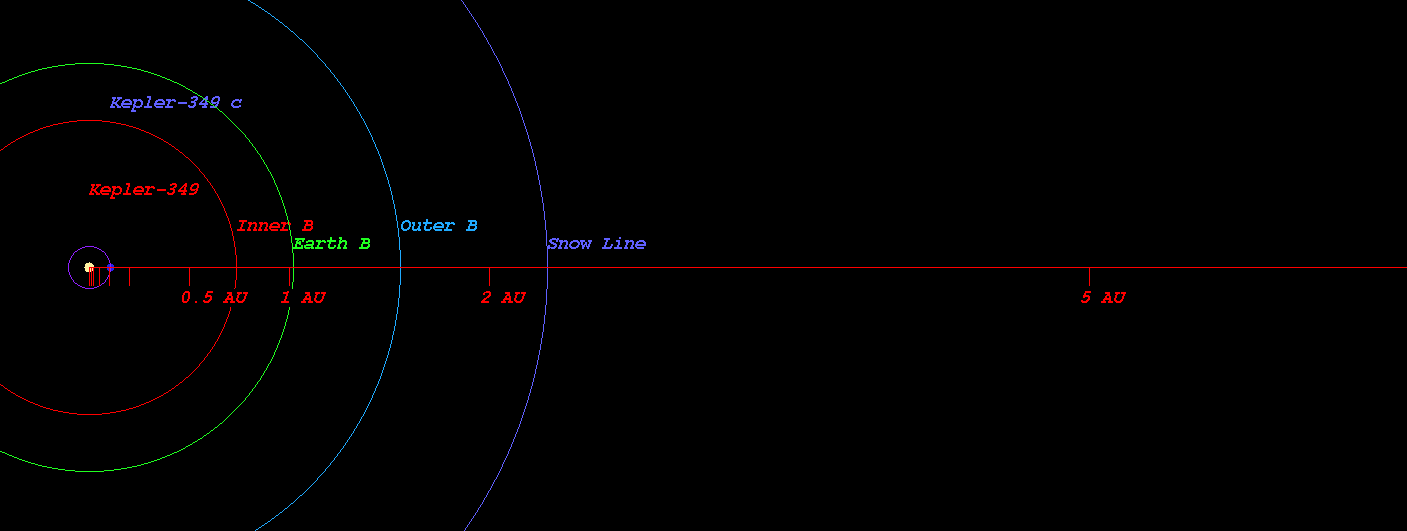

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-349)



  • Kopparapu Recent Venus for Star Kepler-349 distance : 0.762 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-349 distance : 0.964 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-349 distance : 0.931 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-349 distance : 1.021 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-349 distance : 1.698 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-349 distance : 1.791 AU

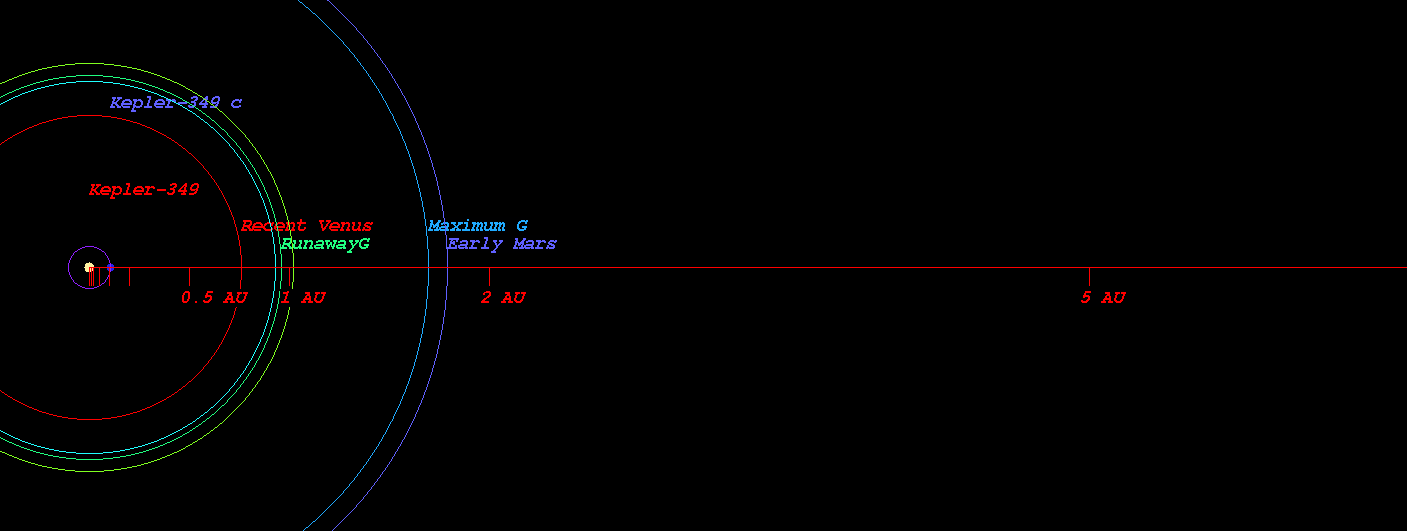

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-349)



  • Original Kopparapu Recent Venus for Star Kepler-349 distance : 0.764 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-349 distance : 0.991 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-349 distance : 1.011 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-349 distance : 1.728 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-349 distance : 1.798 AU

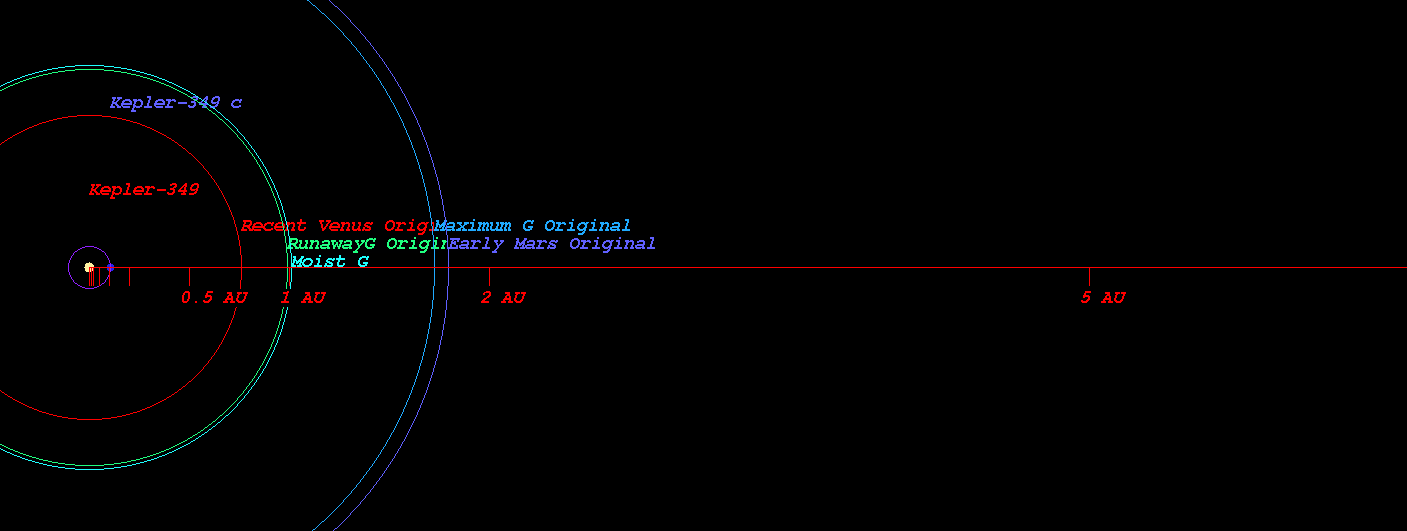

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-349)

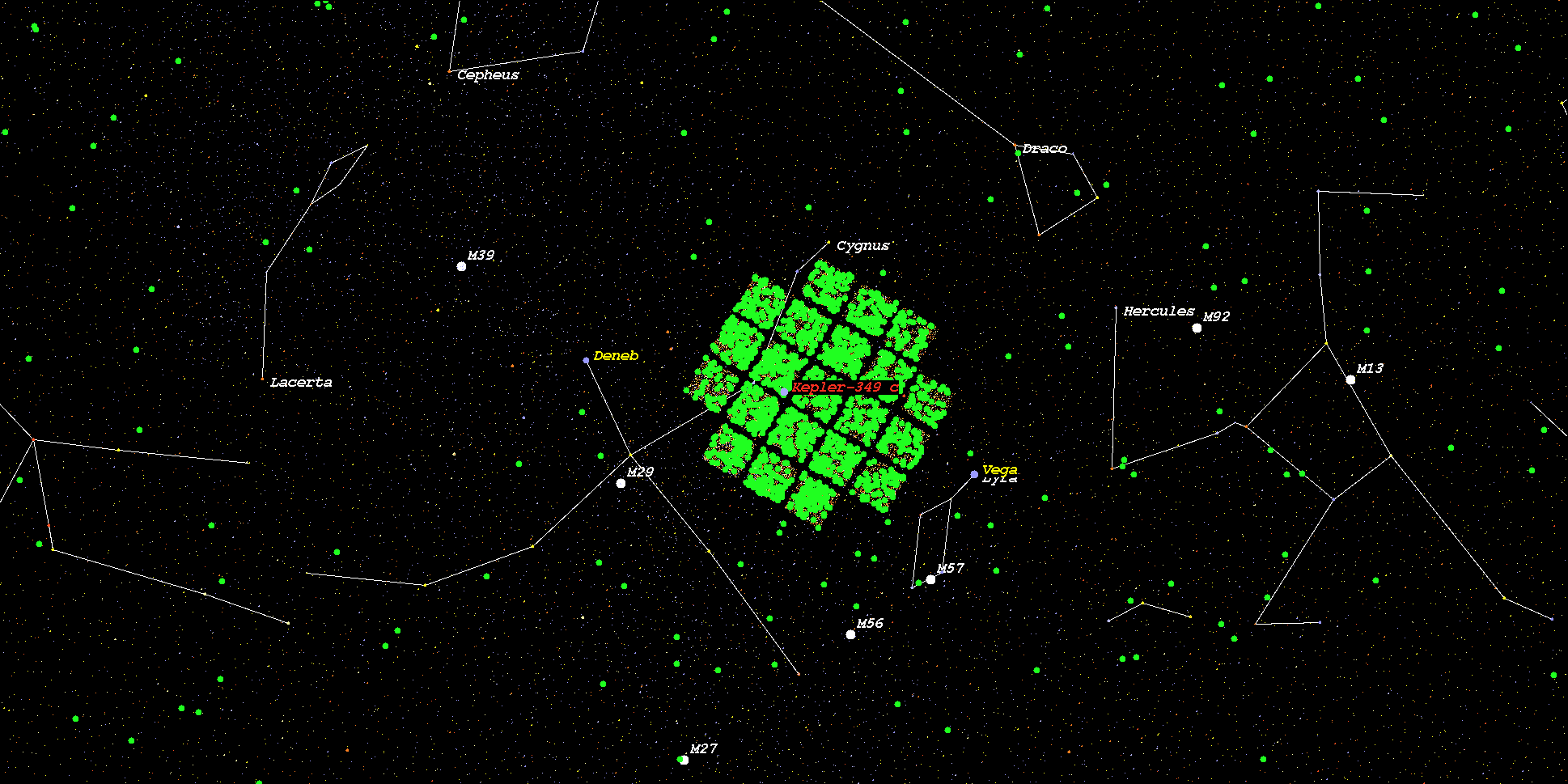

    (Position in Stellar Map of star Kepler-349 and its Exoplanet Kepler-349 c)



    (Zoomed position in Stellar Map of star Kepler-349 and its Exoplanet Kepler-349 c (zoom level 3))

    (Synthetic Spectrum of star Kepler-349*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
