Imaginary Picture of Kepler-362 b

Display orbital revolution of Kepler-362 b around the hoststar Kepler-362
/
Exoplanet Name : Kepler-362 b
Alternate Name : "2MASS J19270519+4731476 b, K02147.02, KIC 10404582 b, KOI-2147 b, KOI-2147.02, WISE J192705.18+473147.7 b"
Status : Confirmed
Radius (Rjup / Re): 0.0790 (Rjup) 0.8855 (Rearth)
Mass (Mjup / Me): 0.0020 (Mjup) 0.6346 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0870 (AU) 0.0870 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0283
Orbital Period(Observed/Estimated) 10.33 (Days Obs.) 10.68 (Days Est.)
Surface Gravity (G Earth) 0.8093
Star Radiation at Atmospheric Boundary: 326836.1 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1067.1 (K)
Blackbody T 0.3(K) 1002.2 (K)
Blackbody T 0.7(K) 810.9 (K)
Tidally Locked Blackbody T 0.1(K) 1269.1 (K)
Tidally Locked Blackbody T 0.3(K) 1191.8 (K)
Size Class: Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-362
Alternate Name : "2MASS J19270519+4731476, KIC 10404582, KOI-2147, WISE J192705.18+473147.7"
Star Distance(LY) : 3572.8
Stellar Radius(Rsun) : 1.4 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.8 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5626 (K)
Spectral type : G2
UV portion[%]: 7.4
Visible portion[%]: 44.0
IR portion[%]: 48.6
Metalicity : -0.7
Absolute Magnitude: 3.1
Apparent Magnitude: 13.3
Right Ascension(RA) 291.7716
Declination (DEC) 47.5299
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-362+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-362%20b/
Kepler-362 b
Kepler-362 b

  • Kepler-362 b is an exoplanet orbiting the star Kepler-362, located about 3572.8 light-years (1095.4 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-362 has apparent magnitude of 13.3, with absolute magnitude of 3.1.
  • It is 0.8 times more massive and 1.4 times bigger compared with our Sun. The surface temperature is 5626 with its spectral types of G2
  • In this planetary system, the extrasolar planet Kepler-362 b orbits around the star Kepler-362 every 10.3 days with its orbital distance of 0.09 AU ( 13015014.8 km)
  • (Projected orbit of Kepler-362 b around its host star Kepler-362)

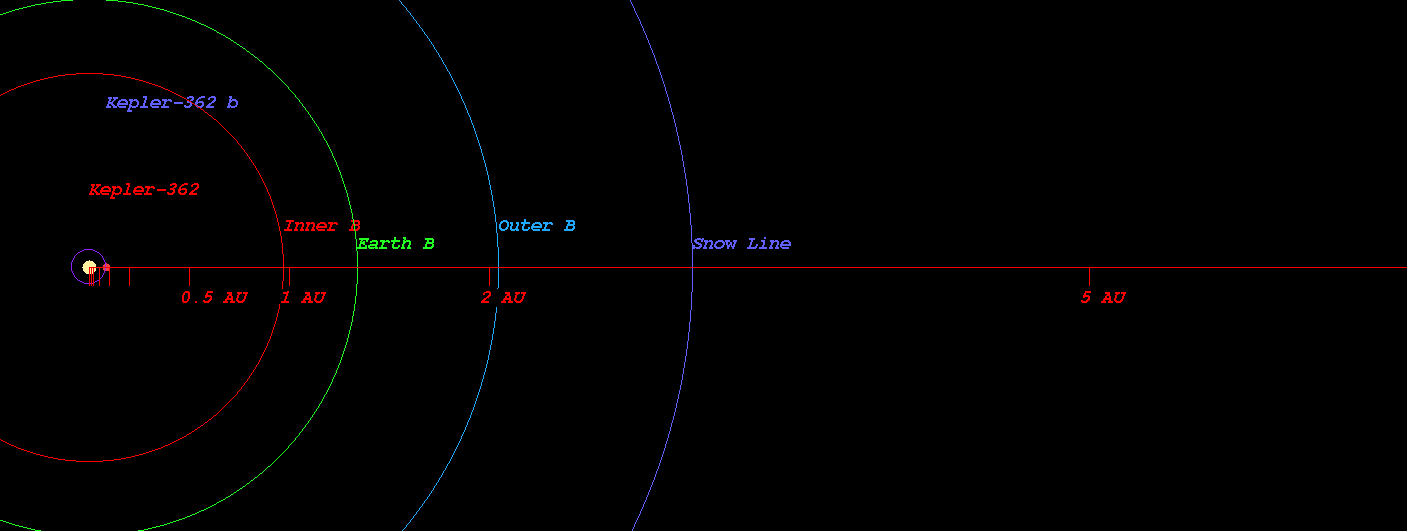

  • The Star Kepler-362 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.973 AU ( 145559301.7 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.345 AU ( 201200994.2 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.049 AU ( 306585789.5 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.016 AU ( 451154419.9 km)
  • Radiation at Planetary Boundary of Kepler-362 b : 326836.09 W/m2

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-362)

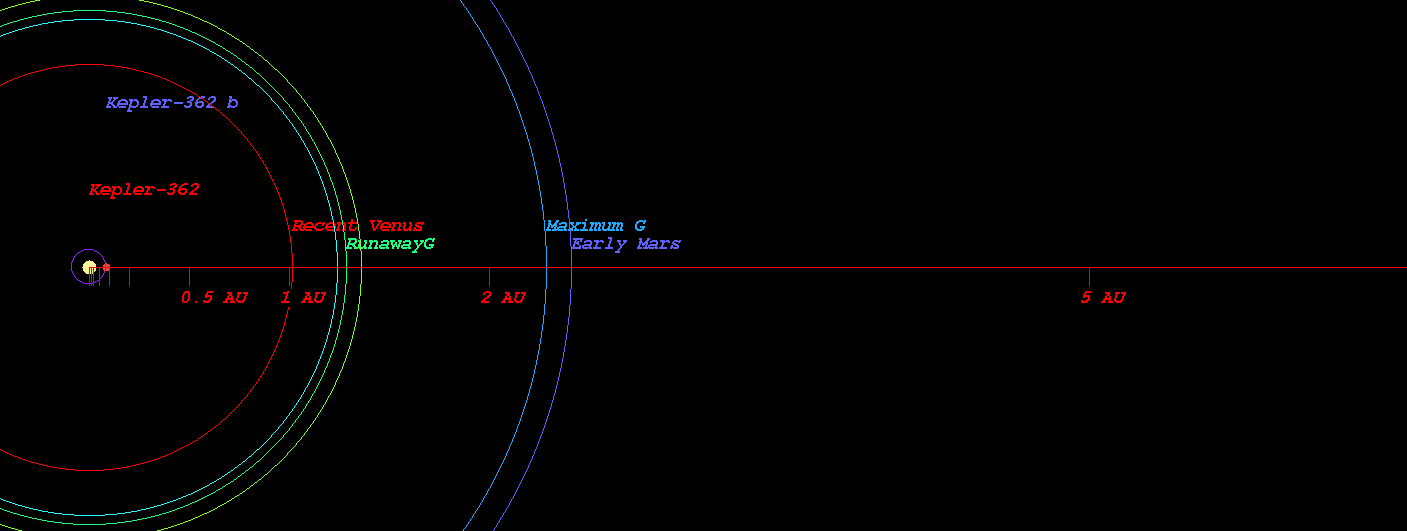

  • Kopparapu Recent Venus for Star Kepler-362 distance : 1.018 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-362 distance : 1.289 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-362 distance : 1.245 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-362 distance : 1.365 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-362 distance : 2.285 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-362 distance : 2.410 AU

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-362)

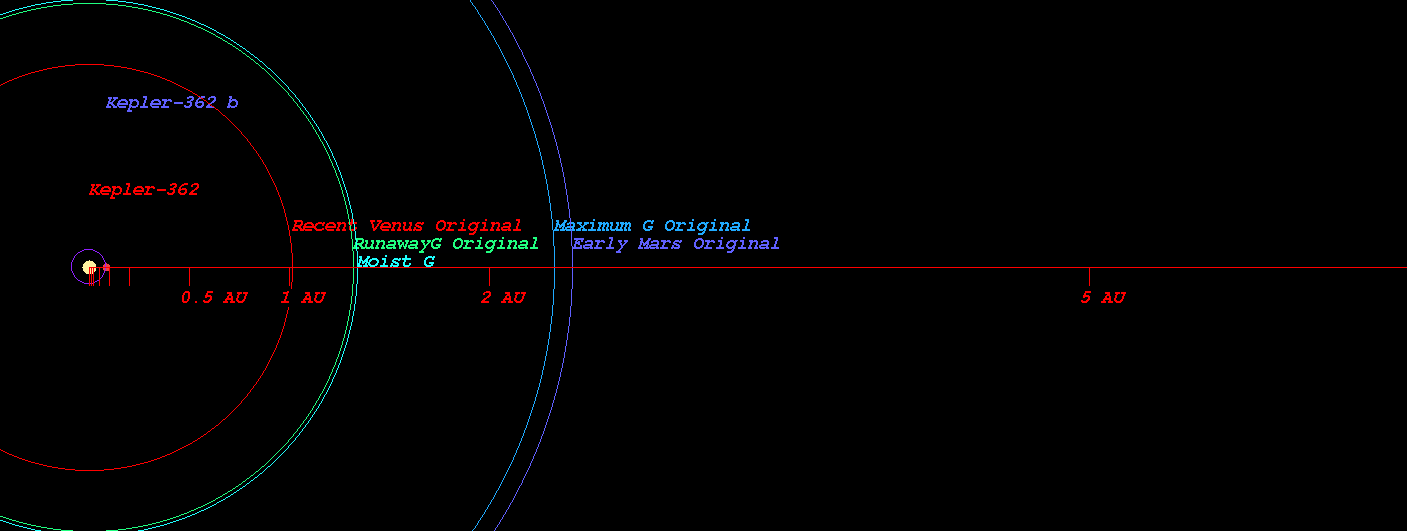

  • Original Kopparapu Recent Venus for Star Kepler-362 distance : 1.016 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-362 distance : 1.325 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-362 distance : 1.344 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-362 distance : 2.325 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-362 distance : 2.418 AU

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-362)

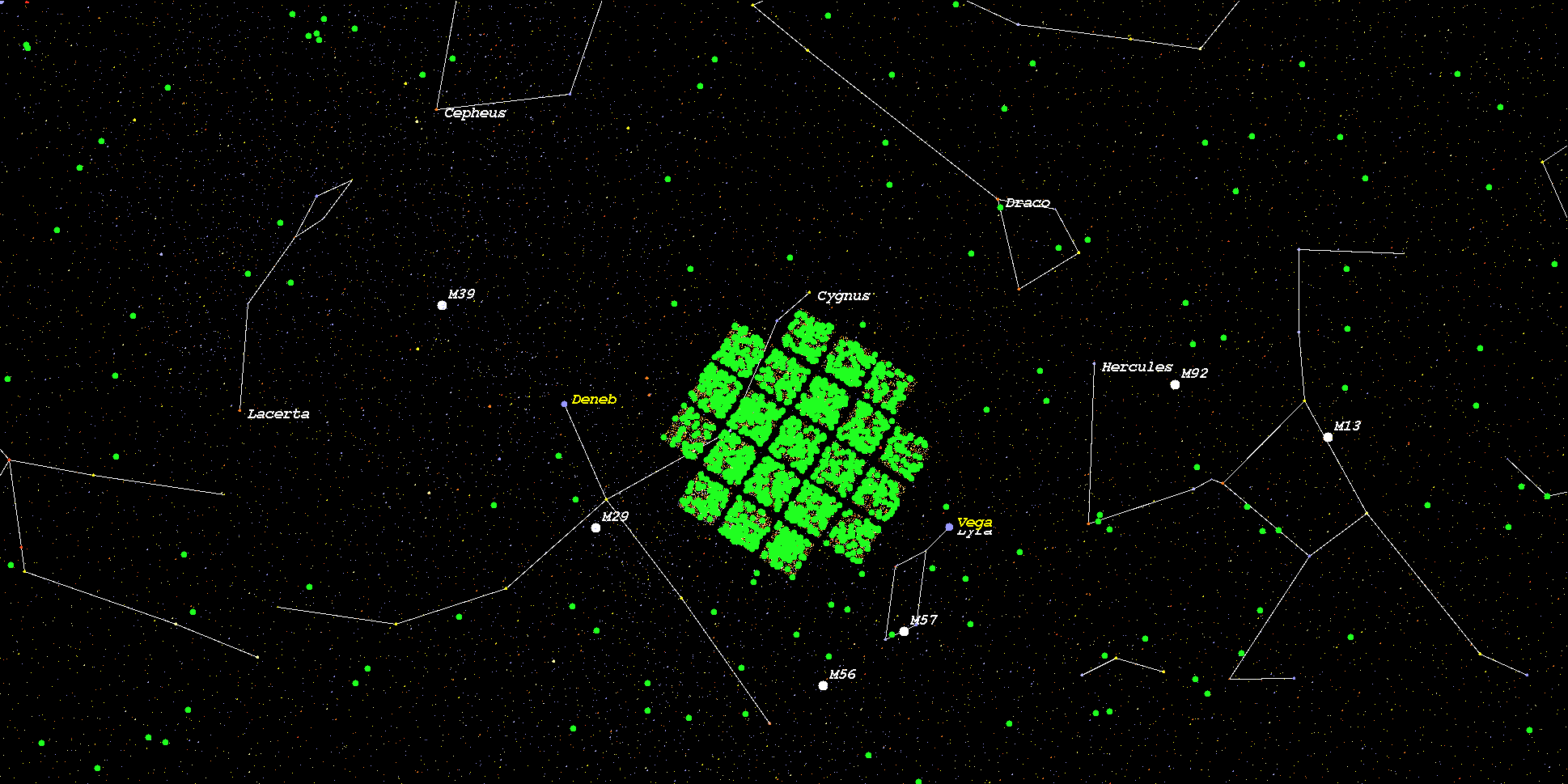

    (Position in Stellar Map of star Kepler-362 and its Exoplanet Kepler-362 b)



    (Zoomed position in Stellar Map of star Kepler-362 and its Exoplanet Kepler-362 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-362*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
