Imaginary Picture of Kepler-363 c

Display orbital revolution of Kepler-363 c around the hoststar Kepler-363
/
Exoplanet Name : Kepler-363 c
Alternate Name : "2MASS J18524609+4118194 c, K02148.02, KIC 6021193 c, KOI-2148 c, KOI-2148.02, WISE J185246.09+411819.4 c"
Status : Confirmed
Radius (Rjup / Re): 0.1510 (Rjup) 1.6926 (Rearth)
Mass (Mjup / Me): 0.0135 (Mjup) 4.3039 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0790 (AU) 0.0790 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0206
Orbital Period(Observed/Estimated) 7.54 (Days Obs.) 7.31 (Days Est.)
Surface Gravity (G Earth) 1.5024
Star Radiation at Atmospheric Boundary: 518944.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1197.9 (K)
Blackbody T 0.3(K) 1125.0 (K)
Blackbody T 0.7(K) 910.2 (K)
Tidally Locked Blackbody T 0.1(K) 1424.6 (K)
Tidally Locked Blackbody T 0.3(K) 1337.8 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-363
Alternate Name : "2MASS J18524609+4118194, KIC 6021193, KOI-2148, WISE J185246.09+411819.4"
Star Distance(LY) : 2485.9
Stellar Radius(Rsun) : 1.6 (Rsun Measured)
Stellar Mass(Msun) : 1.2 (Msun Measured) 1.2 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5648 (K)
Spectral type : G6
UV portion[%]: 7.4
Visible portion[%]: 44.1
IR portion[%]: 48.4
Metalicity : 0.3
Absolute Magnitude: 2.7
Apparent Magnitude: 12.1
Right Ascension(RA) 283.1921
Declination (DEC) 41.3054
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-363+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-363%20c/
Kepler-363 c
Kepler-363 c

  • Kepler-363 c is an exoplanet orbiting the star Kepler-363, located about 2485.9 light-years (762.2 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-363 has apparent magnitude of 12.1, with absolute magnitude of 2.7.
  • It is 1.2 times more massive and 1.6 times bigger compared with our Sun. The surface temperature is 5648 with its spectral types of G6
  • In this planetary system, the extrasolar planet Kepler-363 c orbits around the star Kepler-363 every 7.5 days with its orbital distance of 0.08 AU ( 11818231.8 km)

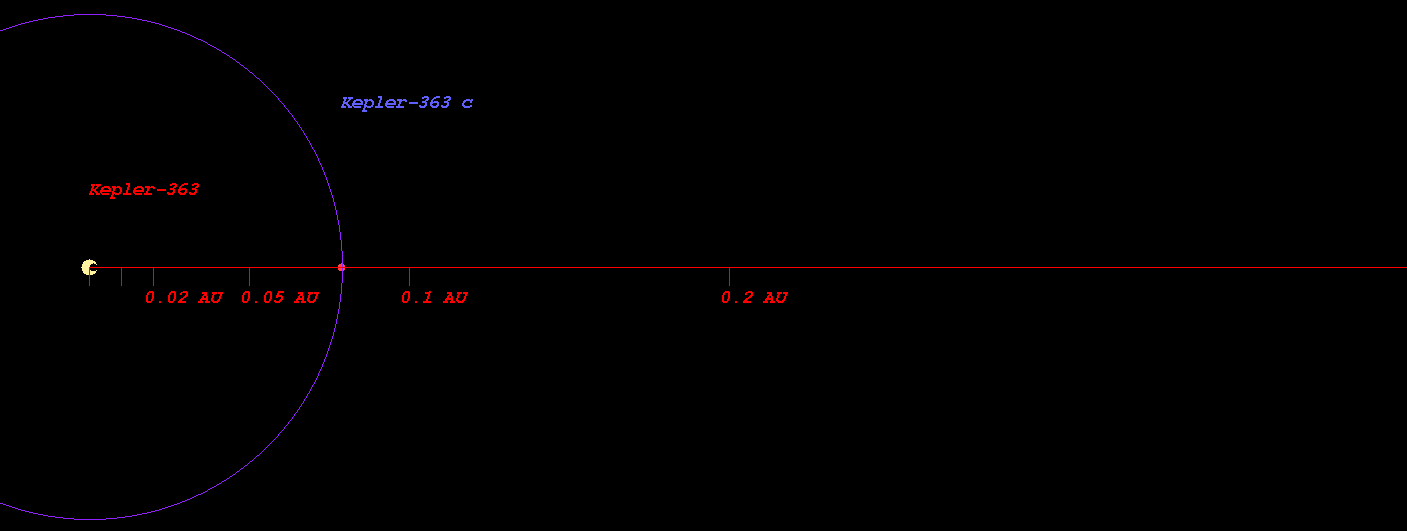

  • (Projected orbit of Kepler-363 c around its host star Kepler-363)


  • The Star Kepler-363 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.113 AU ( 166549383.3 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.539 AU ( 230214772.3 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.345 AU ( 350796366.6 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.451 AU ( 516212220.8 km)
  • Radiation at Planetary Boundary of Kepler-363 c : 518943.96 W/m2

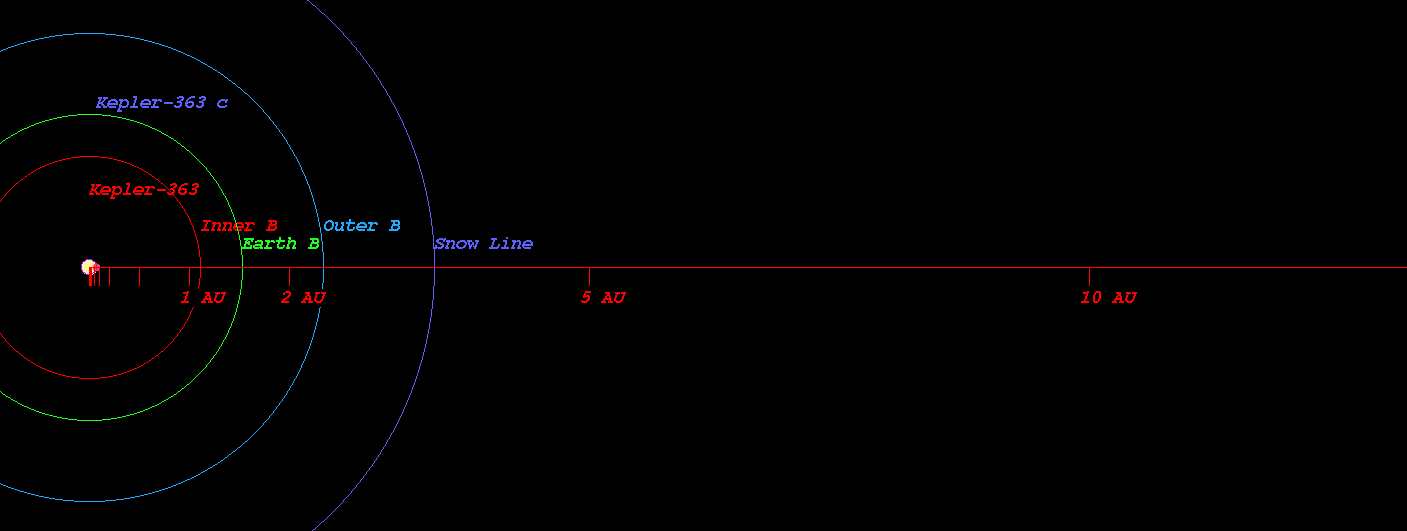

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-363)



  • Kopparapu Recent Venus for Star Kepler-363 distance : 1.163 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-363 distance : 1.473 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-363 distance : 1.422 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-363 distance : 1.560 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-363 distance : 2.610 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-363 distance : 2.753 AU

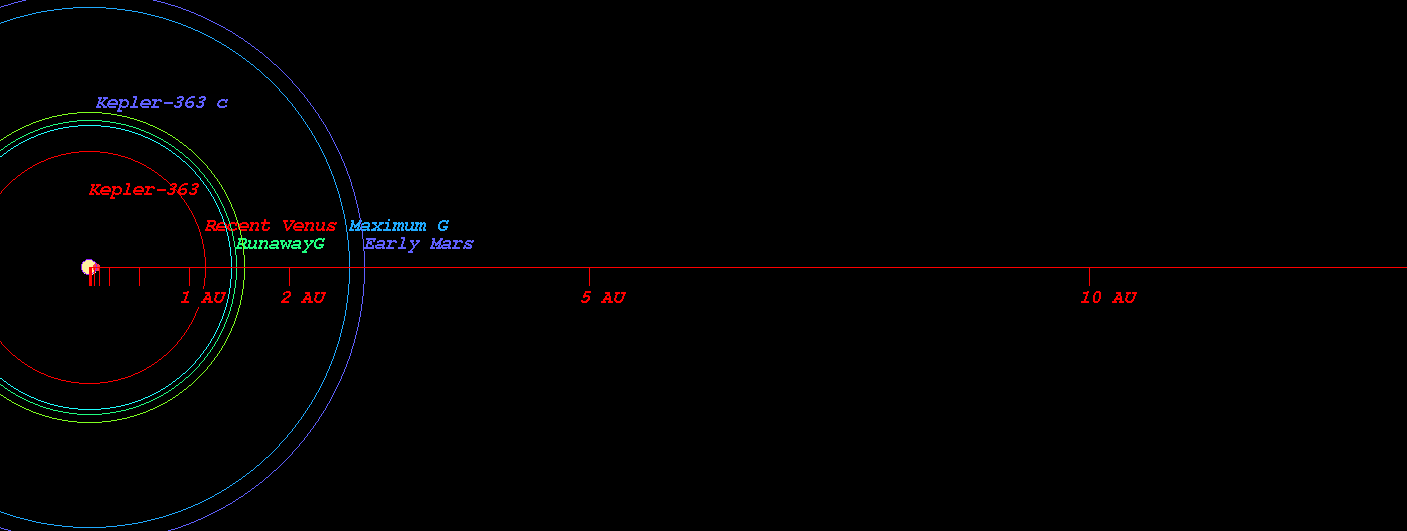

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-363)



  • Original Kopparapu Recent Venus for Star Kepler-363 distance : 1.161 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-363 distance : 1.514 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-363 distance : 1.537 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-363 distance : 2.655 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-363 distance : 2.761 AU

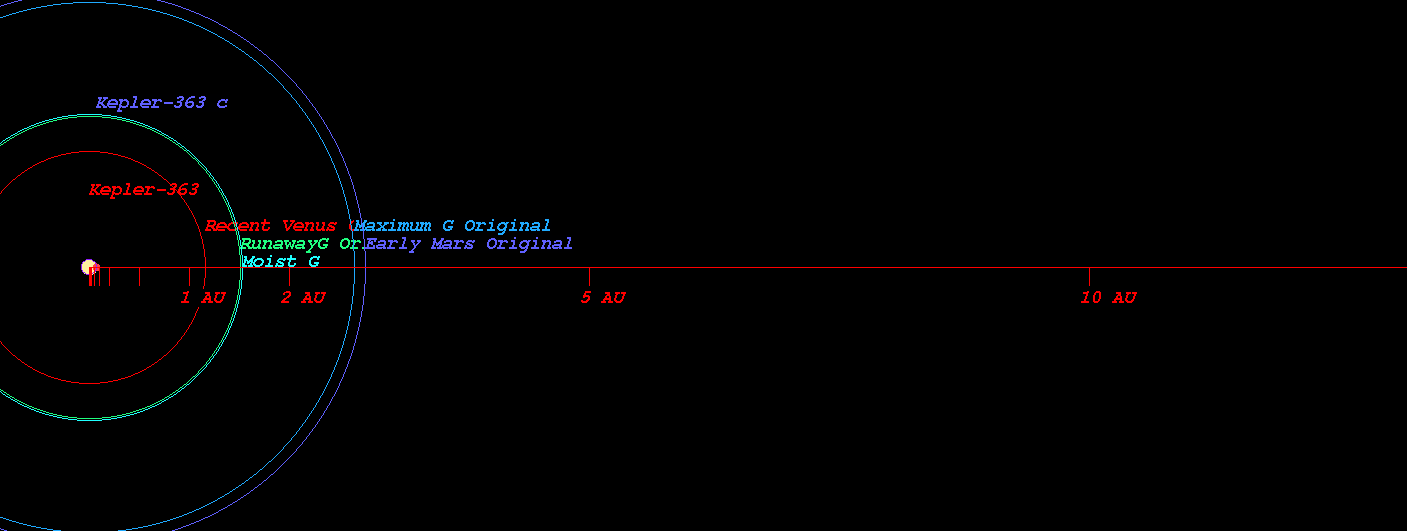

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-363)

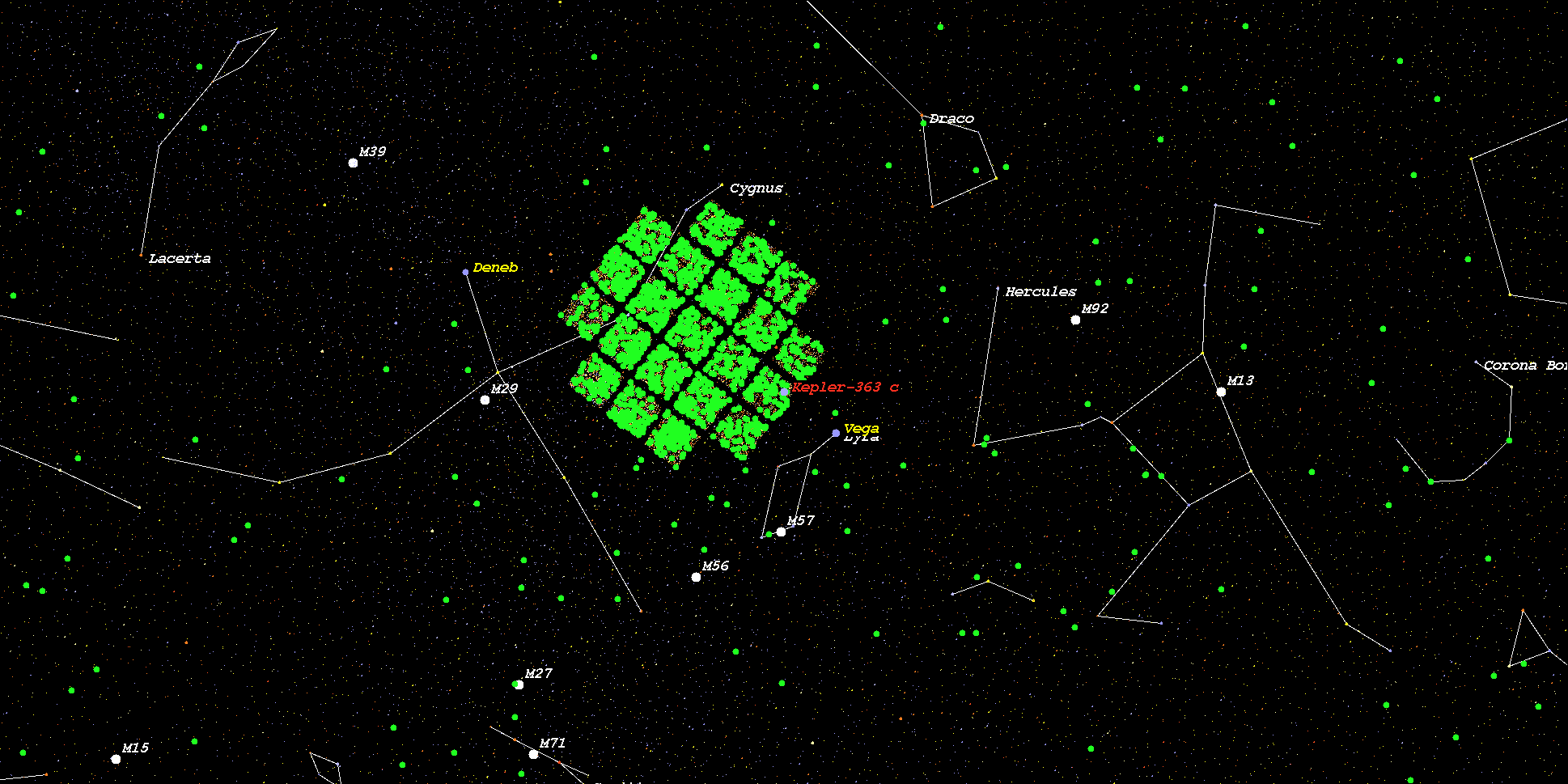

    (Position in Stellar Map of star Kepler-363 and its Exoplanet Kepler-363 c)



    (Zoomed position in Stellar Map of star Kepler-363 and its Exoplanet Kepler-363 c (zoom level 3))

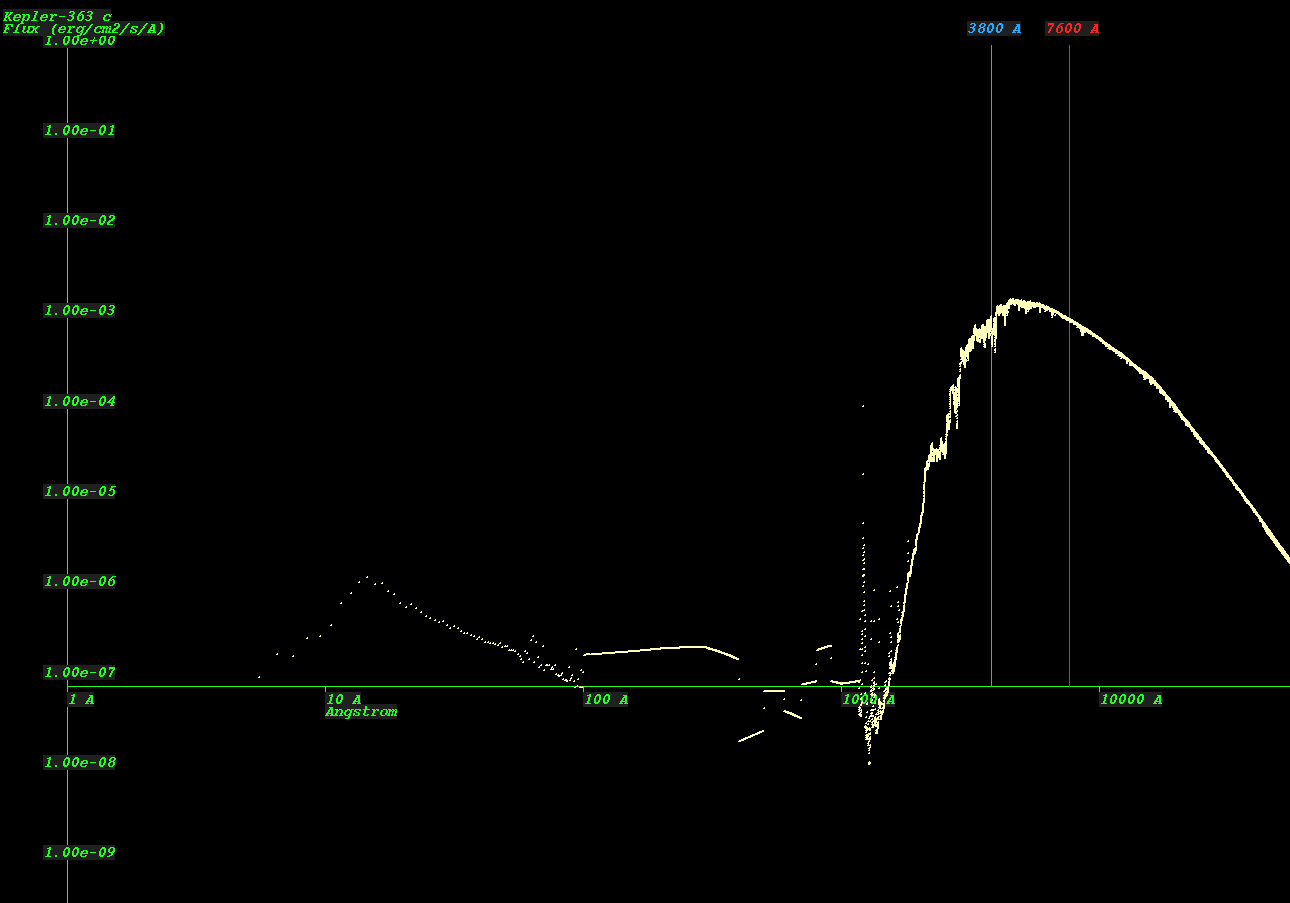

    (Synthetic Spectrum of star Kepler-363*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
