Imaginary Picture of Kepler-367 c

Display orbital revolution of Kepler-367 c around the hoststar Kepler-367
/
Exoplanet Name : Kepler-367 c
Alternate Name : "2MASS J19491018+4958538 c, K02173.02, KIC 11774991 c, KOI-2173 c, KOI-2173.02, WISE J194910.20+495854.1 c"
Status : Confirmed
Radius (Rjup / Re): 0.1070 (Rjup) 1.1994 (Rearth)
Mass (Mjup / Me): 0.0059 (Mjup) 1.8826 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.2530 (AU) 0.2530 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.1467
Orbital Period(Observed/Estimated) 53.58 (Days Obs.) 53.67 (Days Est.)
Surface Gravity (G Earth) 1.3088
Star Radiation at Atmospheric Boundary: 5188.2 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 378.8 (K)
Blackbody T 0.3(K) 355.7 (K)
Blackbody T 0.7(K) 287.8 (K)
Tidally Locked Blackbody T 0.1(K) 450.5 (K)
Tidally Locked Blackbody T 0.3(K) 423.0 (K)
Size Class: Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-367
Alternate Name : "2MASS J19491018+4958538, KIC 11774991, KOI-2173, WISE J194910.20+495854.1"
Star Distance(LY) : 613.2
Stellar Radius(Rsun) : 0.7 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.8 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 4859 (K)
Spectral type : K3
UV portion[%]: 2.6
Visible portion[%]: 35.8
IR portion[%]: 61.5
Metalicity : 0.2
Absolute Magnitude: 4.9
Apparent Magnitude: 11.2
Right Ascension(RA) 297.2924
Declination (DEC) 49.9816
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-367+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-367%20c/
Kepler-367 c
Kepler-367 c

  • Kepler-367 c is an exoplanet orbiting the star Kepler-367, located about 613.2 light-years (188.0 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-367 has apparent magnitude of 11.2, with absolute magnitude of 4.9.
  • It is 0.8 times more massive and 0.7 times bigger compared with our Sun. The surface temperature is 4859 with its spectral types of K3
  • In this planetary system, the extrasolar planet Kepler-367 c orbits around the star Kepler-367 every 53.6 days with its orbital distance of 0.25 AU ( 37848261.3 km)

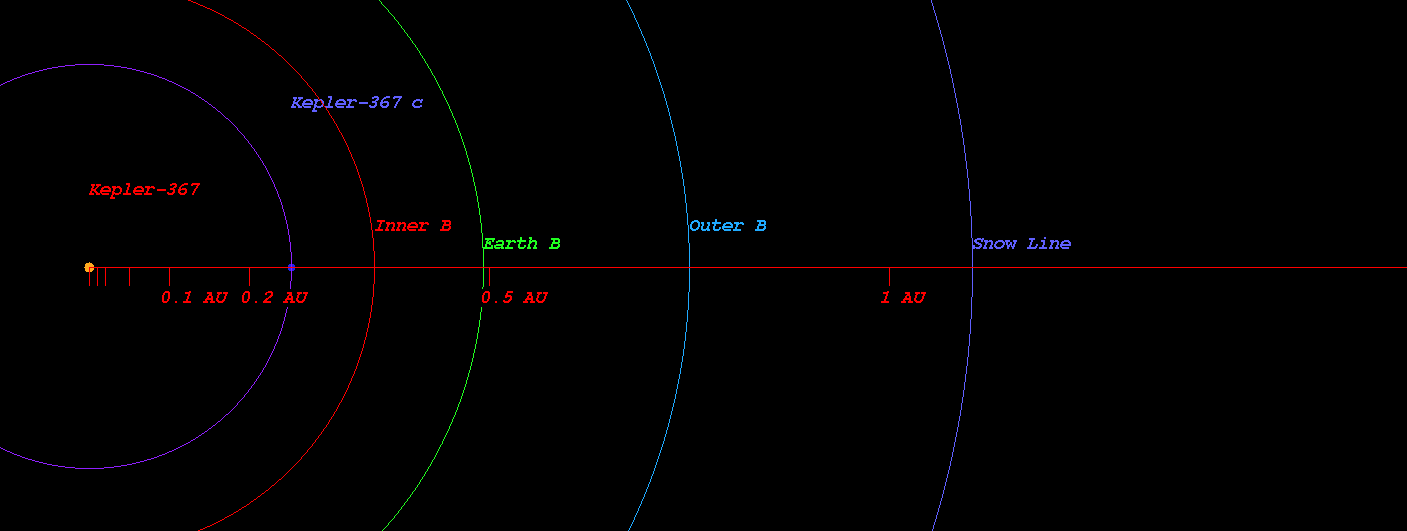

  • (Projected orbit of Kepler-367 c around its host star Kepler-367)


  • The Star Kepler-367 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.356 AU ( 53331609.3 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.493 AU ( 73718221.2 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.751 AU ( 112330255.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.105 AU ( 165298891.6 km)
  • Radiation at Planetary Boundary of Kepler-367 c : 5188.20 W/m2

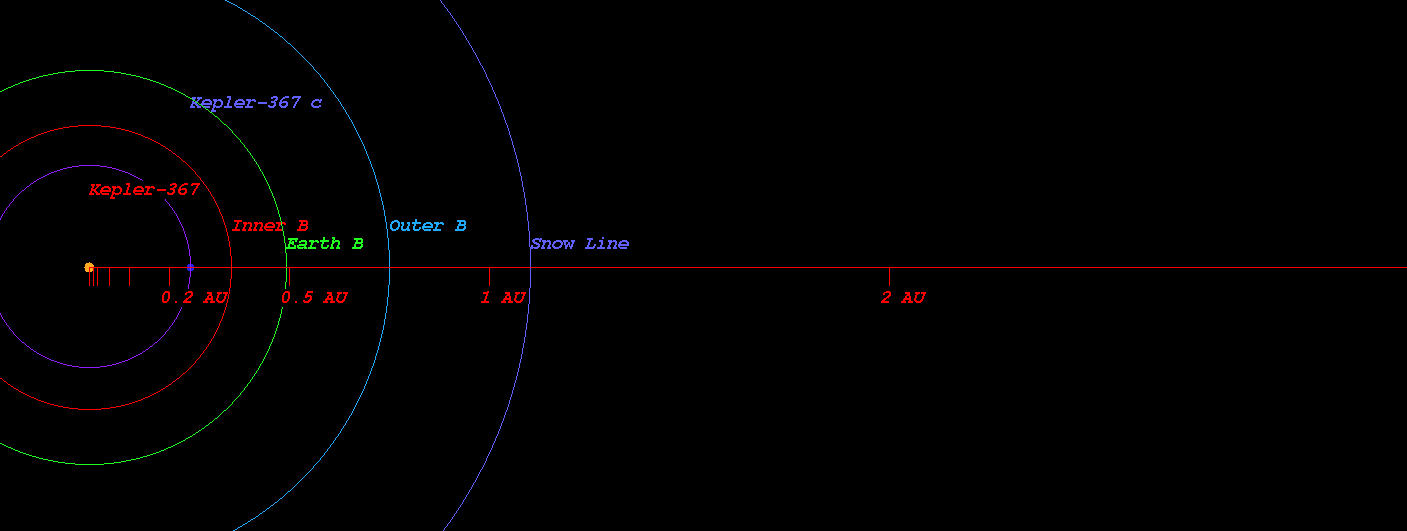

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-367)



  • Kopparapu Recent Venus for Star Kepler-367 distance : 0.388 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-367 distance : 0.491 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-367 distance : 0.475 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-367 distance : 0.521 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-367 distance : 0.896 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-367 distance : 0.945 AU

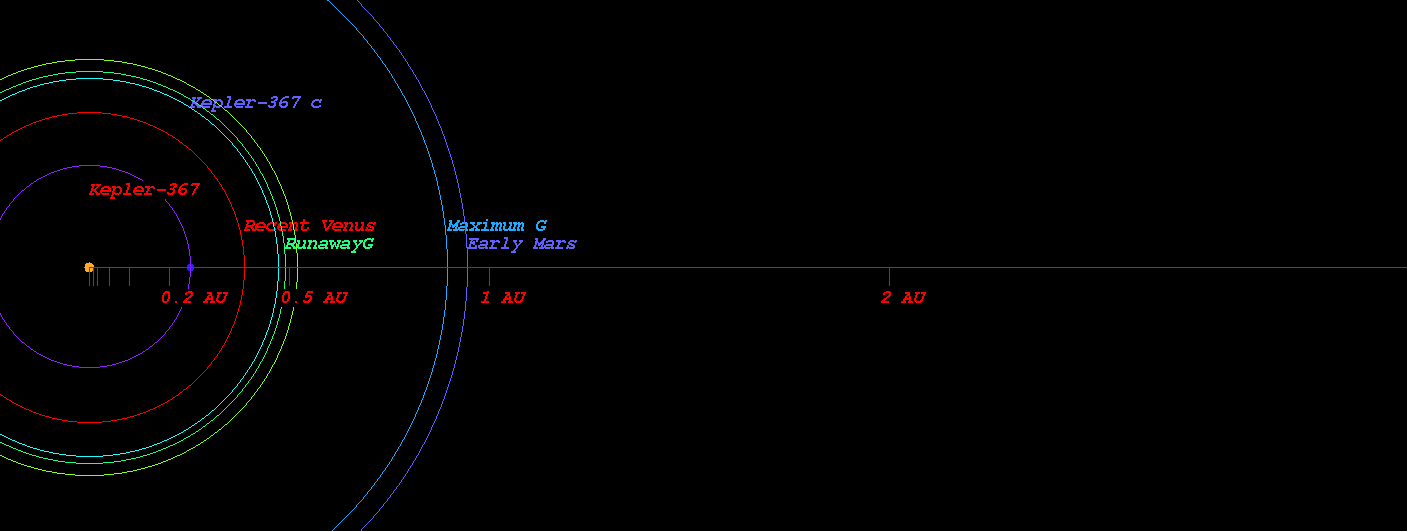

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-367)



  • Original Kopparapu Recent Venus for Star Kepler-367 distance : 0.384 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-367 distance : 0.507 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-367 distance : 0.508 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-367 distance : 0.911 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-367 distance : 0.947 AU

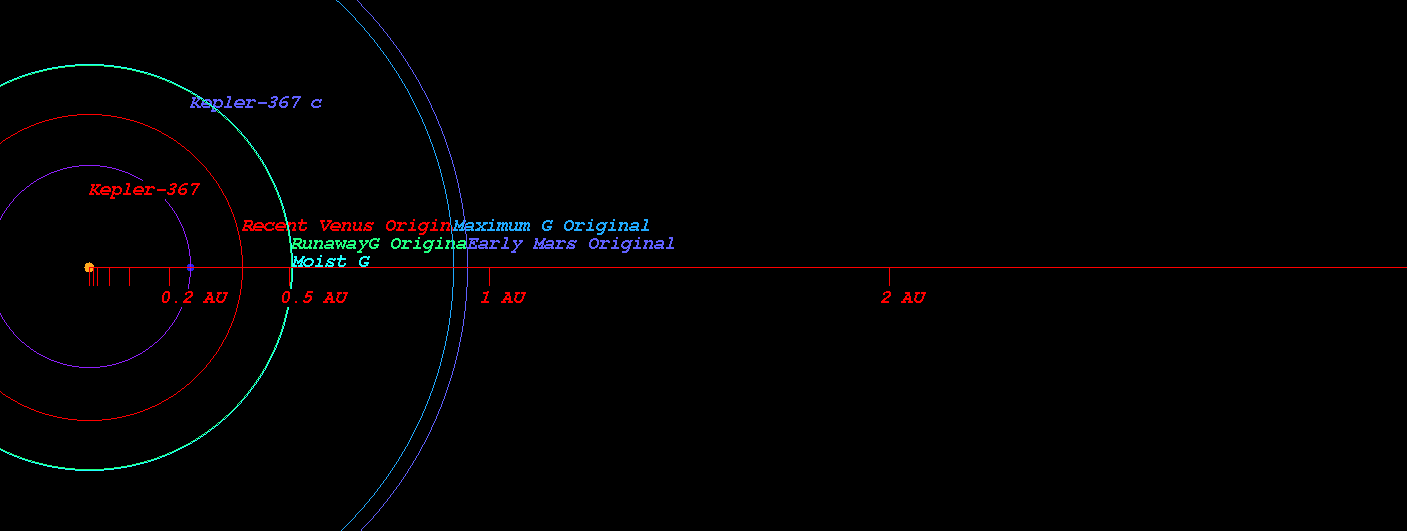

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-367)

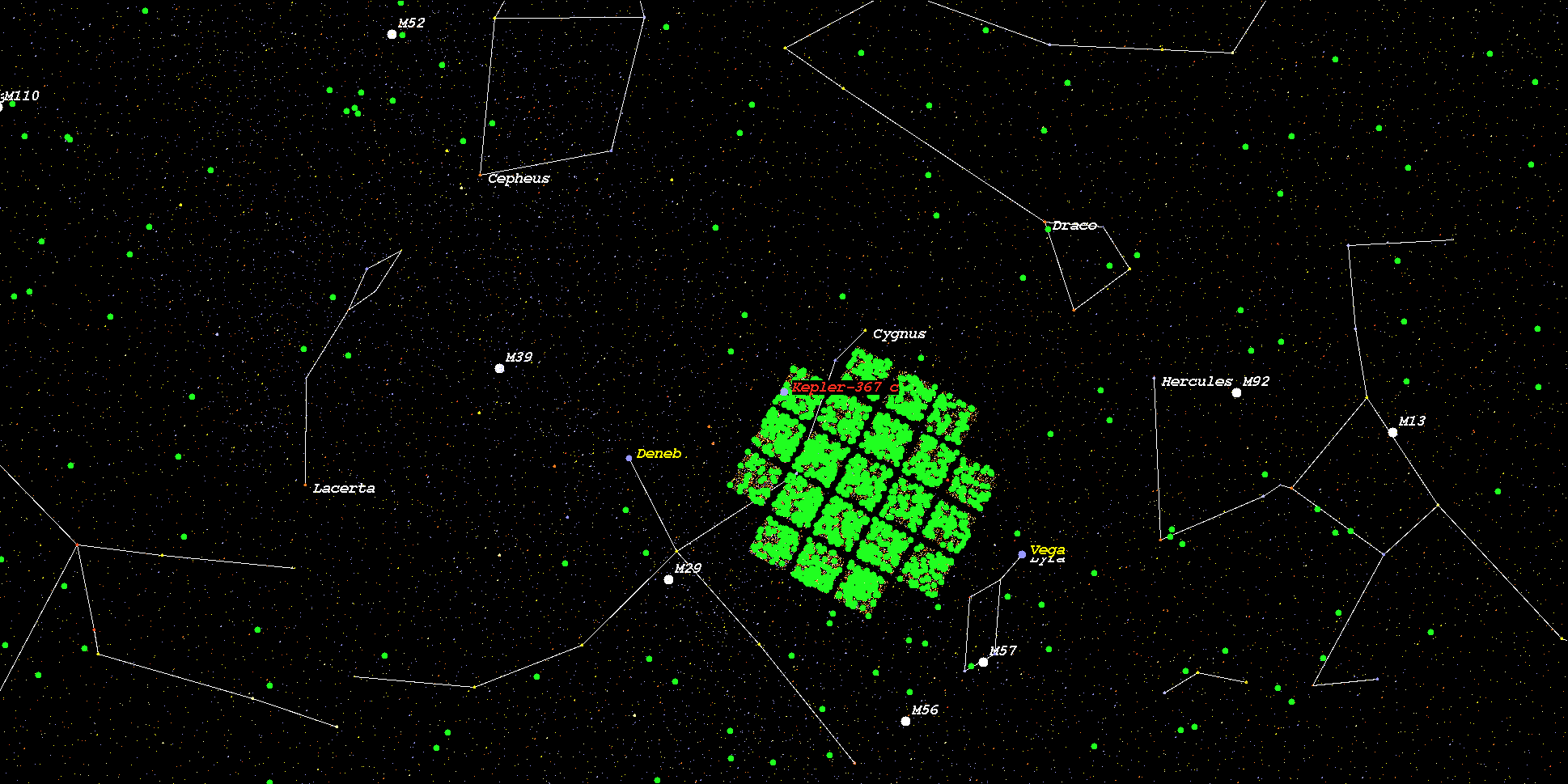

    (Position in Stellar Map of star Kepler-367 and its Exoplanet Kepler-367 c)



    (Zoomed position in Stellar Map of star Kepler-367 and its Exoplanet Kepler-367 c (zoom level 3))

    (Synthetic Spectrum of star Kepler-367*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
