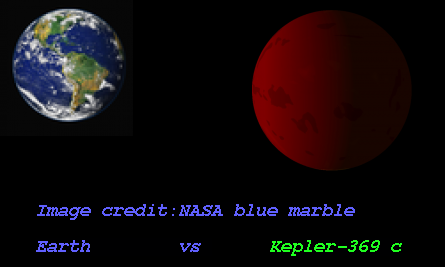

Imaginary Picture of Kepler-369 c

Display orbital revolution of Kepler-369 c around the hoststar Kepler-369
/
Exoplanet Name : Kepler-369 c
Alternate Name : "2MASS J19344181+4754304 c, K02179.01, KIC 10670119 c, KOI-2179 c, KOI-2179.01, WISE J193441.83+475430.5 c"
Status : Confirmed
Radius (Rjup / Re): 0.1260 (Rjup) 1.4123 (Rearth)
Mass (Mjup / Me): 0.0107 (Mjup) 3.4131 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0940 (AU) 0.0940 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0407
Orbital Period(Observed/Estimated) 14.87 (Days Obs.) 14.32 (Days Est.)
Surface Gravity (G Earth) 1.7111
Star Radiation at Atmospheric Boundary: 8157.1 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 424.2 (K)
Blackbody T 0.3(K) 398.3 (K)
Blackbody T 0.7(K) 322.3 (K)
Tidally Locked Blackbody T 0.1(K) 504.4 (K)
Tidally Locked Blackbody T 0.3(K) 473.7 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-369
Alternate Name : "2MASS J19344181+4754304, KIC 10670119, KOI-2179, WISE J193441.83+475430.5"
Star Distance(LY) : 761.0
Stellar Radius(Rsun) : 0.5 (Rsun Measured)
Stellar Mass(Msun) : 0.5 (Msun Measured) 0.5 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 3825 (K)
Spectral type : M3
UV portion[%]: 0.4
Visible portion[%]: 19.6
IR portion[%]: 80.0
Metalicity : 0.2
Absolute Magnitude: 6.4
Apparent Magnitude: 13.2
Right Ascension(RA) 293.6742
Declination (DEC) 47.9085
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-369+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-369%20c/
Kepler-369 c
Kepler-369 c

  • Kepler-369 c is an exoplanet orbiting the star Kepler-369, located about 761.0 light-years (233.3 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-369 has apparent magnitude of 13.2, with absolute magnitude of 6.4.

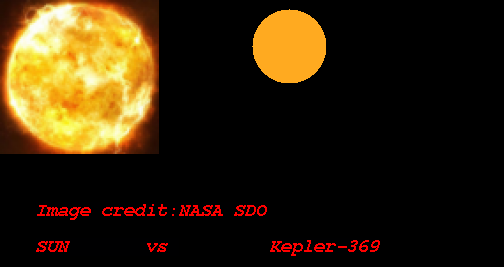

  • It is 0.5 times more massive and 0.5 times bigger compared with our Sun. The surface temperature is 3825 with its spectral types of M3
  • In this planetary system, the extrasolar planet Kepler-369 c orbits around the star Kepler-369 every 14.9 days with its orbital distance of 0.09 AU ( 14062199.8 km)

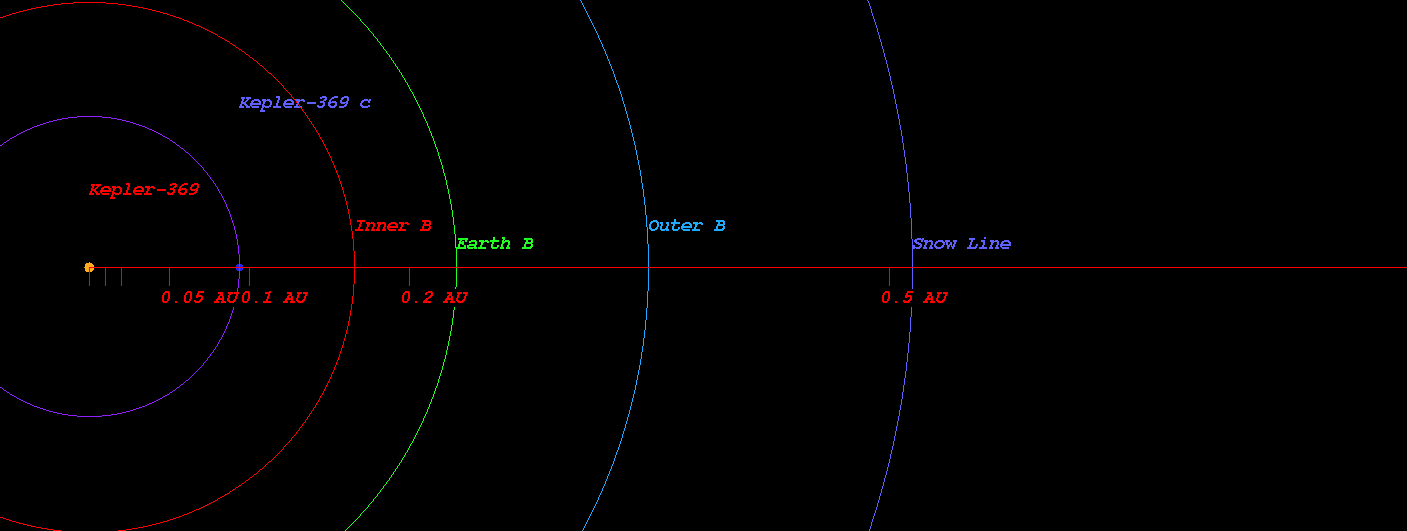

  • (Projected orbit of Kepler-369 c around its host star Kepler-369)


  • The Star Kepler-369 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.166 AU ( 24845759.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.230 AU ( 34343332.7 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.350 AU ( 52331638.9 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.515 AU ( 77008299.1 km)
  • Radiation at Planetary Boundary of Kepler-369 c : 8157.13 W/m2

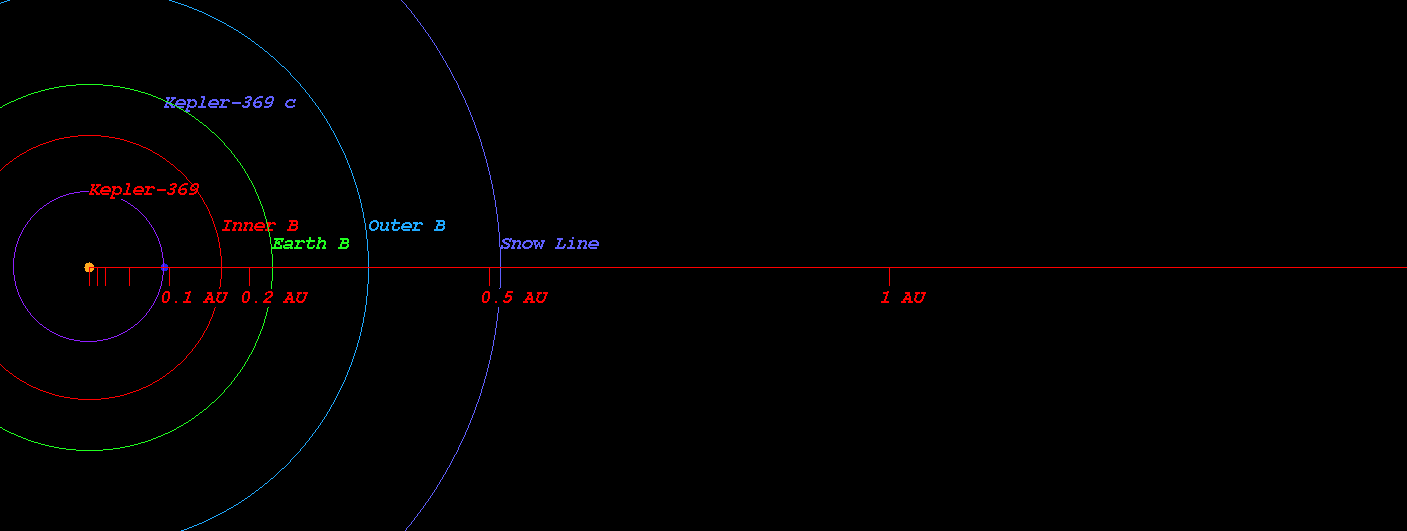

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-369)



  • Kopparapu Recent Venus for Star Kepler-369 distance : 0.187 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-369 distance : 0.236 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-369 distance : 0.228 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-369 distance : 0.251 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-369 distance : 0.452 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-369 distance : 0.477 AU

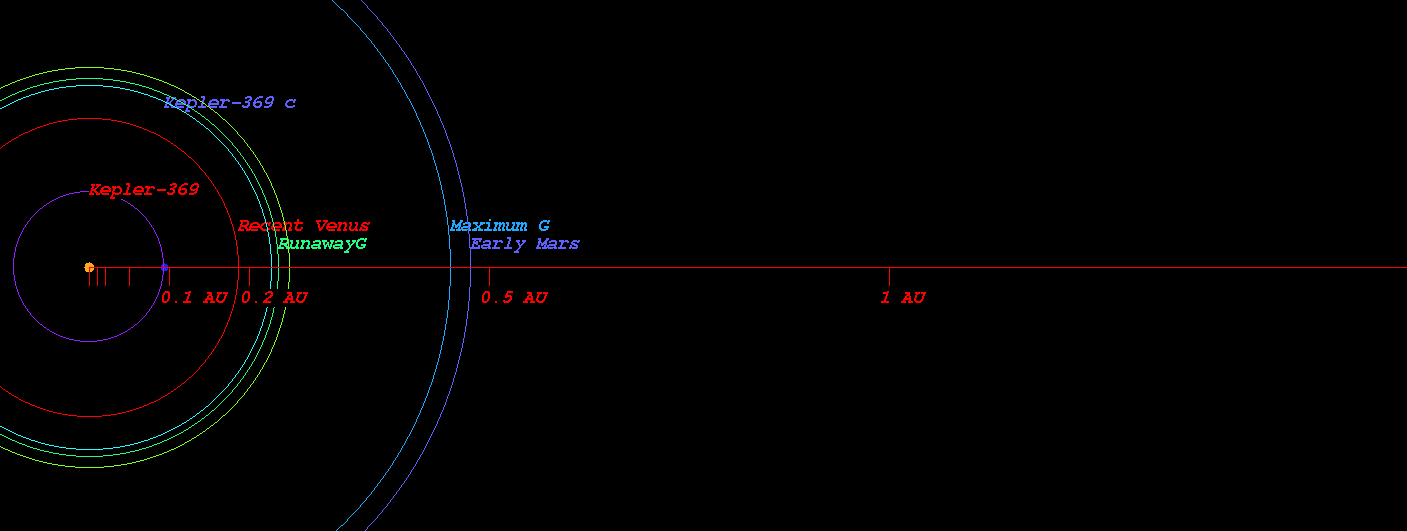

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-369)



  • Original Kopparapu Recent Venus for Star Kepler-369 distance : 0.185 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-369 distance : 0.244 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-369 distance : 0.244 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-369 distance : 0.460 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-369 distance : 0.478 AU

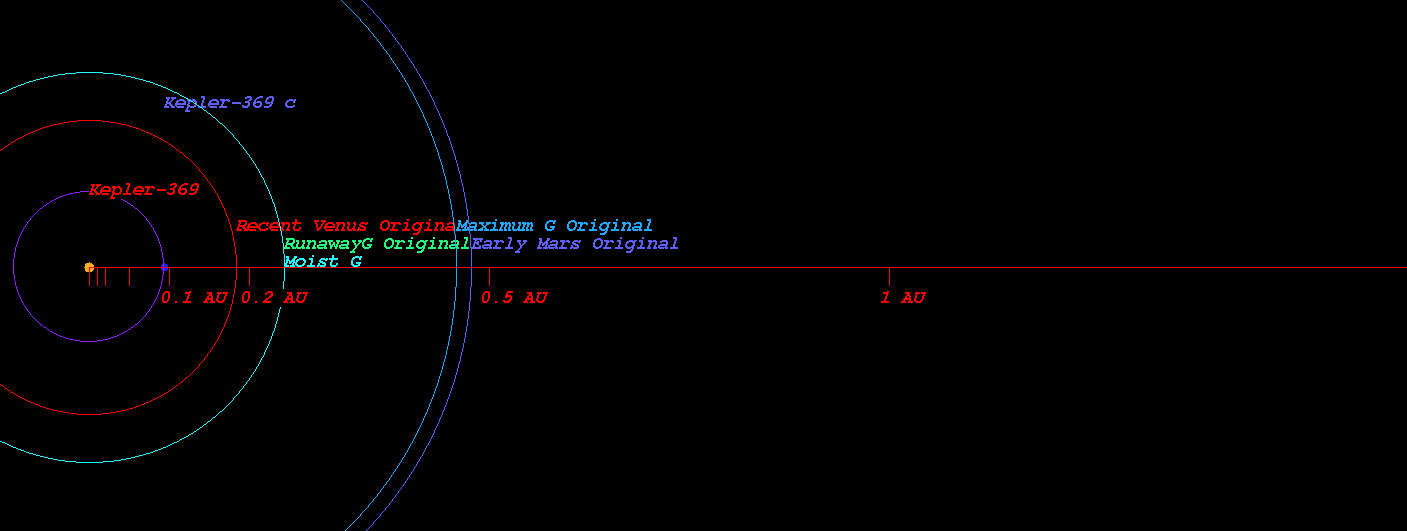

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-369)

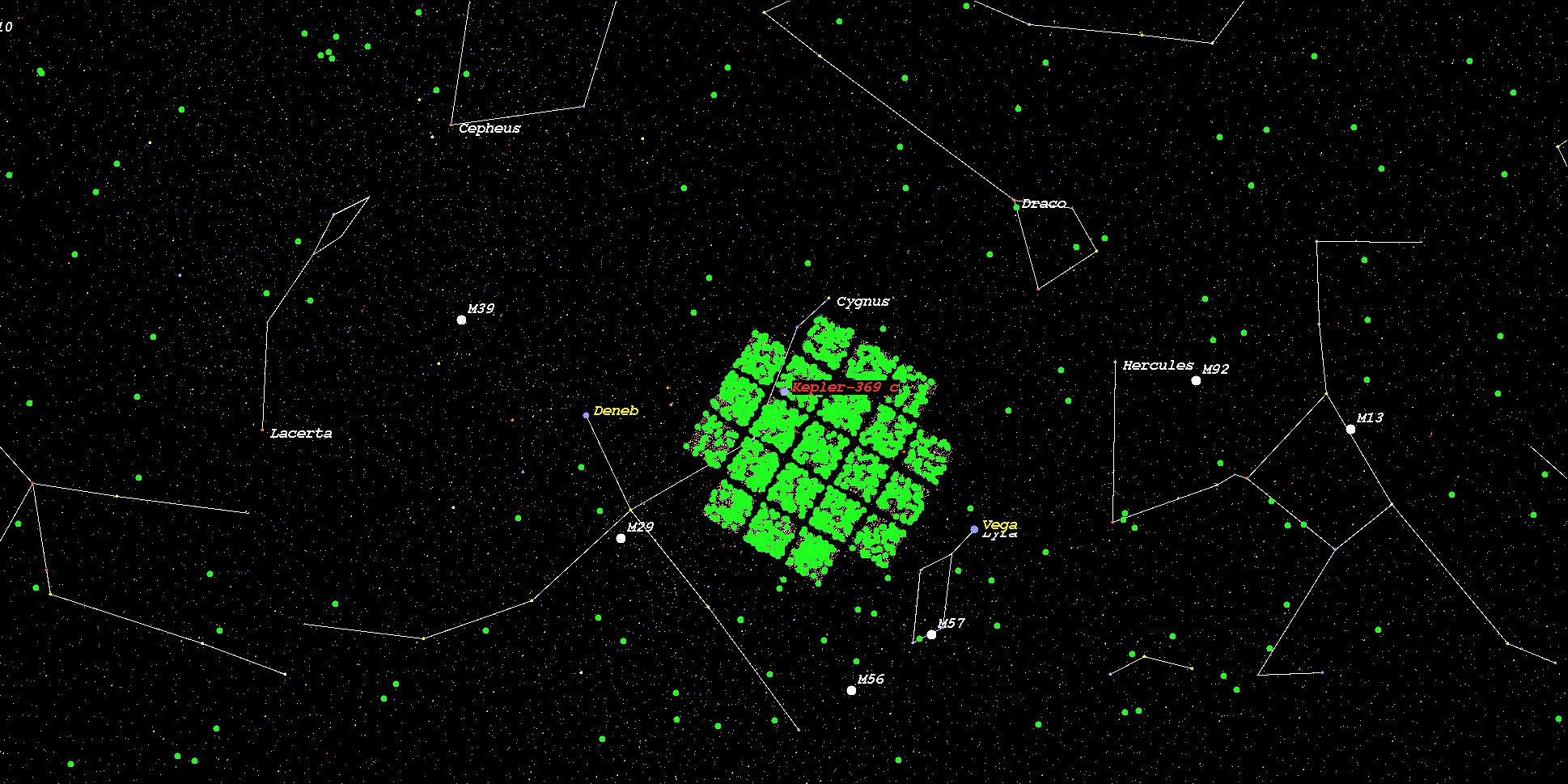

    (Position in Stellar Map of star Kepler-369 and its Exoplanet Kepler-369 c)



    (Zoomed position in Stellar Map of star Kepler-369 and its Exoplanet Kepler-369 c (zoom level 3))

    (Synthetic Spectrum of star Kepler-369*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
