Imaginary Picture of Kepler-371 b

Display orbital revolution of Kepler-371 b around the hoststar Kepler-371
/
Exoplanet Name : Kepler-371 b
Alternate Name : "2MASS J19291835+3839273 b, K02194.01, KIC 3548044 b, KOI-2194 b, KOI-2194.01, WISE J192918.34+383927.2 b"
Status : Confirmed
Radius (Rjup / Re): 0.1690 (Rjup) 1.8943 (Rearth)
Mass (Mjup / Me): 0.0150 (Mjup) 4.7791 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.2000 (AU) 0.2000 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0952
Orbital Period(Observed/Estimated) 34.76 (Days Obs.) 33.70 (Days Est.)
Surface Gravity (G Earth) 1.3318
Star Radiation at Atmospheric Boundary: 53563.1 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 679.0 (K)
Blackbody T 0.3(K) 637.6 (K)
Blackbody T 0.7(K) 515.9 (K)
Tidally Locked Blackbody T 0.1(K) 807.5 (K)
Tidally Locked Blackbody T 0.3(K) 758.3 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-371
Alternate Name : "2MASS J19291835+3839273, KIC 3548044, KOI-2194, WISE J192918.34+383927.2"
Star Distance(LY) : 2651.2
Stellar Radius(Rsun) : 1.3 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5710 (K)
Spectral type : G5
UV portion[%]: 7.6
Visible portion[%]: 44.4
IR portion[%]: 47.9
Metalicity : -0.2
Absolute Magnitude: 3.2
Apparent Magnitude: 12.7
Right Ascension(RA) 292.3265
Declination (DEC) 38.6576
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-371+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-371%20b/
Kepler-371 b
Kepler-371 b

  • Kepler-371 b is an exoplanet orbiting the star Kepler-371, located about 2651.2 light-years (812.9 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-371 has apparent magnitude of 12.7, with absolute magnitude of 3.2.
  • It is 0.9 times more massive and 1.3 times bigger compared with our Sun. The surface temperature is 5710 with its spectral types of G5
  • In this planetary system, the extrasolar planet Kepler-371 b orbits around the star Kepler-371 every 34.8 days with its orbital distance of 0.20 AU ( 29919574.1 km)

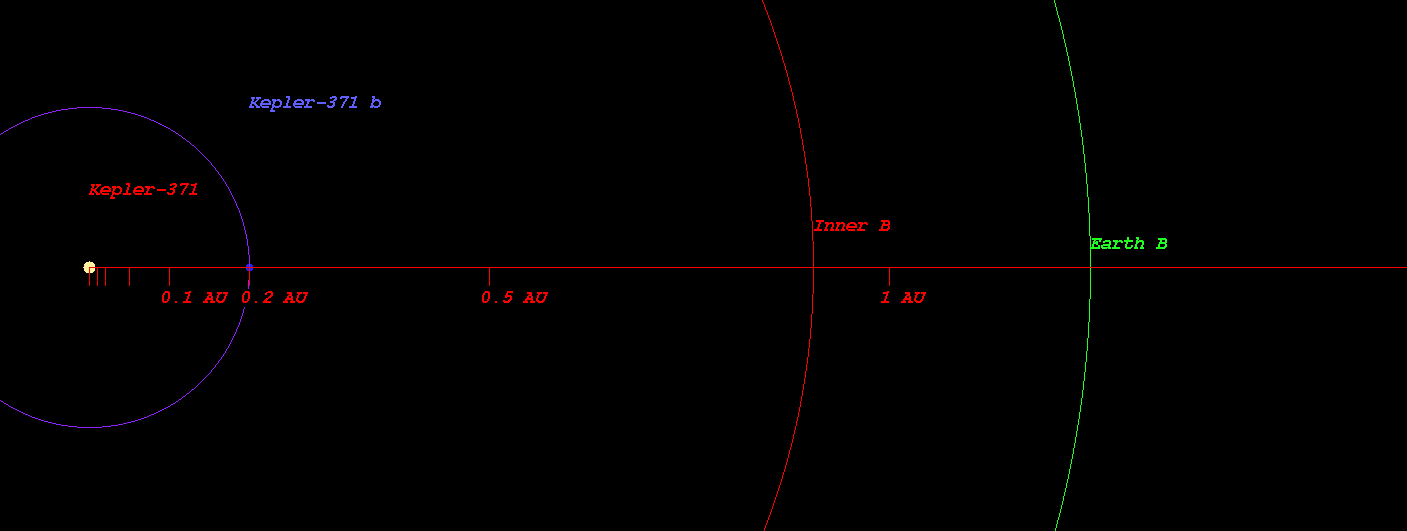

  • (Projected orbit of Kepler-371 b around its host star Kepler-371)


  • The Star Kepler-371 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.906 AU ( 135462271.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.252 AU ( 187244259.9 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.907 AU ( 285318815.0 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.807 AU ( 419859135.3 km)
  • Radiation at Planetary Boundary of Kepler-371 b : 53563.05 W/m2

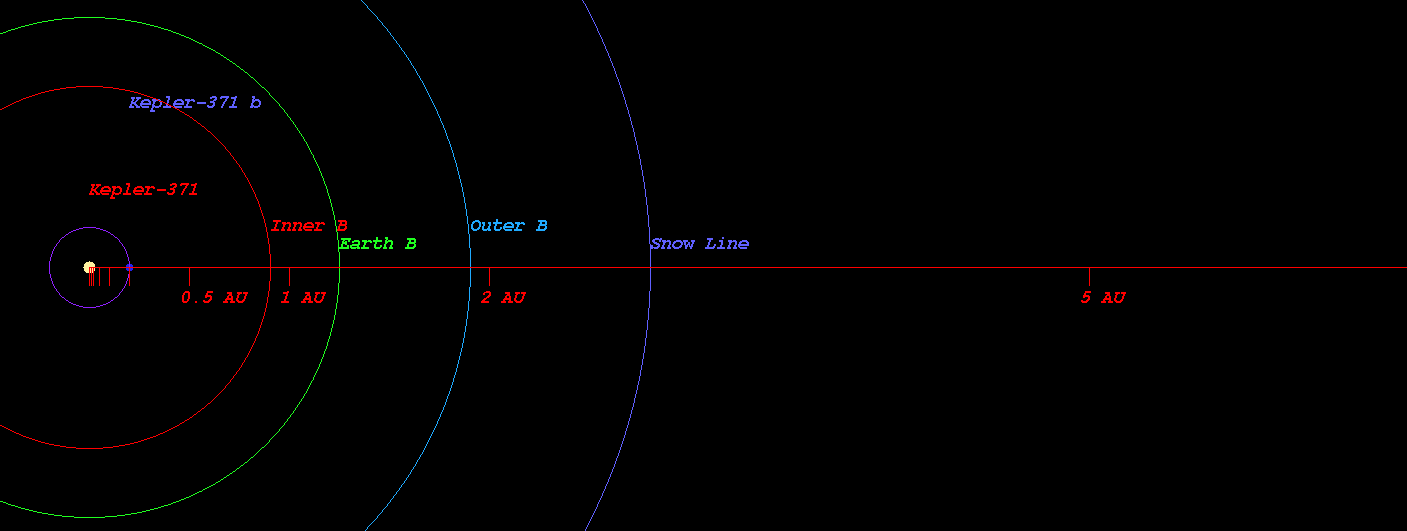

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-371)



  • Kopparapu Recent Venus for Star Kepler-371 distance : 0.942 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-371 distance : 1.193 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-371 distance : 1.153 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-371 distance : 1.264 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-371 distance : 2.111 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-371 distance : 2.227 AU

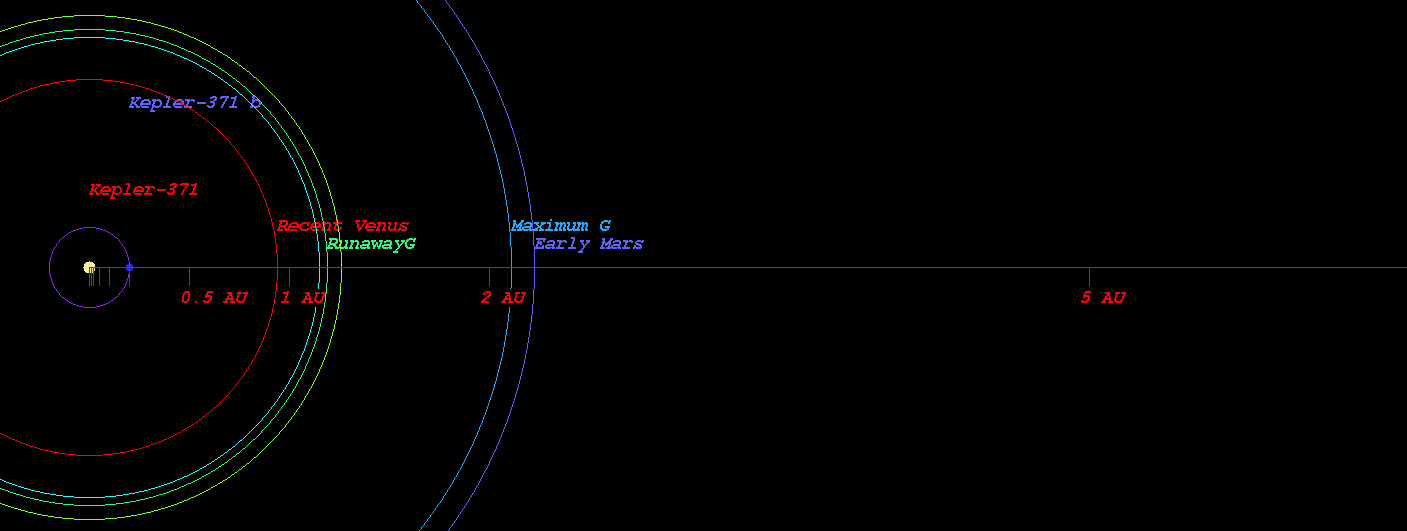

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-371)



  • Original Kopparapu Recent Venus for Star Kepler-371 distance : 0.942 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-371 distance : 1.227 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-371 distance : 1.247 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-371 distance : 2.148 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-371 distance : 2.234 AU

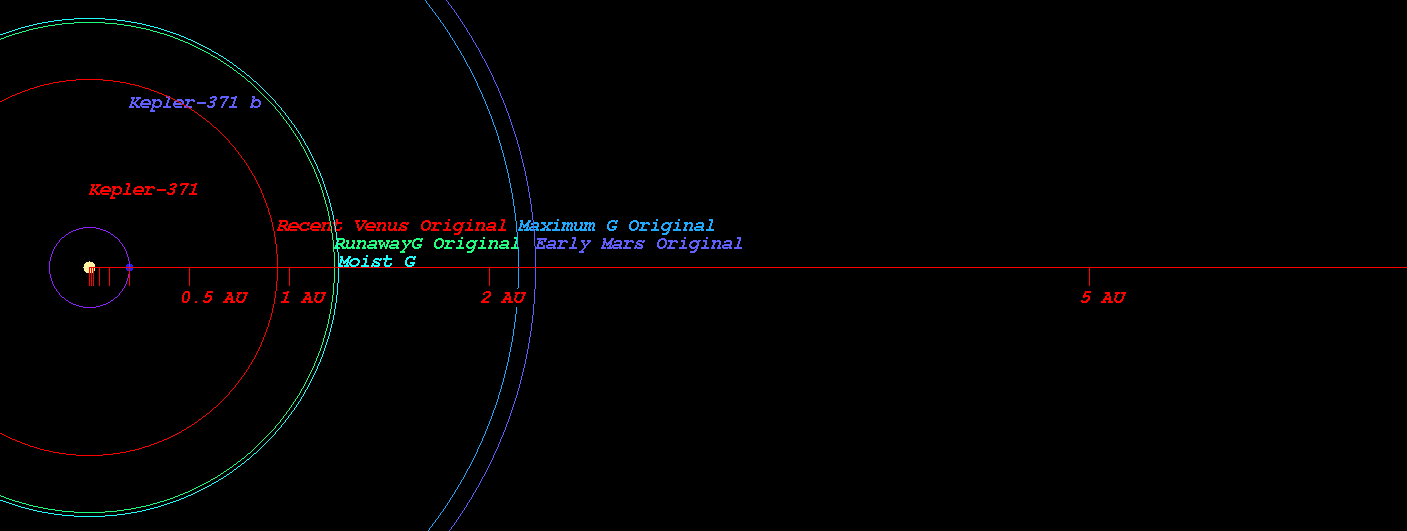

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-371)



    (Position in Stellar Map of star Kepler-371 and its Exoplanet Kepler-371 b)

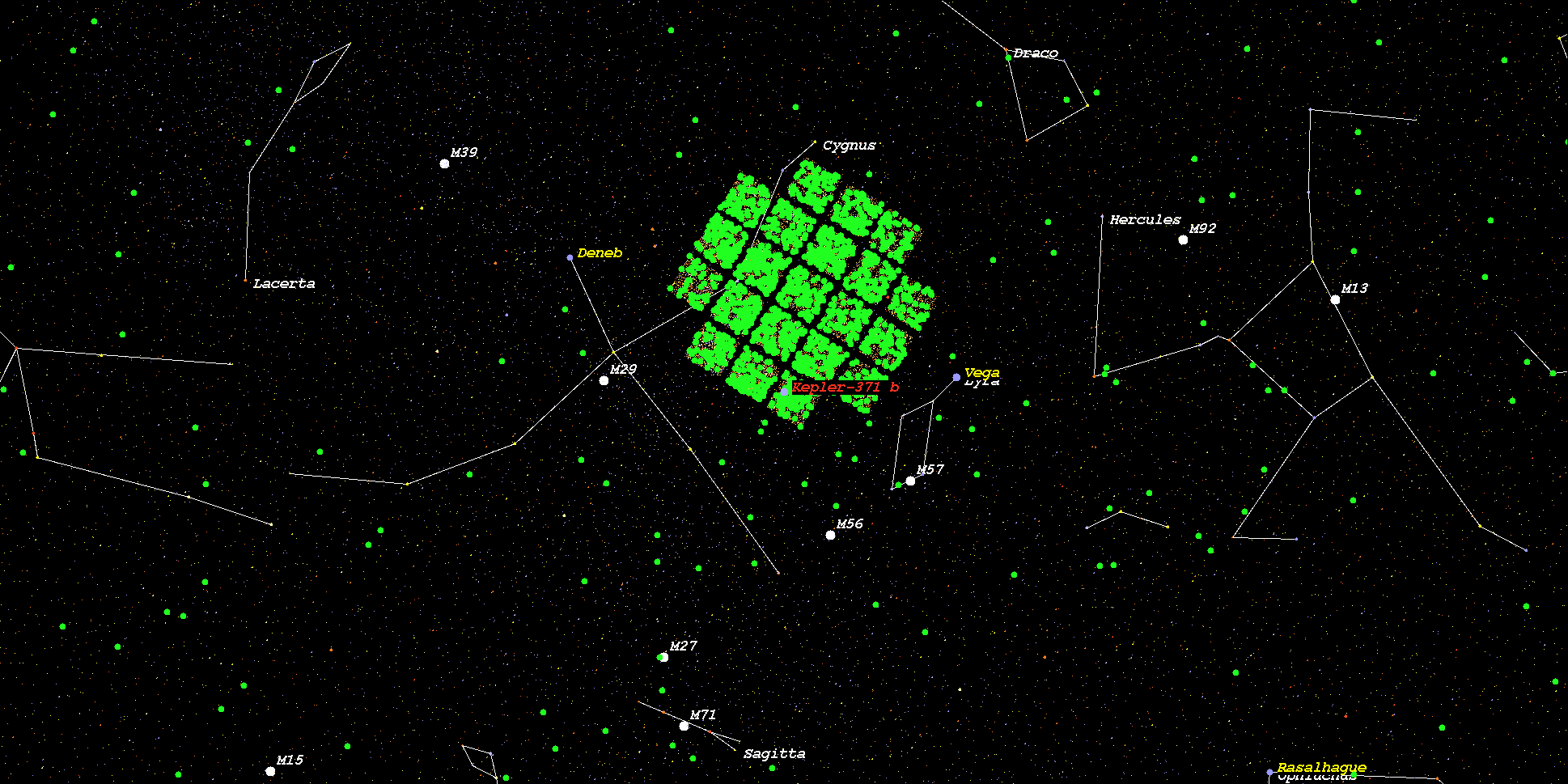

    (Zoomed position in Stellar Map of star Kepler-371 and its Exoplanet Kepler-371 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-371*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
