Imaginary Picture of Kepler-553 c

Display orbital revolution of Kepler-553 c around the hoststar Kepler-553
/
Exoplanet Name : Kepler-553 c
Alternate Name : "2MASS J19541219+4819568 c, K00433.02, KIC 10937029 c, KOI-433 c, KOI-433.02, WISE J195412.18+481957.4 c"
Status : Confirmed
Radius (Rjup / Re): 0.9990 (Rjup) 11.1978 (Rearth)
Mass (Mjup / Me): 0.9773 (Mjup) 310.7189 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.9057 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.8986
Orbital Period(Observed/Estimated) 328.24 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 2.4780
Star Radiation at Atmospheric Boundary: 819.7 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 238.8 (K)
Blackbody T 0.3(K) 224.3 (K)
Blackbody T 0.7(K) 181.5 (K)
Tidally Locked Blackbody T 0.1(K) 284.0 (K)
Tidally Locked Blackbody T 0.3(K) 266.7 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-553
Alternate Name : "2MASS J19541219+4819568, KIC 10937029, KOI-433, WISE J195412.18+481957.4"
Star Distance(LY) : 2375.7
Stellar Radius(Rsun) : 0.9 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 2.9 (GY)
Temperature : 5182 (K)
Spectral type : K0
UV portion[%]: 4.8
Visible portion[%]: 39.9
IR portion[%]: 55.3
Metalicity : 0.2
Absolute Magnitude: 4.3
Apparent Magnitude: 13.6
Right Ascension(RA) 298.5508
Declination (DEC) 48.3325
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 486 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-553&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-553%20c/
Kepler-553 c
Kepler-553 c

  • Kepler-553 c is an exoplanet orbiting the star Kepler-553, located about 2375.7 light-years (728.4 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-553 has apparent magnitude of 13.6, with absolute magnitude of 4.3.
  • It is 0.9 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5182 with its spectral types of K0
  • In this planetary system, the extrasolar planet Kepler-553 c orbits around the star Kepler-553 every 328.2 days with its orbital distance of 0.91 AU ( 135494656.2 km)

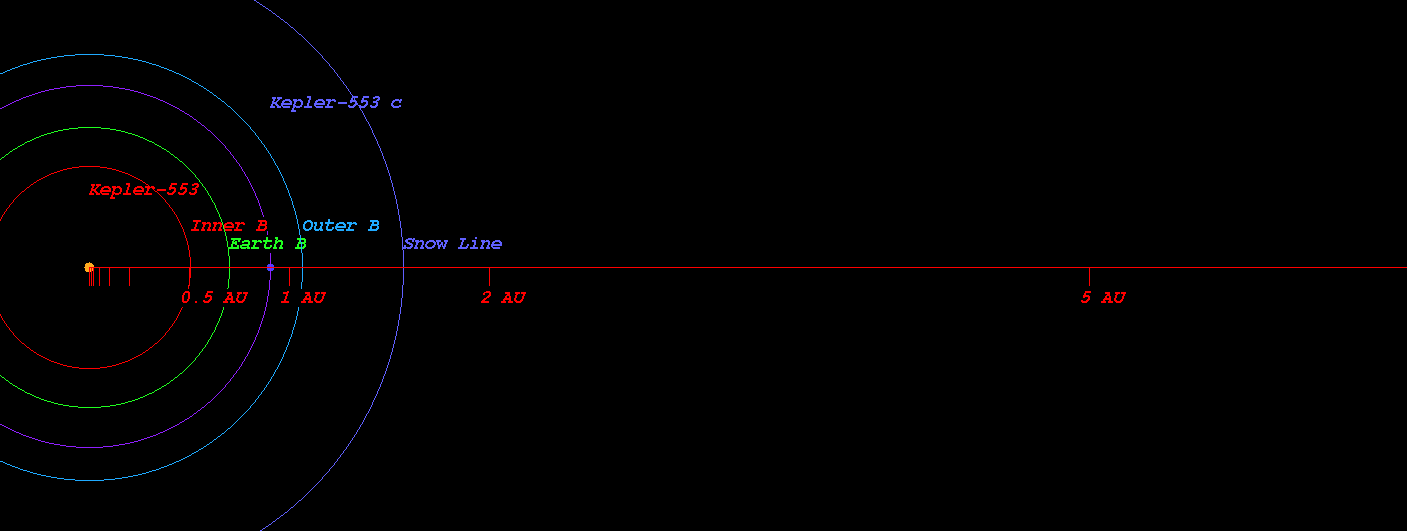

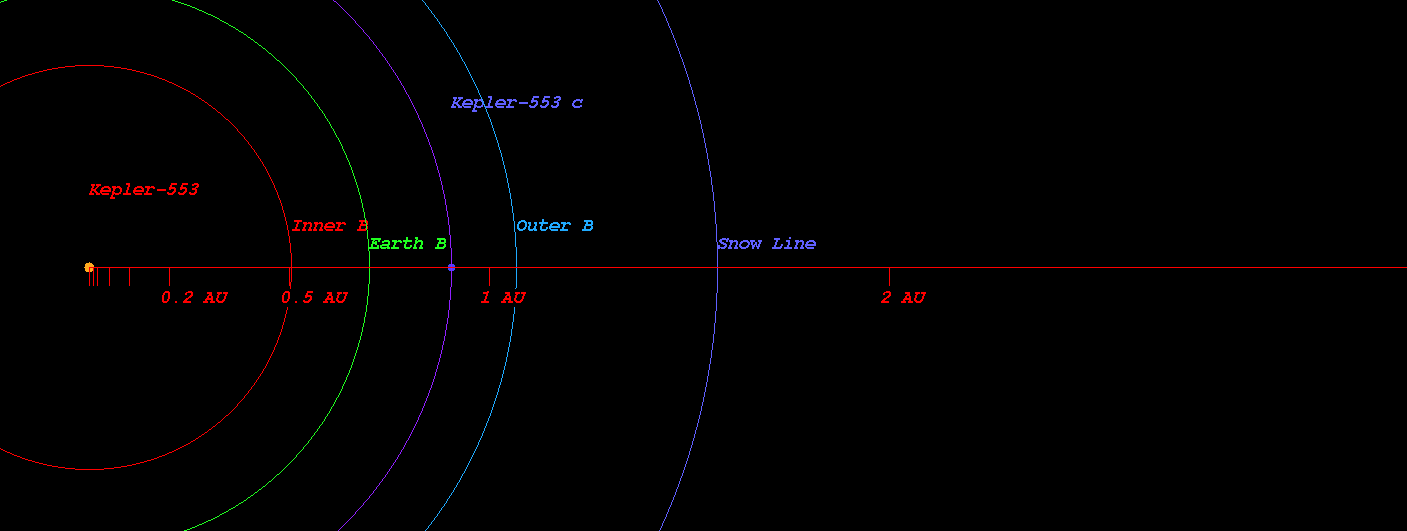

  • (Projected orbit of Kepler-553 c around its host star Kepler-553)


  • The Star Kepler-553 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.507 AU ( 75887354.8 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.701 AU ( 104896156.0 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.068 AU ( 159838528.3 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.572 AU ( 235209396.5 km)
  • Radiation at Planetary Boundary of Kepler-553 c : 819.66 W/m2

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-553)



  • Kopparapu Recent Venus for Star Kepler-553 distance : 0.544 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-553 distance : 0.689 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-553 distance : 0.665 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-553 distance : 0.730 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-553 distance : 1.239 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-553 distance : 1.307 AU

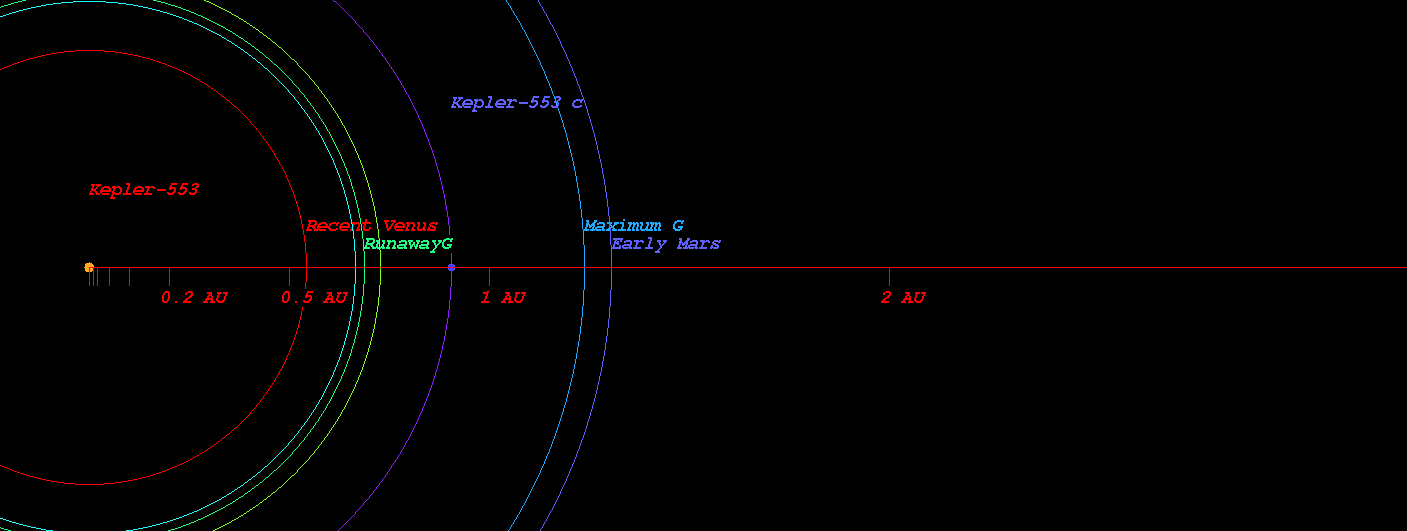

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-553)



  • Original Kopparapu Recent Venus for Star Kepler-553 distance : 0.539 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-553 distance : 0.709 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-553 distance : 0.713 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-553 distance : 1.260 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-553 distance : 1.311 AU

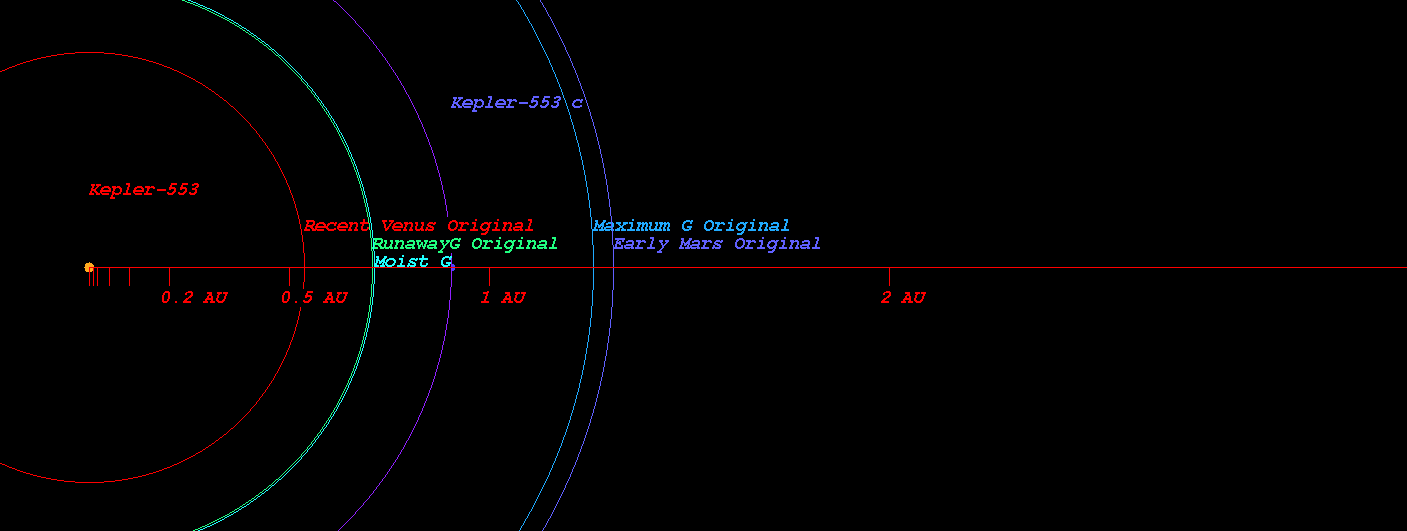

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-553)

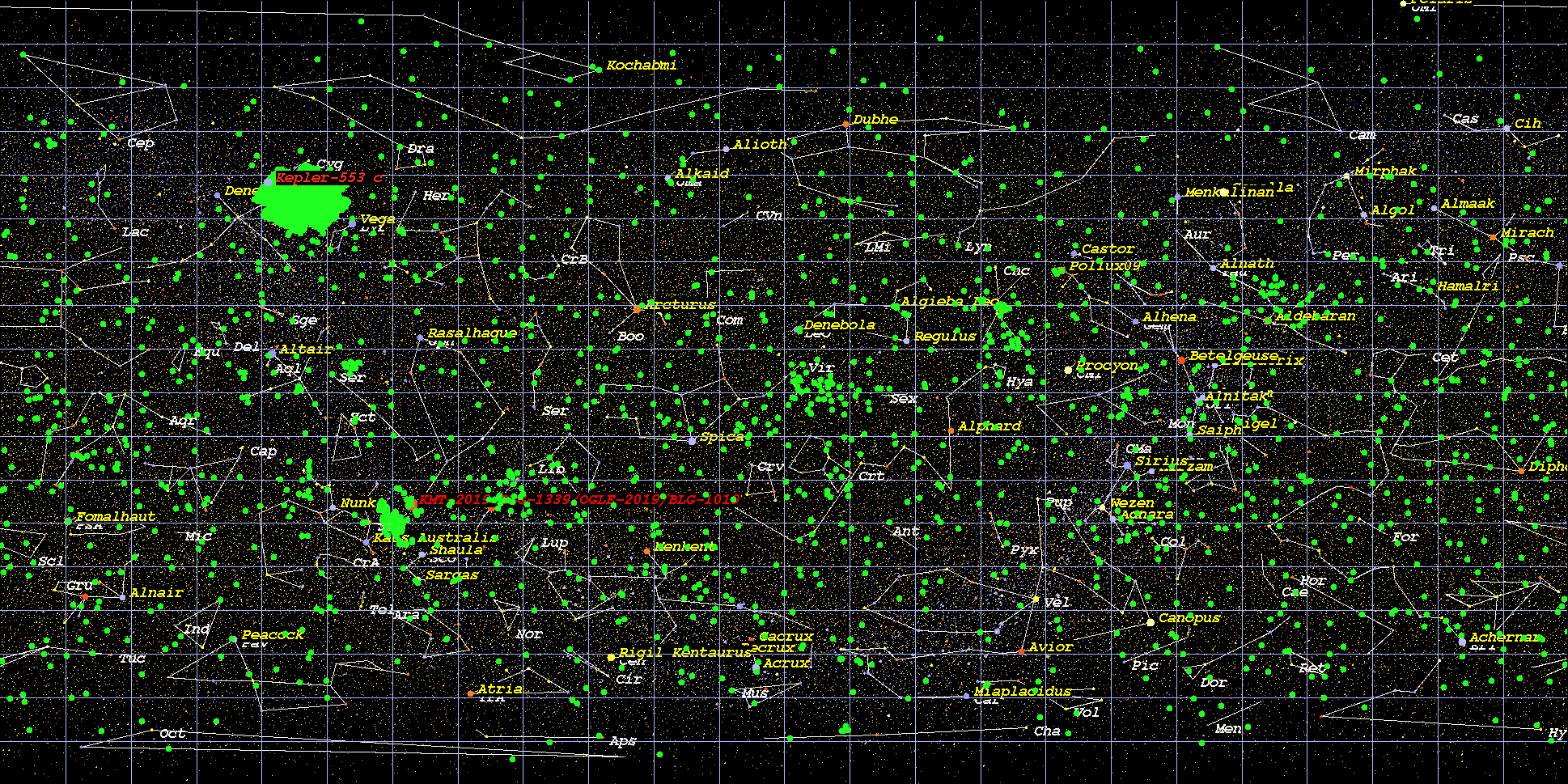

    (Position in Stellar Map of star Kepler-553 and its Exoplanet Kepler-553 c)

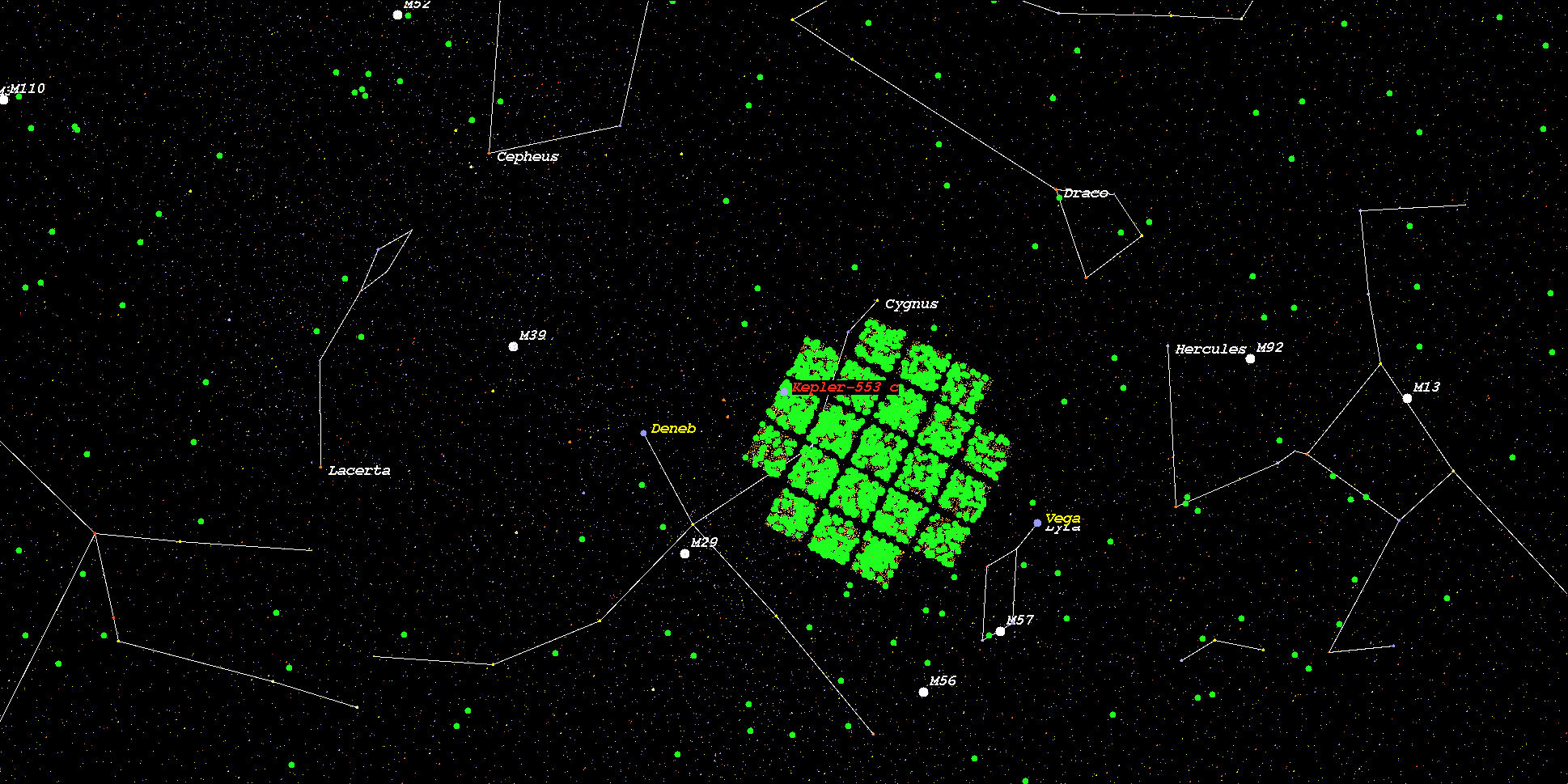

    (Zoomed position in Stellar Map of star Kepler-553 and its Exoplanet Kepler-553 c (zoom level 3))

    (Synthetic Spectrum of star Kepler-553*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
