Imaginary Picture of Kepler-58 c

Display orbital revolution of Kepler-58 c around the hoststar Kepler-58
/
Exoplanet Name : Kepler-58 c
Alternate Name : "2MASS J19452607+3906546 c, K01336.02, KIC 4077526 c, KOI-1336 c, KOI-1336.02, WISE J194526.07+390654.6 c"
Status : Confirmed
Radius (Rjup / Re): 0.2550 (Rjup) 2.8583 (Rearth)
Mass (Mjup / Me): 2.1900 (Mjup) 696.2842 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1200 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0426
Orbital Period(Observed/Estimated) 15.57 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 85.2261
Star Radiation at Atmospheric Boundary: 92179.1 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 777.7 (K)
Blackbody T 0.3(K) 730.3 (K)
Blackbody T 0.7(K) 590.9 (K)
Tidally Locked Blackbody T 0.1(K) 924.8 (K)
Tidally Locked Blackbody T 0.3(K) 868.5 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-58
Alternate Name : "2MASS J19452607+3906546, KIC 4077526, KOI-1336, WISE J194526.07+390654.6"
Star Distance(LY) : 3161.1
Stellar Radius(Rsun) : 1.0 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5776 (K)
Spectral type : G0
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : 0.0
Absolute Magnitude: 5.4
Apparent Magnitude: 15.3
Right Ascension(RA) 296.3586
Declination (DEC) 39.1152
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Jason H. Ste_en, Daniel C. Fabrycky, Eric Agol, Eric B. Ford, Robert C. Morehead, William D. Cochran, Jack J. Lissauer, Elisabeth R. Adams, William J. Borucki, Steve Bryson, Douglas A. Caldwell, Andrea Dupree, Jon M. Jenkins, Paul Robertson, Jason F. Rowe, Shawn Seader, Susan Thompson, and Joseph D. Twicken"
Discovery Paper - Title Transit Timing Observations from Kepler: VII. Con_rmation of 27 planets in 13 multiplanet systems via Transit Timing Variations and orbital stability
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-58+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-58%20c/
Kepler-58 c
Kepler-58 c

  • Kepler-58 c is an exoplanet orbiting the star Kepler-58, located about 3161.1 light-years (969.2 pc) away from Solar System. Its discovery was publicly announced on 2012.
  • The host star Kepler-58 has apparent magnitude of 15.3, with absolute magnitude of 5.4.
  • It is 0.9 times more massive and 1.0 times bigger compared with our Sun. The surface temperature is 5776 with its spectral types of G0
  • In this planetary system, the extrasolar planet Kepler-58 c orbits around the star Kepler-58 every 15.6 days with its orbital distance of 0.12 AU ( 17949106.2 km)

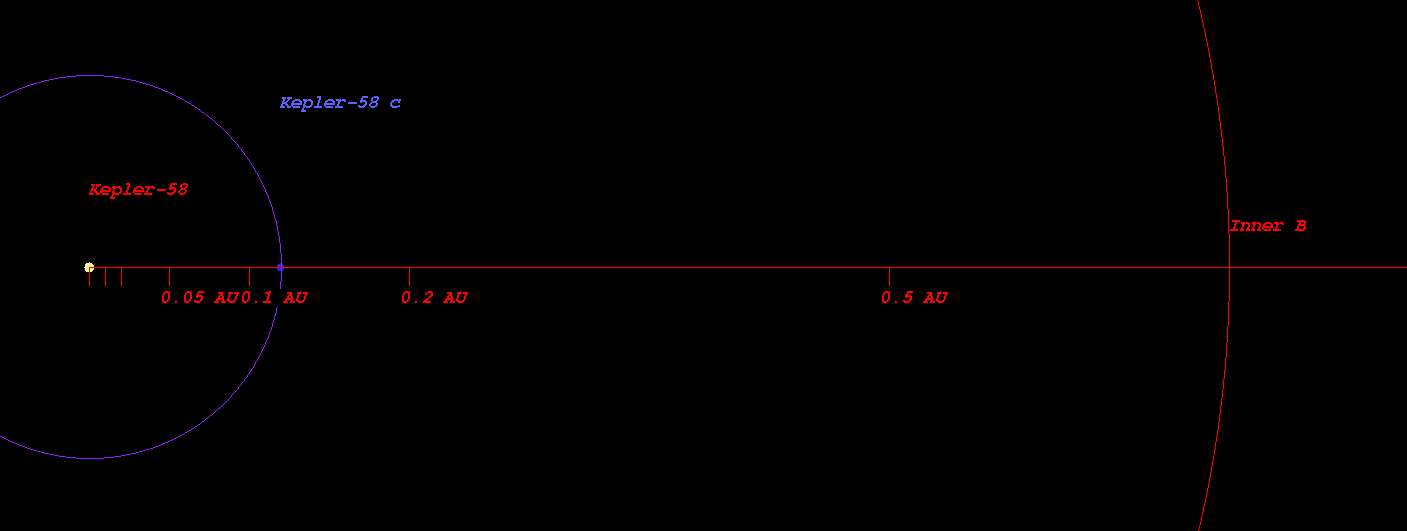

  • (Projected orbit of Kepler-58 c around its host star Kepler-58)


  • The Star Kepler-58 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.713 AU ( 106607902.0 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.985 AU ( 147359980.5 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.501 AU ( 224543999.6 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.209 AU ( 330426332.0 km)
  • Radiation at Planetary Boundary of Kepler-58 c : 92179.12 W/m2

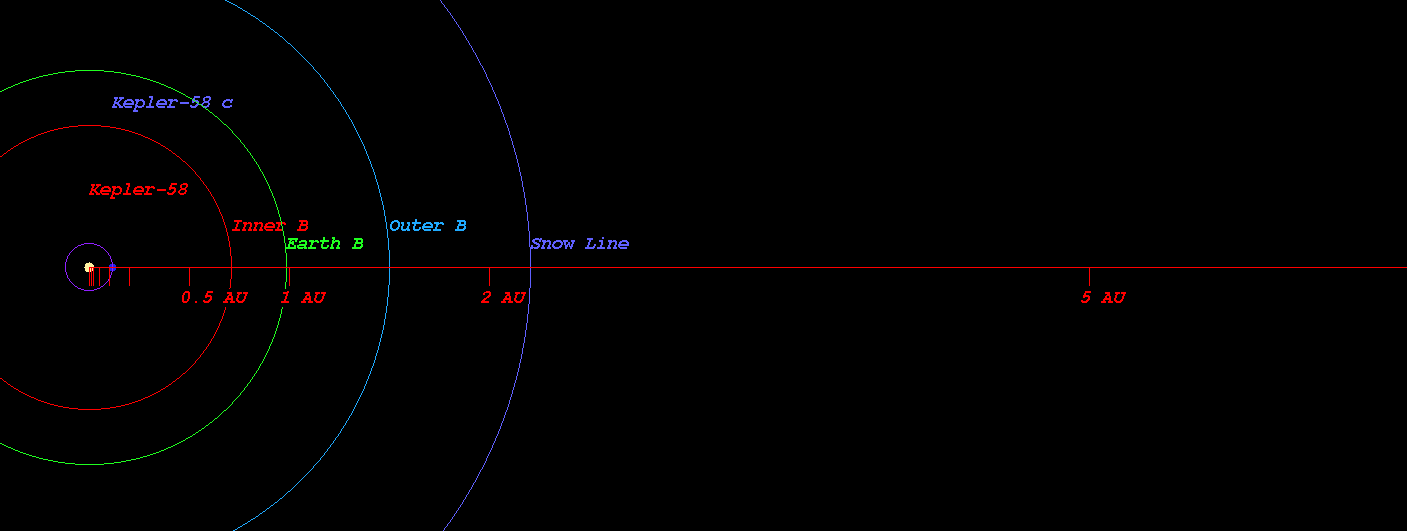

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-58)



  • Kopparapu Recent Venus for Star Kepler-58 distance : 0.739 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-58 distance : 0.935 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-58 distance : 0.903 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-58 distance : 0.991 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-58 distance : 1.652 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-58 distance : 1.742 AU

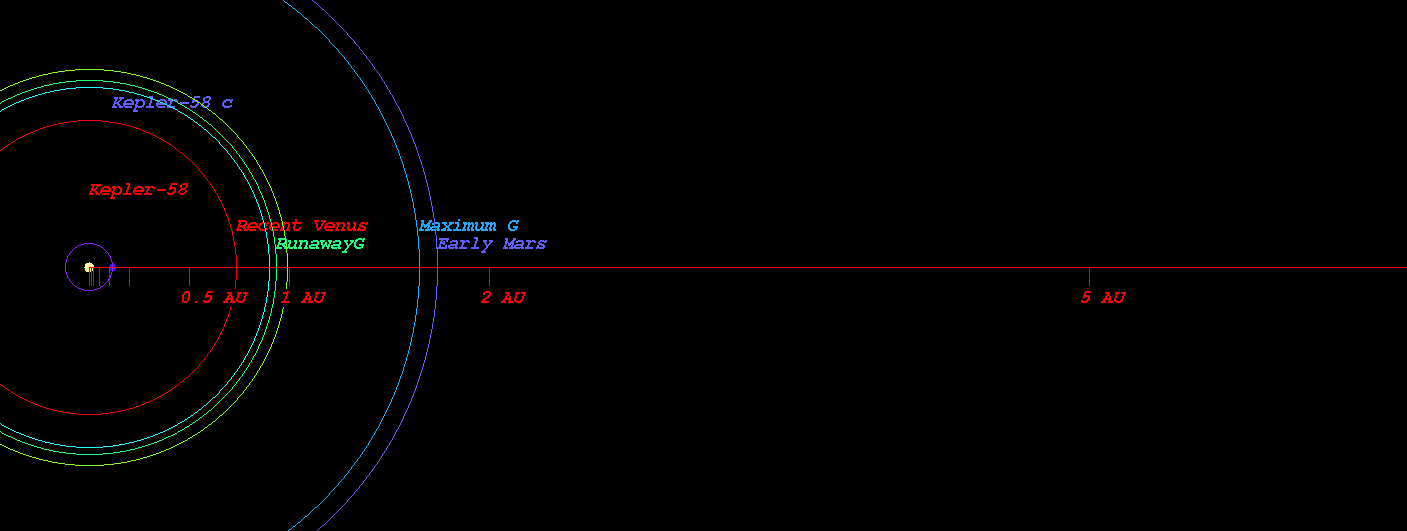

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-58)



  • Original Kopparapu Recent Venus for Star Kepler-58 distance : 0.740 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-58 distance : 0.961 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-58 distance : 0.979 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-58 distance : 1.681 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-58 distance : 1.748 AU

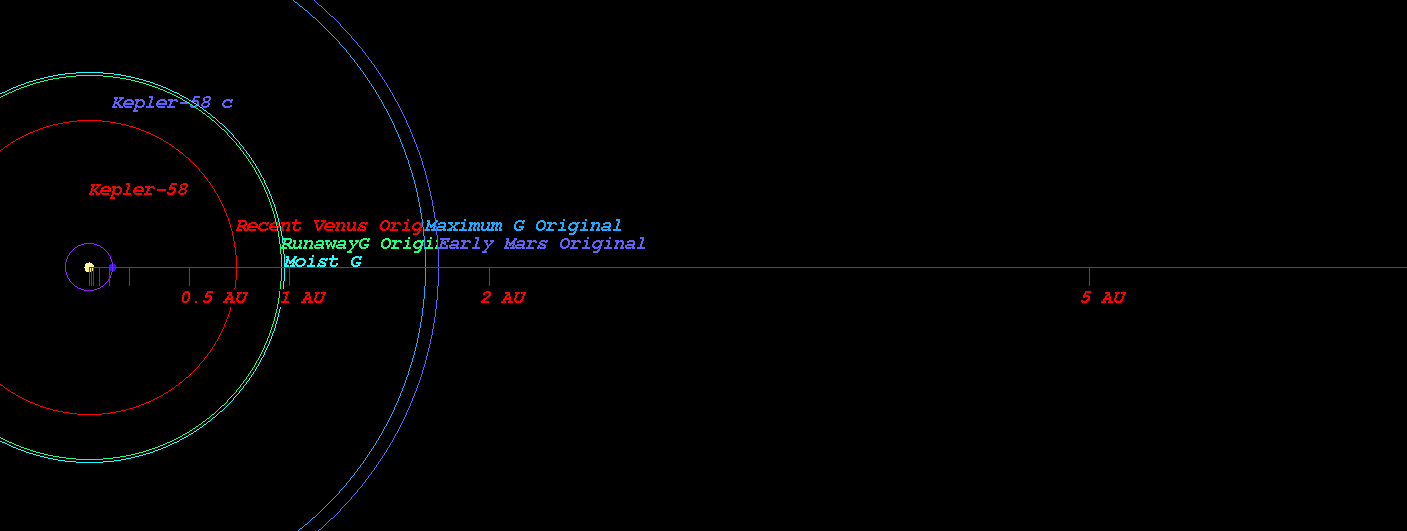

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-58)

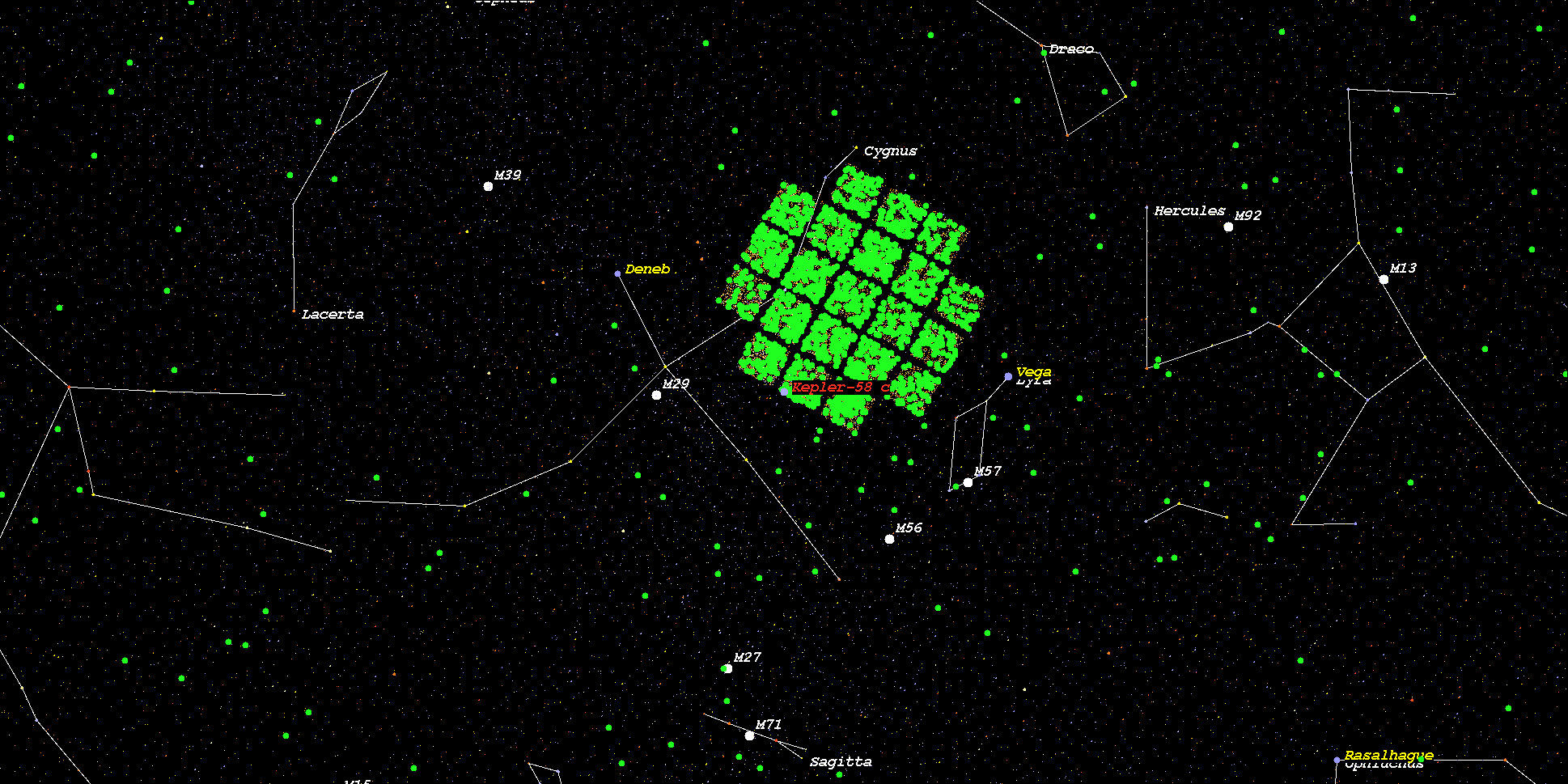

    (Position in Stellar Map of star Kepler-58 and its Exoplanet Kepler-58 c)



    (Zoomed position in Stellar Map of star Kepler-58 and its Exoplanet Kepler-58 c (zoom level 3))

    (Synthetic Spectrum of star Kepler-58*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
