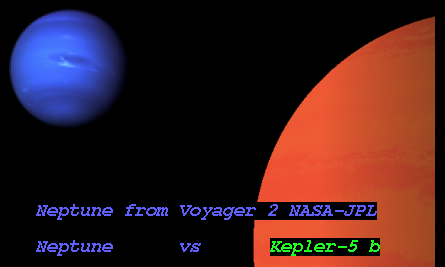

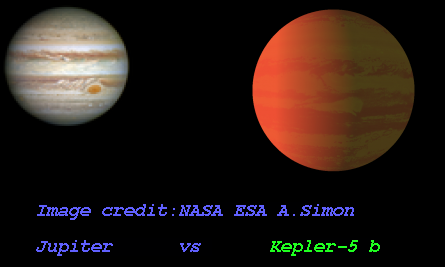

Imaginary Picture of Kepler-5 b

Display orbital revolution of Kepler-5 b around the hoststar Kepler-5
/
Exoplanet Name : Kepler-5 b
Alternate Name : "2MASS J19573768+4402061 b, K00018.01, KIC 8191672 b, KOI-18 b, KOI-18.01, WISE J195737.69+440206.0 b"
Status : Confirmed
Radius (Rjup / Re): 1.4260 (Rjup) 15.9840 (Rearth)
Mass (Mjup / Me): 2.1110 (Mjup) 671.1671 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0538 (AU) 0.0538 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0097
Orbital Period(Observed/Estimated) 3.55 (Days Obs.) 3.89 (Days Est.)
Surface Gravity (G Earth) 2.6270
Star Radiation at Atmospheric Boundary: 2150694.6 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1709.2 (K)
Blackbody T 0.3(K) 1605.1 (K)
Blackbody T 0.7(K) 1298.7 (K)
Tidally Locked Blackbody T 0.1(K) 2032.6 (K)
Tidally Locked Blackbody T 0.3(K) 1908.8 (K)
Size Class: Super-Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-5
Alternate Name : "2MASS J19573768+4402061, KIC 8191672, KOI-18, WISE J195737.69+440206.0"
Star Distance(LY) : 2933.7
Stellar Radius(Rsun) : 1.8 (Rsun Measured)
Stellar Mass(Msun) : 1.4 (Msun Measured) 1.6 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 6332 (K)
Spectral type : F8
UV portion[%]: 0.3
Visible portion[%]: 1.5
IR portion[%]: 98.2
Metalicity : 0.0
Absolute Magnitude: 2.3
Apparent Magnitude: 12.1
Right Ascension(RA) 299.4070
Declination (DEC) 44.0350
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "David G. Koch, William J. Borucki, Jason F. Rowe, Natalie M. Batalha, Timothy M. Brown, Douglas A. Caldwell, John Caldwell, William D. Cochran, Edna DeVore, Edward W. Dunham "
Discovery Paper - Title DISCOVERY OF THE TRANSITING PLANET KEPLER-5b
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-5+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-5%20b/
Kepler-5 b
Kepler-5 b

  • Kepler-5 b is an exoplanet orbiting the star Kepler-5, located about 2933.7 light-years (899.5 pc) away from Solar System. Its discovery was publicly announced on 2009.
  • The host star Kepler-5 has apparent magnitude of 12.1, with absolute magnitude of 2.3.

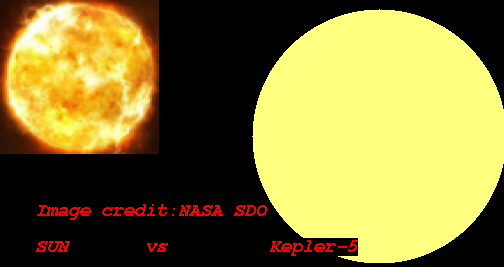

  • It is 1.4 times more massive and 1.8 times bigger compared with our Sun. The surface temperature is 6332 with its spectral types of F8
  • In this planetary system, the extrasolar planet Kepler-5 b orbits around the star Kepler-5 every 3.5 days with its orbital distance of 0.05 AU ( 8048365.4 km)

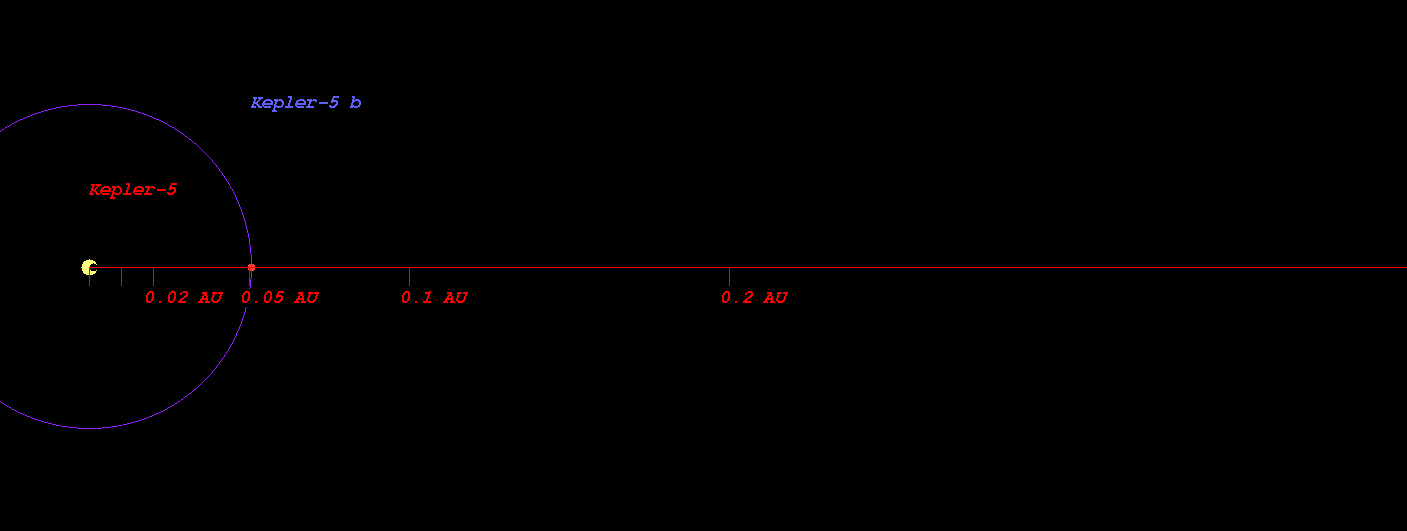

  • (Projected orbit of Kepler-5 b around its host star Kepler-5)


  • The Star Kepler-5 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.543 AU ( 230901818.2 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 2.133 AU ( 319166654.6 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 3.251 AU ( 486339350.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 4.784 AU ( 715669658.9 km)
  • Radiation at Planetary Boundary of Kepler-5 b : 2150694.57 W/m2

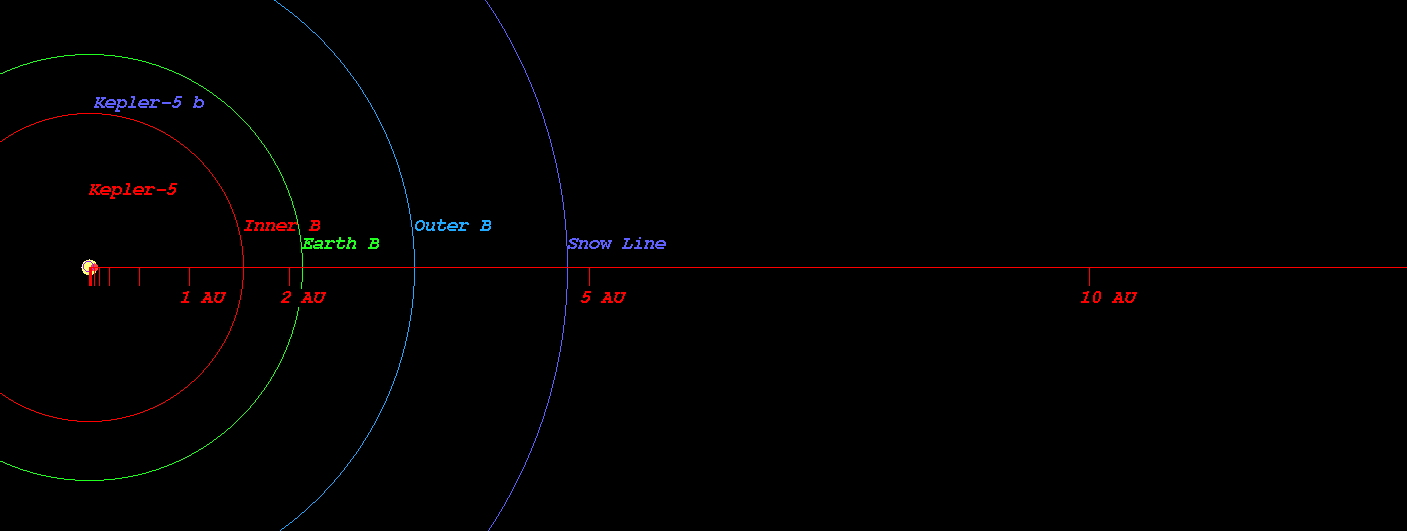

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-5)



  • Kopparapu Recent Venus for Star Kepler-5 distance : 1.547 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-5 distance : 1.959 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-5 distance : 1.892 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-5 distance : 2.073 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-5 distance : 3.417 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-5 distance : 3.604 AU

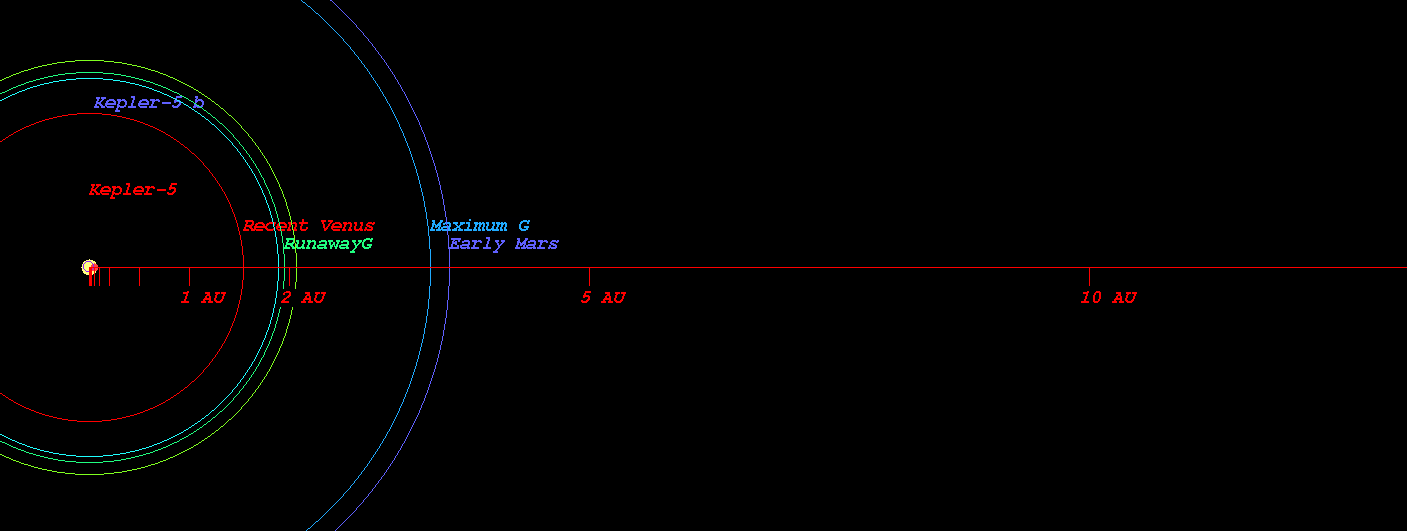

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-5)



  • Original Kopparapu Recent Venus for Star Kepler-5 distance : 1.567 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-5 distance : 2.009 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-5 distance : 2.074 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-5 distance : 3.479 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-5 distance : 3.618 AU

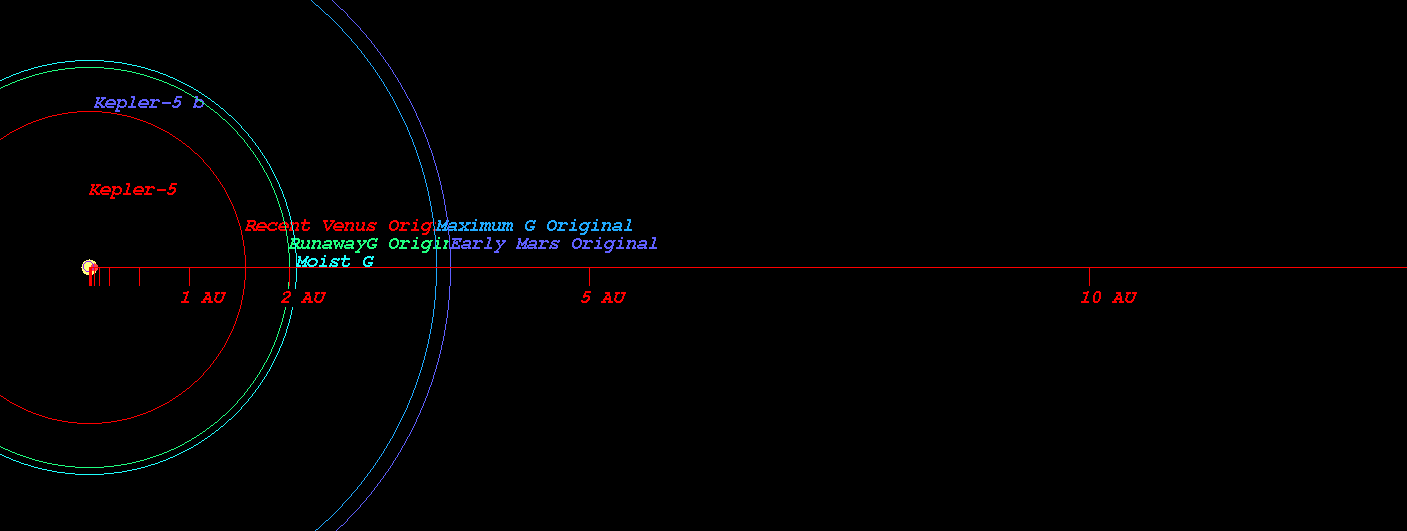

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-5)

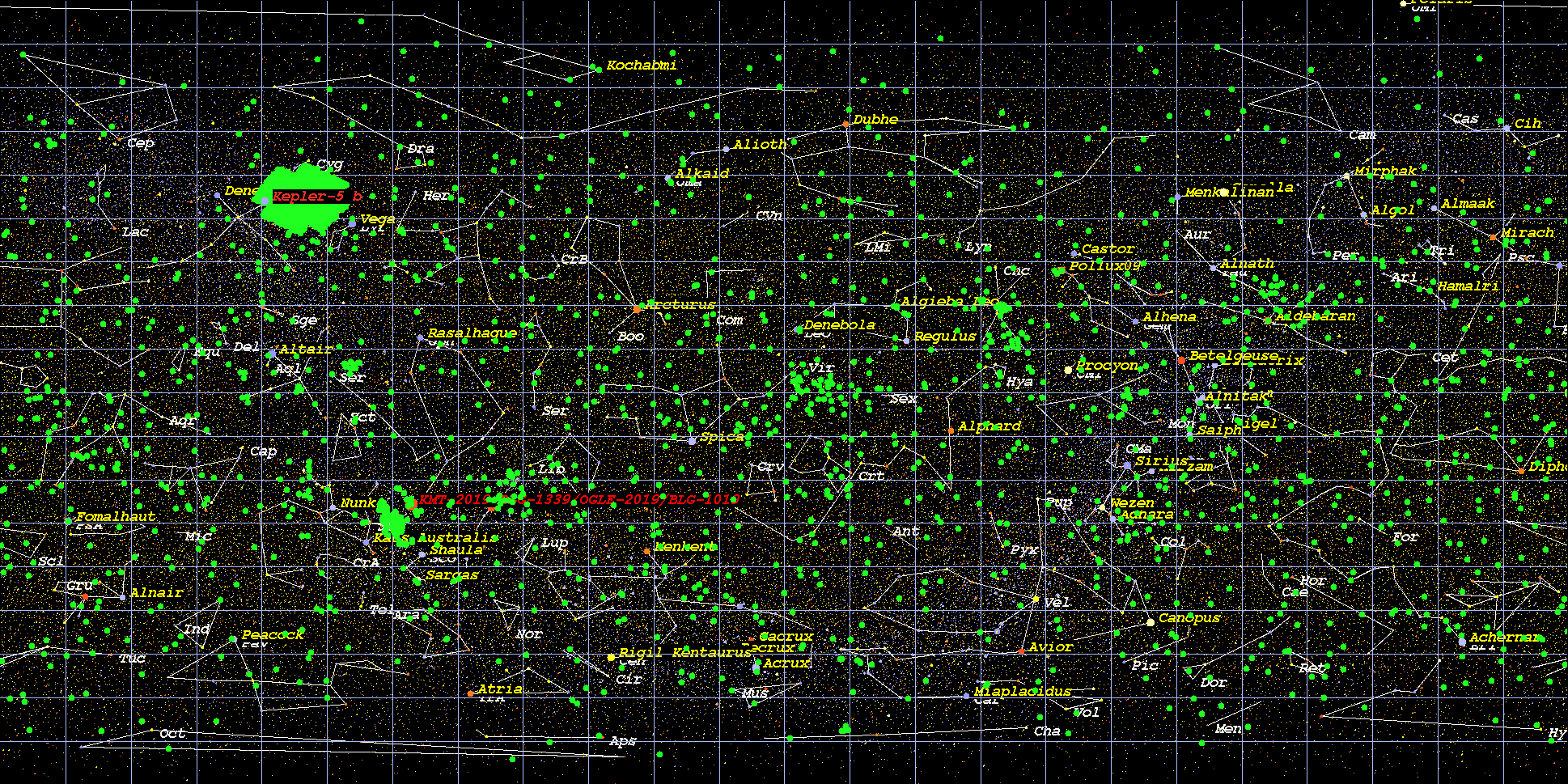

    (Position in Stellar Map of star Kepler-5 and its Exoplanet Kepler-5 b)

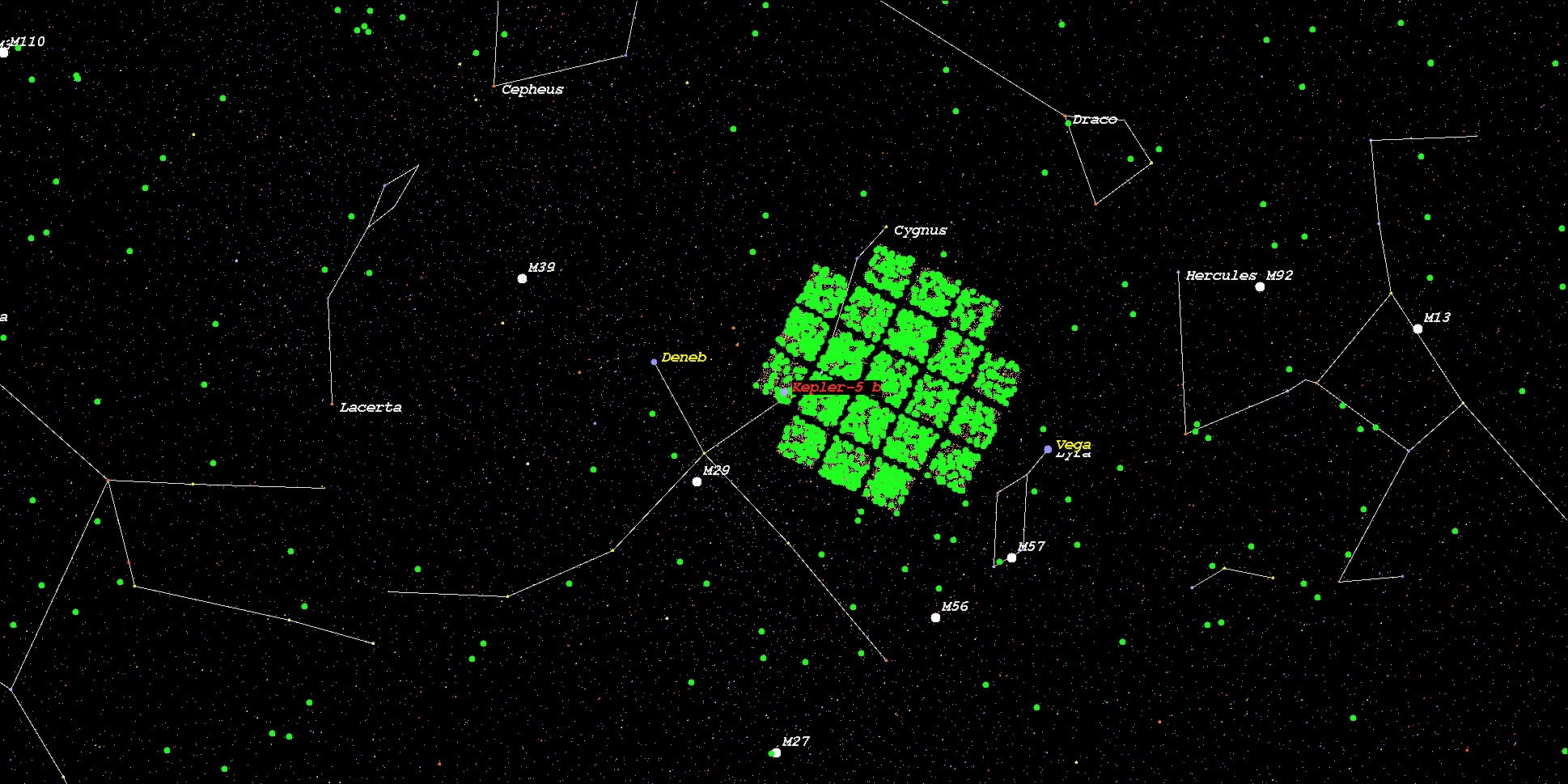

    (Zoomed position in Stellar Map of star Kepler-5 and its Exoplanet Kepler-5 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-5*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
