Imaginary Picture of Kepler-610 c

Display orbital revolution of Kepler-610 c around the hoststar Kepler-610
/
Exoplanet Name : Kepler-610 c
Alternate Name : "2MASS J19324112+4503561 c, K00581.02, KIC 8822216 c, KOI-581 c, KOI-581.02, WISE J193241.11+450356.1 c"
Status : Confirmed

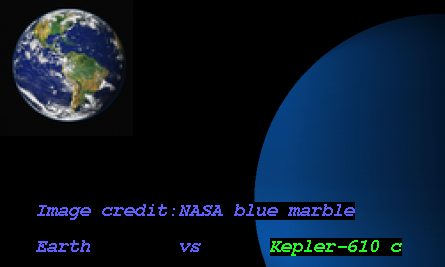

Radius (Rjup / Re): 0.2940 (Rjup) 3.2954 (Rearth)
Mass (Mjup / Me): 0.0252 (Mjup) 7.9979 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.5751 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.4158
Orbital Period(Observed/Estimated) 151.86 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.7365
Star Radiation at Atmospheric Boundary: 2968.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 329.5 (K)
Blackbody T 0.3(K) 309.4 (K)
Blackbody T 0.7(K) 250.3 (K)
Tidally Locked Blackbody T 0.1(K) 391.8 (K)
Tidally Locked Blackbody T 0.3(K) 367.9 (K)

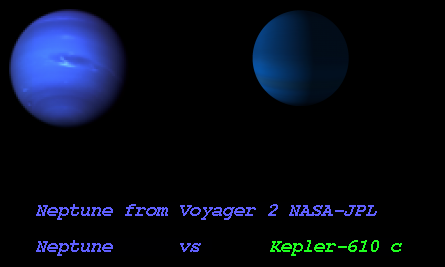

Size Class: Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-610
Alternate Name : "2MASS J19324112+4503561, KIC 8822216, KOI-581, WISE J193241.11+450356.1"
Star Distance(LY) : 2758.4
Stellar Radius(Rsun) : 0.9 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 3.5 (GY)
Temperature : 5716 (K)
Spectral type : G1
UV portion[%]: 7.6
Visible portion[%]: 44.5
IR portion[%]: 47.9
Metalicity : 0.1
Absolute Magnitude: 4.0
Apparent Magnitude: 13.6
Right Ascension(RA) 293.1713
Declination (DEC) 45.0656
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 529 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-610+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-610%20c/
Kepler-610 c
Kepler-610 c

  • Kepler-610 c is an exoplanet orbiting the star Kepler-610, located about 2758.4 light-years (845.7 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-610 has apparent magnitude of 13.6, with absolute magnitude of 4.0.

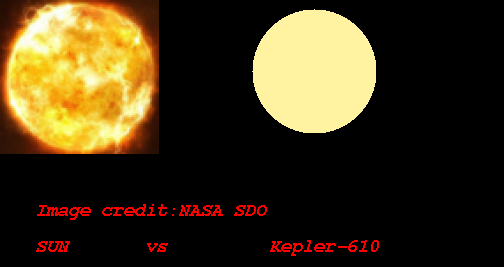

  • It is 1.1 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5716 with its spectral types of G1
  • In this planetary system, the extrasolar planet Kepler-610 c orbits around the star Kepler-610 every 151.9 days with its orbital distance of 0.58 AU ( 86026560.9 km)

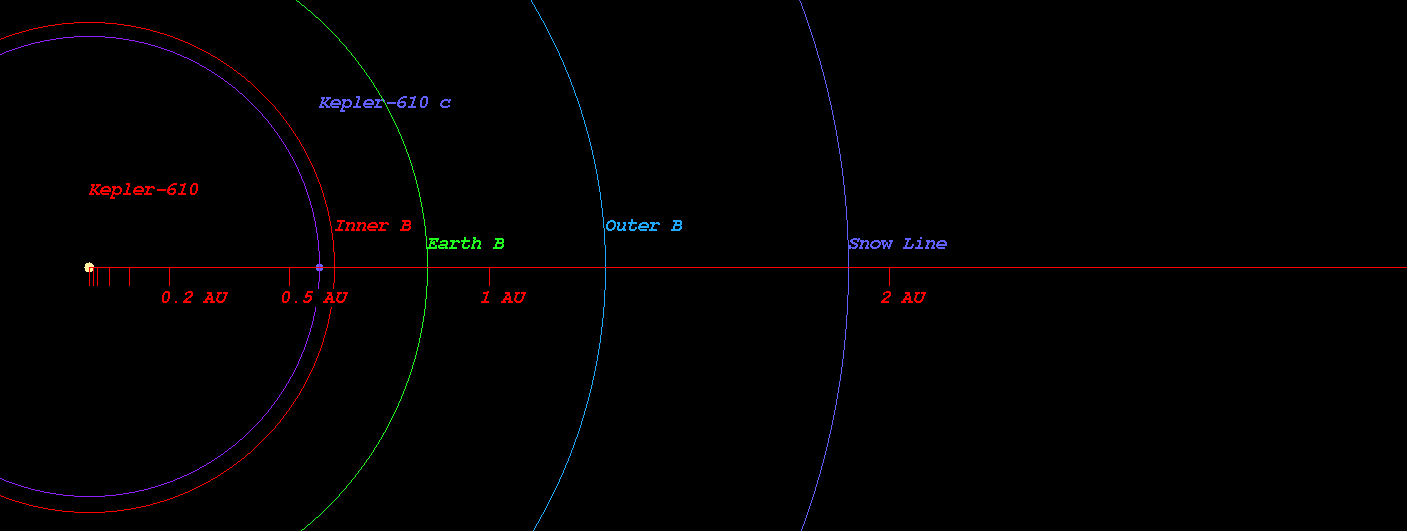

  • (Projected orbit of Kepler-610 c around its host star Kepler-610)


  • The Star Kepler-610 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.613 AU ( 91698122.7 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.847 AU ( 126750769.2 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.291 AU ( 193140122.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.900 AU ( 284214151.0 km)
  • Radiation at Planetary Boundary of Kepler-610 c : 2968.90 W/m2

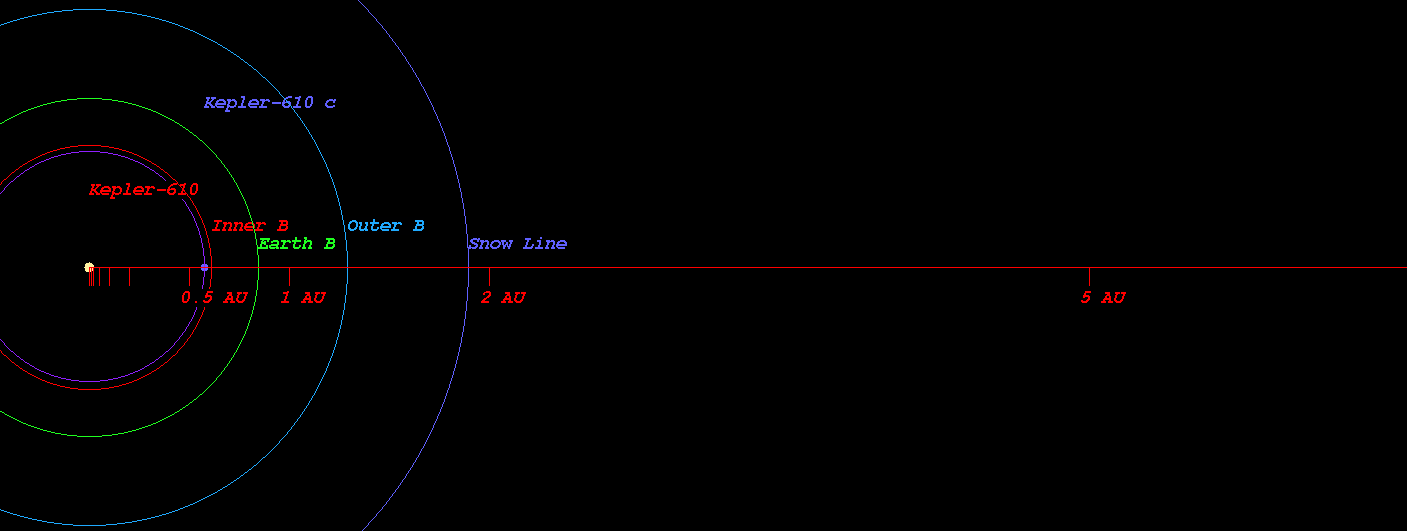

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-610)



  • Kopparapu Recent Venus for Star Kepler-610 distance : 0.638 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-610 distance : 0.808 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-610 distance : 0.780 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-610 distance : 0.855 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-610 distance : 1.428 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-610 distance : 1.507 AU

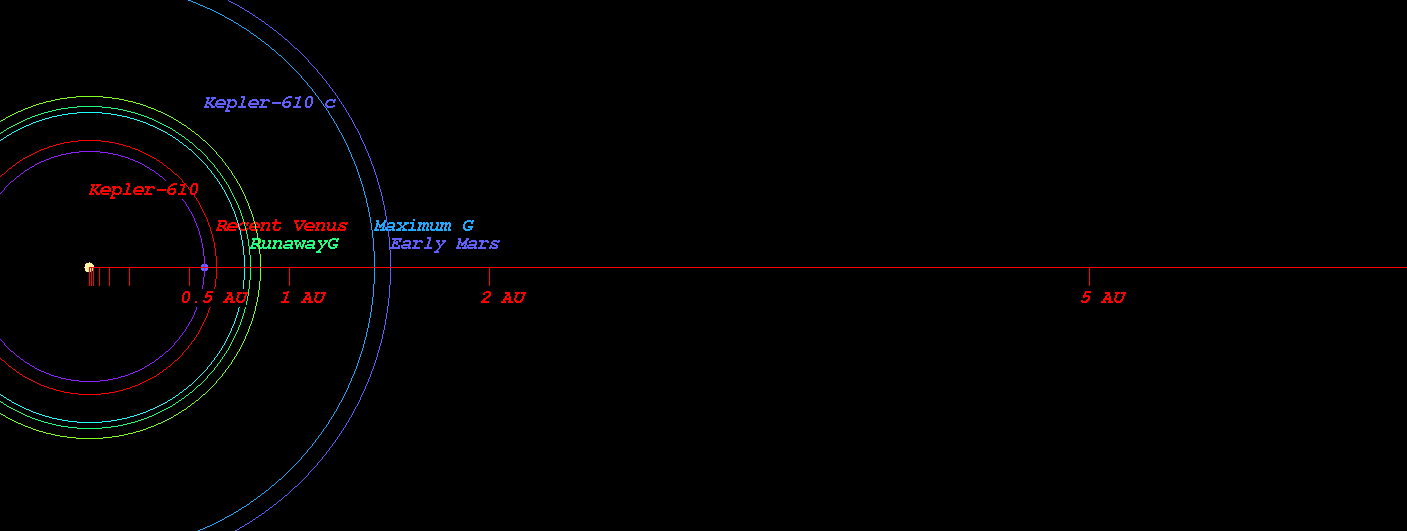

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-610)



  • Original Kopparapu Recent Venus for Star Kepler-610 distance : 0.638 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-610 distance : 0.830 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-610 distance : 0.844 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-610 distance : 1.453 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-610 distance : 1.511 AU

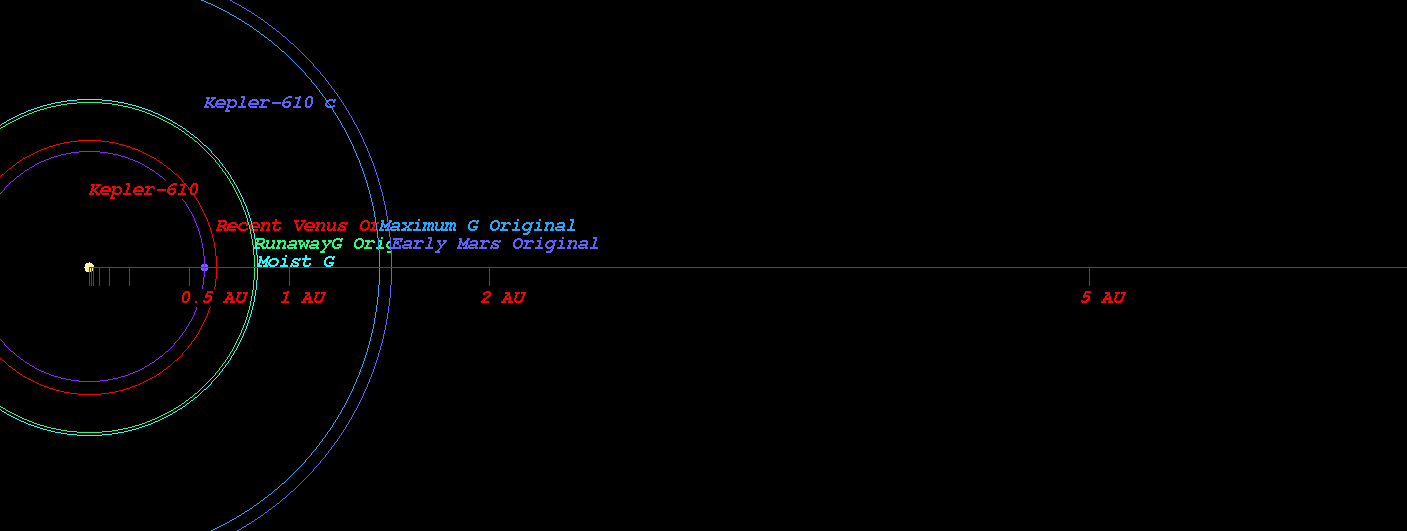

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-610)



    (Position in Stellar Map of star Kepler-610 and its Exoplanet Kepler-610 c)

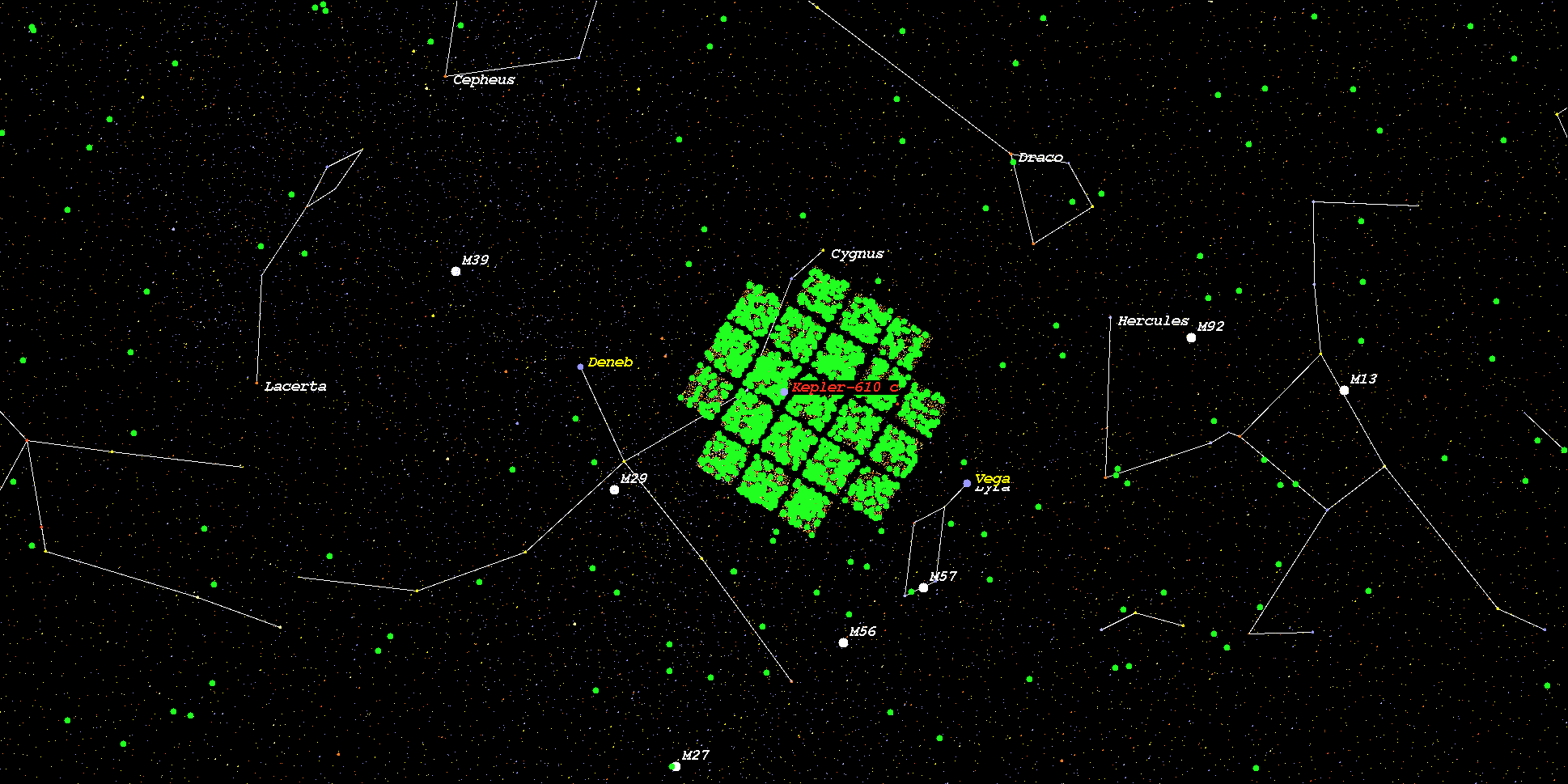

    (Zoomed position in Stellar Map of star Kepler-610 and its Exoplanet Kepler-610 c (zoom level 3))

    (Synthetic Spectrum of star Kepler-610*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
