Imaginary Picture of Kepler-622 b

Display orbital revolution of Kepler-622 b around the hoststar Kepler-622
/
Exoplanet Name : Kepler-622 b
Alternate Name : "2MASS J18575483+4055591 b, K00610.01, KIC 5686174 b, KOI-610 b, KOI-610.01, WISE J185754.83+405559.3 b"
Status : Confirmed
Radius (Rjup / Re): 0.1900 (Rjup) 2.1297 (Rearth)
Mass (Mjup / Me): 0.0168 (Mjup) 5.3291 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0993 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0391
Orbital Period(Observed/Estimated) 14.28 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.1749
Star Radiation at Atmospheric Boundary: 16544.8 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 506.2 (K)
Blackbody T 0.3(K) 475.4 (K)
Blackbody T 0.7(K) 384.6 (K)
Tidally Locked Blackbody T 0.1(K) 602.0 (K)
Tidally Locked Blackbody T 0.3(K) 565.3 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-622
Alternate Name : "2MASS J18575483+4055591, KIC 5686174, KOI-610, WISE J185754.83+405559.3"
Star Distance(LY) : 928.5
Stellar Radius(Rsun) : 0.7 (Rsun Measured)
Stellar Mass(Msun) : 0.6 (Msun Measured) 0.6 (Msun Estimated)
Star Age : 3.5 (GY)
Temperature : 4103 (K)
Spectral type : K6
UV portion[%]: 0.8
Visible portion[%]: 26.0
IR portion[%]: 73.2
Metalicity : -0.1
Absolute Magnitude: 5.4
Apparent Magnitude: 12.7
Right Ascension(RA) 284.4785
Declination (DEC) 40.9331
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 542 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-622+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-622%20b/
Kepler-622 b
Kepler-622 b

  • Kepler-622 b is an exoplanet orbiting the star Kepler-622, located about 928.5 light-years (284.7 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-622 has apparent magnitude of 12.7, with absolute magnitude of 5.4.
  • It is 0.6 times more massive and 0.7 times bigger compared with our Sun. The surface temperature is 4103 with its spectral types of K6
  • In this planetary system, the extrasolar planet Kepler-622 b orbits around the star Kepler-622 every 14.3 days with its orbital distance of 0.10 AU ( 14852173.5 km)

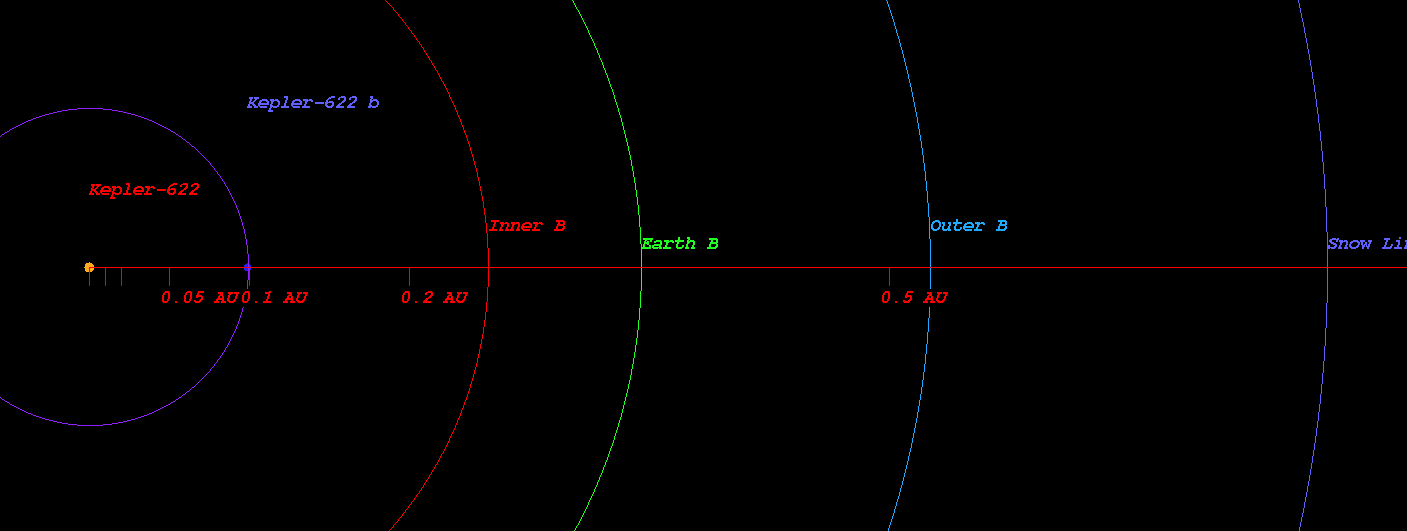

  • (Projected orbit of Kepler-622 b around its host star Kepler-622)


  • The Star Kepler-622 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.250 AU ( 37372462.8 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.345 AU ( 51658510.1 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.526 AU ( 78716137.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.774 AU ( 115834244.6 km)
  • Radiation at Planetary Boundary of Kepler-622 b : 16544.85 W/m2

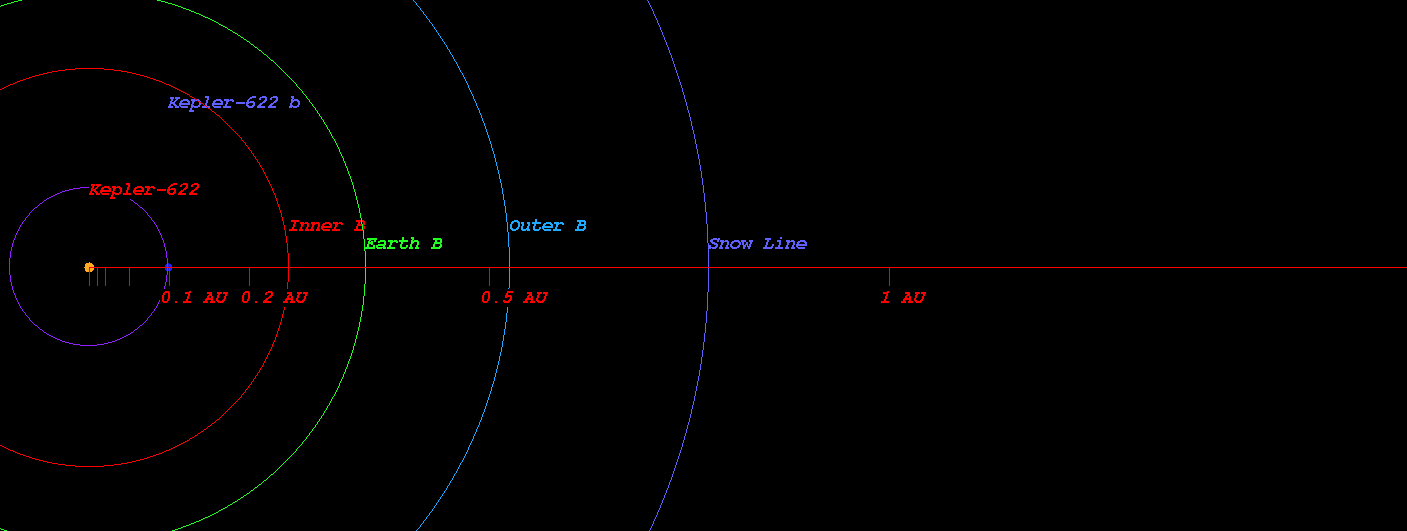

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-622)



  • Kopparapu Recent Venus for Star Kepler-622 distance : 0.279 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-622 distance : 0.353 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-622 distance : 0.341 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-622 distance : 0.375 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-622 distance : 0.667 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-622 distance : 0.704 AU

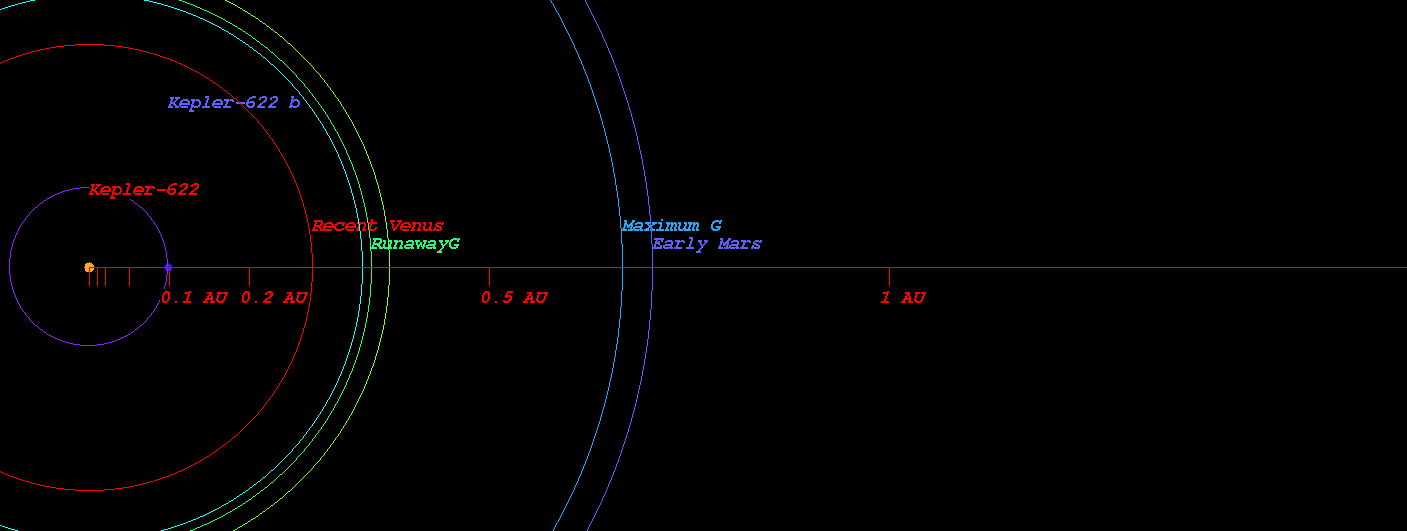

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-622)



  • Original Kopparapu Recent Venus for Star Kepler-622 distance : 0.276 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-622 distance : 0.365 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-622 distance : 0.365 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-622 distance : 0.678 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-622 distance : 0.705 AU

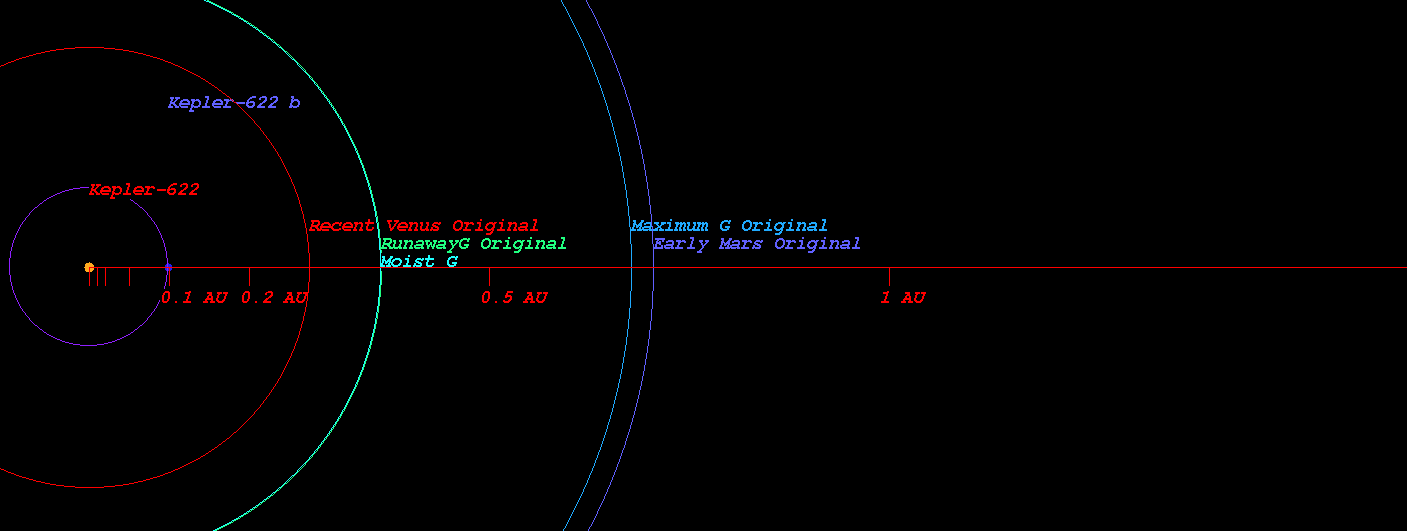

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-622)

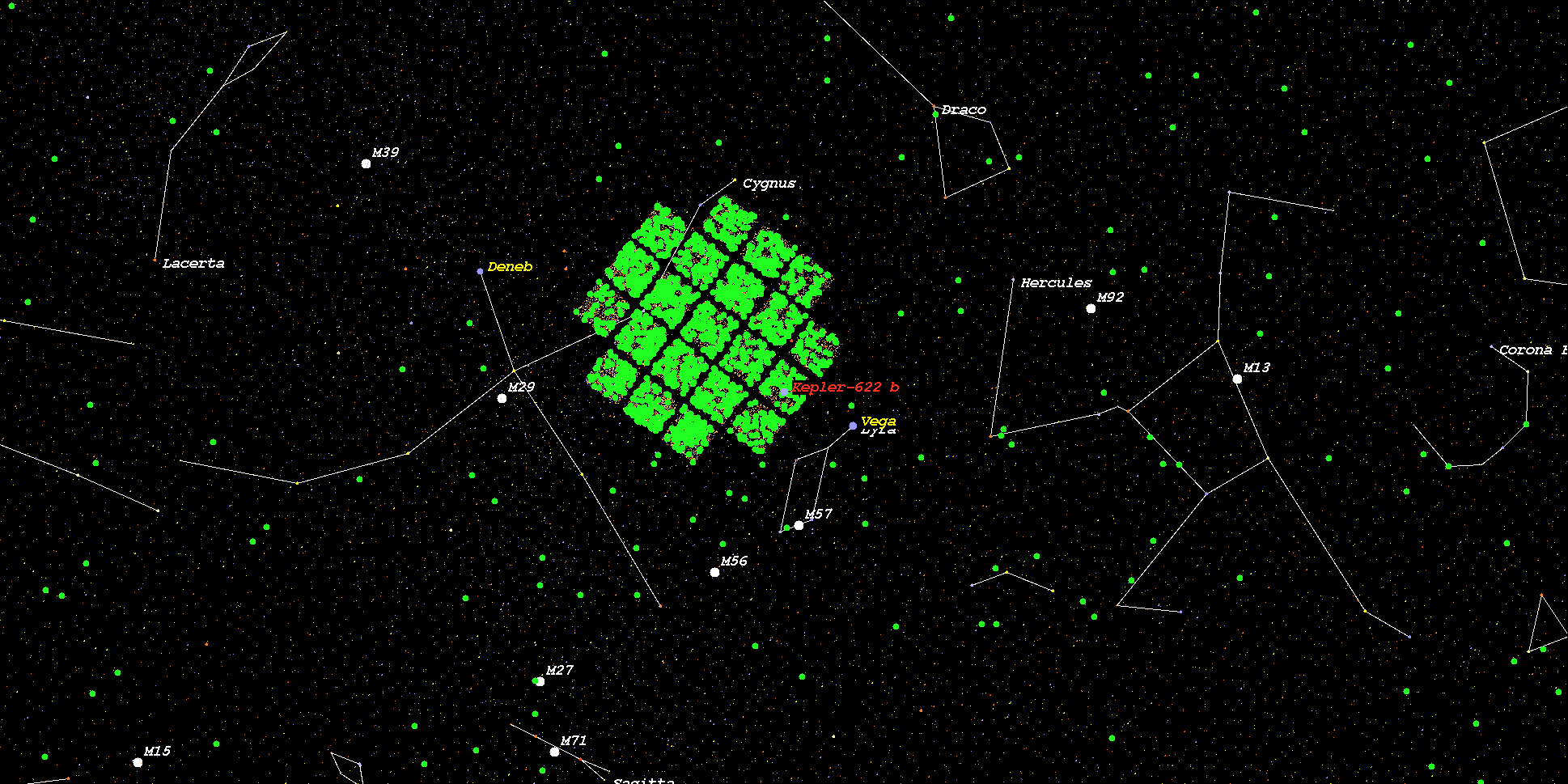

    (Position in Stellar Map of star Kepler-622 and its Exoplanet Kepler-622 b)



    (Zoomed position in Stellar Map of star Kepler-622 and its Exoplanet Kepler-622 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-622*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
