Imaginary Picture of Kepler-710 b

Display orbital revolution of Kepler-710 b around the hoststar Kepler-710
/
Exoplanet Name : Kepler-710 b
Alternate Name : "2MASS J19275139+4241461 b, K00873.01, KIC 7118364 b, KOI-873 b, KOI-873.01, WISE J192751.38+424146.1 b"
Status : Confirmed
Radius (Rjup / Re): 0.1680 (Rjup) 1.8831 (Rearth)
Mass (Mjup / Me): 0.0149 (Mjup) 4.7528 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0511 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0119
Orbital Period(Observed/Estimated) 4.35 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.3403
Star Radiation at Atmospheric Boundary: 1022638.4 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1419.3 (K)
Blackbody T 0.3(K) 1332.9 (K)
Blackbody T 0.7(K) 1078.4 (K)
Tidally Locked Blackbody T 0.1(K) 1687.8 (K)
Tidally Locked Blackbody T 0.3(K) 1585.1 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-710
Alternate Name : "2MASS J19275139+4241461, KIC 7118364, KOI-873, WISE J192751.38+424146.1"
Star Distance(LY) : 4725.7
Stellar Radius(Rsun) : 1.4 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 4.2 (GY)
Temperature : 5757 (K)
Spectral type : G6
UV portion[%]: 7.8
Visible portion[%]: 44.7
IR portion[%]: 47.5
Metalicity : -0.0
Absolute Magnitude: 3.0
Apparent Magnitude: 13.8
Right Ascension(RA) 291.9642
Declination (DEC) 42.6961
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 600 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-710&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-710%20b/
Kepler-710 b
Kepler-710 b

  • Kepler-710 b is an exoplanet orbiting the star Kepler-710, located about 4725.7 light-years (1448.9 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-710 has apparent magnitude of 13.8, with absolute magnitude of 3.0.
  • It is 0.9 times more massive and 1.4 times bigger compared with our Sun. The surface temperature is 5757 with its spectral types of G6
  • In this planetary system, the extrasolar planet Kepler-710 b orbits around the star Kepler-710 every 4.3 days with its orbital distance of 0.05 AU ( 7639295.8 km)
  • (Projected orbit of Kepler-710 b around its host star Kepler-710)


  • The Star Kepler-710 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.010 AU ( 151127907.4 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.396 AU ( 208898262.4 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.128 AU ( 318314722.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.131 AU ( 468414059.1 km)
  • Radiation at Planetary Boundary of Kepler-710 b : 1022638.41 W/m2

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-710)



  • Kopparapu Recent Venus for Star Kepler-710 distance : 1.048 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-710 distance : 1.328 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-710 distance : 1.282 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-710 distance : 1.406 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-710 distance : 2.346 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-710 distance : 2.474 AU

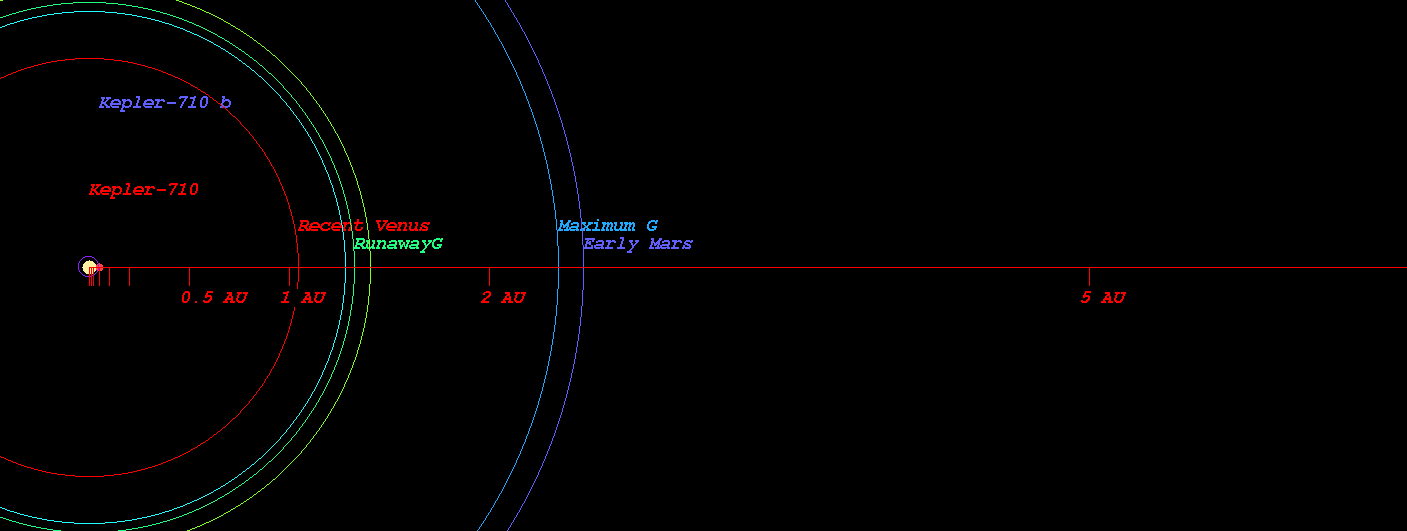

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-710)



  • Original Kopparapu Recent Venus for Star Kepler-710 distance : 1.049 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-710 distance : 1.364 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-710 distance : 1.388 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-710 distance : 2.387 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-710 distance : 2.482 AU

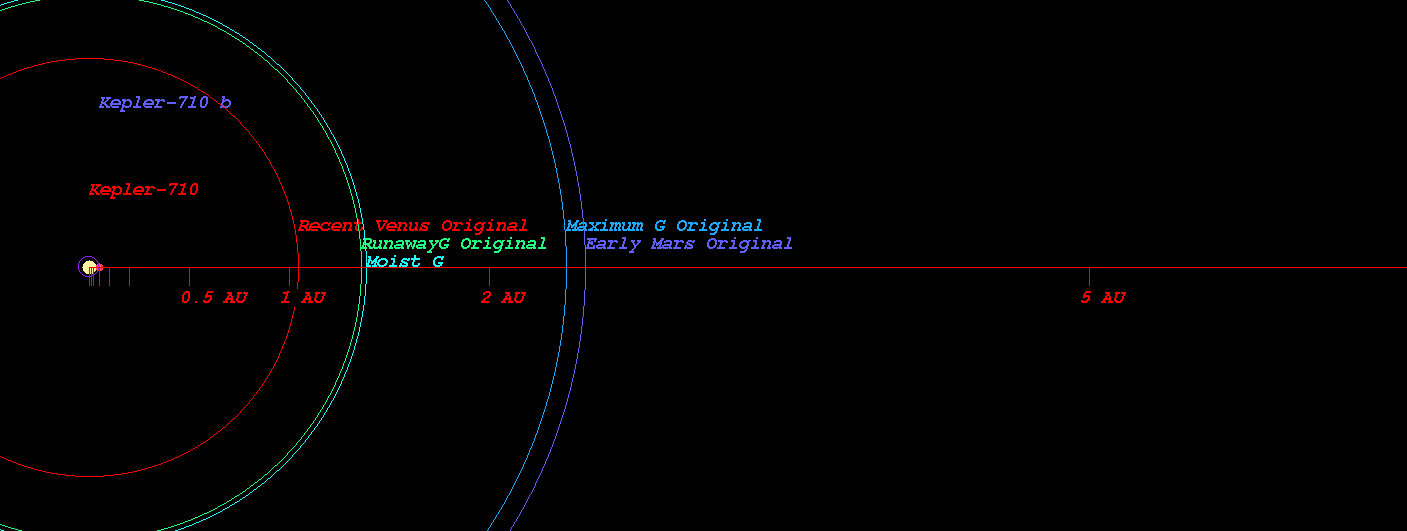

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-710)

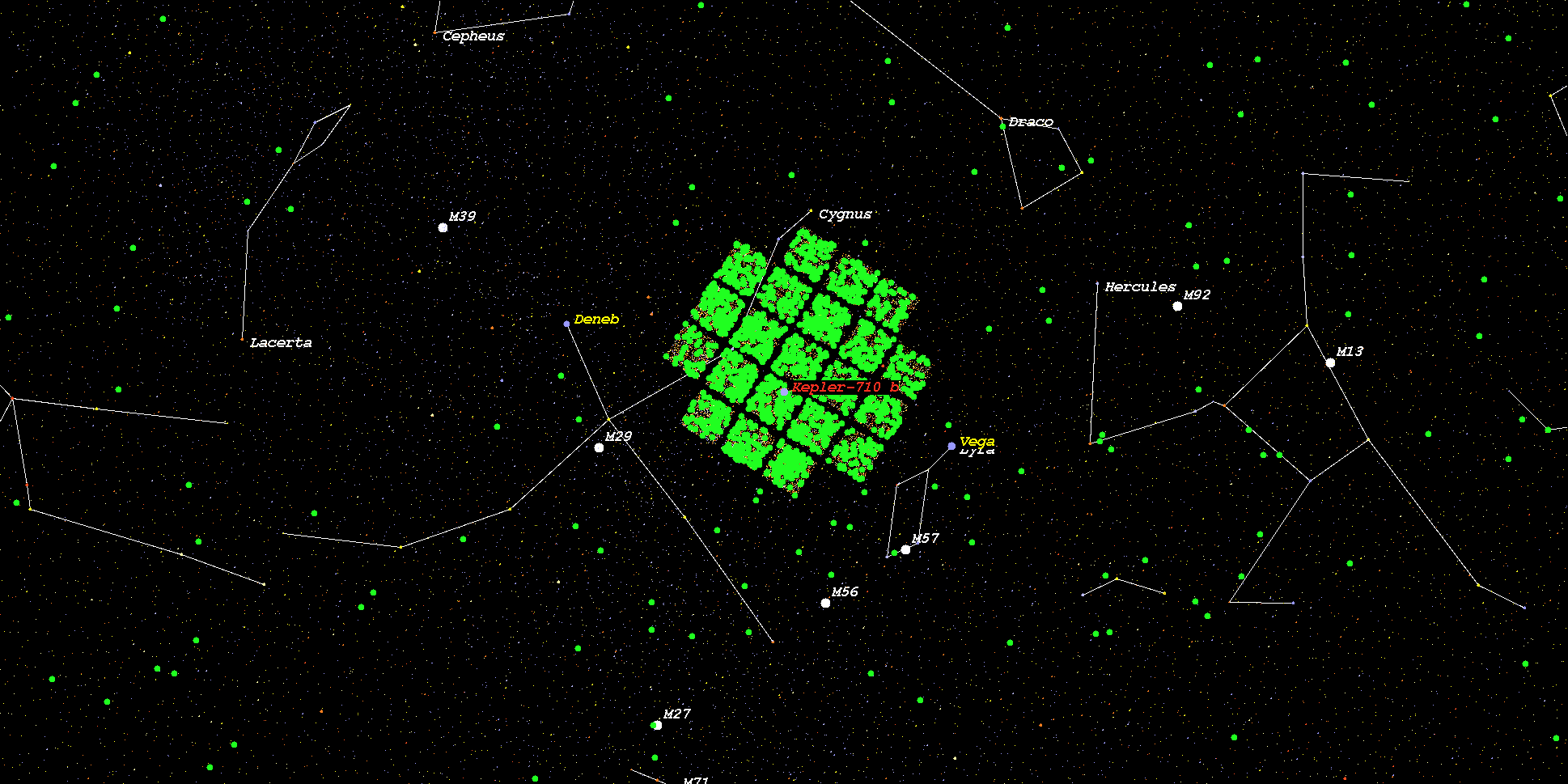

    (Position in Stellar Map of star Kepler-710 and its Exoplanet Kepler-710 b)



    (Zoomed position in Stellar Map of star Kepler-710 and its Exoplanet Kepler-710 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-710*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
