Imaginary Picture of Kepler-714 b

Display orbital revolution of Kepler-714 b around the hoststar Kepler-714
/
Exoplanet Name : Kepler-714 b
Alternate Name : "2MASS J18504788+4316218 b, K00890.01, KIC 7585481 b, KOI-890 b, KOI-890.01, WISE J185047.87+431621.9 b"
Status : Confirmed
Radius (Rjup / Re): 0.8630 (Rjup) 9.6734 (Rearth)
Mass (Mjup / Me): 0.6300 (Mjup) 200.3105 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0812 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0222
Orbital Period(Observed/Estimated) 8.10 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 2.1407
Star Radiation at Atmospheric Boundary: 694055.4 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1288.2 (K)
Blackbody T 0.3(K) 1209.8 (K)
Blackbody T 0.7(K) 978.8 (K)
Tidally Locked Blackbody T 0.1(K) 1532.0 (K)
Tidally Locked Blackbody T 0.3(K) 1438.7 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-714
Alternate Name : "2MASS J18504788+4316218, KIC 7585481, KOI-890, WISE J185047.87+431621.9"
Star Distance(LY) : 6819.2
Stellar Radius(Rsun) : 1.6 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 3.5 (GY)
Temperature : 6217 (K)
Spectral type : G0
UV portion[%]: 0.3
Visible portion[%]: 1.5
IR portion[%]: 98.2
Metalicity : 0.0
Absolute Magnitude: 2.6
Apparent Magnitude: 14.2
Right Ascension(RA) 282.6995
Declination (DEC) 43.2727
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 605 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-714&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-714%20b/
Kepler-714 b
Kepler-714 b

  • Kepler-714 b is an exoplanet orbiting the star Kepler-714, located about 6819.2 light-years (2090.8 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-714 has apparent magnitude of 14.2, with absolute magnitude of 2.6.
  • It is 1.1 times more massive and 1.6 times bigger compared with our Sun. The surface temperature is 6217 with its spectral types of G0
  • In this planetary system, the extrasolar planet Kepler-714 b orbits around the star Kepler-714 every 8.1 days with its orbital distance of 0.08 AU ( 12151345.1 km)

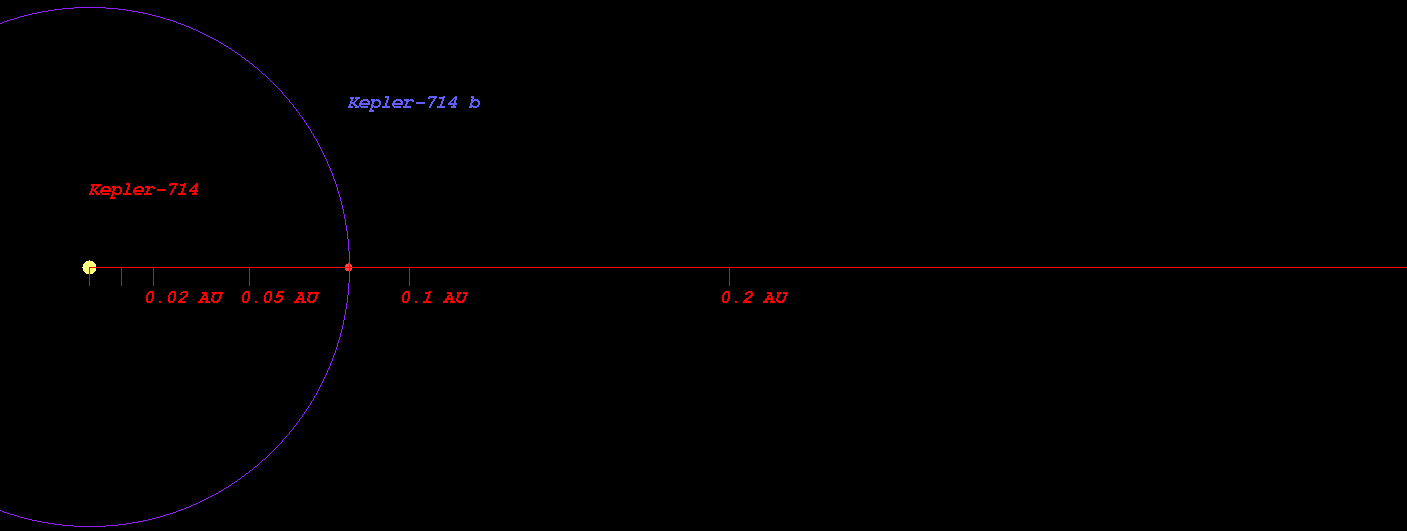

  • (Projected orbit of Kepler-714 b around its host star Kepler-714)


  • The Star Kepler-714 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.324 AU ( 198039452.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.830 AU ( 273742277.3 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.788 AU ( 417122651.6 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 4.103 AU ( 613814254.8 km)
  • Radiation at Planetary Boundary of Kepler-714 b : 694055.39 W/m2

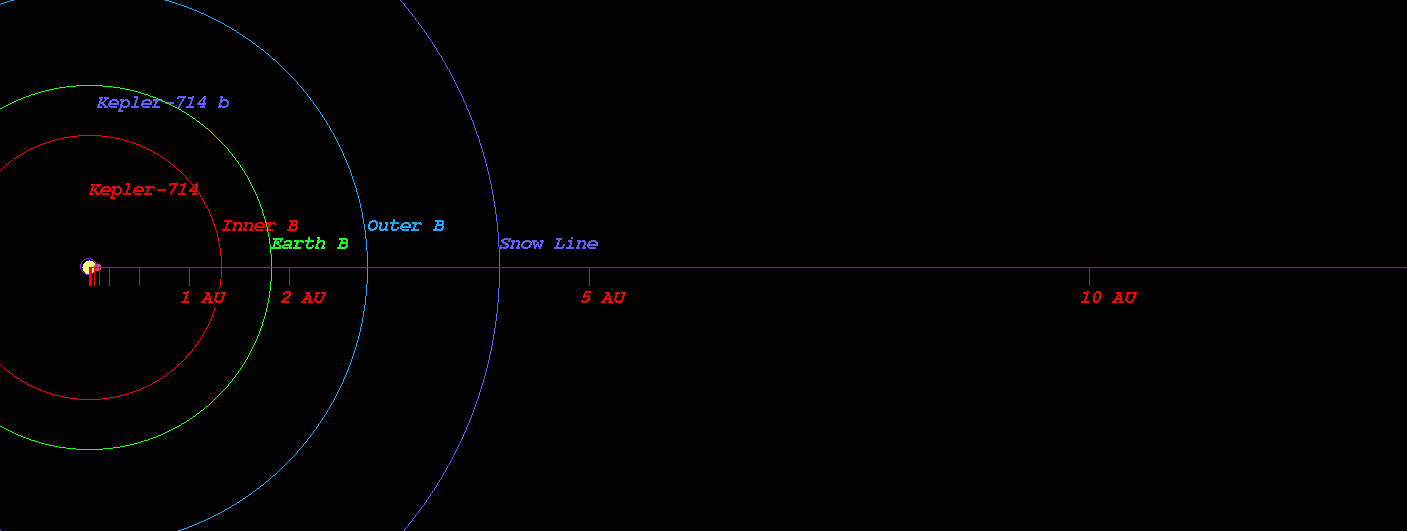

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-714)



  • Kopparapu Recent Venus for Star Kepler-714 distance : 1.336 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-714 distance : 1.692 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-714 distance : 1.634 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-714 distance : 1.791 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-714 distance : 2.958 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-714 distance : 3.119 AU

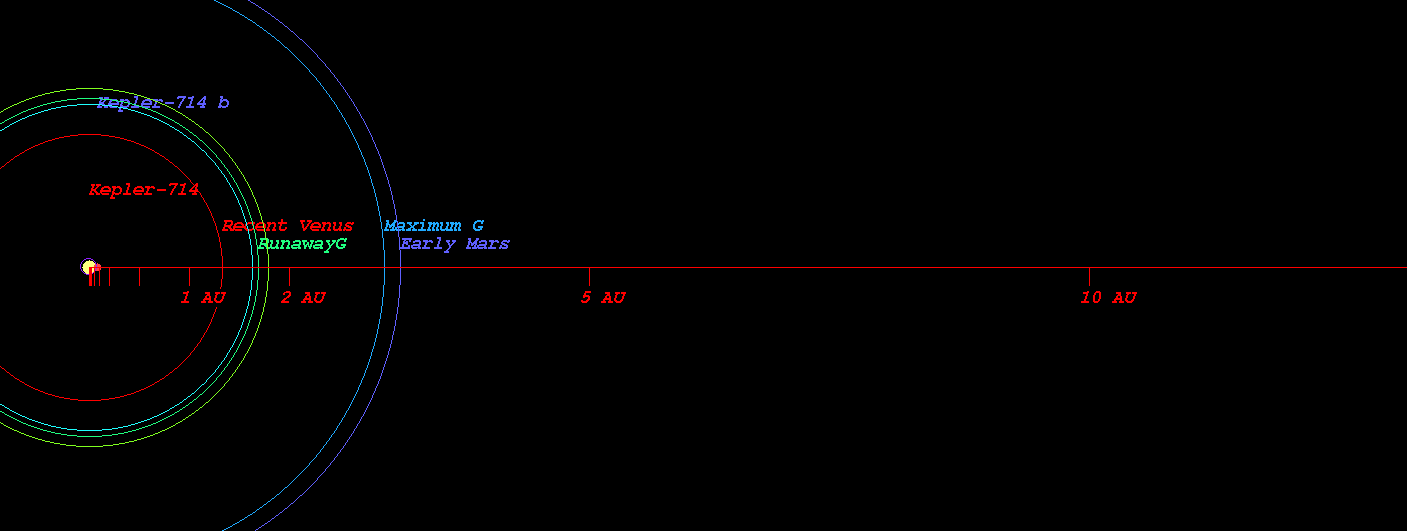

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-714)



  • Original Kopparapu Recent Venus for Star Kepler-714 distance : 1.350 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-714 distance : 1.736 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-714 distance : 1.787 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-714 distance : 3.011 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-714 distance : 3.131 AU

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-714)

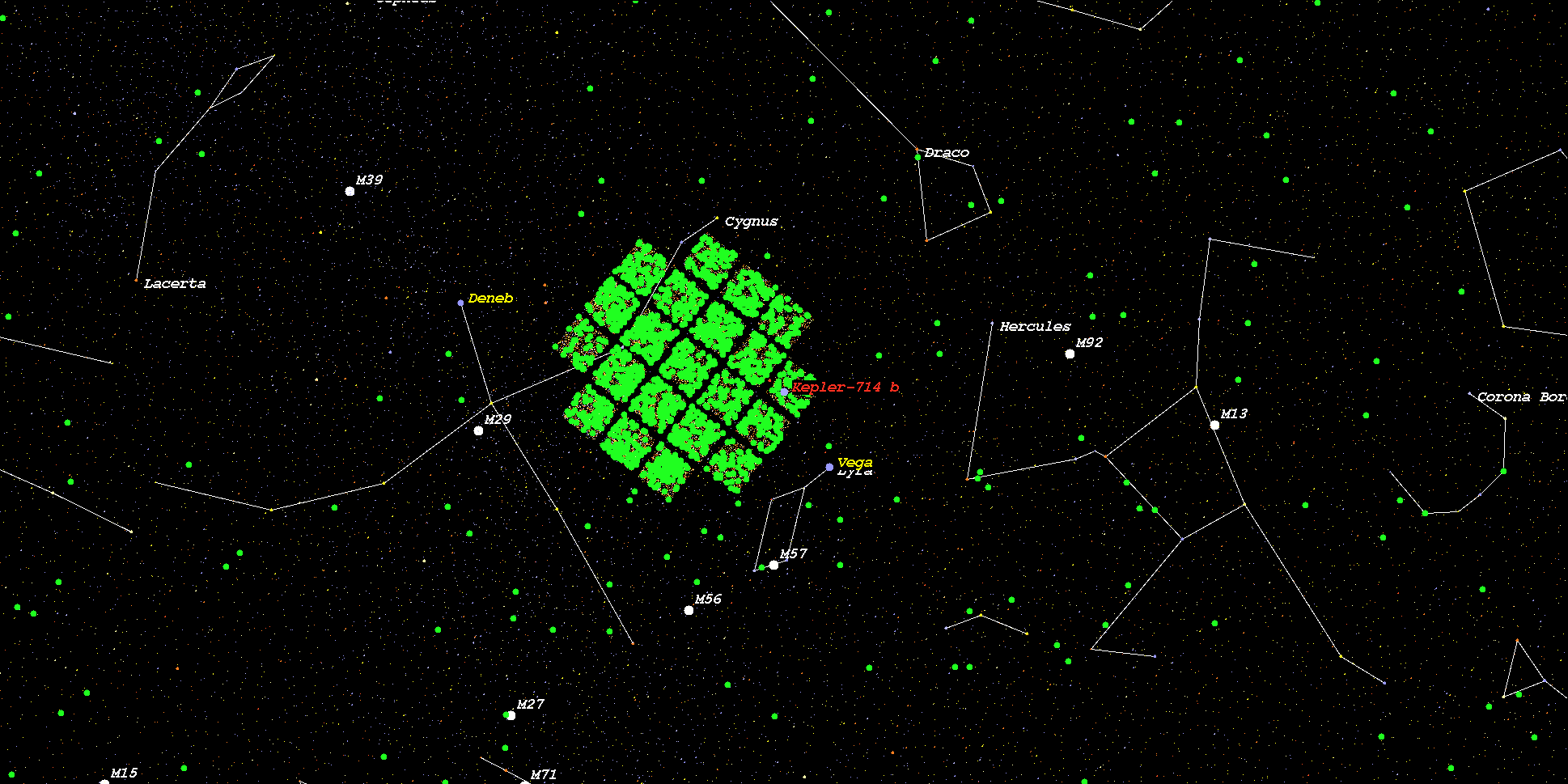

    (Position in Stellar Map of star Kepler-714 and its Exoplanet Kepler-714 b)



    (Zoomed position in Stellar Map of star Kepler-714 and its Exoplanet Kepler-714 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-714*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
