Imaginary Picture of Kepler-760 c

Display orbital revolution of Kepler-760 c around the hoststar Kepler-760
/
Exoplanet Name : Kepler-760 c
Alternate Name : "2MASS J19102237+4410459 c, K01069.02, KIC 8222813 c, KOI-1069 c, KOI-1069.02, WISE J191022.36+441045.9 c"
Status : Confirmed
Radius (Rjup / Re): 0.1320 (Rjup) 1.4796 (Rearth)
Mass (Mjup / Me): 0.0127 (Mjup) 4.0473 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0344 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0068
Orbital Period(Observed/Estimated) 2.47 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.8488
Star Radiation at Atmospheric Boundary: 581103.8 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1232.3 (K)
Blackbody T 0.3(K) 1157.2 (K)
Blackbody T 0.7(K) 936.3 (K)
Tidally Locked Blackbody T 0.1(K) 1465.4 (K)
Tidally Locked Blackbody T 0.3(K) 1376.2 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-760
Alternate Name : "2MASS J19102237+4410459, KIC 8222813, KOI-1069, WISE J191022.36+441045.9"
Star Distance(LY) : 2584.6
Stellar Radius(Rsun) : 0.9 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 4.6 (GY)
Temperature : 5239 (K)
Spectral type : K0
UV portion[%]: 5.3
Visible portion[%]: 40.7
IR portion[%]: 54.0
Metalicity : 0.1
Absolute Magnitude: 4.2
Apparent Magnitude: 13.7
Right Ascension(RA) 287.5932
Declination (DEC) 44.1794
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 655 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-760+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-760%20c/
Kepler-760 c
Kepler-760 c

  • Kepler-760 c is an exoplanet orbiting the star Kepler-760, located about 2584.6 light-years (792.4 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-760 has apparent magnitude of 13.7, with absolute magnitude of 4.2.
  • It is 0.9 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5239 with its spectral types of K0
  • In this planetary system, the extrasolar planet Kepler-760 c orbits around the star Kepler-760 every 2.5 days with its orbital distance of 0.03 AU ( 5141679.8 km)

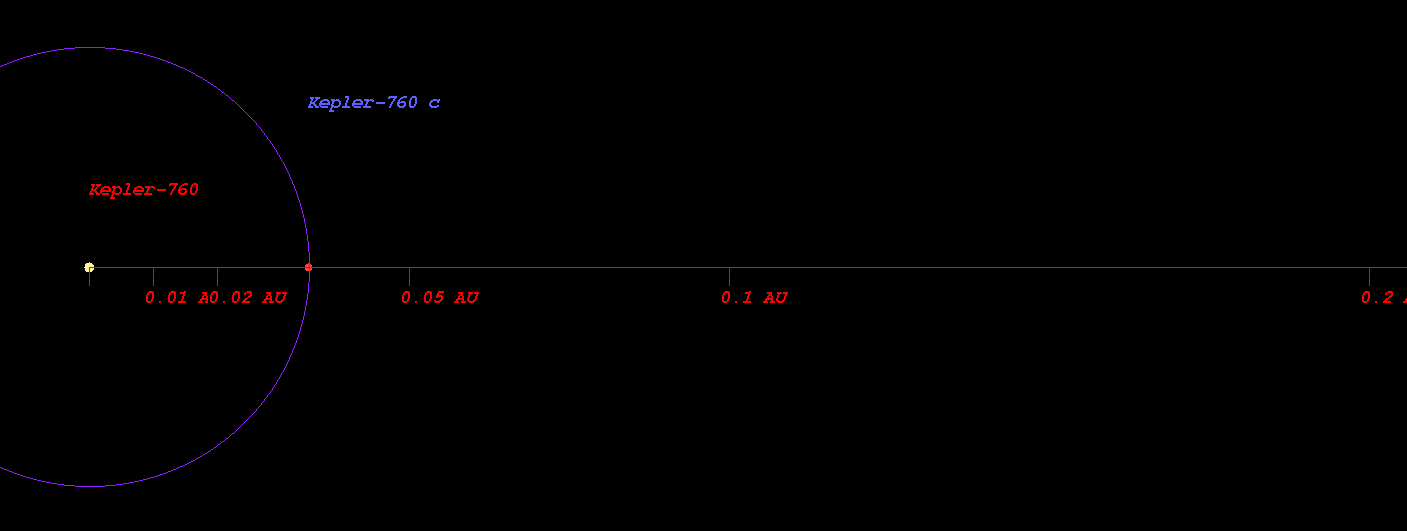

  • (Projected orbit of Kepler-760 c around its host star Kepler-760)


  • The Star Kepler-760 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.513 AU ( 76676481.4 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.708 AU ( 105986935.2 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.080 AU ( 161500634.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.589 AU ( 237655258.4 km)
  • Radiation at Planetary Boundary of Kepler-760 c : 581103.79 W/m2

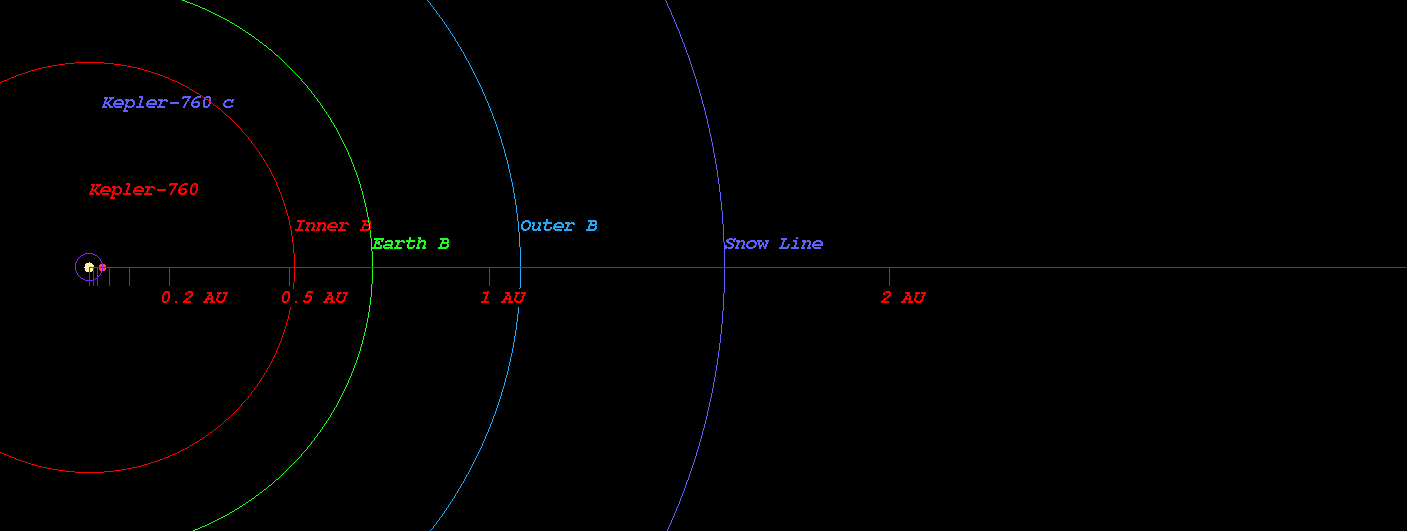

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-760)



  • Kopparapu Recent Venus for Star Kepler-760 distance : 0.548 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-760 distance : 0.694 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-760 distance : 0.670 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-760 distance : 0.735 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-760 distance : 1.246 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-760 distance : 1.314 AU

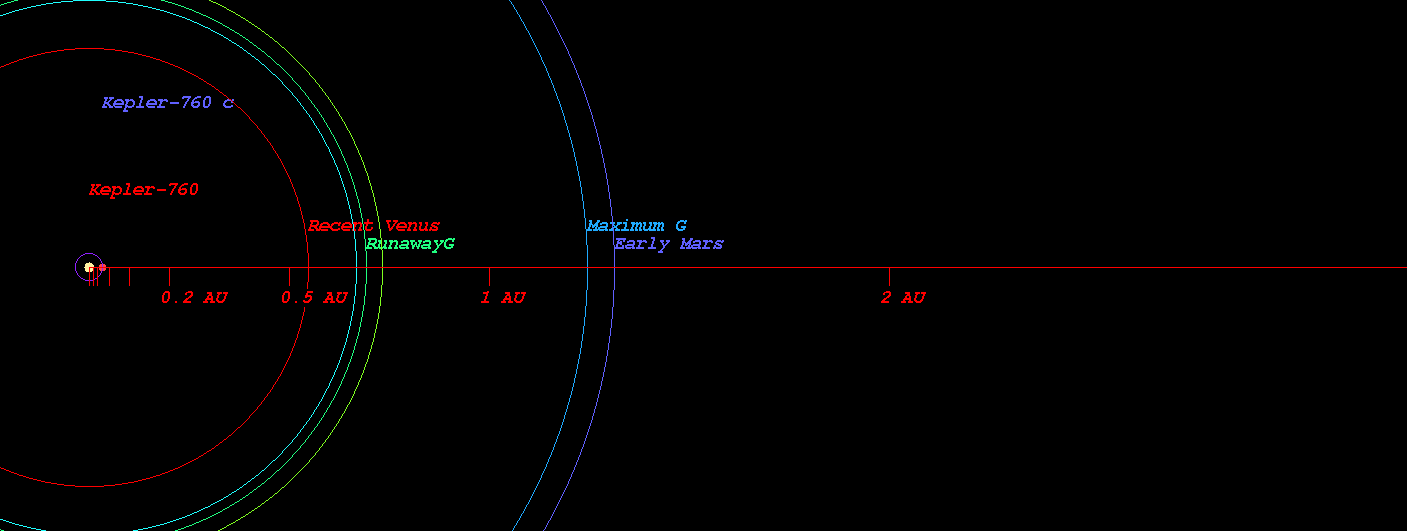

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-760)



  • Original Kopparapu Recent Venus for Star Kepler-760 distance : 0.544 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-760 distance : 0.714 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-760 distance : 0.719 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-760 distance : 1.267 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-760 distance : 1.318 AU

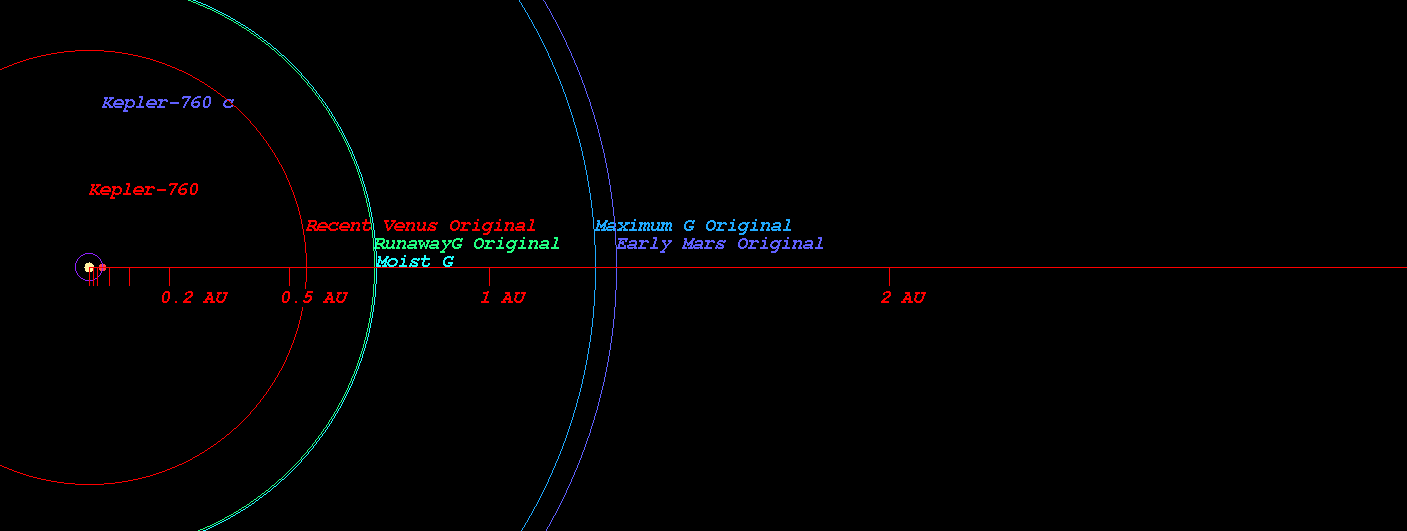

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-760)

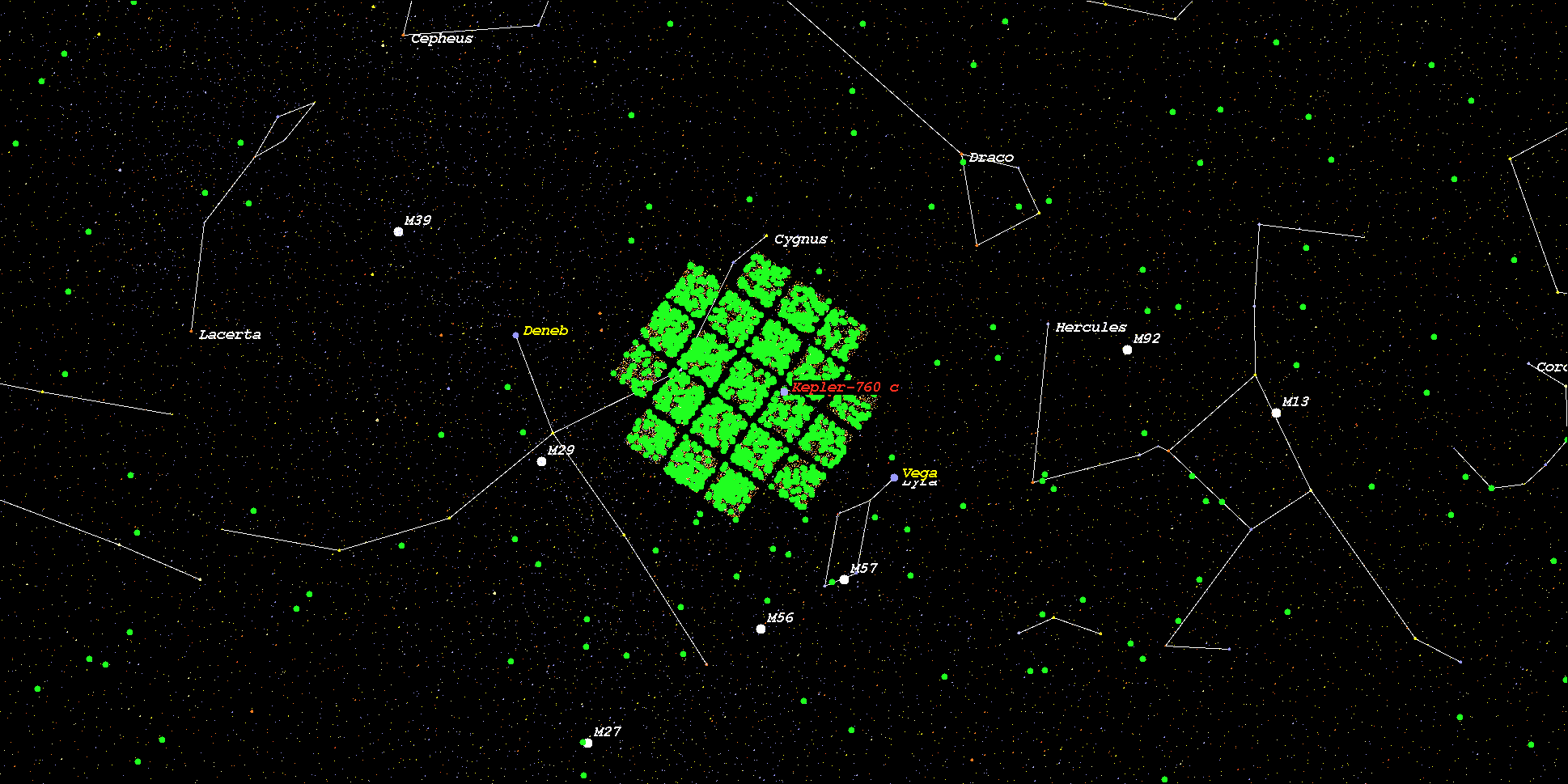

    (Position in Stellar Map of star Kepler-760 and its Exoplanet Kepler-760 c)



    (Zoomed position in Stellar Map of star Kepler-760 and its Exoplanet Kepler-760 c (zoom level 3))

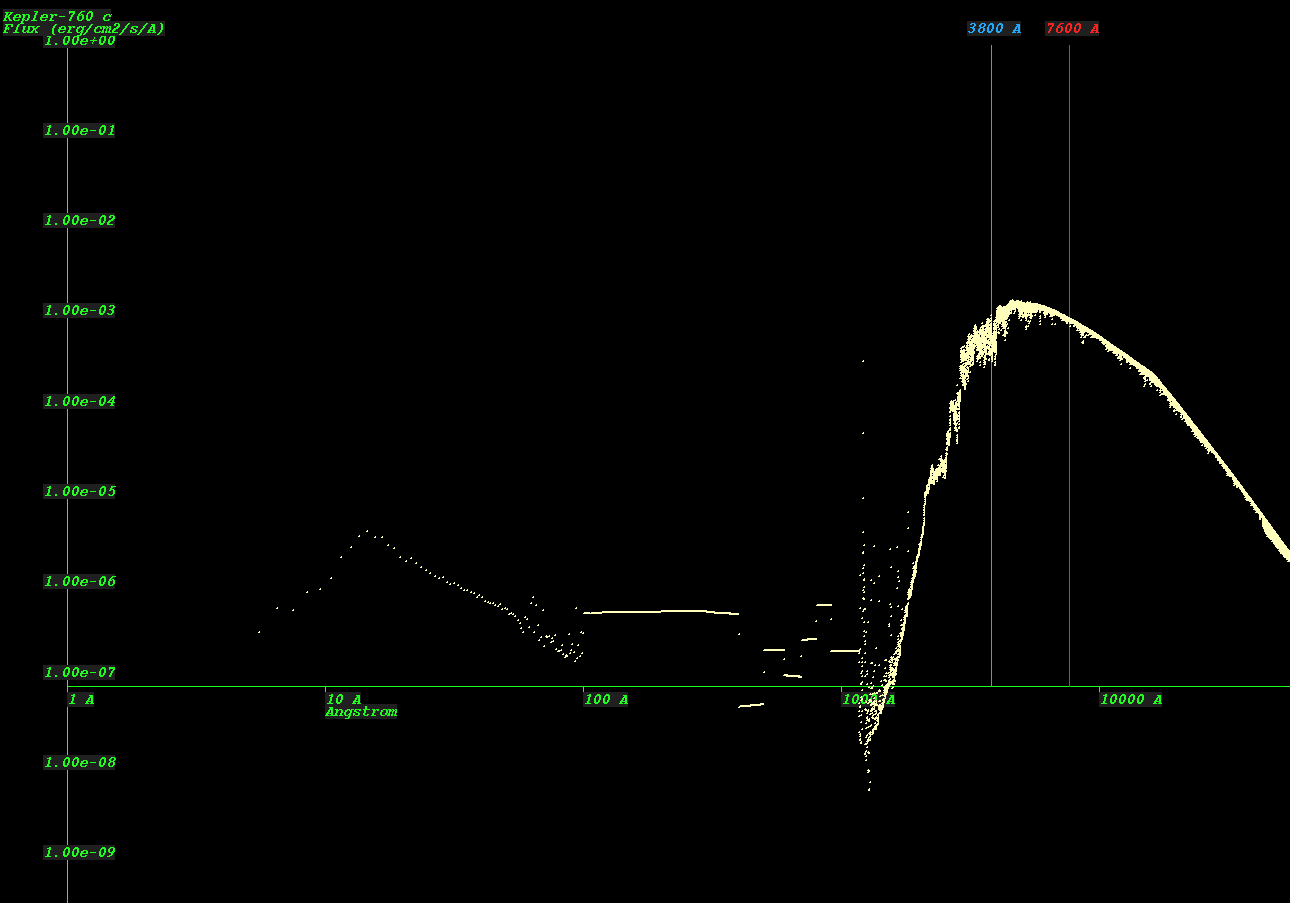

    (Synthetic Spectrum of star Kepler-760*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
