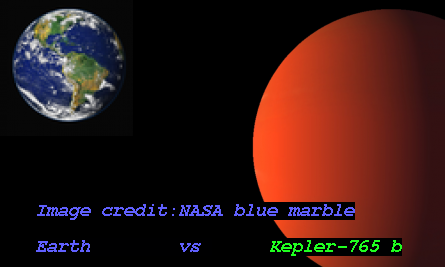

Imaginary Picture of Kepler-765 b

Display orbital revolution of Kepler-765 b around the hoststar Kepler-765
/
Exoplanet Name : Kepler-765 b
Alternate Name : "2MASS J18524430+4709204 b, K01086.01, KIC 10122255 b, KOI-1086 b, KOI-1086.01, WISE J185244.30+470920.5 b"
Status : Confirmed
Radius (Rjup / Re): 0.2170 (Rjup) 2.4324 (Rearth)
Mass (Mjup / Me): 0.0190 (Mjup) 6.0300 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1820 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0757
Orbital Period(Observed/Estimated) 27.67 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.0192
Star Radiation at Atmospheric Boundary: 62088.7 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 704.5 (K)
Blackbody T 0.3(K) 661.6 (K)
Blackbody T 0.7(K) 535.3 (K)
Tidally Locked Blackbody T 0.1(K) 837.8 (K)
Tidally Locked Blackbody T 0.3(K) 786.8 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-765
Alternate Name : "2MASS J18524430+4709204, KIC 10122255, KOI-1086, WISE J185244.30+470920.5"
Star Distance(LY) : 3508.7
Stellar Radius(Rsun) : 1.1 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 3.7 (GY)
Temperature : 6038 (K)
Spectral type : G1
UV portion[%]: 0.3
Visible portion[%]: 1.5
IR portion[%]: 98.2
Metalicity : 0.0
Absolute Magnitude: 3.3
Apparent Magnitude: 13.5
Right Ascension(RA) 283.1846
Declination (DEC) 47.1557
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 660 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-765+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-765%20b/
Kepler-765 b
Kepler-765 b

  • Kepler-765 b is an exoplanet orbiting the star Kepler-765, located about 3508.7 light-years (1075.8 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-765 has apparent magnitude of 13.5, with absolute magnitude of 3.3.

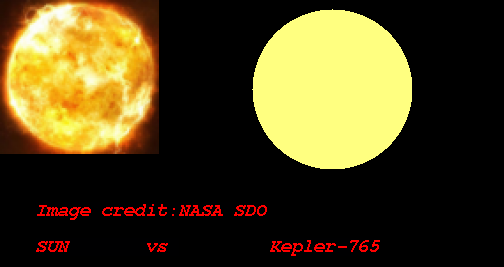

  • It is 1.1 times more massive and 1.1 times bigger compared with our Sun. The surface temperature is 6038 with its spectral types of G1
  • In this planetary system, the extrasolar planet Kepler-765 b orbits around the star Kepler-765 every 27.7 days with its orbital distance of 0.18 AU ( 27219968.2 km)

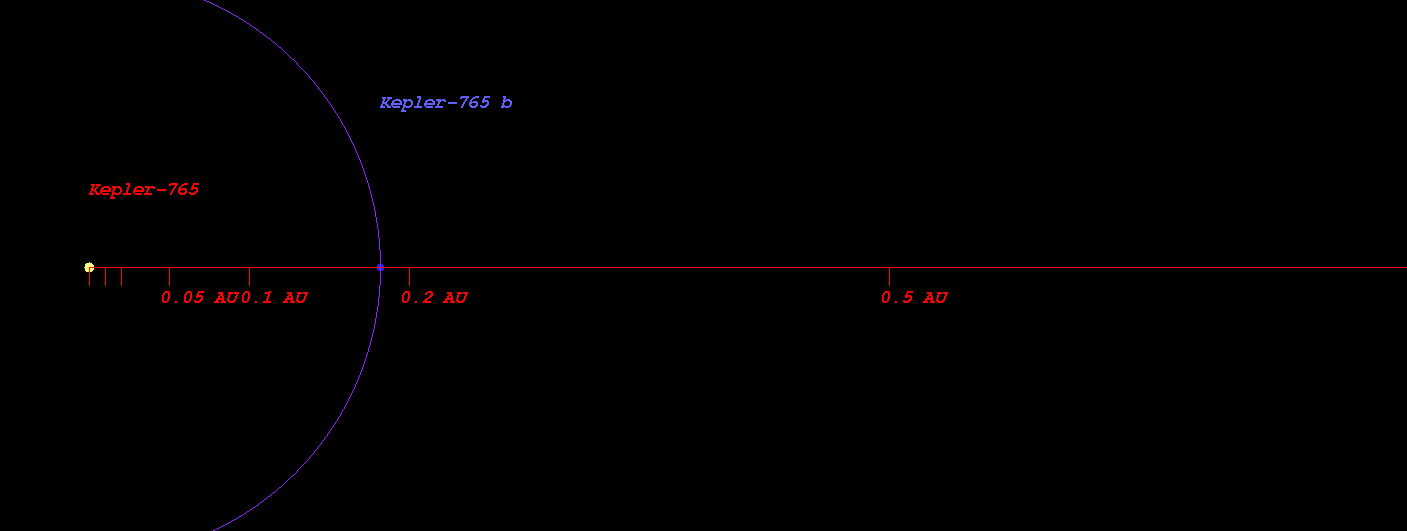

  • (Projected orbit of Kepler-765 b around its host star Kepler-765)


  • The Star Kepler-765 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.887 AU ( 132685689.7 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.226 AU ( 183406298.0 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.868 AU ( 279470610.5 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.749 AU ( 411253246.1 km)
  • Radiation at Planetary Boundary of Kepler-765 b : 62088.67 W/m2

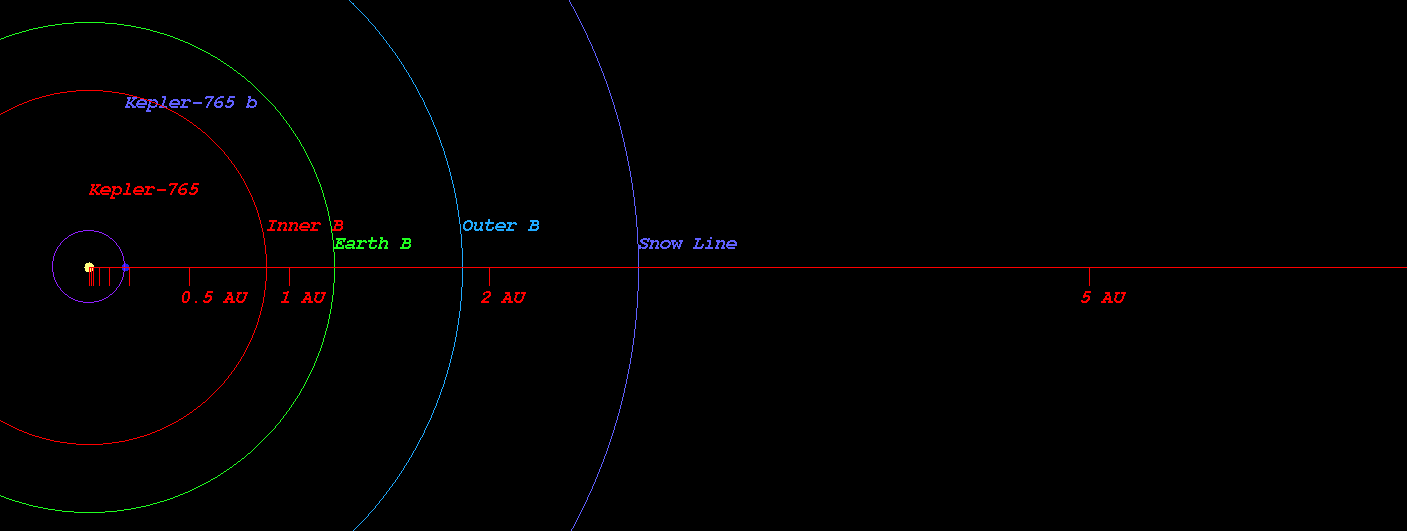

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-765)



  • Kopparapu Recent Venus for Star Kepler-765 distance : 0.905 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-765 distance : 1.146 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-765 distance : 1.107 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-765 distance : 1.213 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-765 distance : 2.011 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-765 distance : 2.121 AU

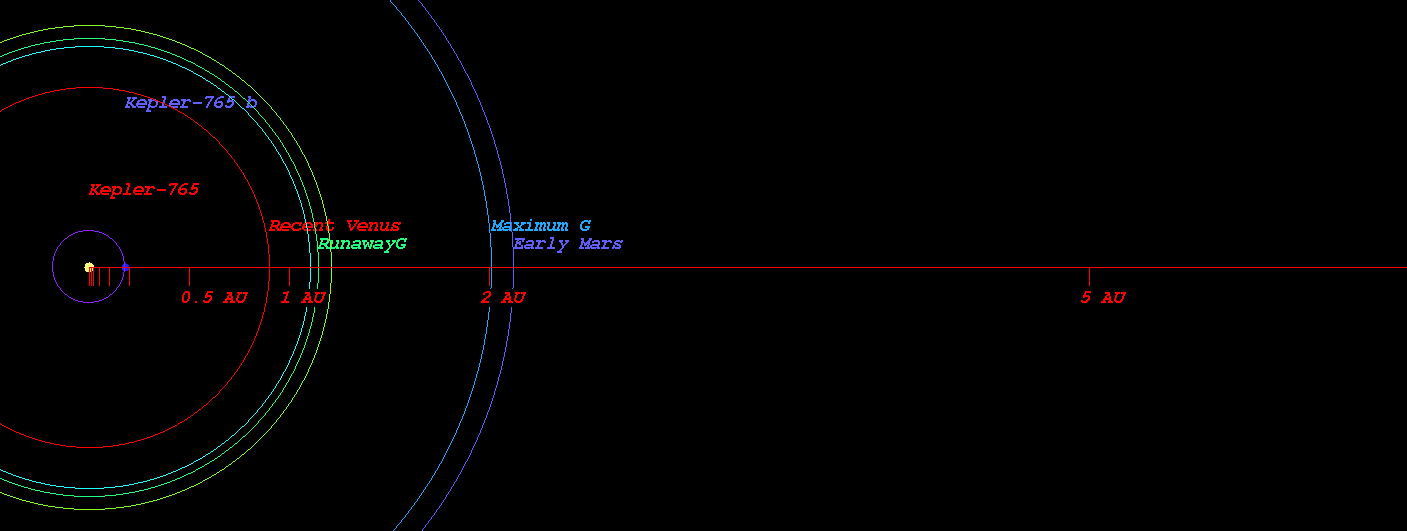

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-765)



  • Original Kopparapu Recent Venus for Star Kepler-765 distance : 0.911 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-765 distance : 1.177 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-765 distance : 1.205 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-765 distance : 2.047 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-765 distance : 2.128 AU

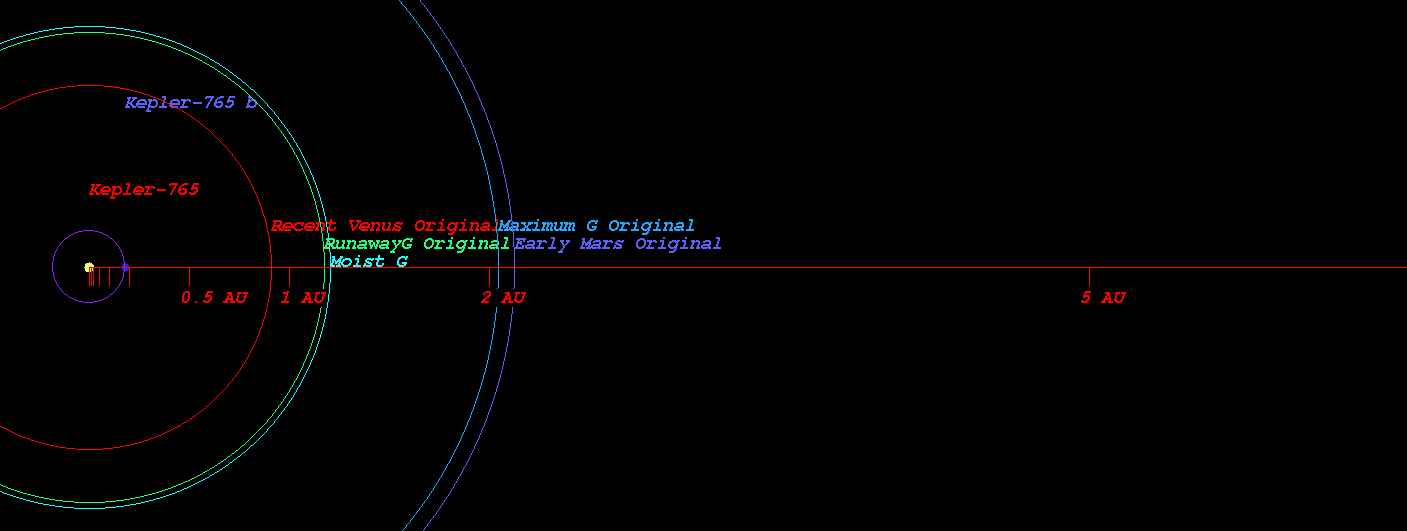

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-765)

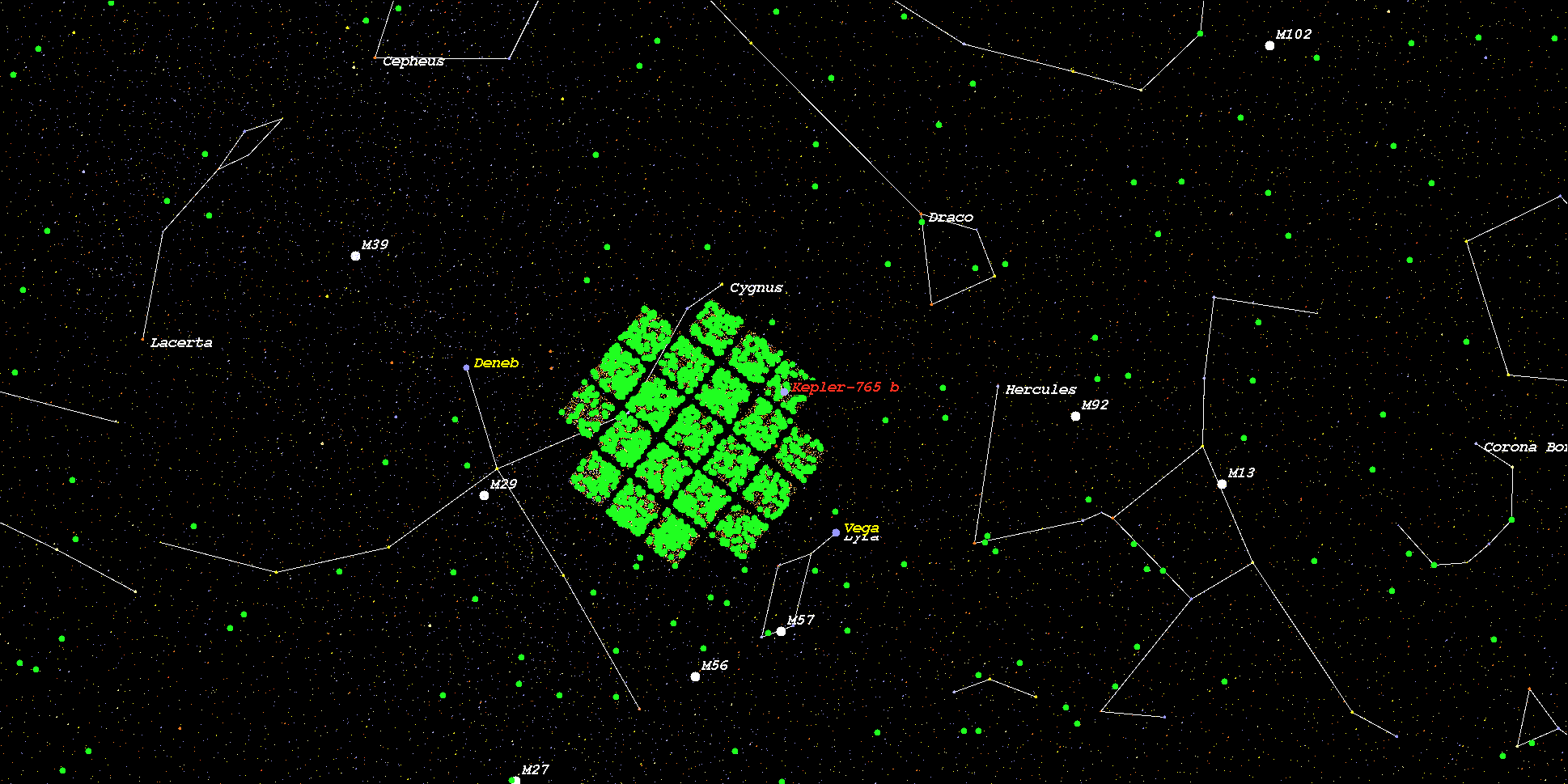

    (Position in Stellar Map of star Kepler-765 and its Exoplanet Kepler-765 b)



    (Zoomed position in Stellar Map of star Kepler-765 and its Exoplanet Kepler-765 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-765*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
