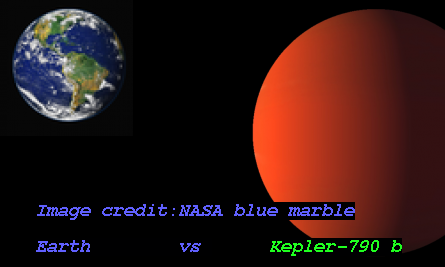

Imaginary Picture of Kepler-790 b

Display orbital revolution of Kepler-790 b around the hoststar Kepler-790
/
Exoplanet Name : Kepler-790 b
Alternate Name : "2MASS J19074010+3852199 b, K01207.01, KIC 3732821 b, KOI-1207 b, KOI-1207.01, WISE J190740.10+385220.0 b"
Status : Confirmed
Radius (Rjup / Re): 0.1940 (Rjup) 2.1745 (Rearth)
Mass (Mjup / Me): 0.0171 (Mjup) 5.4333 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1059 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0376
Orbital Period(Observed/Estimated) 13.73 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.1490
Star Radiation at Atmospheric Boundary: 47572.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 659.1 (K)
Blackbody T 0.3(K) 619.0 (K)
Blackbody T 0.7(K) 500.8 (K)
Tidally Locked Blackbody T 0.1(K) 783.9 (K)
Tidally Locked Blackbody T 0.3(K) 736.1 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-790
Alternate Name : "2MASS J19074010+3852199, KIC 3732821, KOI-1207, WISE J190740.10+385220.0"
Star Distance(LY) : 2292.9
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.8 (Msun Estimated)
Star Age : 4.9 (GY)
Temperature : 5198 (K)
Spectral type : K0
UV portion[%]: 5.0
Visible portion[%]: 40.1
IR portion[%]: 54.9
Metalicity : -0.1
Absolute Magnitude: 4.5
Apparent Magnitude: 13.8
Right Ascension(RA) 286.9171
Declination (DEC) 38.8722
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 665 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-790&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-790%20b/
Kepler-790 b
Kepler-790 b

  • Kepler-790 b is an exoplanet orbiting the star Kepler-790, located about 2292.9 light-years (703.0 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-790 has apparent magnitude of 13.8, with absolute magnitude of 4.5.

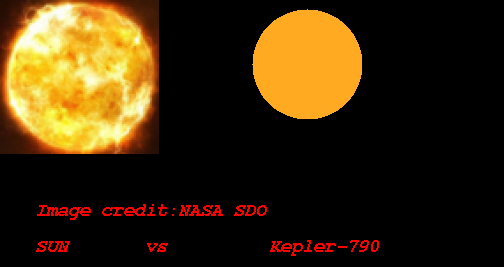

  • It is 0.8 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5198 with its spectral types of K0
  • In this planetary system, the extrasolar planet Kepler-790 b orbits around the star Kepler-790 every 13.7 days with its orbital distance of 0.11 AU ( 15843012.6 km)

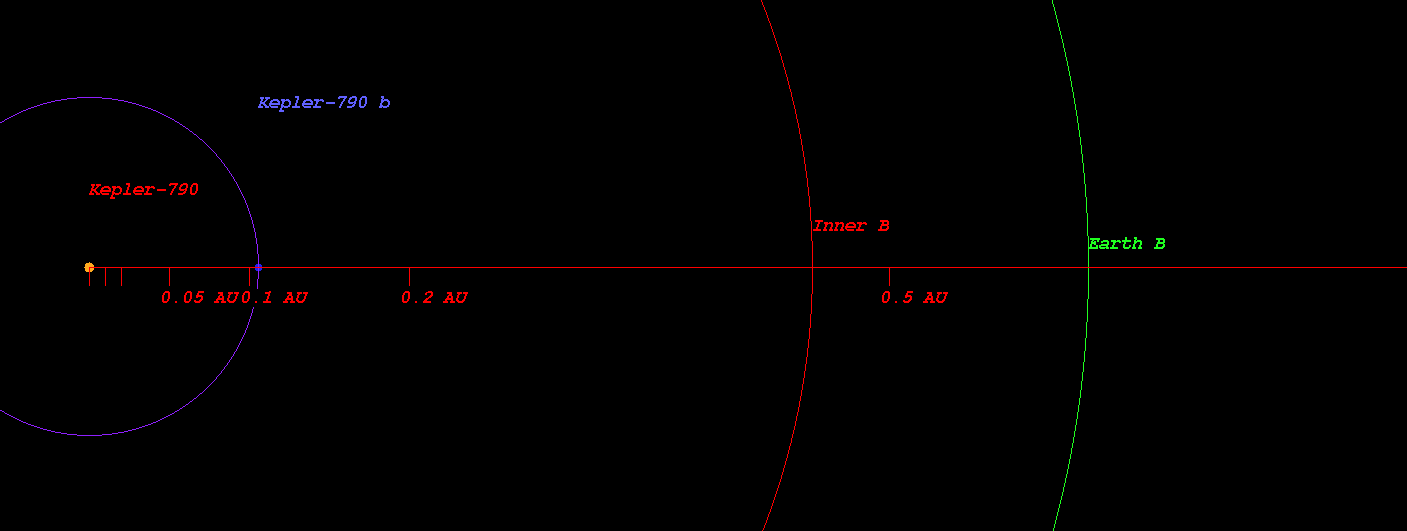

  • (Projected orbit of Kepler-790 b around its host star Kepler-790)


  • The Star Kepler-790 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.452 AU ( 67600197.2 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.625 AU ( 93441138.6 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.952 AU ( 142383616.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.401 AU ( 209523729.5 km)
  • Radiation at Planetary Boundary of Kepler-790 b : 47572.92 W/m2

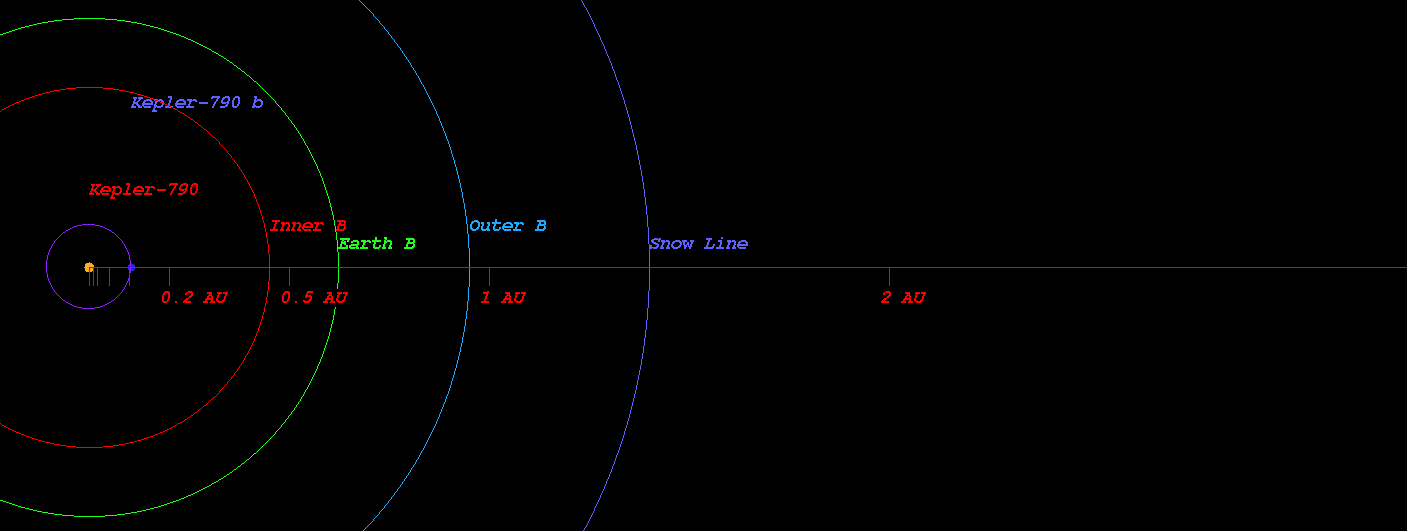

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-790)



  • Kopparapu Recent Venus for Star Kepler-790 distance : 0.484 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-790 distance : 0.613 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-790 distance : 0.592 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-790 distance : 0.649 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-790 distance : 1.102 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-790 distance : 1.163 AU

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-790)



  • Original Kopparapu Recent Venus for Star Kepler-790 distance : 0.480 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-790 distance : 0.631 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-790 distance : 0.635 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-790 distance : 1.121 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-790 distance : 1.166 AU

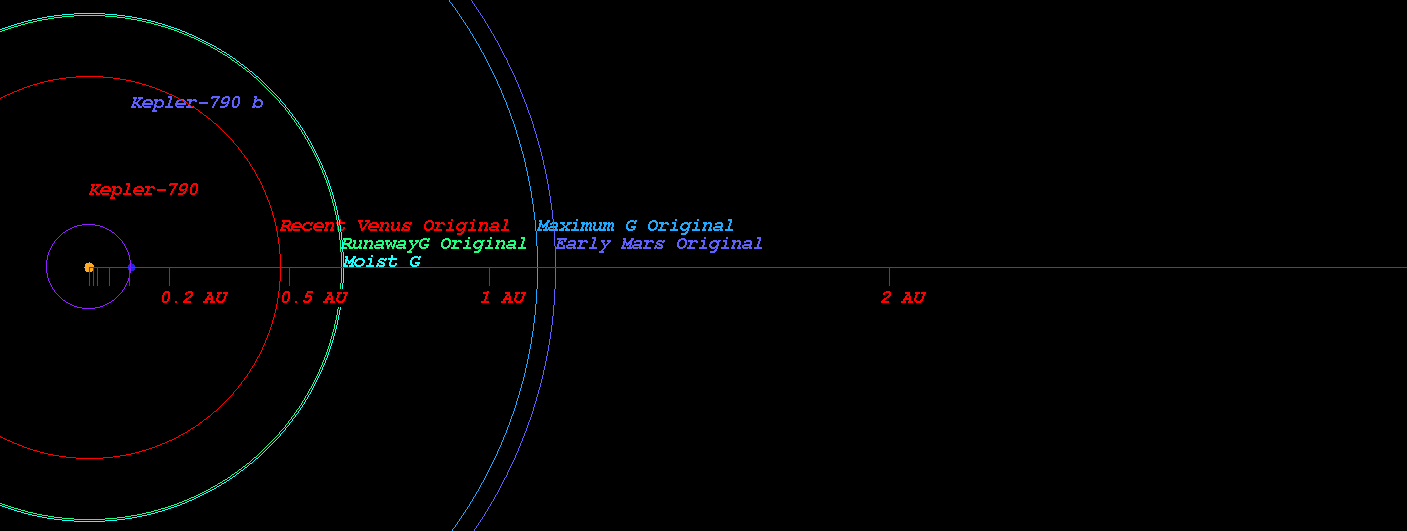

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-790)



    (Position in Stellar Map of star Kepler-790 and its Exoplanet Kepler-790 b)

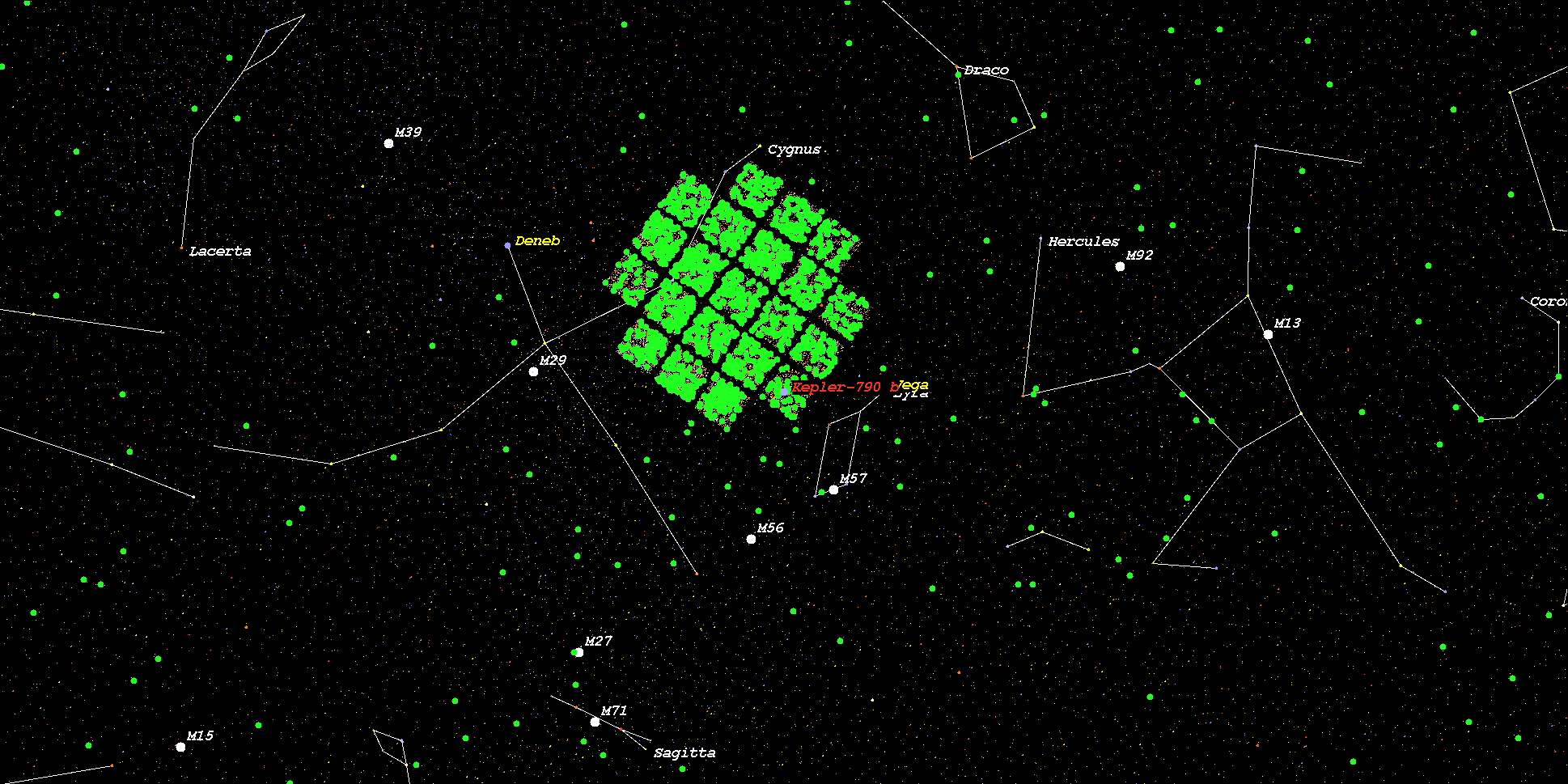

    (Zoomed position in Stellar Map of star Kepler-790 and its Exoplanet Kepler-790 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-790*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
