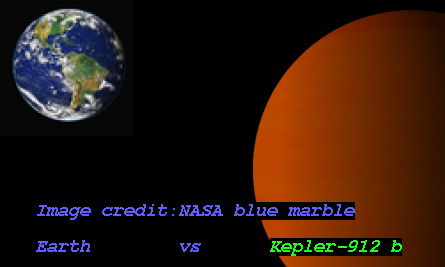

Imaginary Picture of Kepler-912 b

Display orbital revolution of Kepler-912 b around the hoststar Kepler-912
/
Exoplanet Name : Kepler-912 b
Alternate Name : "2MASS J19522668+4145300 b, K01626.01, KIC 6387542 b, KOI-1626 b, KOI-1626.01, WISE J195226.69+414529.8 b"
Status : Confirmed
Radius (Rjup / Re): 0.2500 (Rjup) 2.8022 (Rearth)
Mass (Mjup / Me): 0.0216 (Mjup) 6.8785 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0372 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0069
Orbital Period(Observed/Estimated) 2.53 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.8760
Star Radiation at Atmospheric Boundary: 3058101.5 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1866.4 (K)
Blackbody T 0.3(K) 1752.7 (K)
Blackbody T 0.7(K) 1418.2 (K)
Tidally Locked Blackbody T 0.1(K) 2219.5 (K)
Tidally Locked Blackbody T 0.3(K) 2084.4 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-912
Alternate Name : "2MASS J19522668+4145300, KIC 6387542, KOI-1626, WISE J195226.69+414529.8"
Star Distance(LY) : 6551.5
Stellar Radius(Rsun) : 1.8 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 3.2 (GY)
Temperature : 5659 (K)
Spectral type : G0
UV portion[%]: 7.5
Visible portion[%]: 44.2
IR portion[%]: 48.3
Metalicity : 0.0
Absolute Magnitude: 2.5
Apparent Magnitude: 14.0
Right Ascension(RA) 298.1112
Declination (DEC) 41.7583
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 743 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-912&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-912%20b/
Kepler-912 b
Kepler-912 b

  • Kepler-912 b is an exoplanet orbiting the star Kepler-912, located about 6551.5 light-years (2008.7 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-912 has apparent magnitude of 14.0, with absolute magnitude of 2.5.

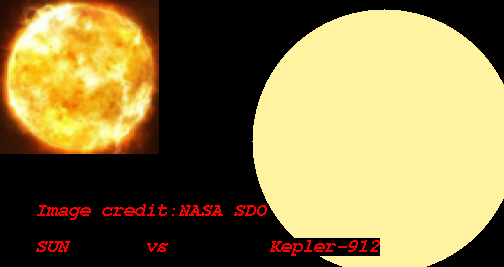

  • It is 1.1 times more massive and 1.8 times bigger compared with our Sun. The surface temperature is 5659 with its spectral types of G0
  • In this planetary system, the extrasolar planet Kepler-912 b orbits around the star Kepler-912 every 2.5 days with its orbital distance of 0.04 AU ( 5566950.1 km)

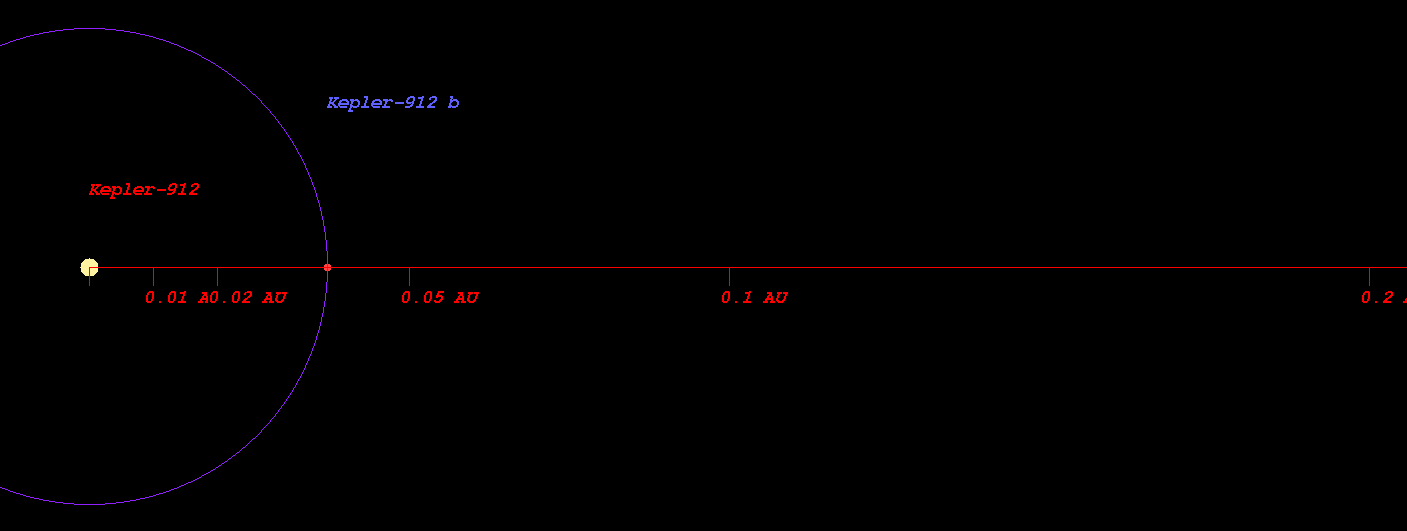

  • (Projected orbit of Kepler-912 b around its host star Kepler-912)


  • The Star Kepler-912 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.273 AU ( 190446751.4 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.760 AU ( 263247180.1 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.681 AU ( 401130446.0 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.946 AU ( 590281023.7 km)
  • Radiation at Planetary Boundary of Kepler-912 b : 3058101.51 W/m2

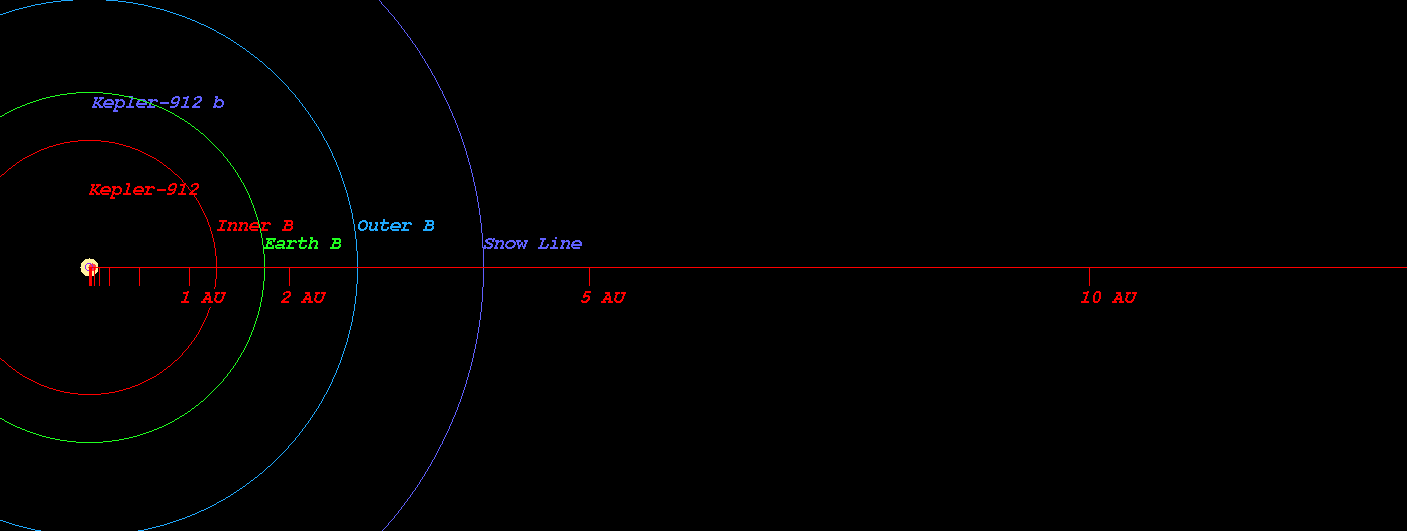

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-912)



  • Kopparapu Recent Venus for Star Kepler-912 distance : 1.329 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-912 distance : 1.683 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-912 distance : 1.625 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-912 distance : 1.782 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-912 distance : 2.981 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-912 distance : 3.145 AU

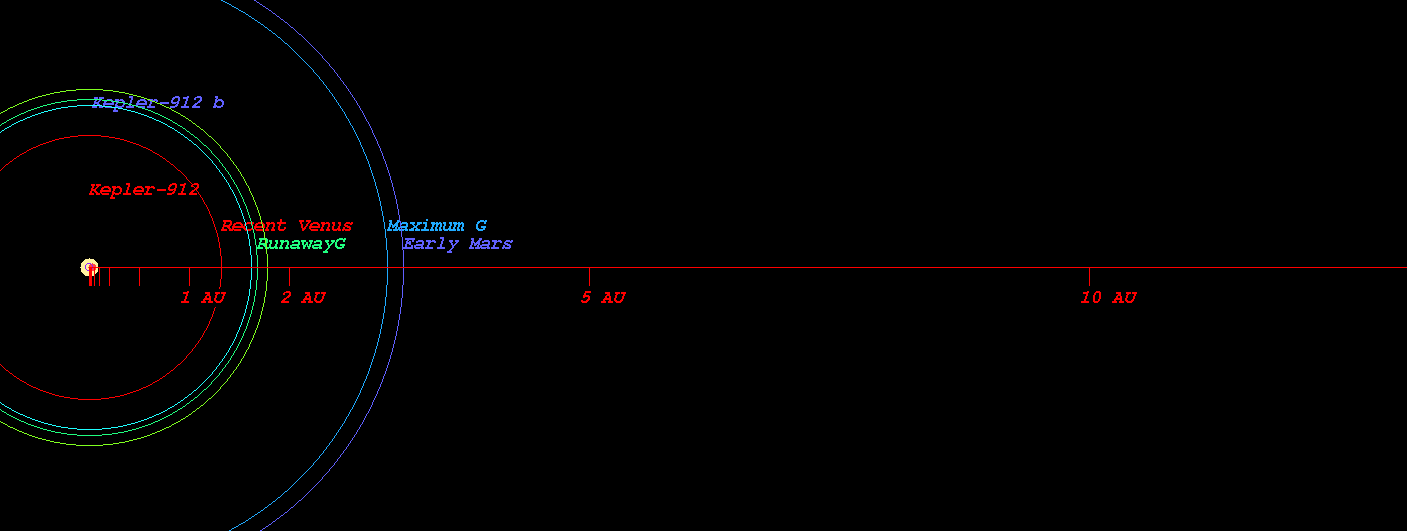

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-912)



  • Original Kopparapu Recent Venus for Star Kepler-912 distance : 1.328 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-912 distance : 1.730 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-912 distance : 1.757 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-912 distance : 3.033 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-912 distance : 3.155 AU

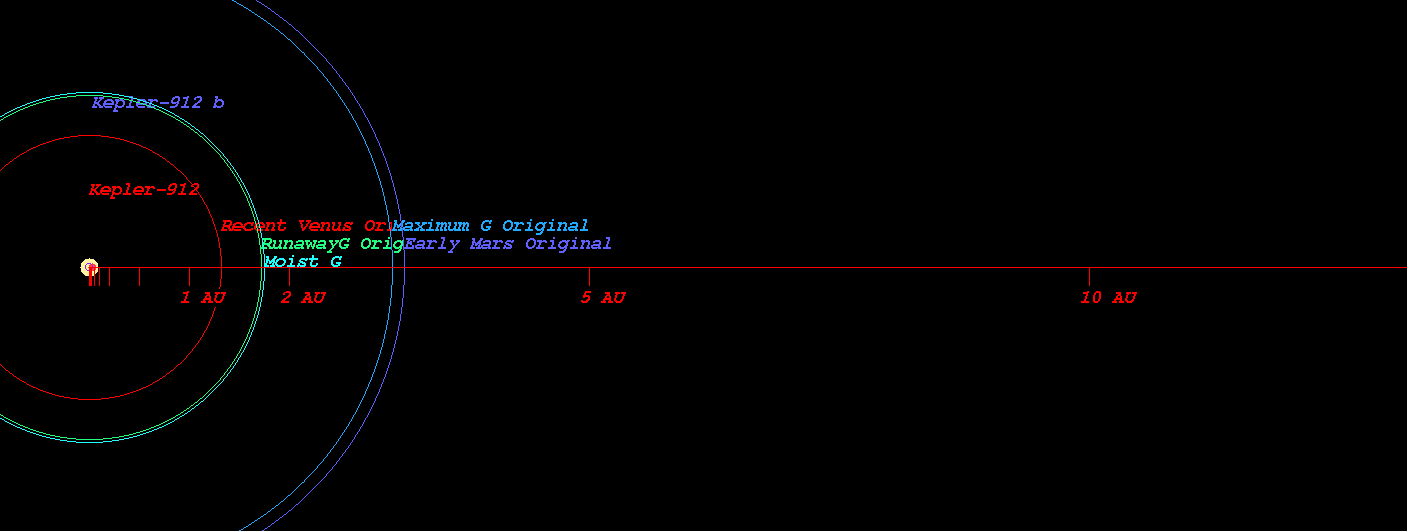

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-912)



    (Position in Stellar Map of star Kepler-912 and its Exoplanet Kepler-912 b)



    (Zoomed position in Stellar Map of star Kepler-912 and its Exoplanet Kepler-912 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-912*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
